Drive Bevel Gear M1.5-27R and Driven Bevel Gear M1.5-27L
ECD767-2 Miniature Bevel Gear
ER20M‑M1.5‑Z19R Right‑hand Gear and ER20M‑M1.5‑Z19L Left‑hand Gear
QZ‑058‑C & QZ‑059‑C are right‑hand and left‑hand spiral bevel gears for reducers, marked ER20M‑M1.5‑Z19R / ER20M‑M1.5‑Z19L, made of 20CrMnTi.
Specifications: module 1.5, 19 teeth, 35° helix angle.
Precision‑processed via gear milling, heat treatment, shot blasting, gear grinding and keyway machining, with excellent wear resistance and impact resistance for reducer transmission.
F142XF142-10-18 Left-Hand Bevel Gear, Gear Grinding
CL-003-C1 is a 20CrMo left-hand spiral bevel gear, model F142XF142-10-18.
Parameters: 20° pressure angle, module 1.5, 20 teeth, speed ratio 1, 35° left-hand spiral angle.
Processed by sawing, turning, gear milling, heat treatment, shot peening and precision gear grinding. With high precision and good wear resistance, it is an ideal transmission part for reducers.
FBJG-230802-002 (20L Module 2 Bevel Gear) and FBJG-230802-003 (30R Module 2 Bevel Gear)
QZ-015-C
Module 2 Left-Hand Spiral Bevel Gear, 20° pressure angle, 20 teeth, 35°L spiral angle.
Size: ID 10mm, OD 43.19mm, total length 17.96mm, weight 0.0948kg.
20CrMo steel, finished with heat treatment, shot blasting and precision grinding. Applied for power tools.
QZ-016-C
Module 2 Right-Hand Spiral Bevel Gear, 20° pressure angle, 20 teeth, 35°R spiral angle.
Size: ID 10mm, OD 43.19mm, total length 17.96mm, weight 0.2108kg.
20CrMo alloy steel with full precision machining & heat treatment. Suitable for power tool transmission parts.

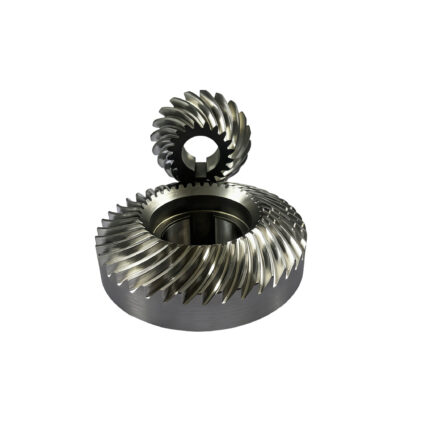

FP22999704-075-3 Gear Shaft and FP22999704-075-3 Gear
FuShi-001-C (FP22999704-075-3 left-hand spiral bevel gear shaft) and FuShi-002-C (FP22999704-075-3 right-hand spiral bevel gear) are a pair of 20CrMo reducer gear set.
With 20° pressure angle and module 2, they are designed with 18 teeth / 43 teeth and 35° left/right spiral angle, speed ratio 2.39.
Manufactured through turning, gear milling, heat treatment, shot peening, precision grinding and keyway processing.
The gear set owns high precision, good wear resistance, stable meshing and low noise, widely used for reducer power transmission assembly.
Gear 1, 60T Left-Hand (Module 1.5, 60 Teeth) and Gear 2, 60T Left-Hand (Module 1.5, 60 Teeth) and Gear 3, 30T Right-Hand (Module 1.5, 30 Teeth)
HAT085 (1:1) Left-hand Bevel Gear
HYD-158-C is HAT085(1:1) left-hand spiral bevel gear with 20° pressure angle, module 1.5, 23 teeth, speed ratio 1 and 35° left-hand spiral angle.
Manufactured from 20CrMo through turning, gear milling, heat treatment, shot peening, facing, gear grinding and wire-cut keyway processes.
It has high precision, good wear resistance and stable transmission performance, ideal for reducer transmission assembly.

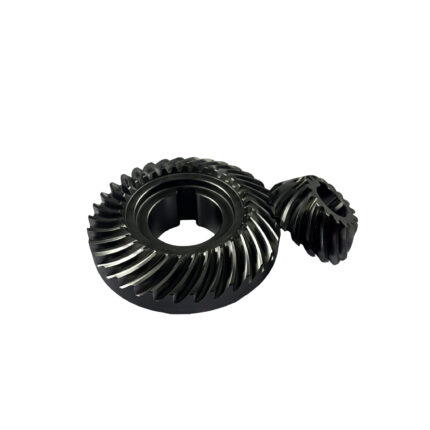

HC-001-C and HC-002-C
HC-001-C and HC-002-C are a pair of 20CrMo spiral bevel gears for reducer transmission.
Both with 20° pressure angle and module 2; 15 teeth left-hand and 24 teeth right-hand respectively, with a speed ratio of 1.6.
Manufactured by sawing, turning, gear milling, heat treatment, shot peening, boring & facing and precision gear grinding.
They own high precision, good wear resistance and stable meshing performance, serving as professional matched gears for reducers.
HL-T19 Right-hand Gear
HL-T19 right-hand spiral bevel gear (exclusive for sewing machinery): 20° pressure angle, 1.3 module, 19 teeth, 35°/R spiral angle, 10mm inner diameter, 25mm shaft diameter, 24.7mm outer tooth diameter, 49.92mm overall length, 0.3003kg weight. Made of 20CrMo via multi-step precision processes, it meets the transmission needs of sewing equipment.
JY-FZ-T27 Input Power Head Gear
FZ-002-C is JY-FZ-T27 left-hand input power head spiral bevel gear for sewing equipment.
Parameters: 20° pressure angle, module 1.5, 27 teeth, speed ratio 1, 35° left-hand spiral angle.
Made of 20CrMo, processed by turning, gear milling, heat treatment, shot peening, wire-cut keyway and precision grinding.
It has high precision, good wear resistance and stable transmission, ideal for power head transmission of sewing machines.
KA09104 Small Steel Gear 15T
KA09104 Small Steel Gear 15T is a dedicated spiral bevel gear for reducers. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.54, 15 teeth, and a spiral angle of 10°/R, with a shaft diameter of 10mm, a tooth outer diameter of 28mm, a total length of 59.25mm, and a single weight of 0.0541kg. Manufactured via multiple precision machining and surface treatment processes, it delivers stable transmission and high wear resistance.
