2024479 Gear
$3.00piece
2024413（2024405 )
$2.00piece

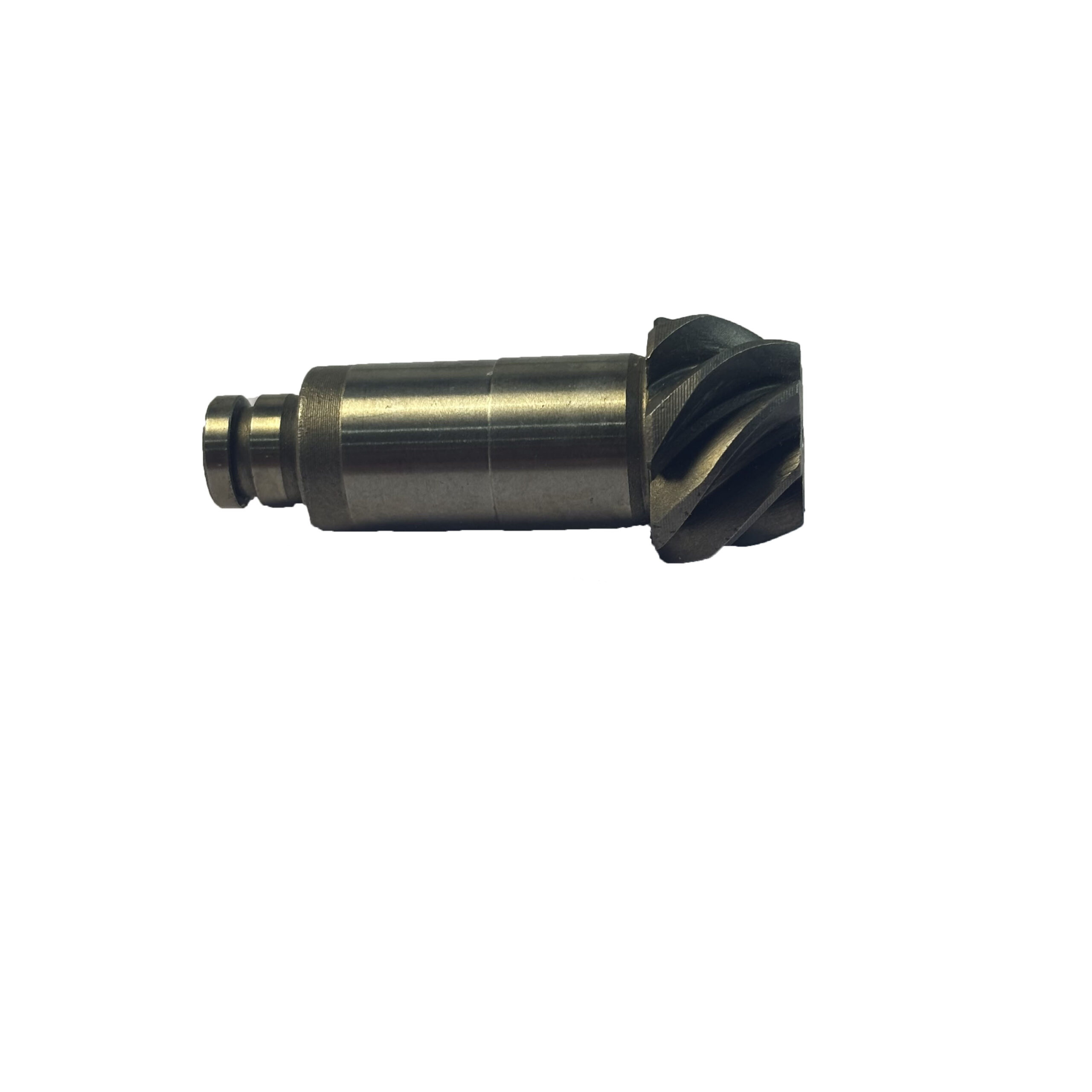

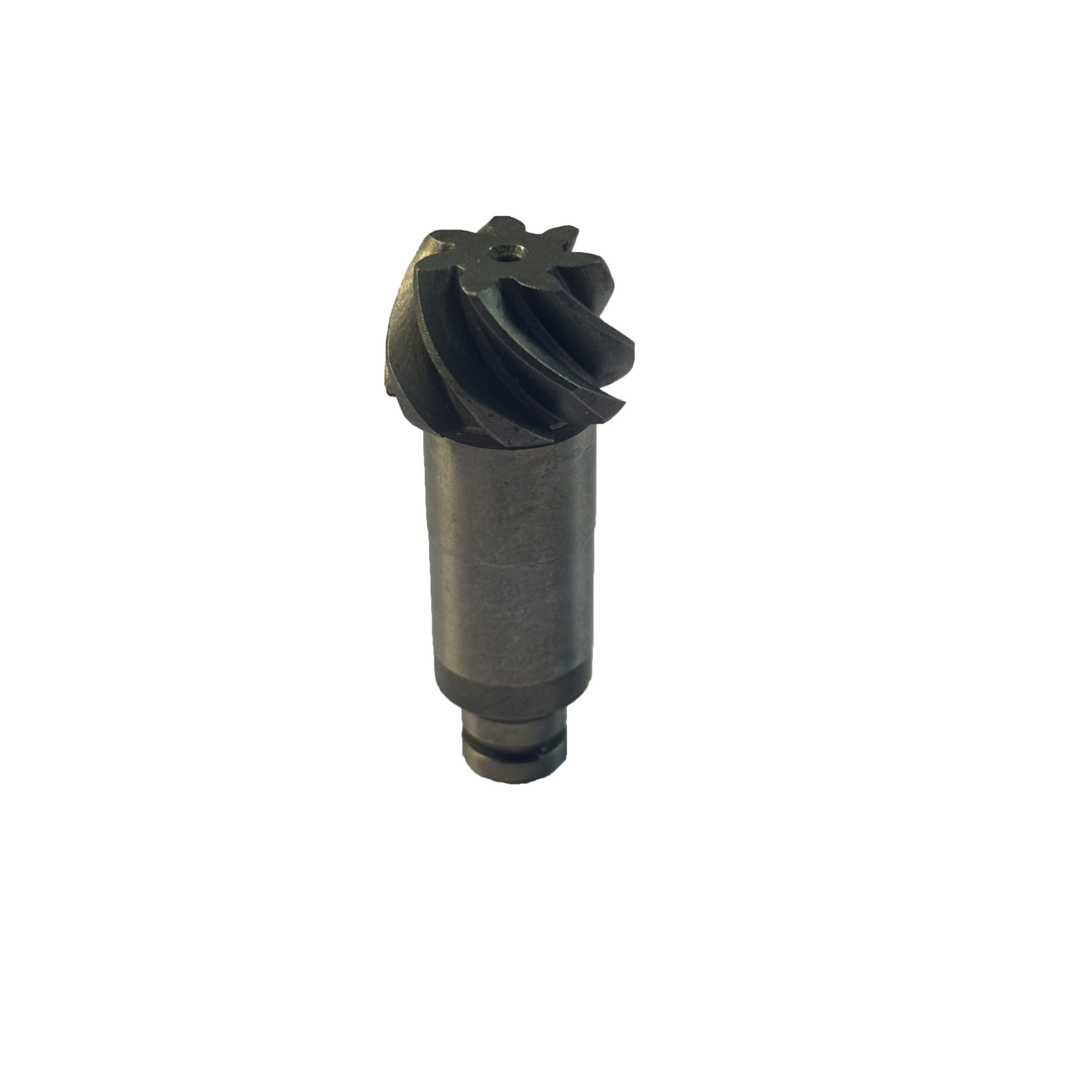

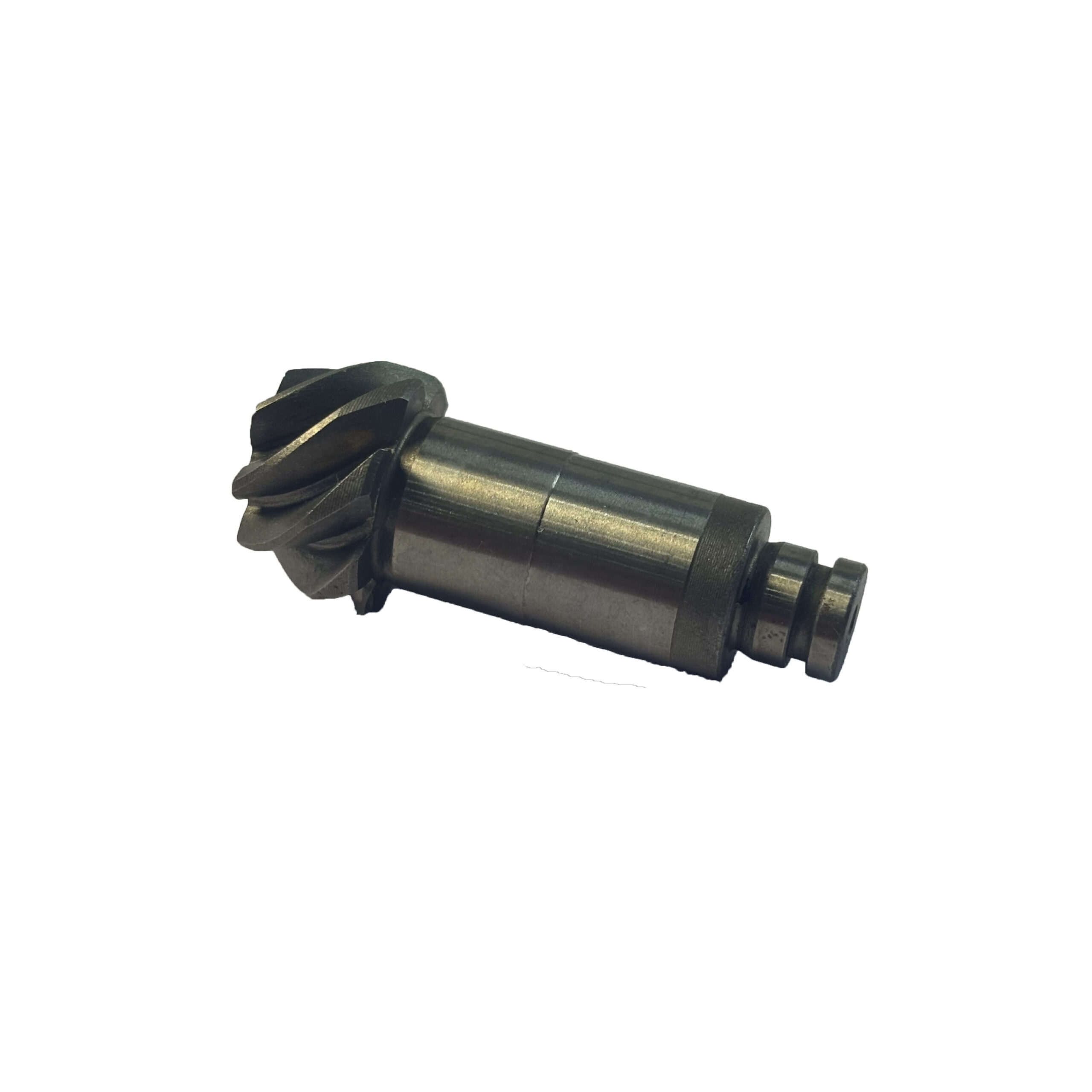

2024413 (2024405) Spiral Bevel Gear is a dedicated transmission component for electric tools. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.75, 7 teeth, and a spiral angle of 35°/L, with a shaft diameter of 12mm, an outer diameter of 17.1mm, a total length of 41mm, and a single weight of 0.0344kg. Produced via multiple grinding and full inspection procedures, it features high transmission accuracy and low loss.
Description
Additional information
| weight |
0.0344 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Precision Casting |
