KA09108 Counter Gear 20T
$3.00piece

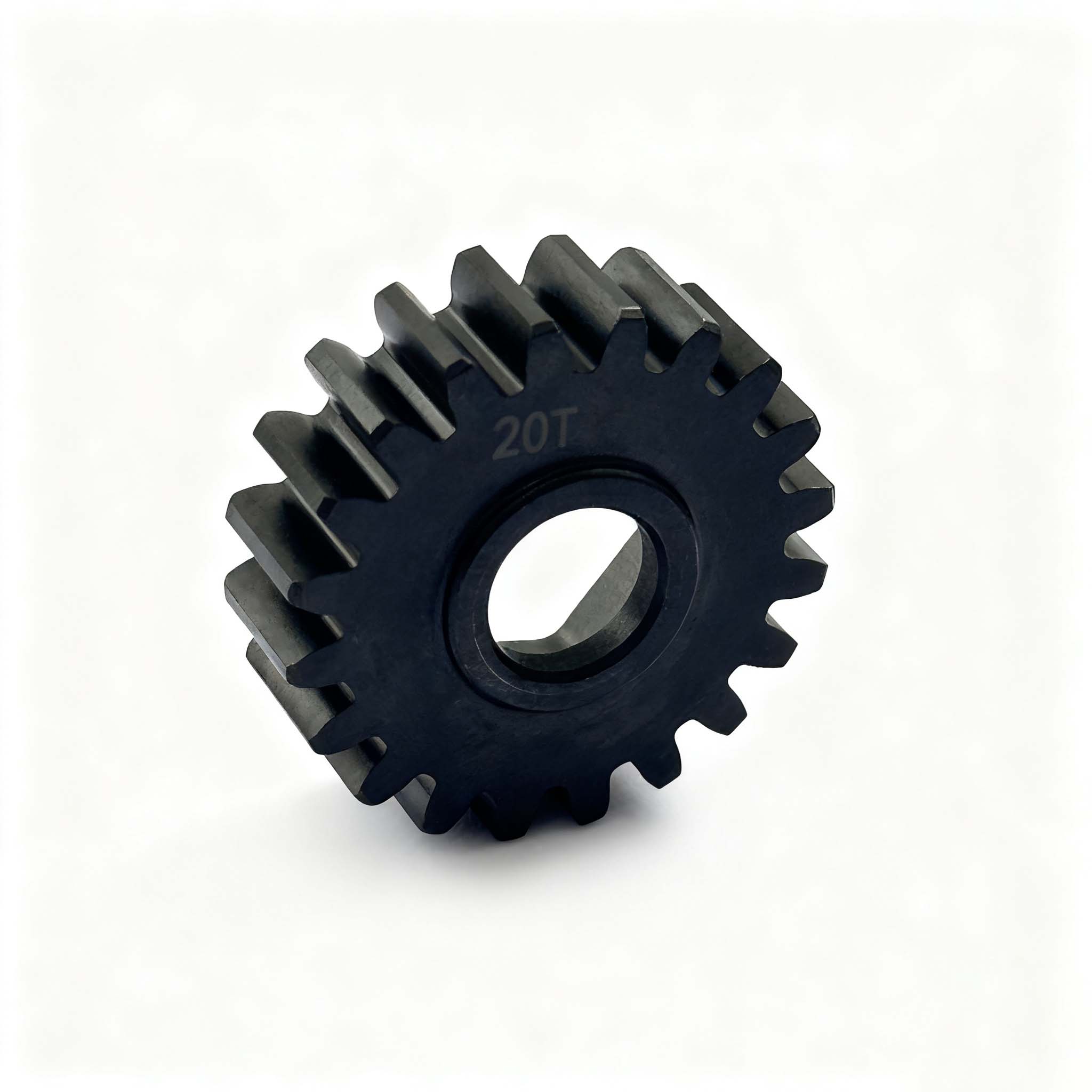

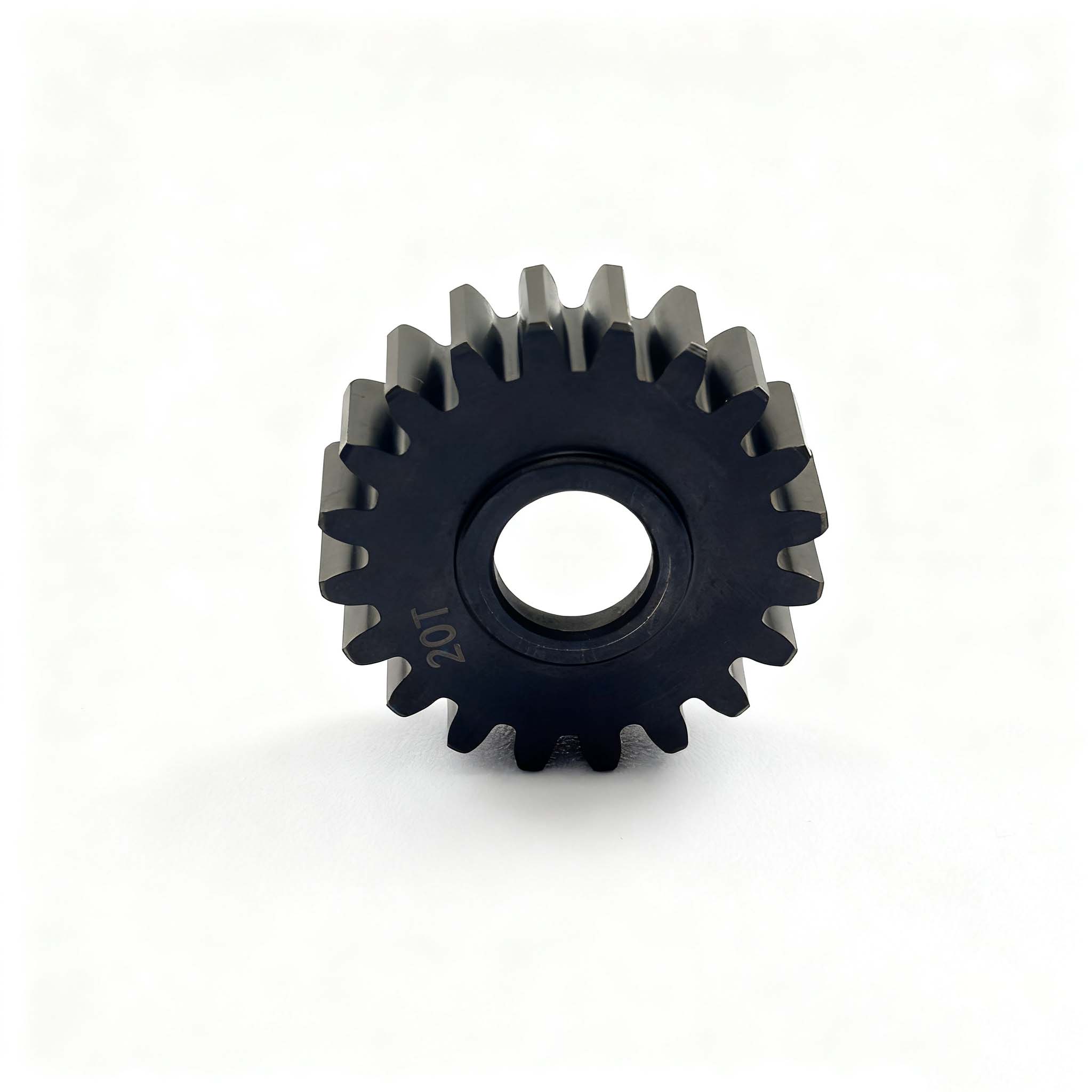

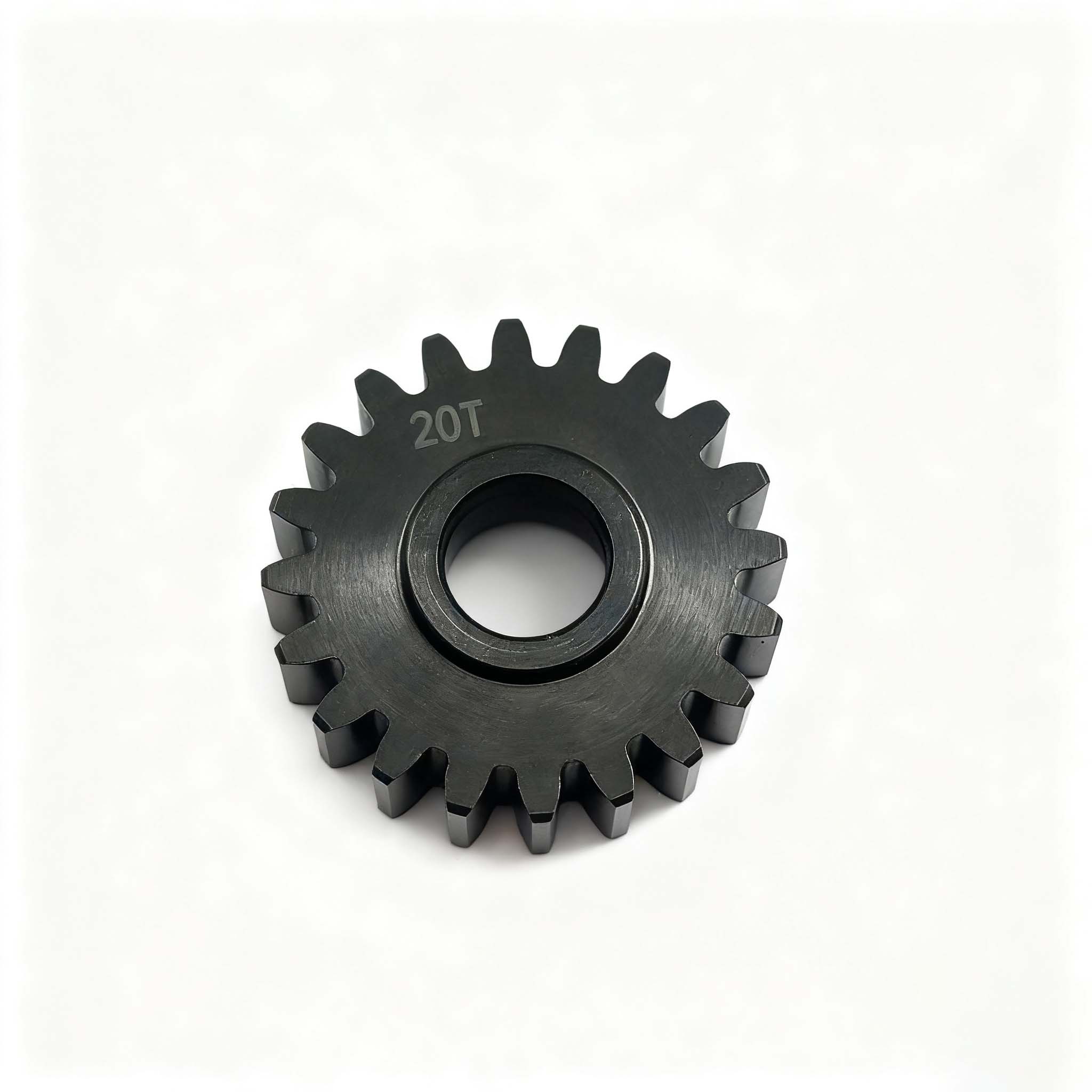

KA09108 20-Teeth Counter Spur Gear
Made of 20CrMnTi, it has a pressure angle of 20°, module of 1.5, helix angle of 0°, addendum circle diameter of 33mm, overall length of 13.9mm and weight of 0.0546kg, with a 12mm hexagonal bore design. Manufactured through a series of precision processes, it is wear-resistant and durable, serving as a core component for reverse transmission of reducers.
Description
Product Model: KA09108
Product Name: 20-Teeth Counter Spur Gear

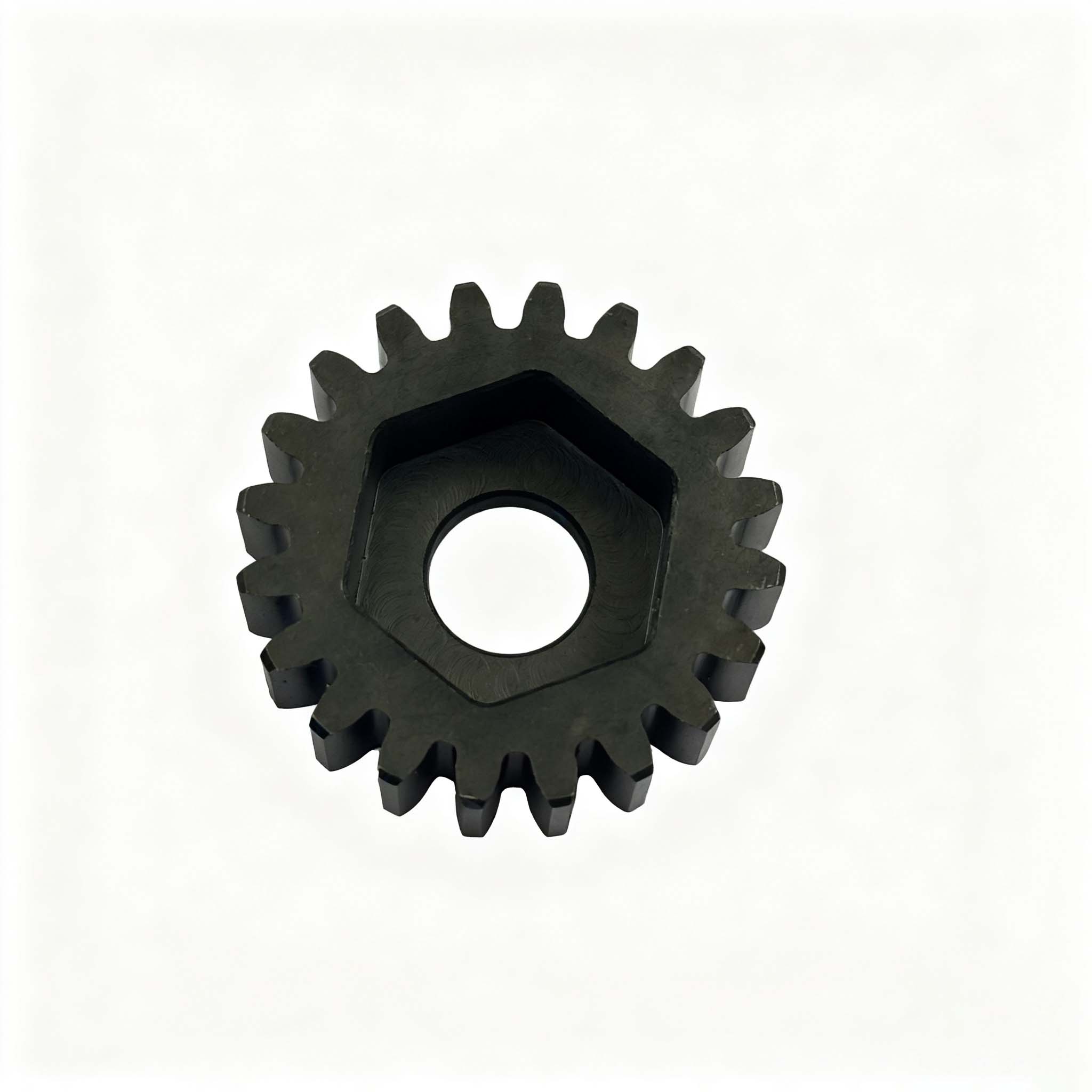

This product is a core transmission spur gear designed for reducers, made of high-quality alloy steel 20CrMnTi with excellent wear resistance and structural strength. Its key technical parameters are as follows: pressure angle of 20°, module of 1.5, 20 teeth, helix angle of 0°, addendum circle diameter of 33mm, overall length of 13.9mm, and weight of 0.0546kg. It features a 12mm hexagonal bore structure, enabling stable power connection and transmission.
The production process strictly follows the full workflow of normalizing – turning – hobbing – heat treatment – shot blasting – wire cutting – blackening – marking. Multiple precision machining and surface treatment procedures ensure the gear’s tooth profile accuracy, dimensional tolerance and surface quality, effectively reducing noise and wear during transmission. As a core transmission component of reducers, this gear is mainly used for reverse power transmission and is suitable for various mechanical equipment scenarios requiring precise reverse transmission.
Additional information
| weight |
0.0546 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
