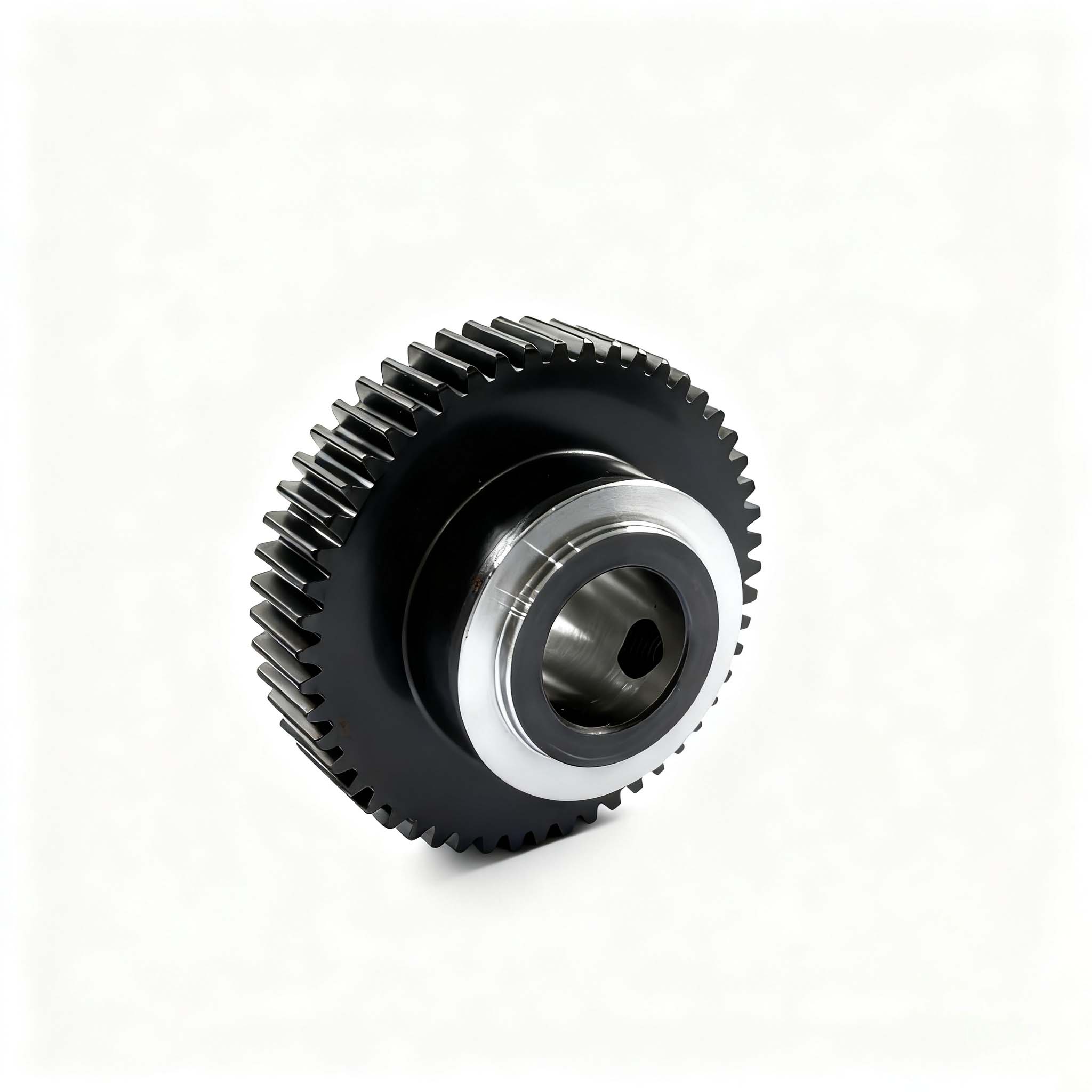

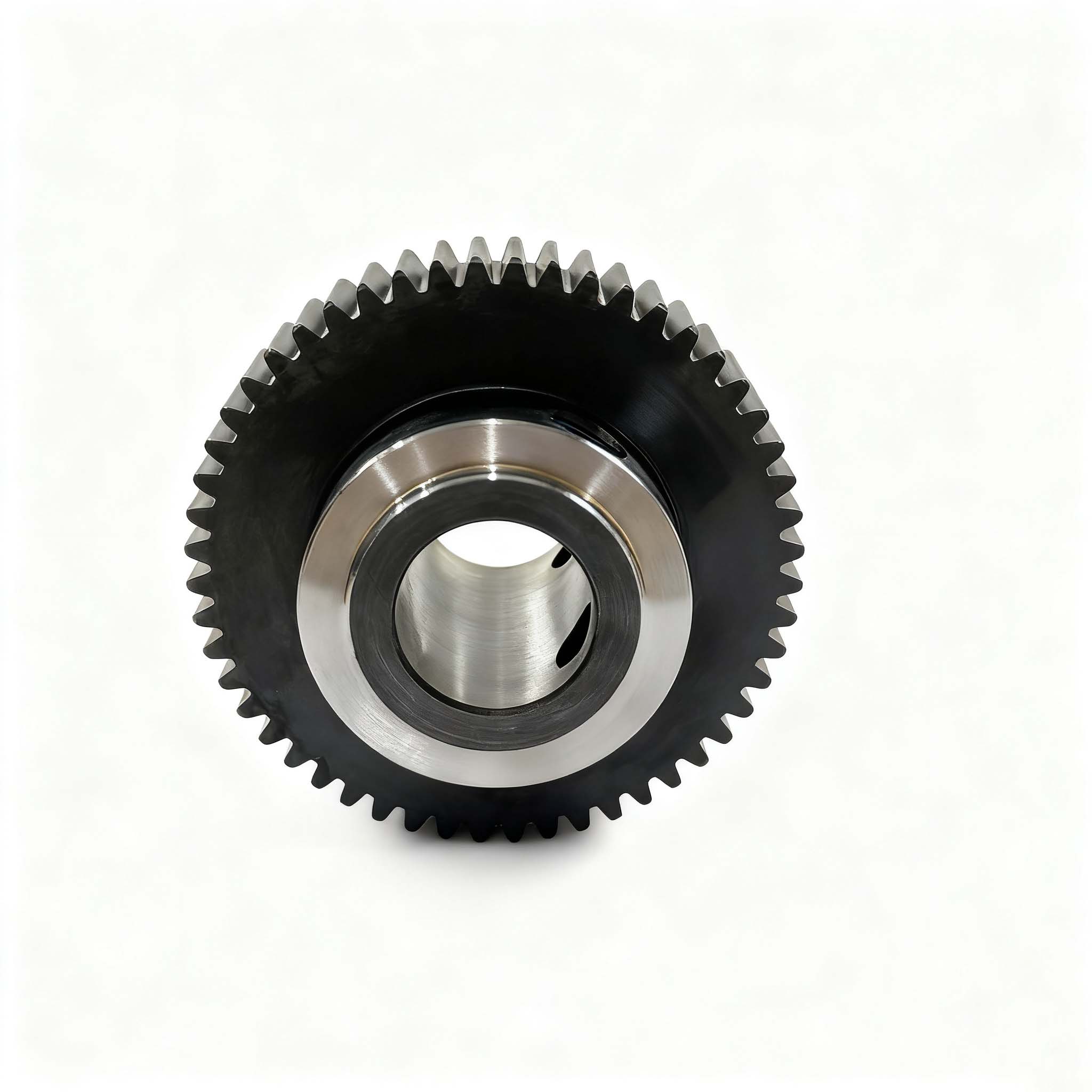

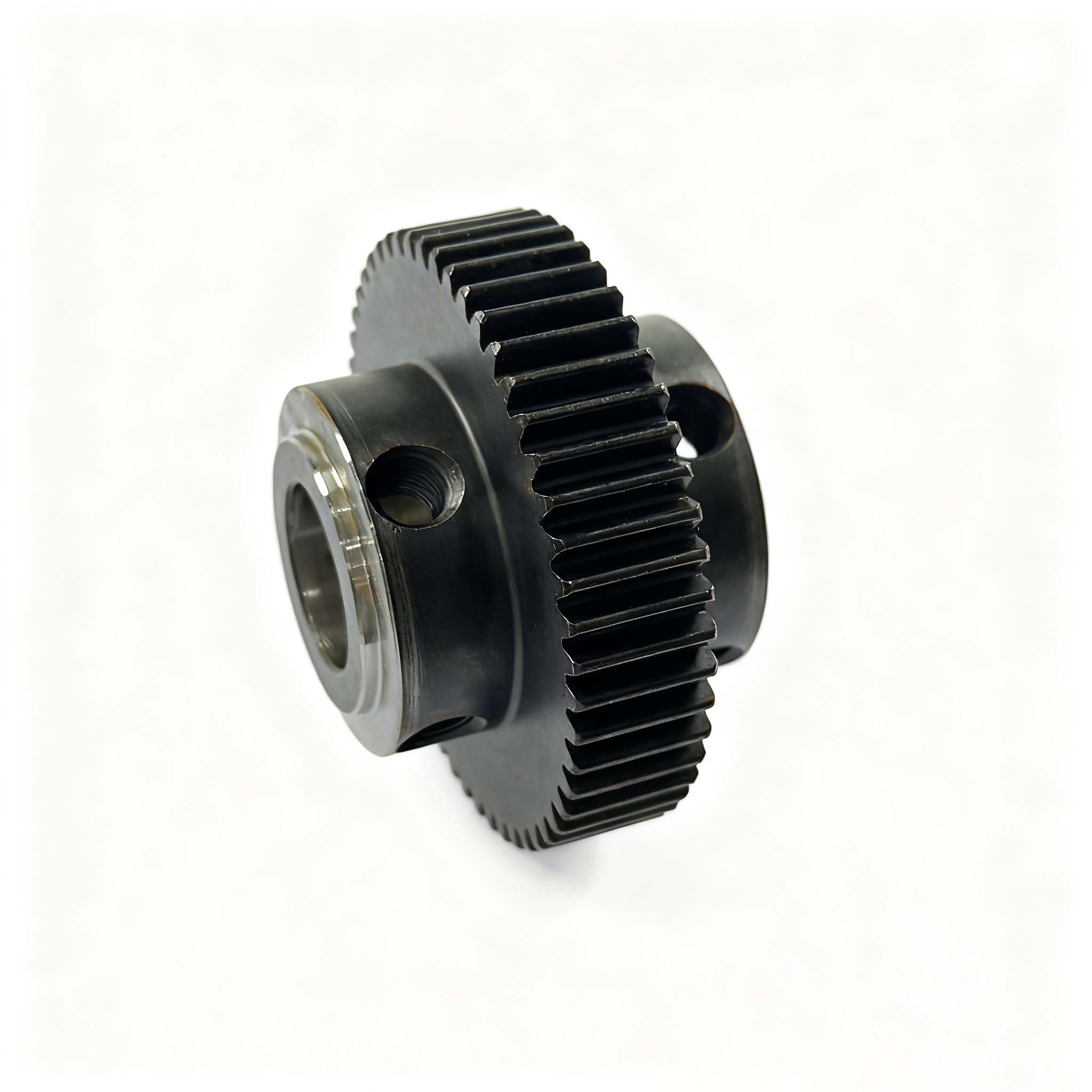

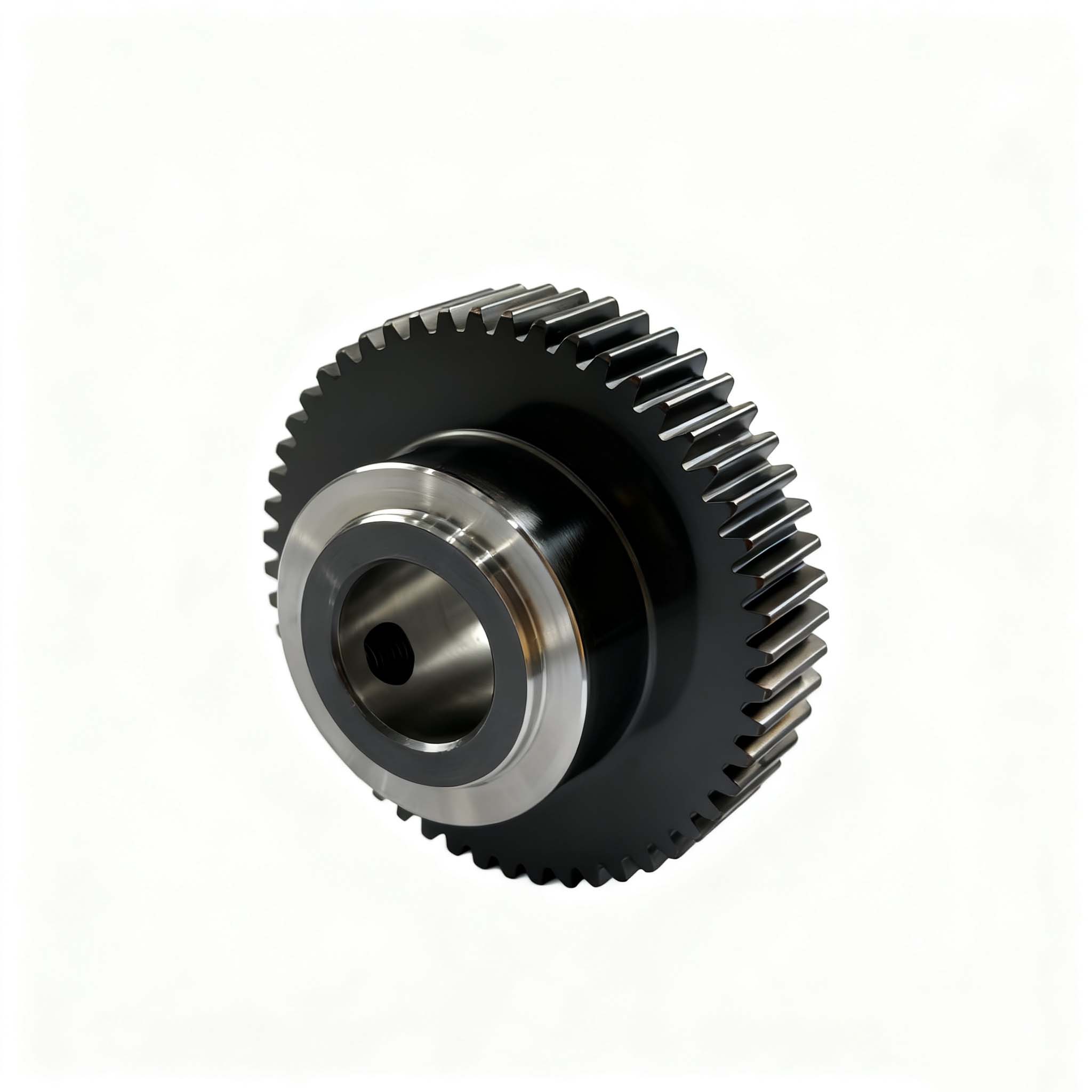

12BGL-8X-Head-006-Lower Shaft Gear-52-1.25

Name: 12BGL-8X-Head-006-Lower Shaft Gear-52-1.25
SKU: GL-002-C
Availability: InStock

$10.00piece

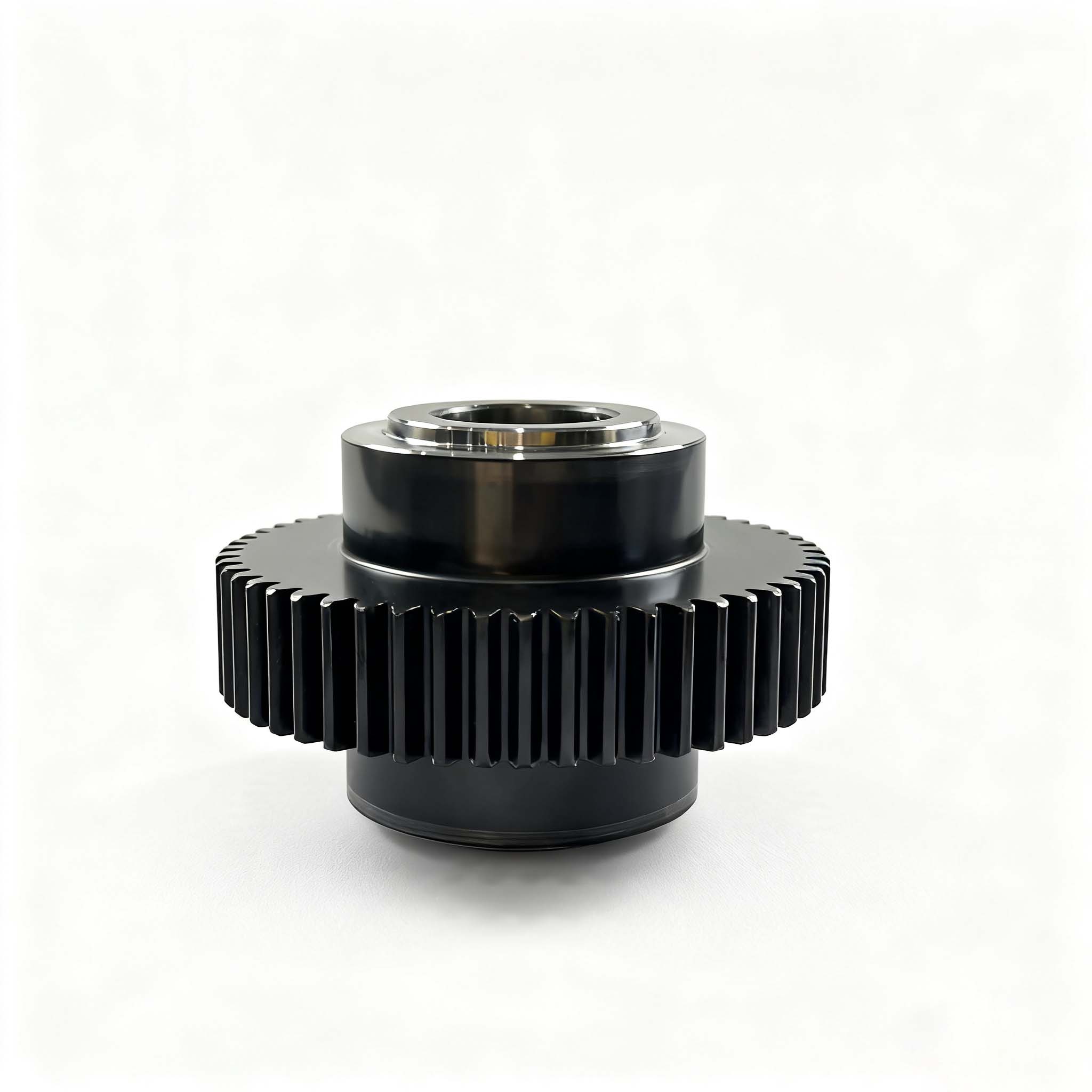

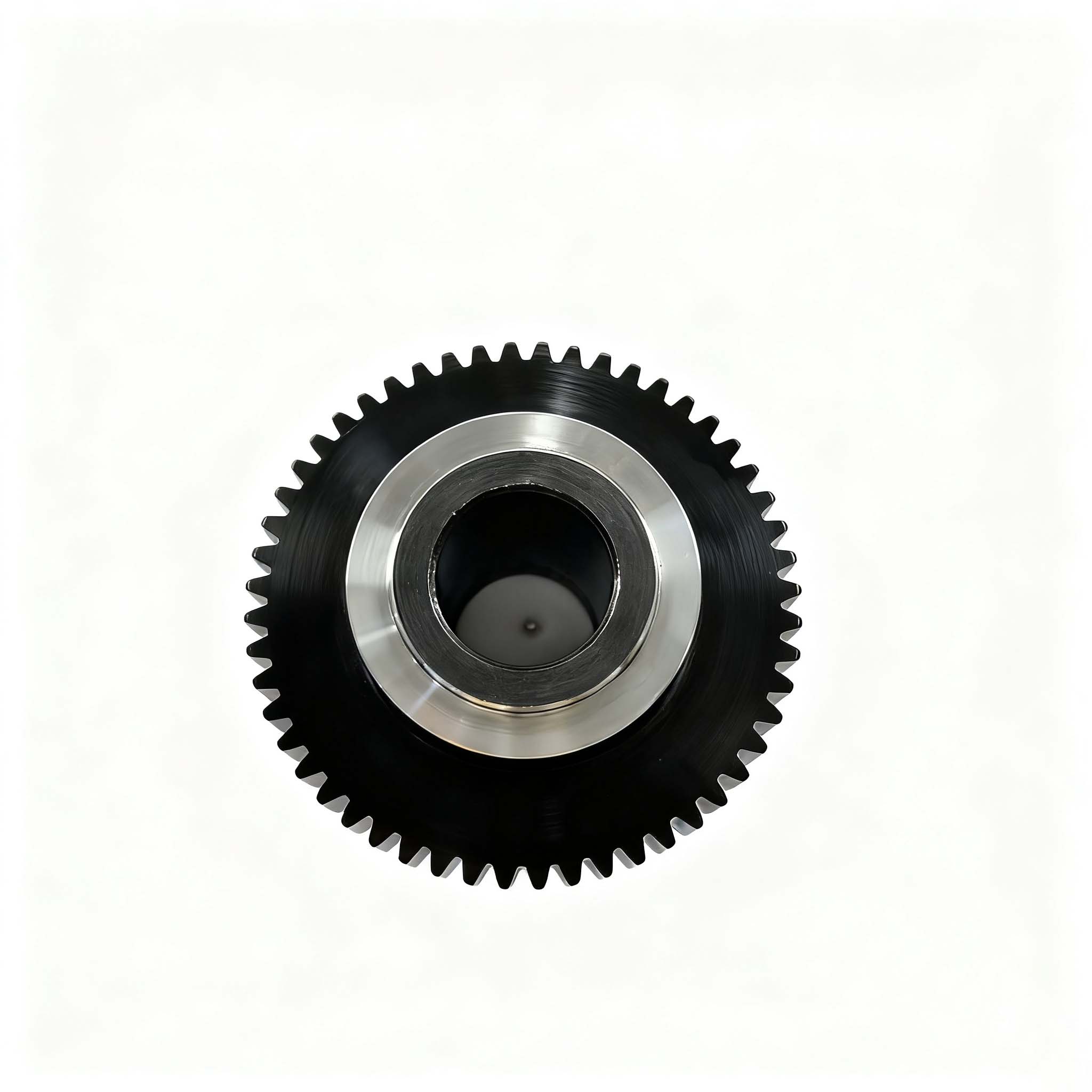

The 12BGL-8X-Head-006-Lower Shaft Gear-52-1.25 is a dedicated spur gear for sewing equipment. Crafted from 20CrMo material, it undergoes a series of precision processes including sawing, hobbing, heat treatment and blackening. With a pressure angle of 20°, module of 1.25, 52 teeth, inner diameter of 20mm, addendum circle diameter of 67.5mm, total length of 45mm and weight of 0.5575kg, it can transmit power stably and is suitable for the transmission systems of various industrial sewing machines.

Add to compare

Add to wishlist

SKU: GL-002-C Category: Spur Gears

Description

This product, model 12BGL-8X-Head-006-Lower Shaft Gear-52-1.25, is a high-precision spur gear specially developed for sewing equipment. Its core technical parameters are strictly matched to the transmission requirements of the equipment: pressure angle of 20°, module of 1.25, number of teeth of 52, helix angle of 0°, inner diameter of 20mm, addendum circle diameter of 67.5mm, total length of 45mm, and unit weight of 0.5575kg. The size and weight design balance transmission stability and lightweight operation of the equipment.

Made of high-quality 20CrMo alloy structural steel, the product is manufactured in accordance with a standardized precision processing flow: sawing to accurately control the size of the blank → turning to shape the basic outline and inner hole → screw hole machining and reaming to ensure assembly accuracy → hobbing to form precise tooth profiles for smooth transmission meshing → heat treatment to enhance tooth hardness and wear resistance and extend service life → shot blasting to optimize surface quality and remove burrs and impurities → blackening to improve the rust resistance and appearance texture of the product → secondary reaming to further calibrate assembly dimensions and ensure perfect adaptation to the equipment shafting.

As a key transmission component of sewing equipment, this lower shaft gear undertakes the core function of power transmission. It can stably drive the equipment to perform various actions of sewing operations, adapt to a variety of industrial sewing machine models, and provide reliable support for the efficient and stable operation of the equipment.

Additional information

weight	0.5575
Core Components	gear
Craftsmanship	Hobbing
