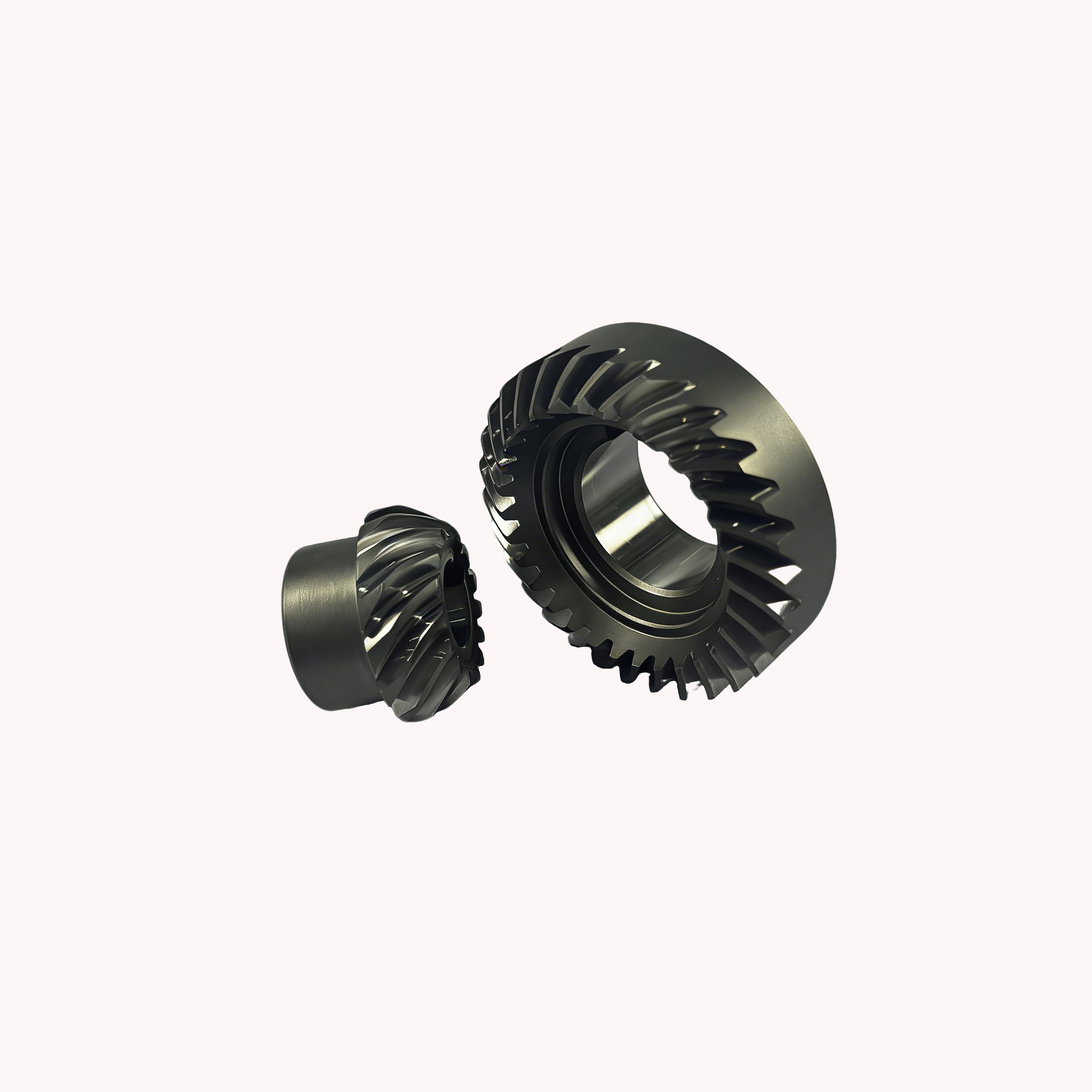

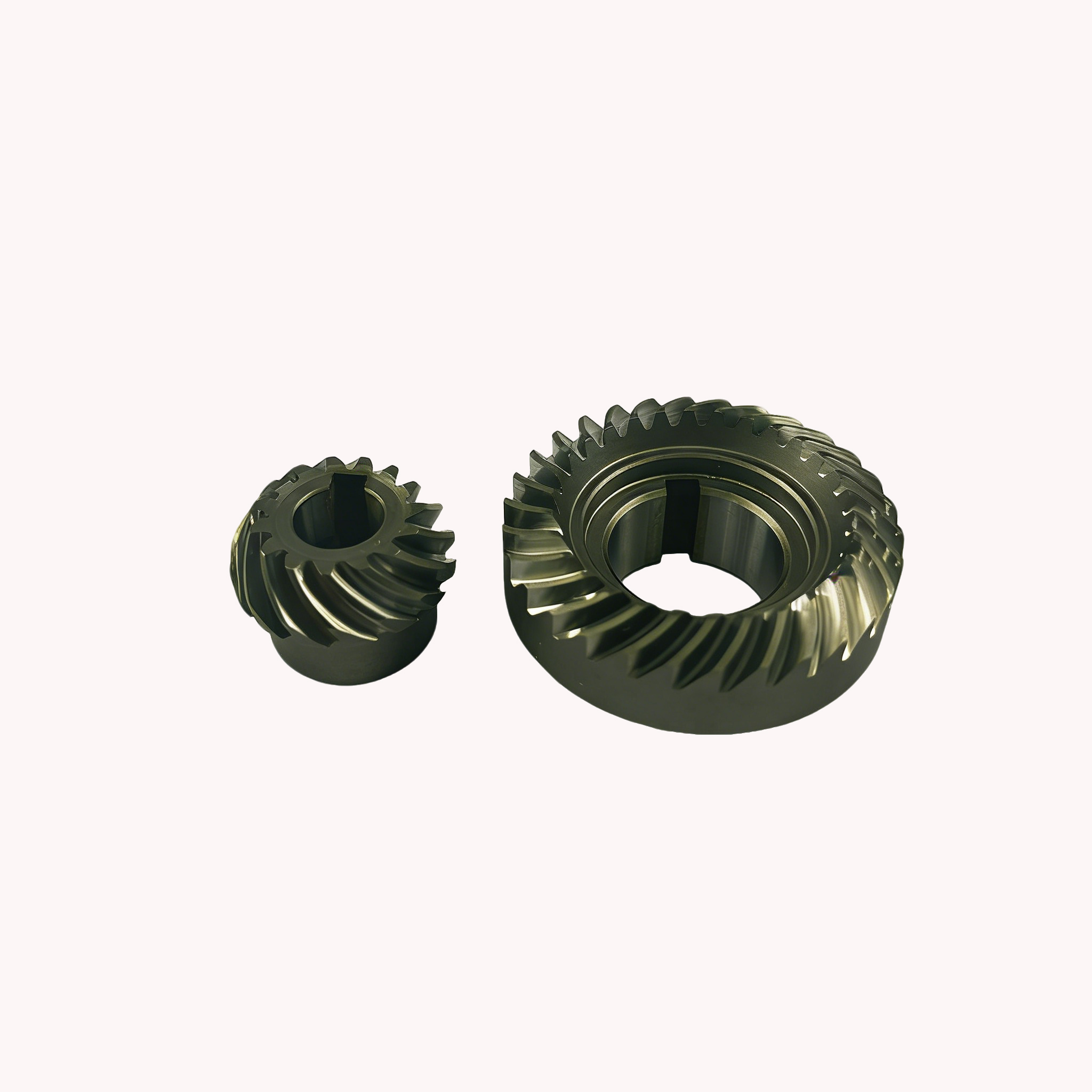

AT065-M1.5-1530L-12K4-M and AT065-M1.5-3015R-20K4-M
$42.45piece
- ZYJ-001-C: Left-hand spiral bevel gear, module 1.5, 15 teeth, gear ratio 2. Weight: 0.0362 kg. Precision machined for sewing equipment.
- ZYJ-002-C: Right-hand spiral bevel gear, module 1.5, 30 teeth, gear ratio 2. Weight: 0.1154 kg. For sewing equipment.
Description
ZYJ-001-C (AT065-M1.5-1530L-12K4-M)

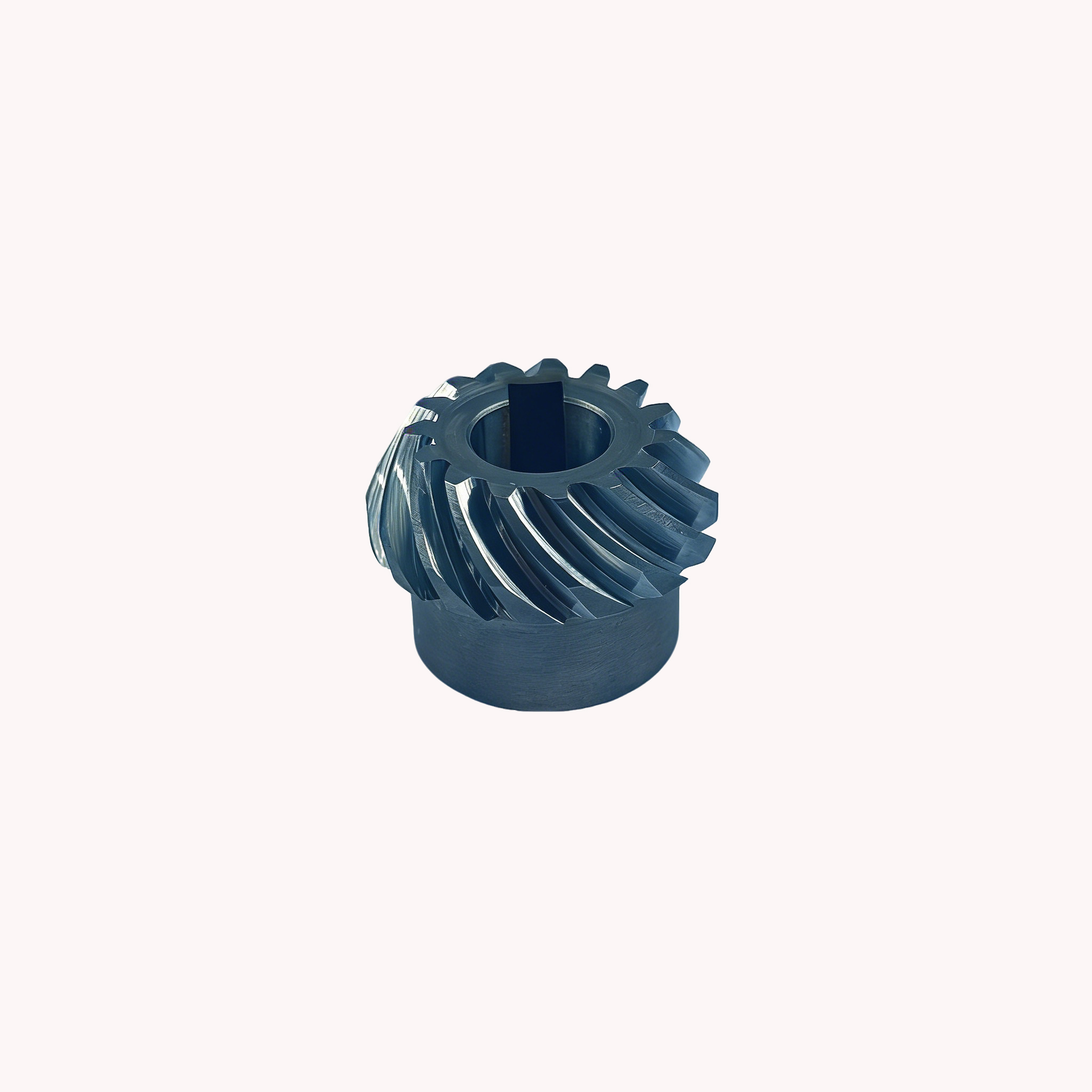

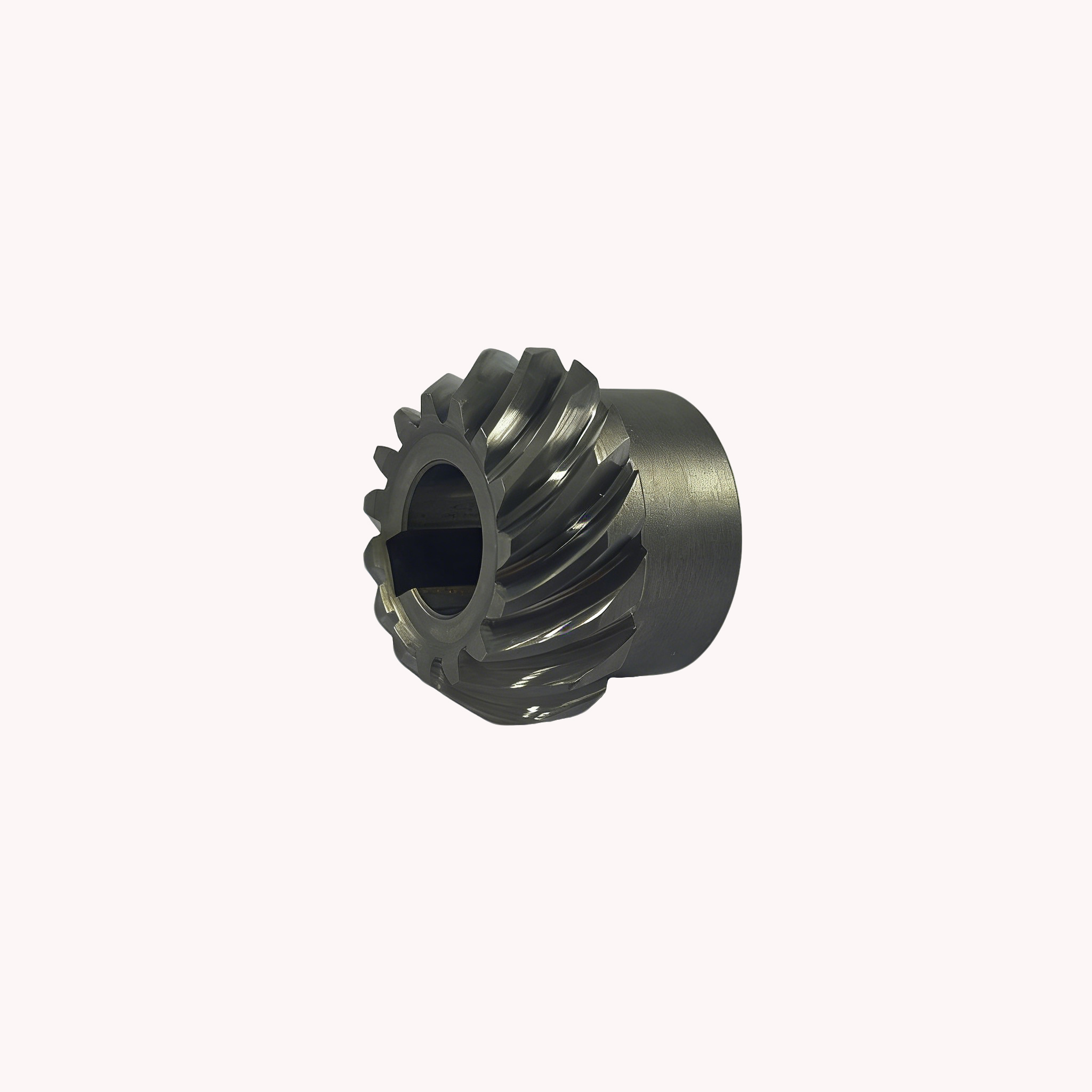

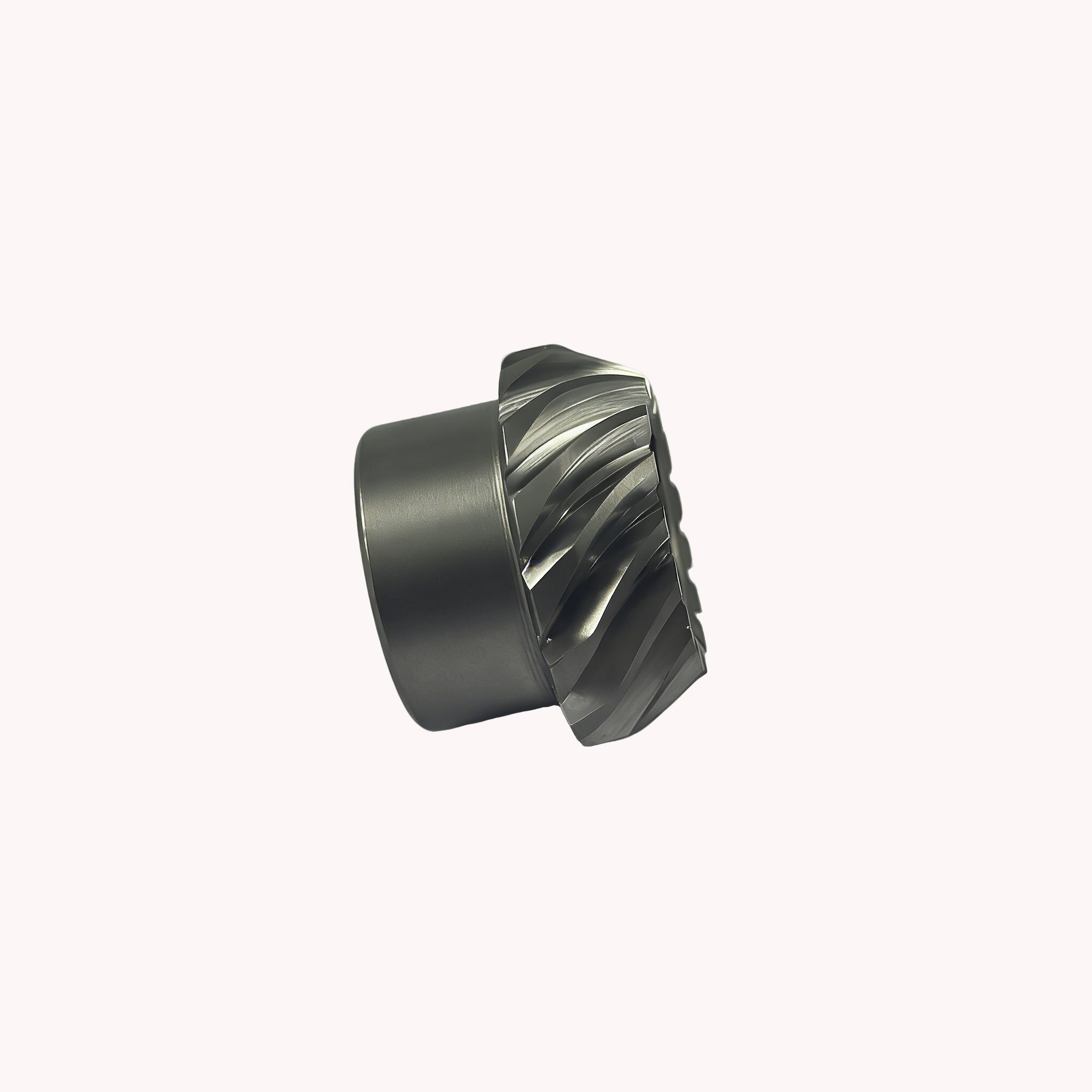

This is a left-hand spiral bevel gear, part number ZYJ-001-C. Pressure angle 20°, module 1.5, 15 teeth, gear ratio 2, spiral angle 35° left-hand. Inner diameter 10 mm, gear tip diameter 25.5 mm, overall length 18.4 mm, unit weight 0.0362 kg.
Processed by sawing, turning, keyway machining, gear milling, heat treatment, shot blasting, boring, facing, guide radius chamfering and gear grinding. It is used as transmission gear for sewing equipment.
ZYJ-002-C (AT065-M1.5-3015R-20K4-M)

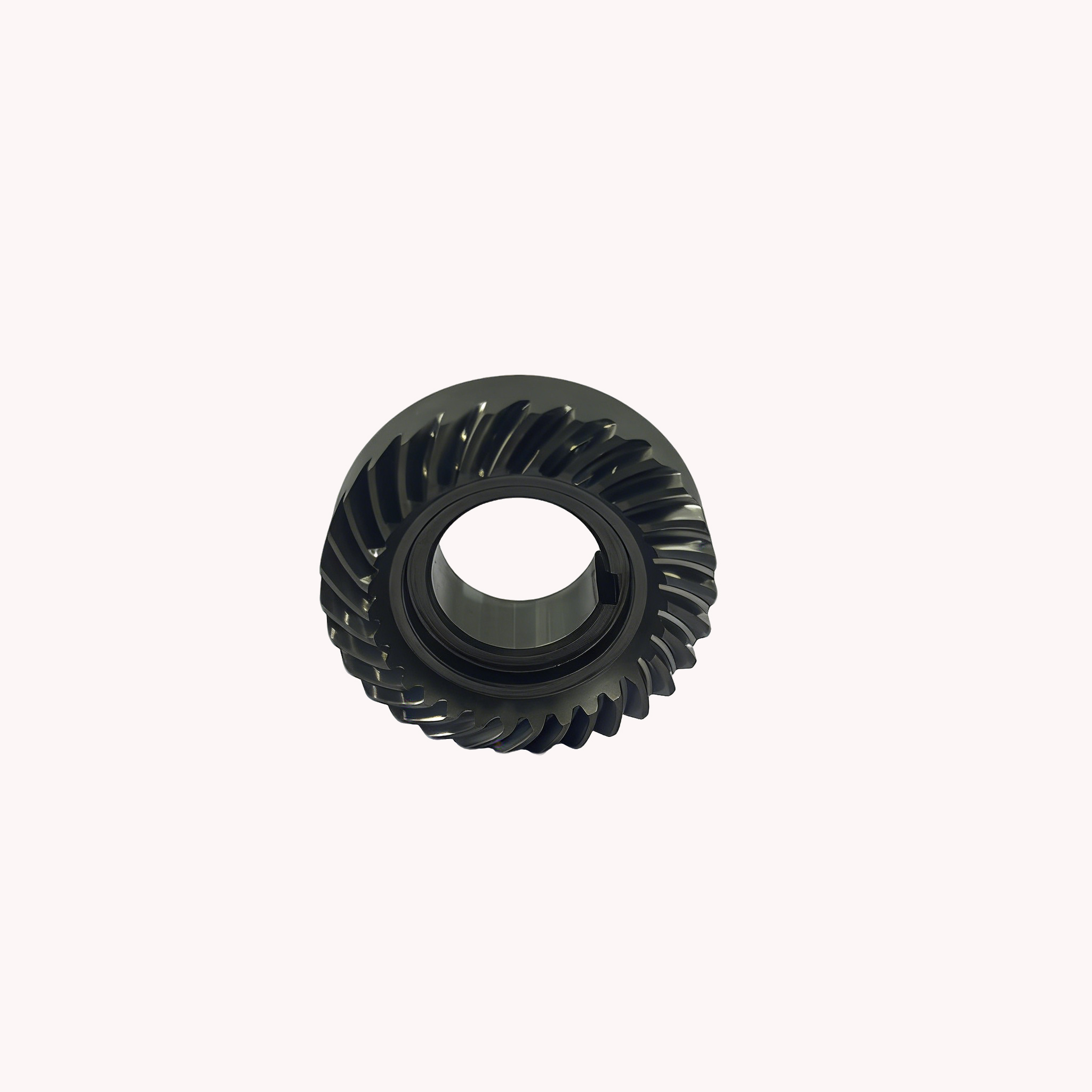

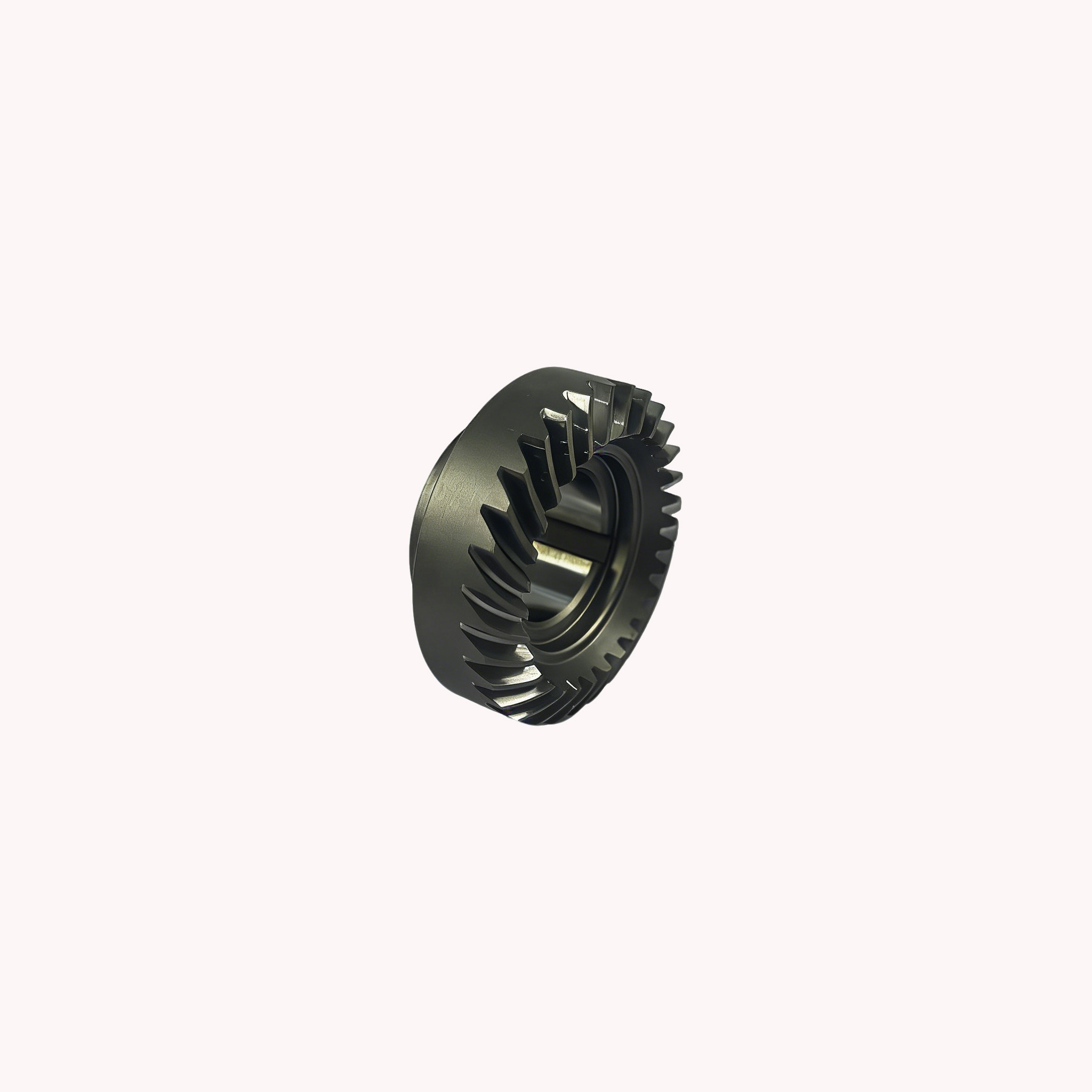

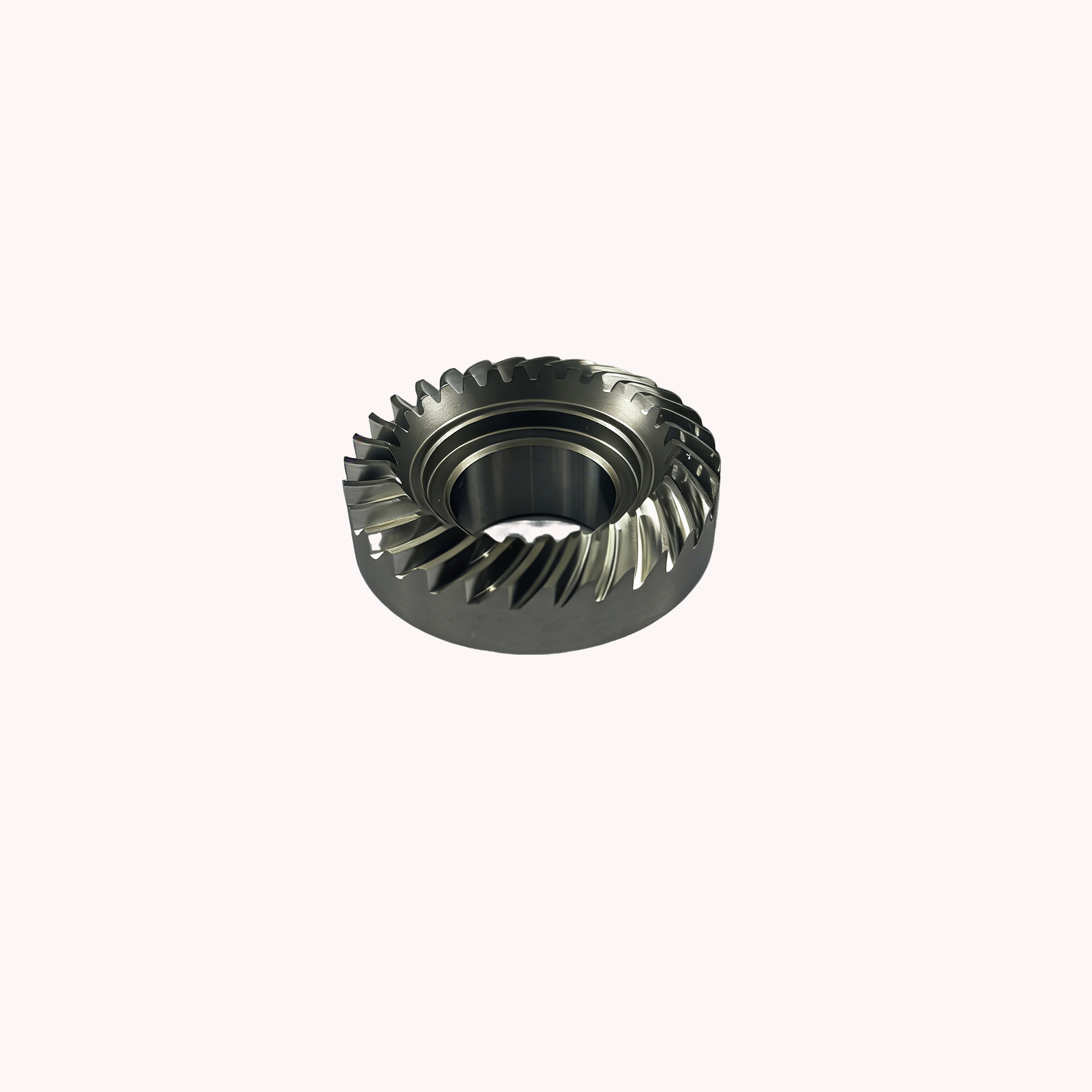

This is a right-hand spiral bevel gear, part number ZYJ-002-C. Pressure angle 20°, module 1.5, 30 teeth, gear ratio 2, spiral angle 35° right-hand. Inner diameter 20 mm, gear tip diameter 44.4 mm, overall length 19.8 mm, unit weight 0.1154 kg.
Adopting complete precision machining procedures, it serves as transmission gear for sewing equipment.
Additional information
| ZYJ-001-C and ZYJ-002-C weight |
0.0362and0.1154 |
|---|---|
| ZYJ-001-C and ZYJ-002-C Core Components |
gear |
| ZYJ-001-C and ZYJ-002-C Craftsmanship |
Milling |
