J80676173 (CMS MD400G) Gear Shaft
$6.44piece
J80676237 (CMS MR150G) Gear Shaft
$11.20piece
080672631 (40G-1/4 MP) Gear Shaft
$4.76piece

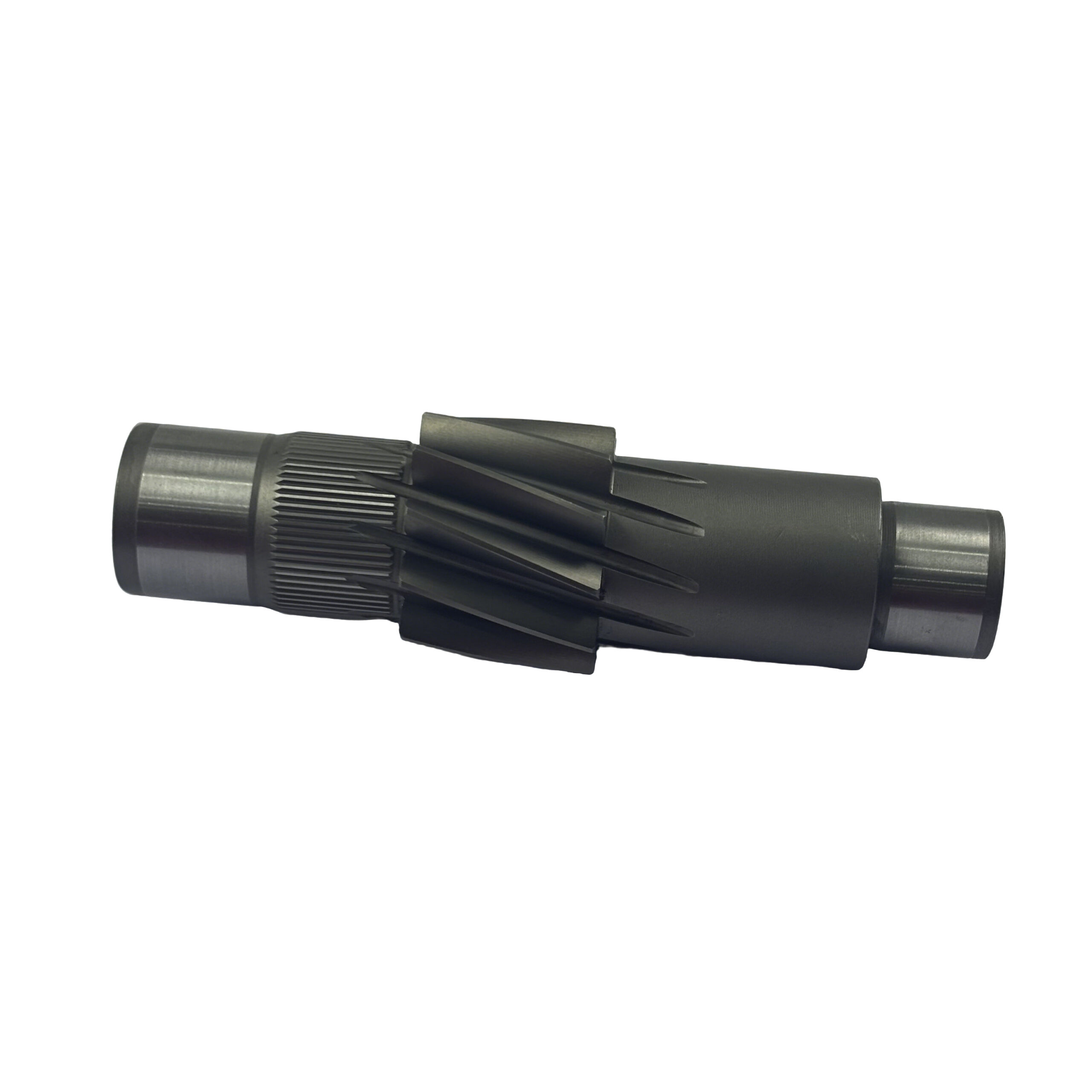

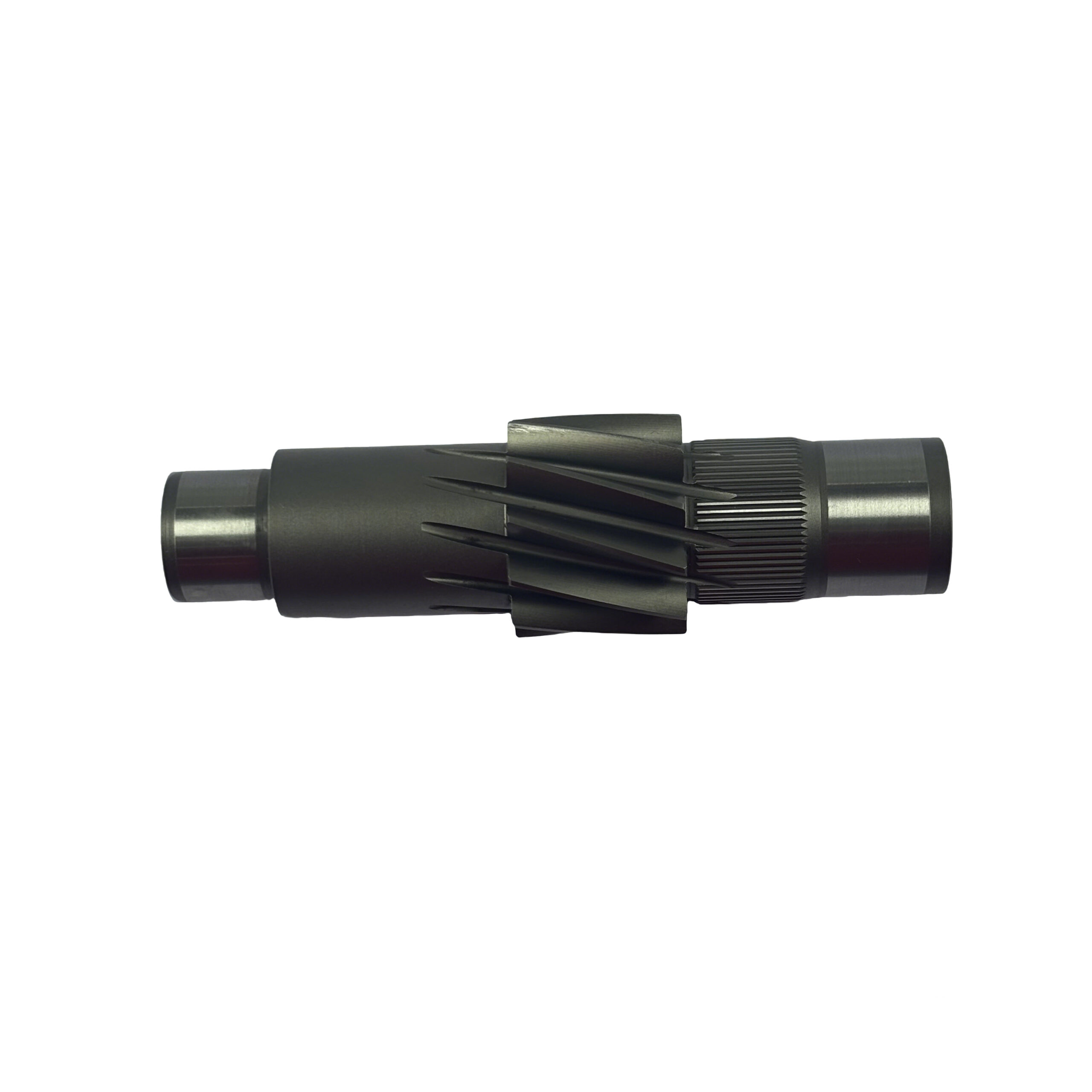

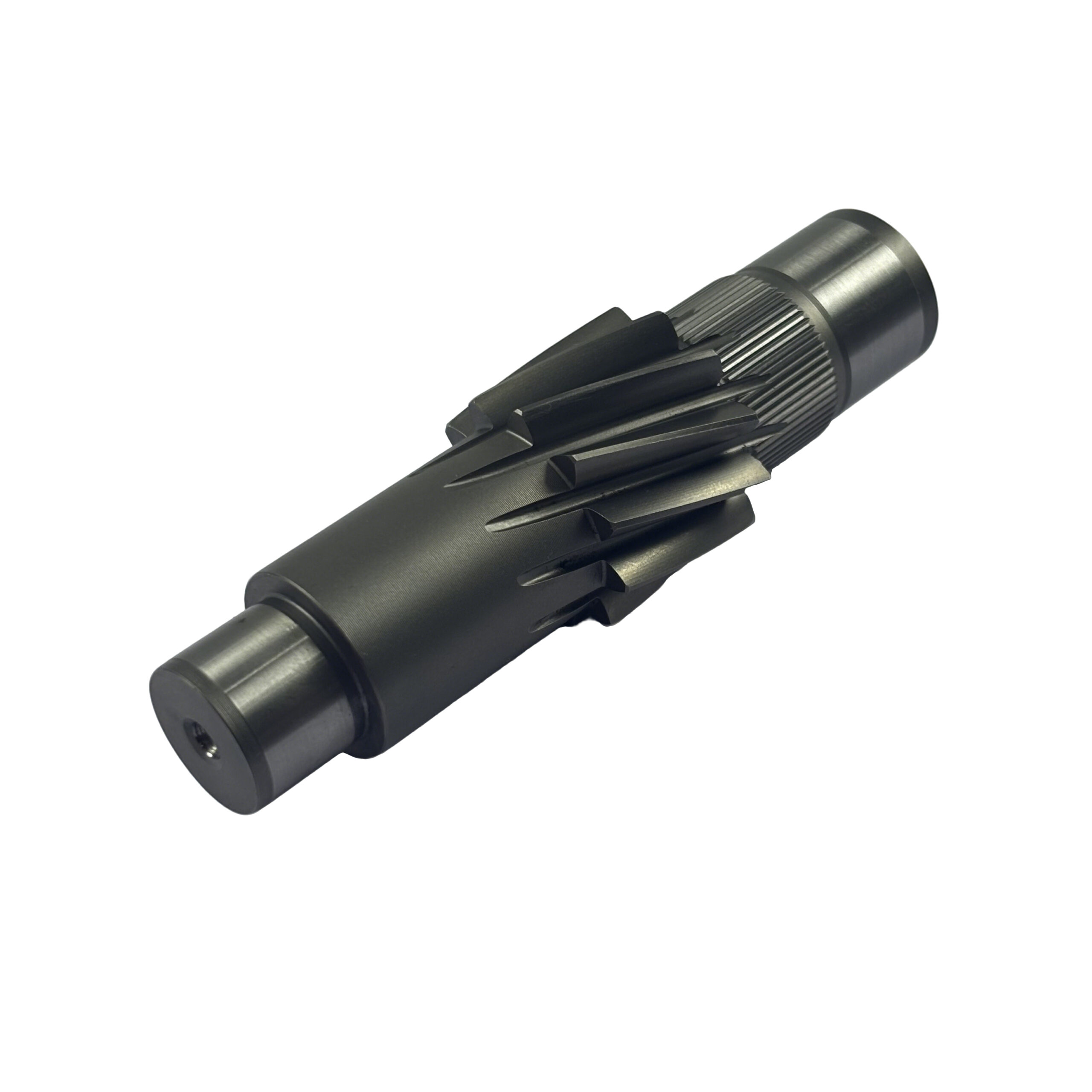

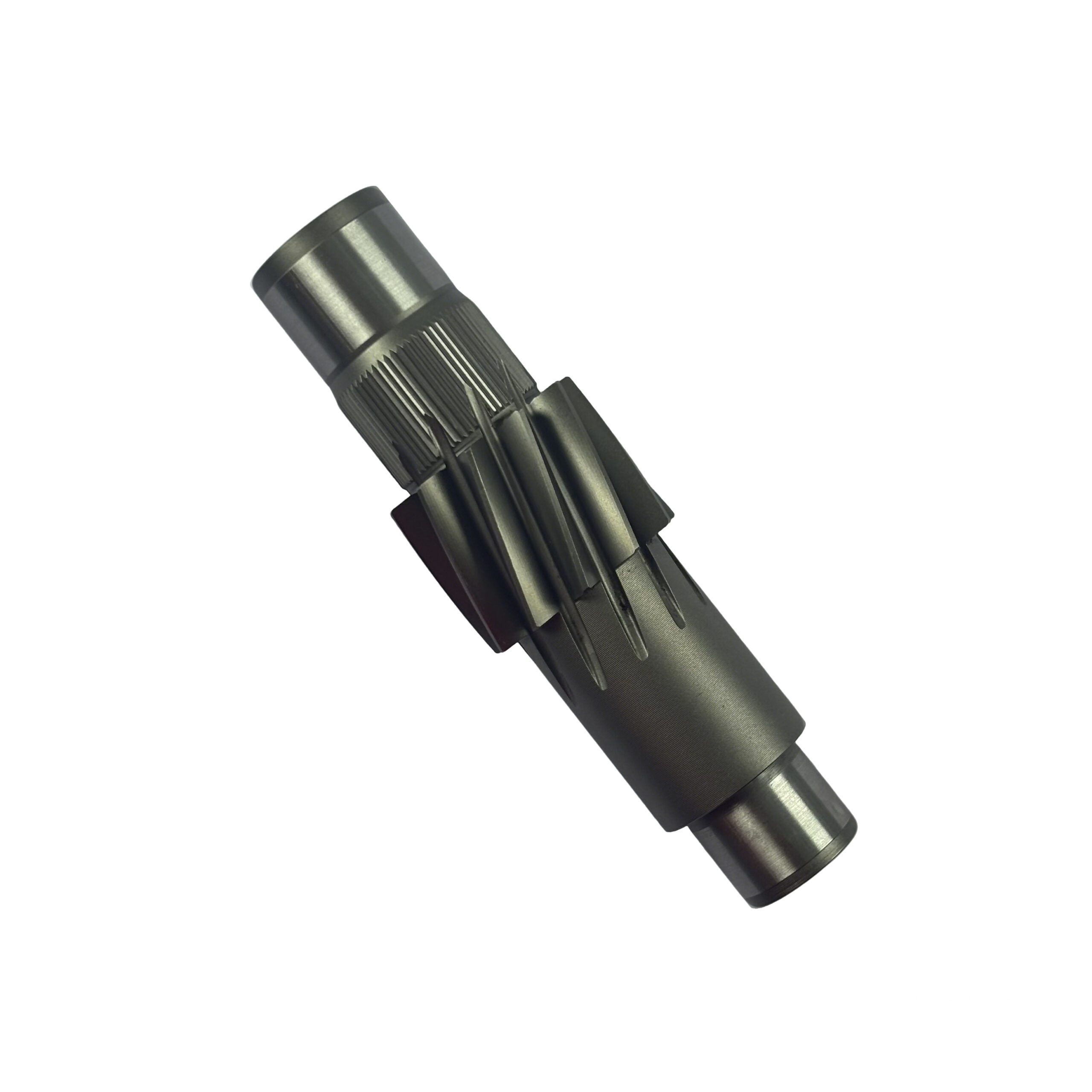

RJ-030-C Gear Shaft for Reducer, 20CrMo, module 2, 11 teeth 15° RH, finished by multiple precision grinding and heat treatment.
Description
Model: RJ-030-C (080672631 (40G-1/4 MP) Gear Shaft)
This is a precision gear shaft for reducers, made of 20CrMo alloy steel.
Parameters: pressure angle 20°, module 2, 11 teeth, helix angle 15° right hand, shaft diameter 20mm, gear OD 28.78mm, total length 99mm, weight 0.276kg.
Process: normalizing, turning, rough grinding of clamping position, gear hobbing, heat treatment, shot blasting, outer diameter grinding, outer diameter grinding & capping, outer diameter grinding, full visual inspection.
With high precision, smooth and wear-resistant tooth surface, stable transmission, suitable for reducer drive mechanism.
Additional information
| weight |
0.276 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
