AW075005-20 Small Bevel Gear
$5.64piece

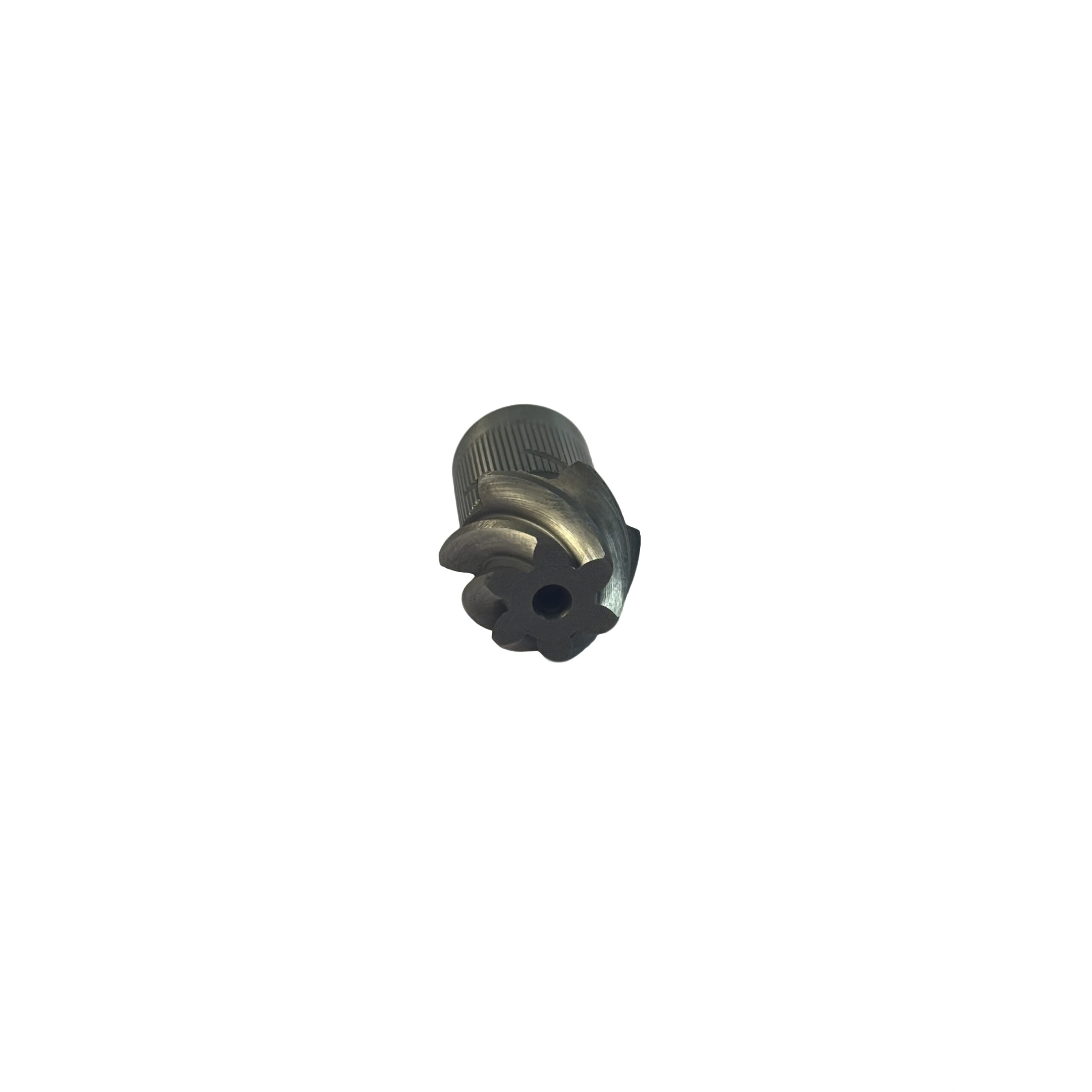

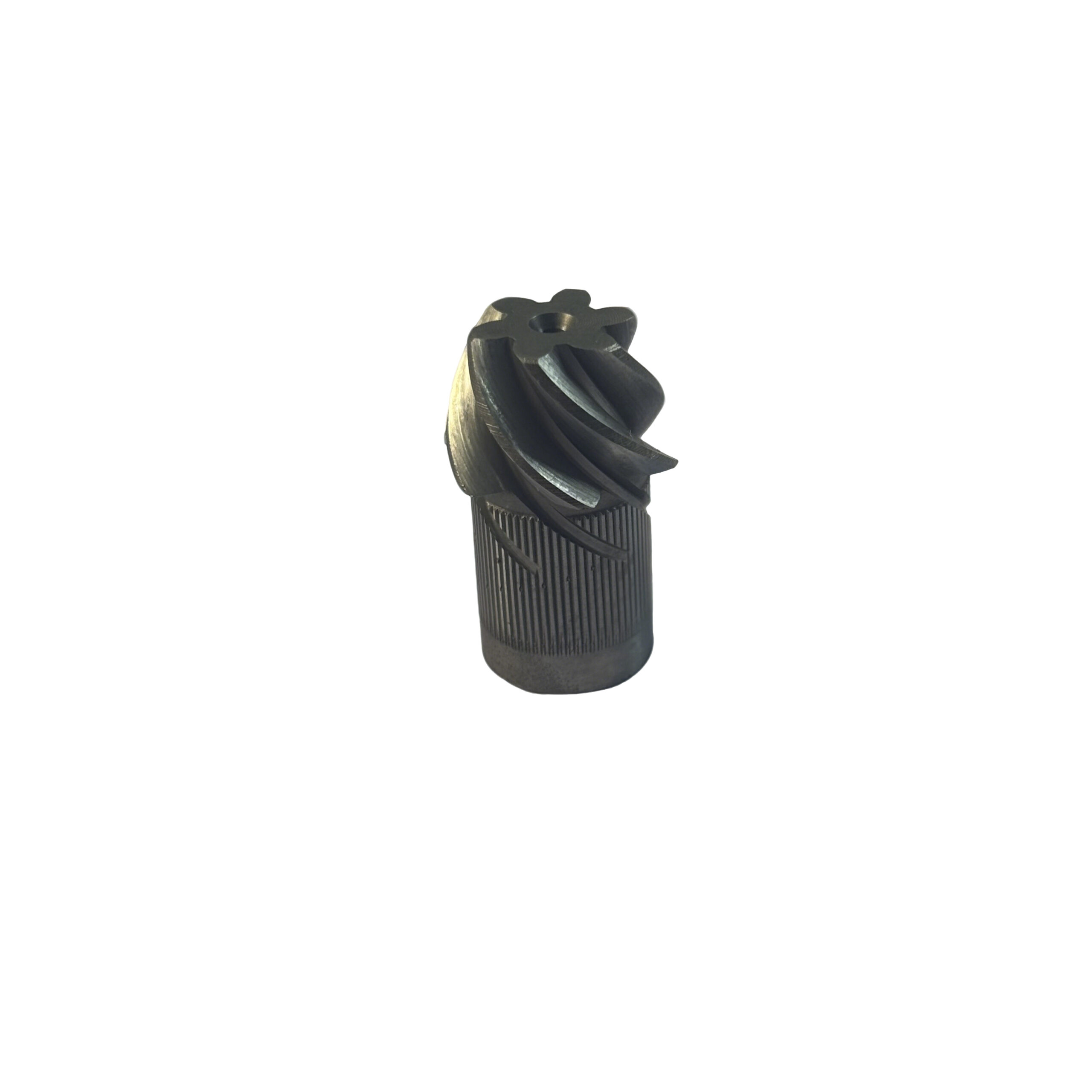

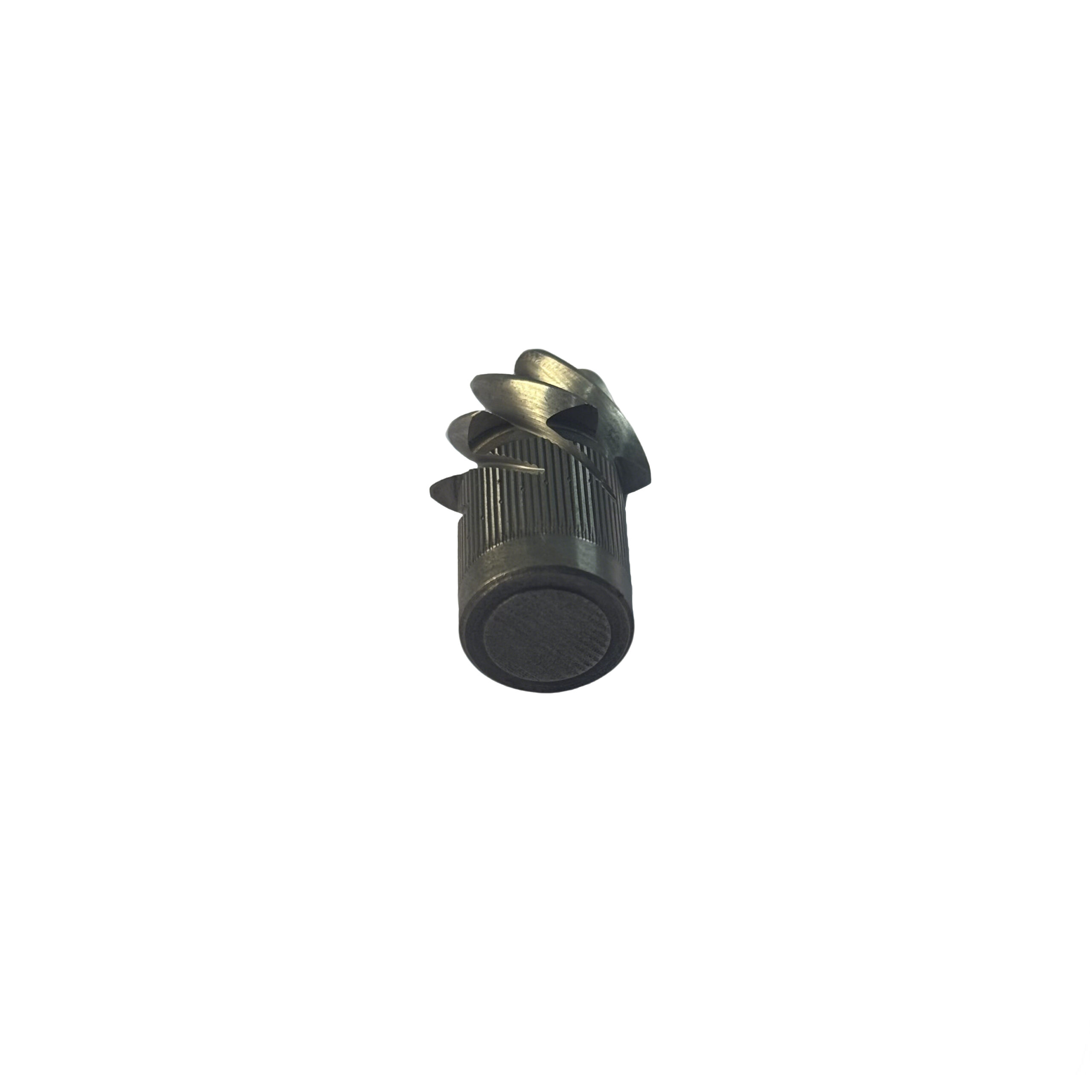

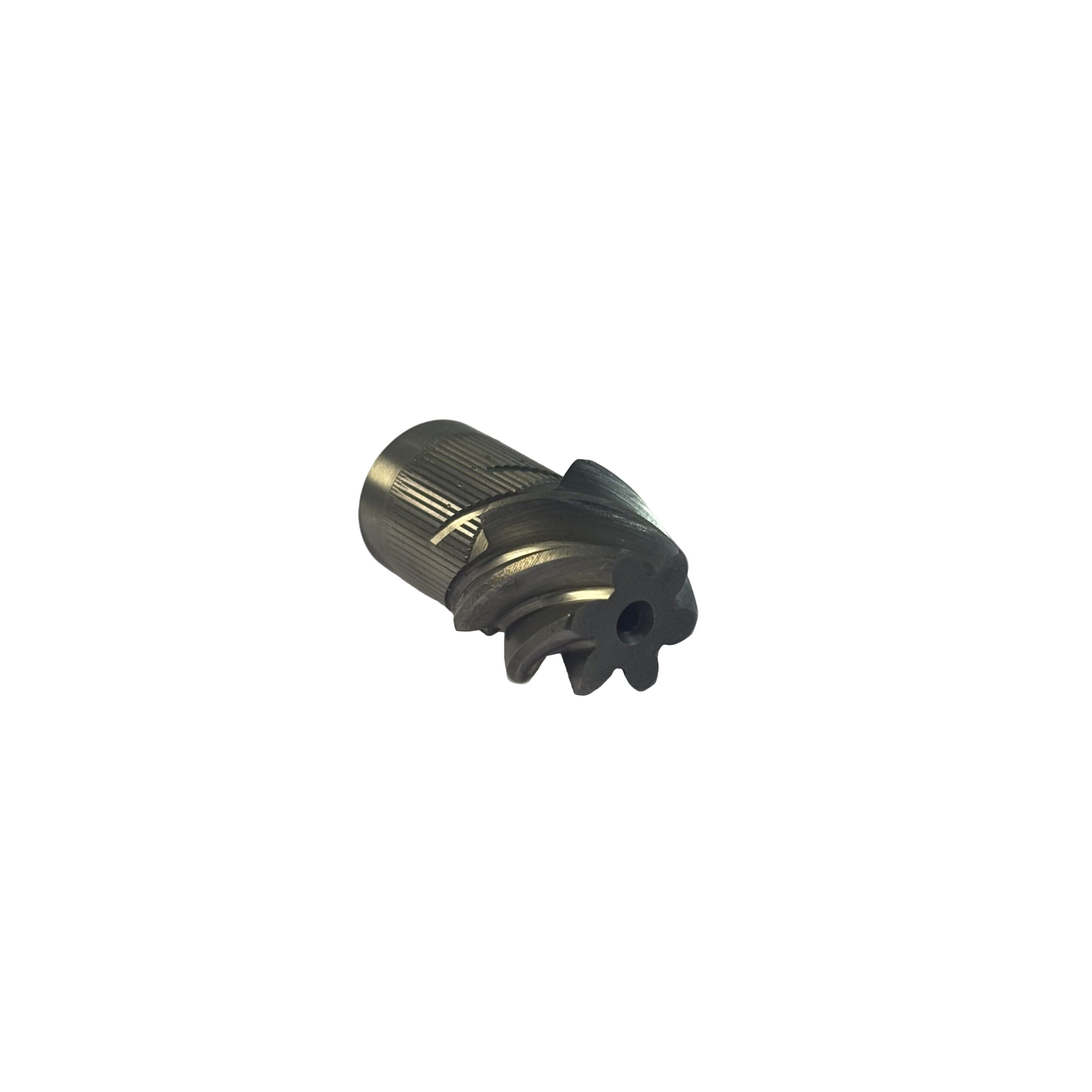

RD-001-C (AW075005-20) is a small left-hand spiral bevel gear. Parameters: pressure angle 20°, module 1.7, 6 teeth, gear ratio 2, spiral angle 35°. Shaft diameter 11 mm, outer gear diameter 15 mm, overall length 23 mm, weight 0.0227 kg. Manufactured from 20CrMnTi via precision machining processes, it is applicable to speed reducers.
Description
Model RD-001-C (AW075005-20) is a small spiral bevel gear. It features a pressure angle of 20°, module 1.7, 6 teeth and a gear ratio of 2, with a left-hand spiral angle of 35°. The shaft diameter is 11 mm, outer gear diameter 15 mm, overall length 23 mm, and net weight 0.0227 kg. Made of 20CrMnTi steel, it is processed through multiple procedures including cutting, turning, rough grinding of clamping positions, gear milling, heat treatment, hanging shot blasting, outer diameter grinding, re-grinding of clamping positions, gear grinding and wire cutting. This product is mainly used as a gear for speed reducers.
Additional information
| RD-001-C weight |
0.0227 |
|---|---|
| RD-001-C Core Components |
gear |
| RD-001-C Craftsmanship |
Milling |
