BMT45-55 Spiral Bevel Gear, Left-Hand and BMT45-55-J Spiral Bevel Gear, Right-Hand
$13.44

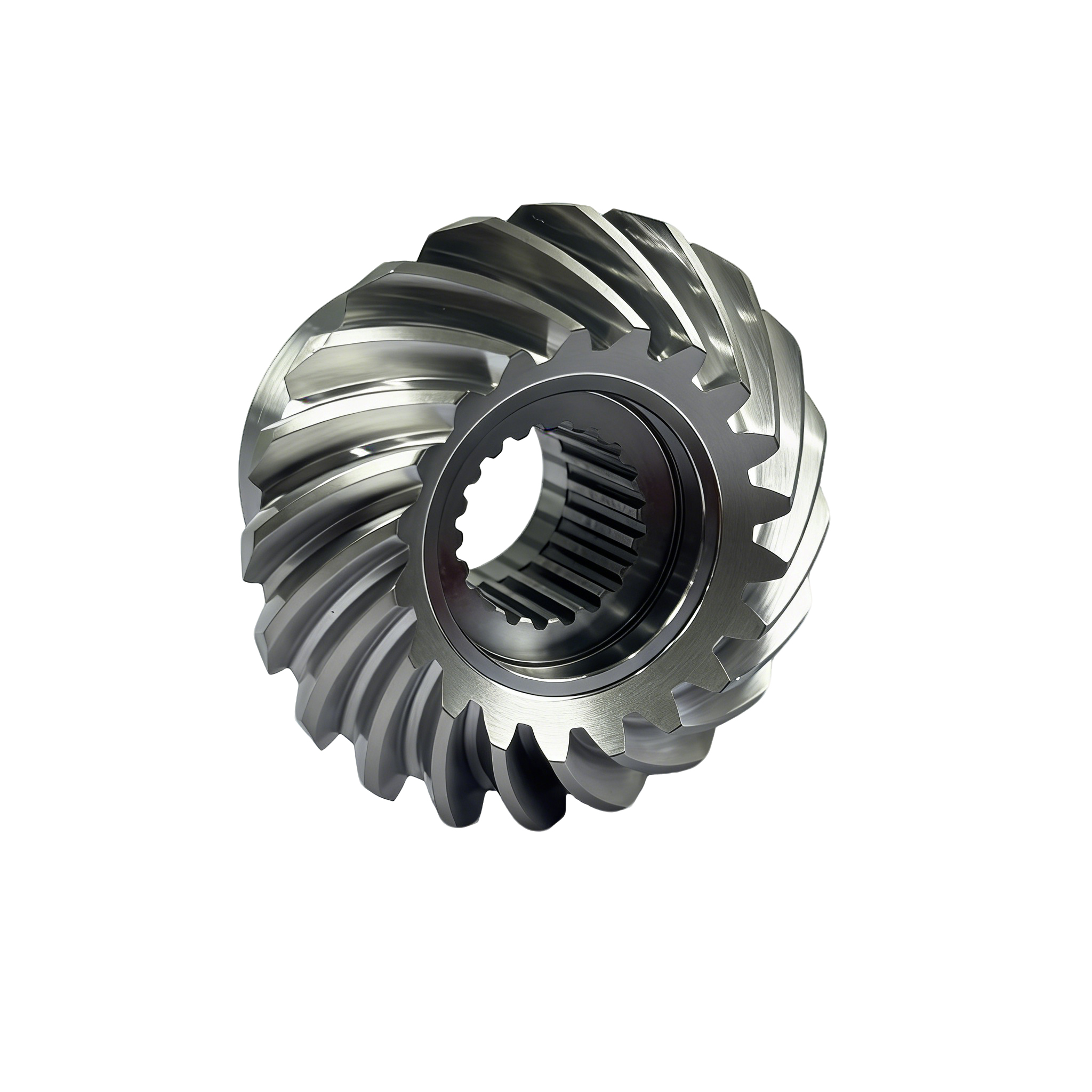

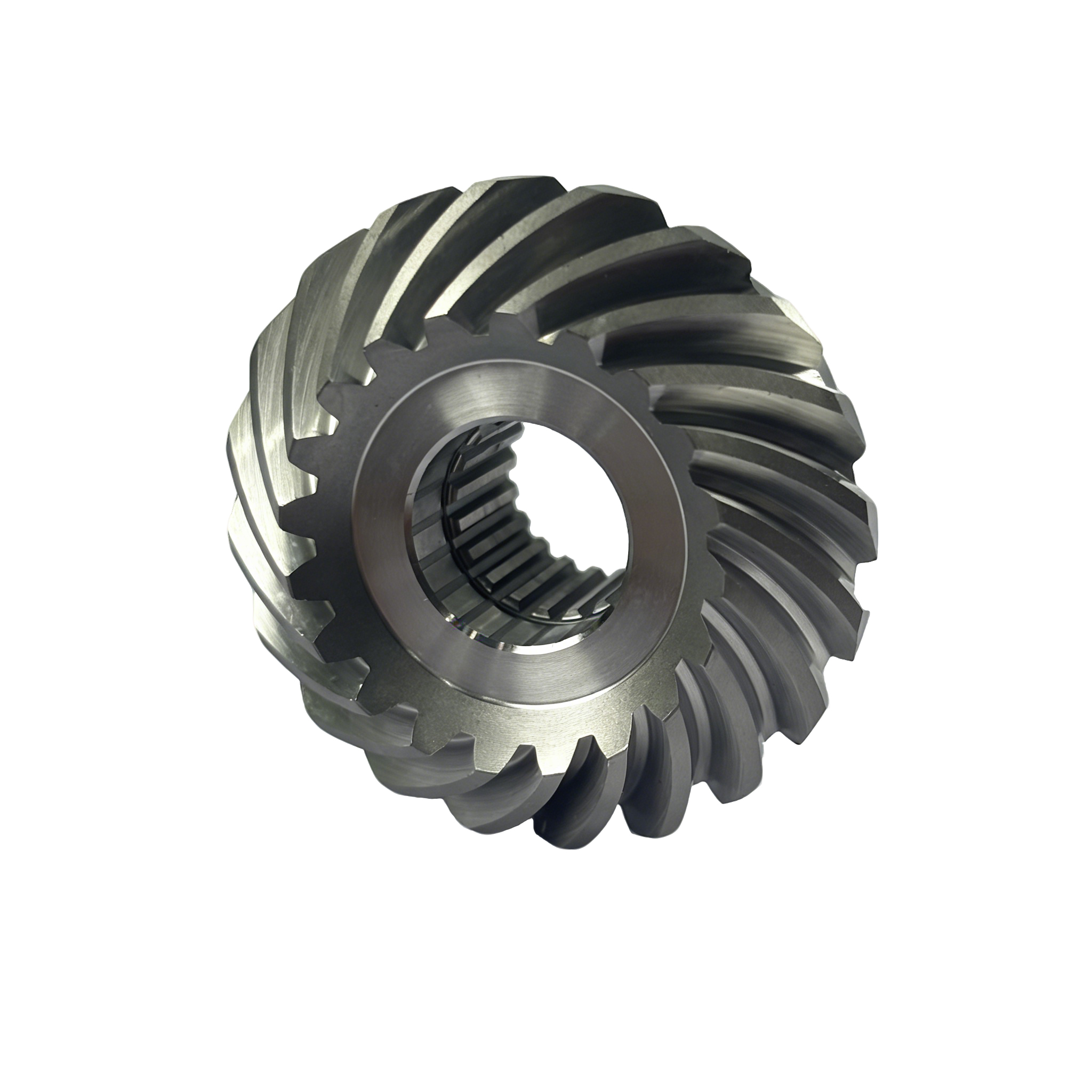

Two spiral bevel gears made of 20CrMnTi: SuYou-005-C (left-hand) and SuYou-006-C (right-hand). With module 0.8, 20 teeth and 30° pressure angle, they are precision-machined and lapped in pairs for power tool transmission.
Description

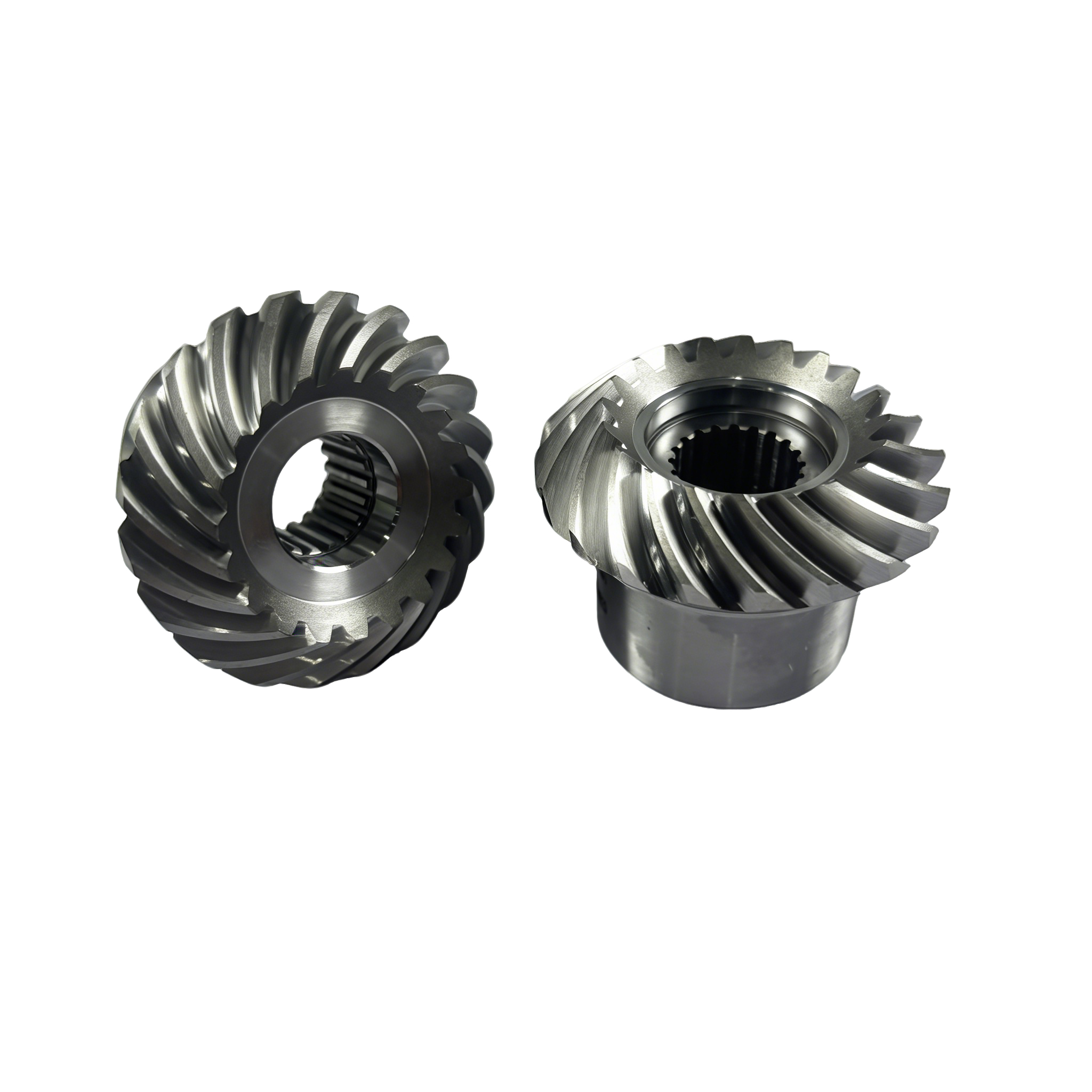

This series includes two matched spiral bevel gears: SuYou-005-C (BMT45-55 Left-hand Spiral Bevel Gear) and SuYou-006-C (BMT45-55-J Right-hand Spiral Bevel Gear). Both gears have a pressure angle of 30°, module of 0.8, 20 teeth, 35° spiral angle, inner diameter of 15.4mm, gear outer diameter of 51mm, and total length of 35.5mm. SuYou-005-C weighs 0.2235kg and SuYou-006-C weighs 0.224kg. Made of 20CrMnTi, they are manufactured through precise processes including sawing, turning, spline processing, gear milling, heat treatment, shot blasting, wire-cut keyway, boring, end facing, outer diameter turning, gear grinding and pair lapping. Featuring high transmission accuracy and good wear resistance, they are specially designed for power tool transmission systems.
Additional information
| SuYou-005-C and SuYou-006-C weight |
0.2235and0.224 |
|---|---|
| SuYou-005-C and SuYou-006-C Core Components |
gear |
| SuYou-005-C and SuYou-006-C Craftsmanship |
Milling |
