BQBB0101070 Right Hand Gear (050) and BQBB0101080 Left Hand Gear (050)
$9.38piece
Spiral Bevel Gear | Material:20CrMnTi | Module 0.7, 20°PA, 34T, Ratio 1, Spiral Angle 35°
Available in RH(BQBB0101070) & LH(BQBB0101080); OD23.8mm, L9.5mm, 0.0152kg/pc.
Full machining, heat treatment & gear grinding, applied for reducer assembly.
Description

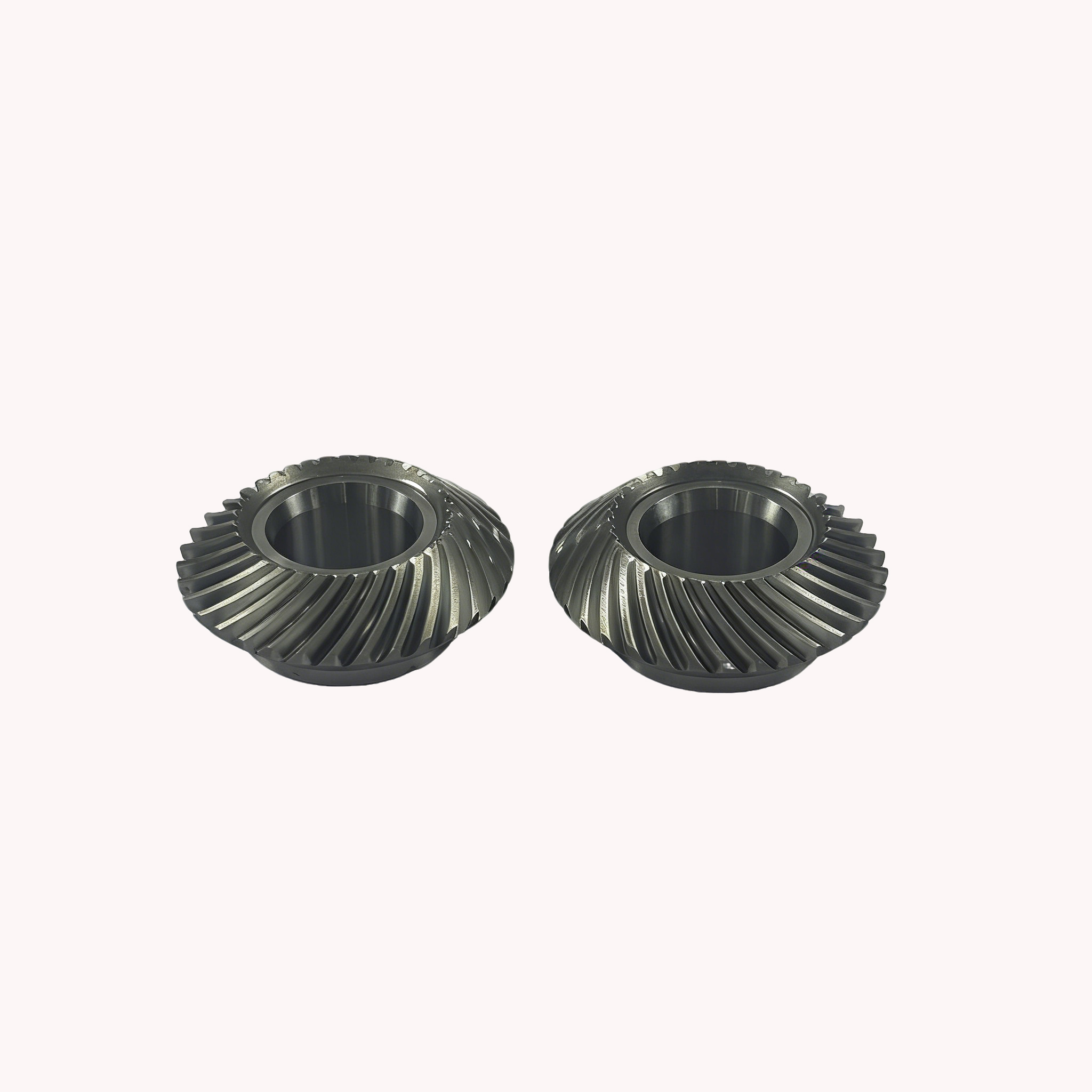

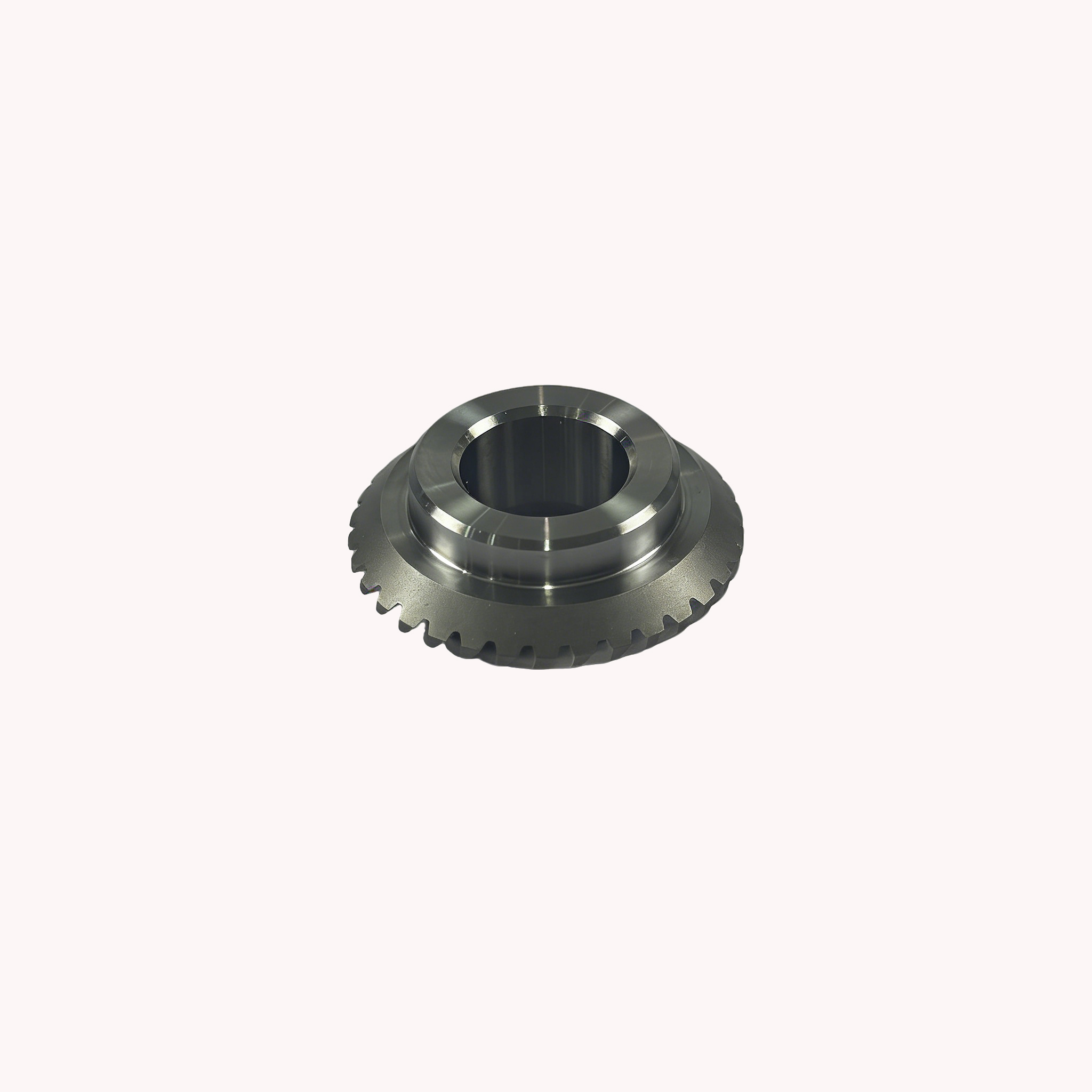

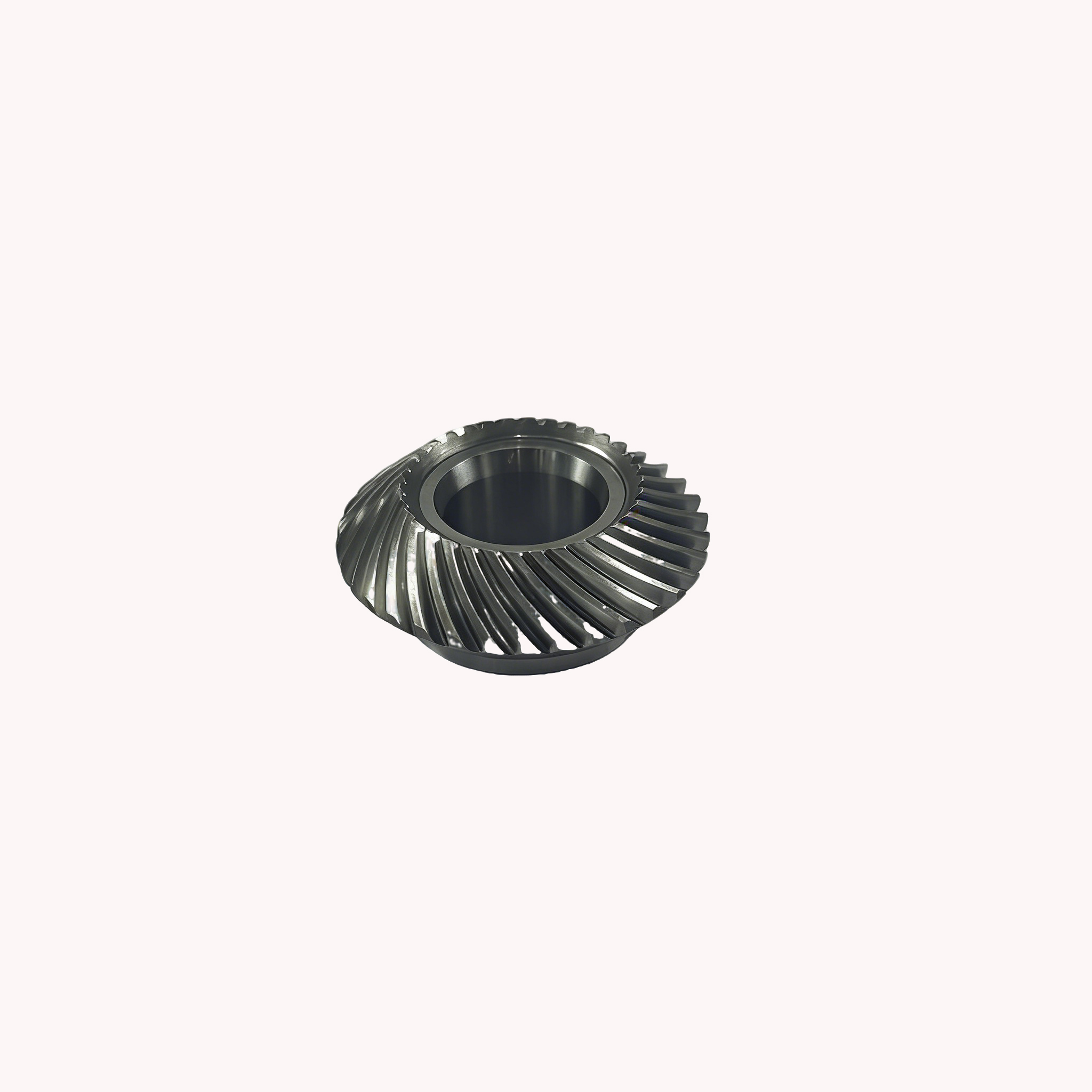

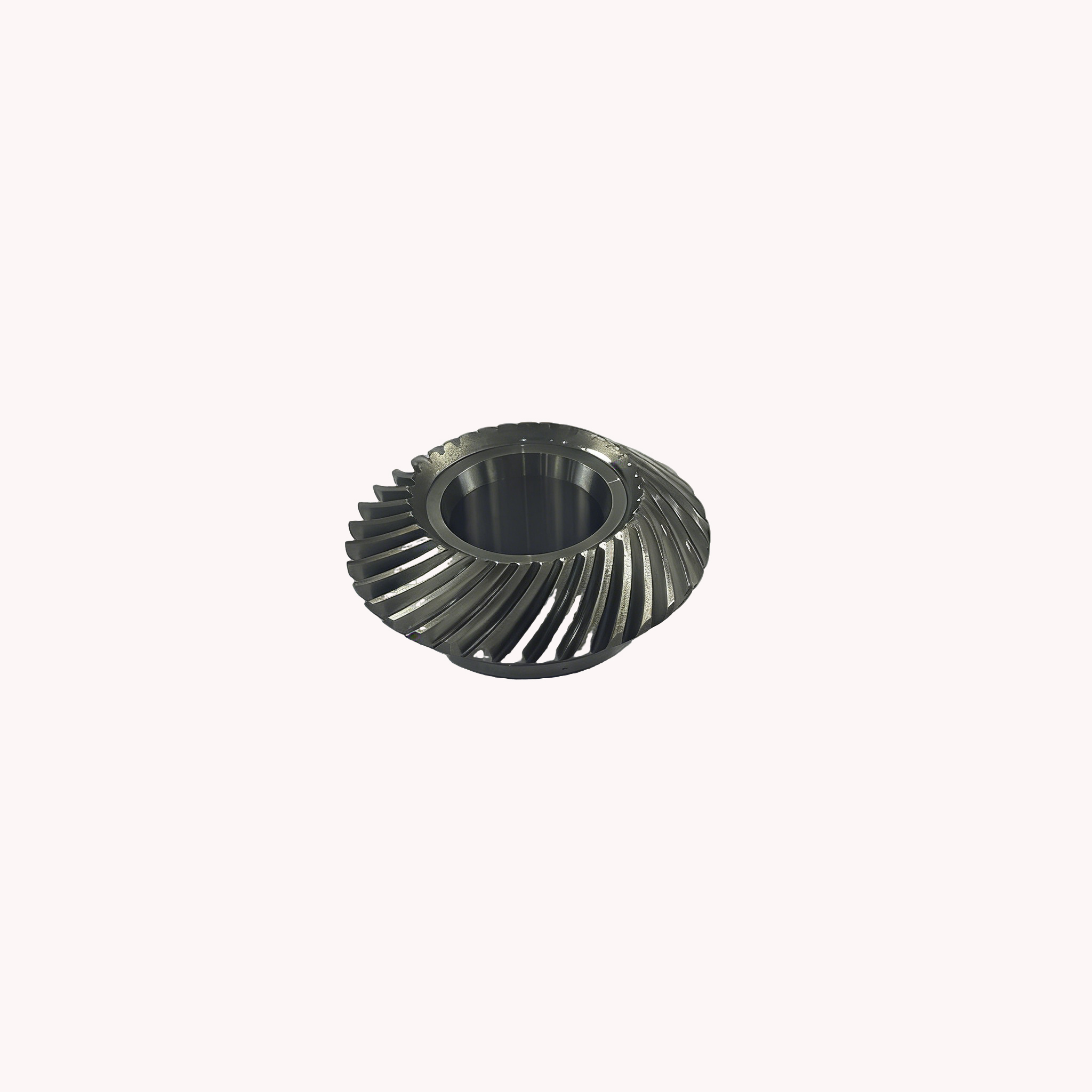

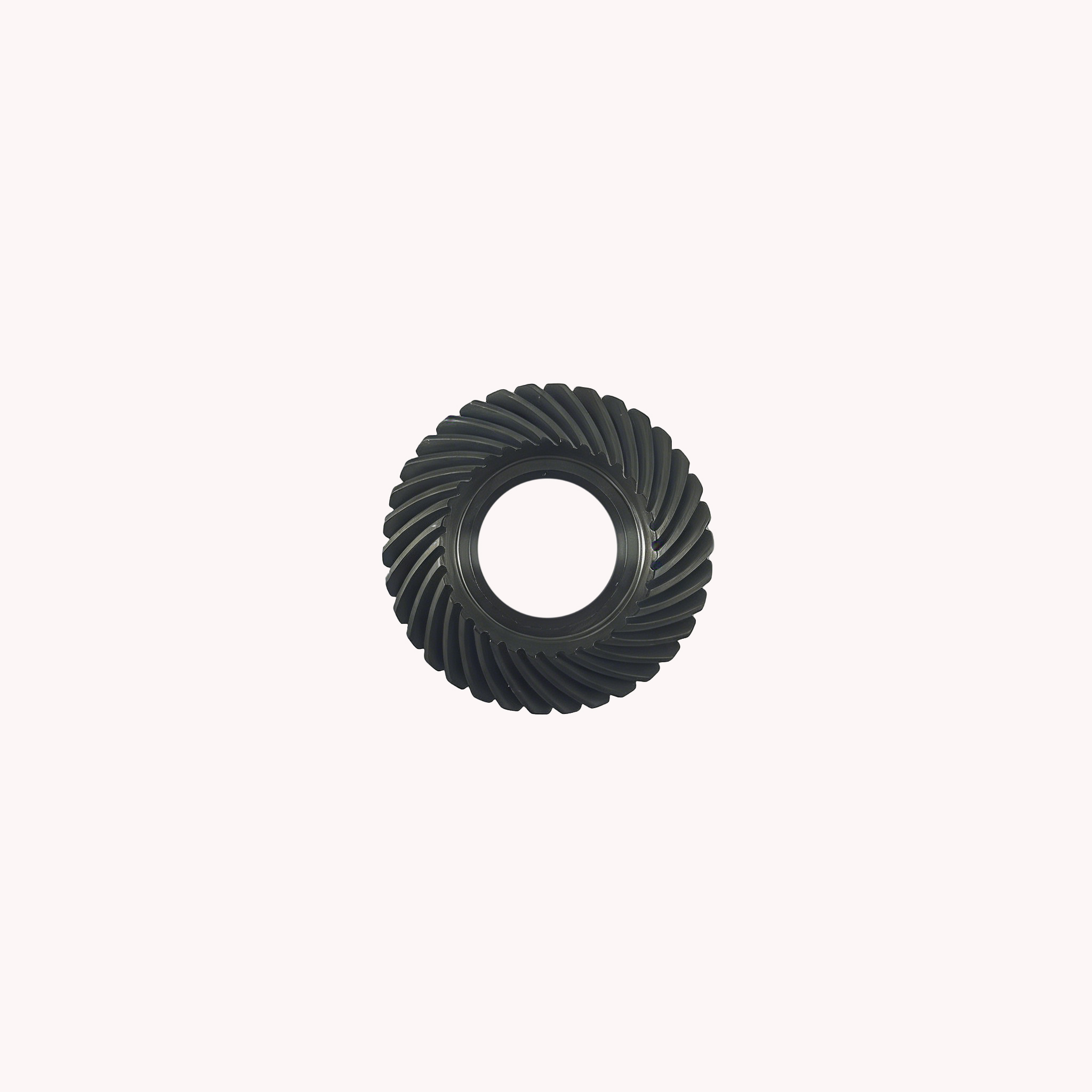

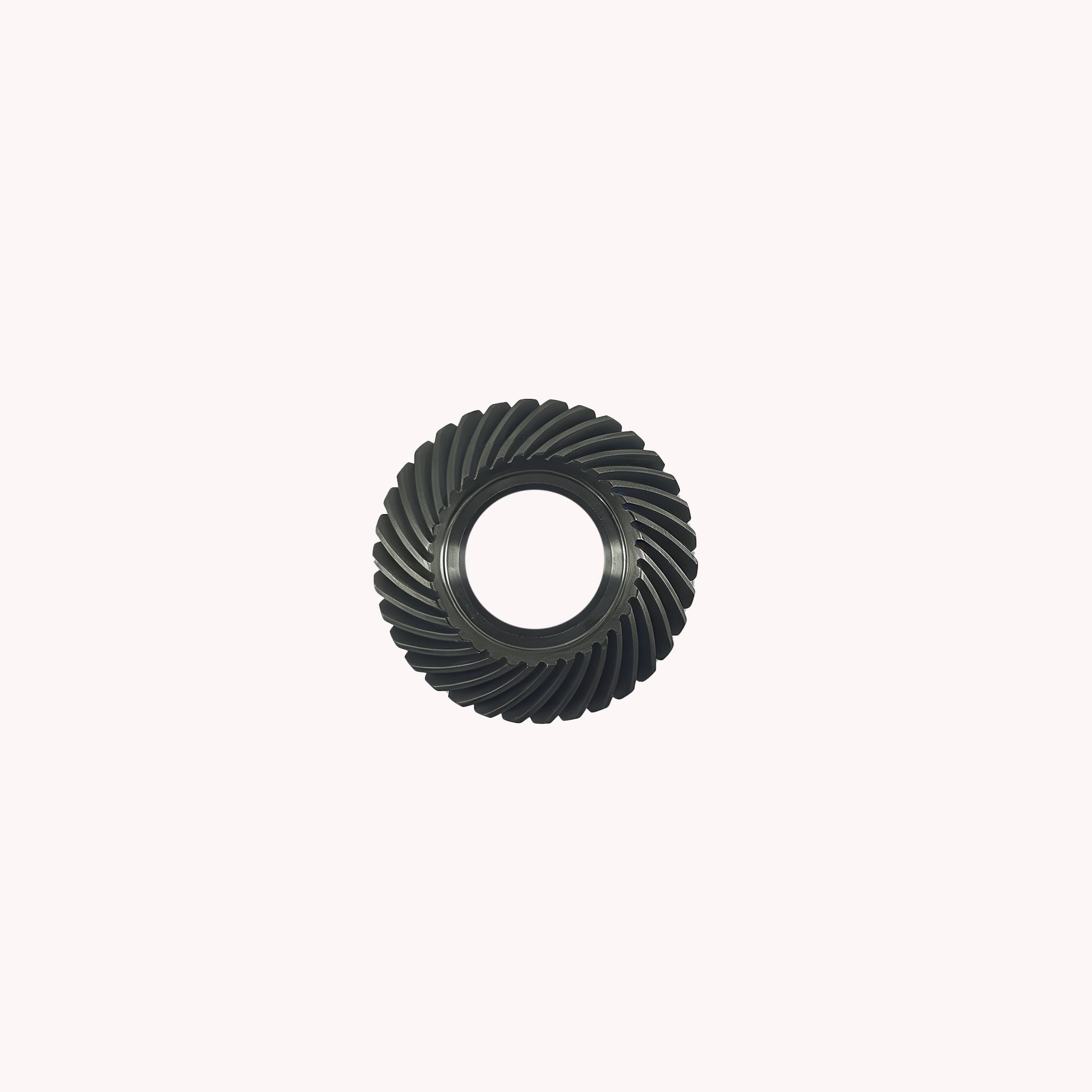

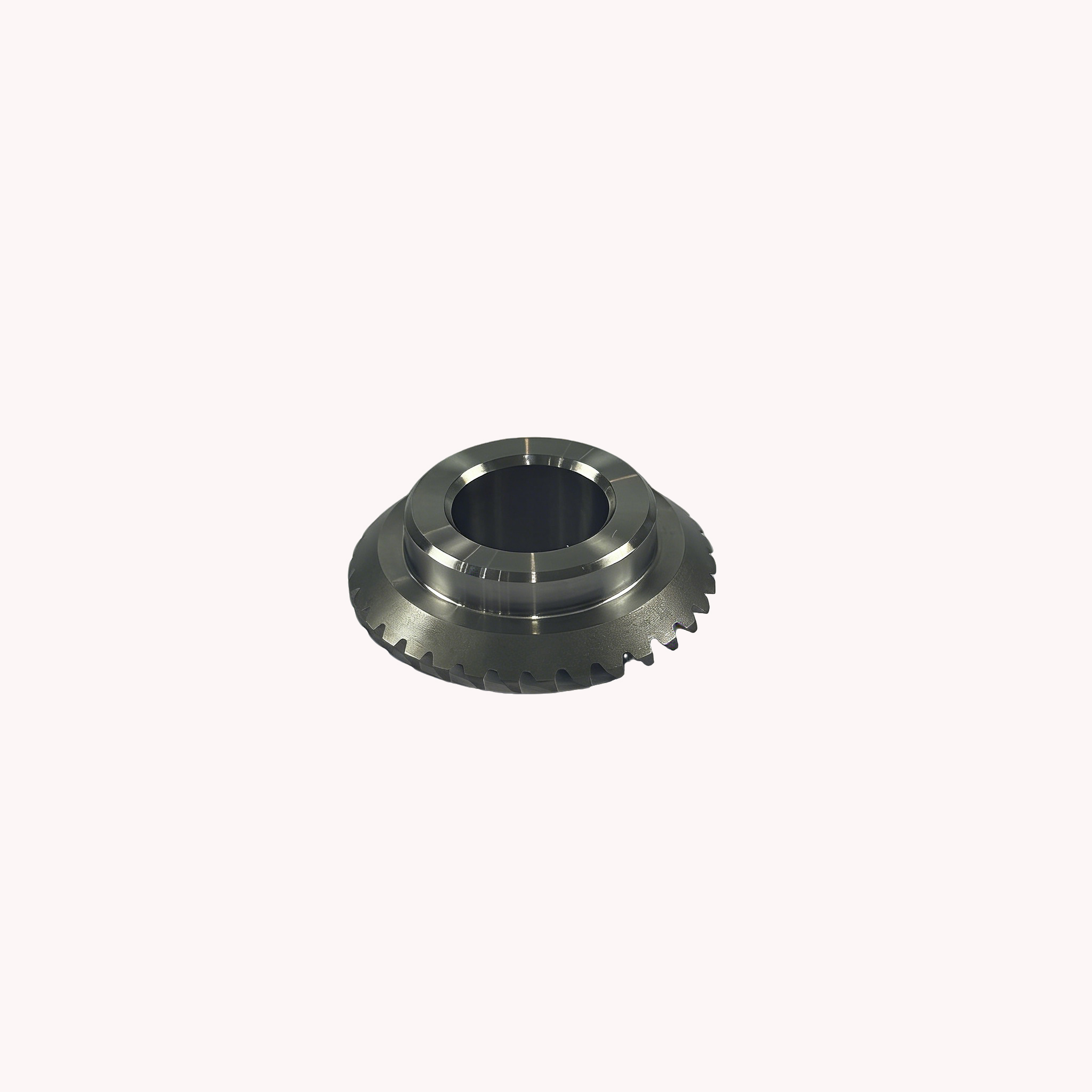

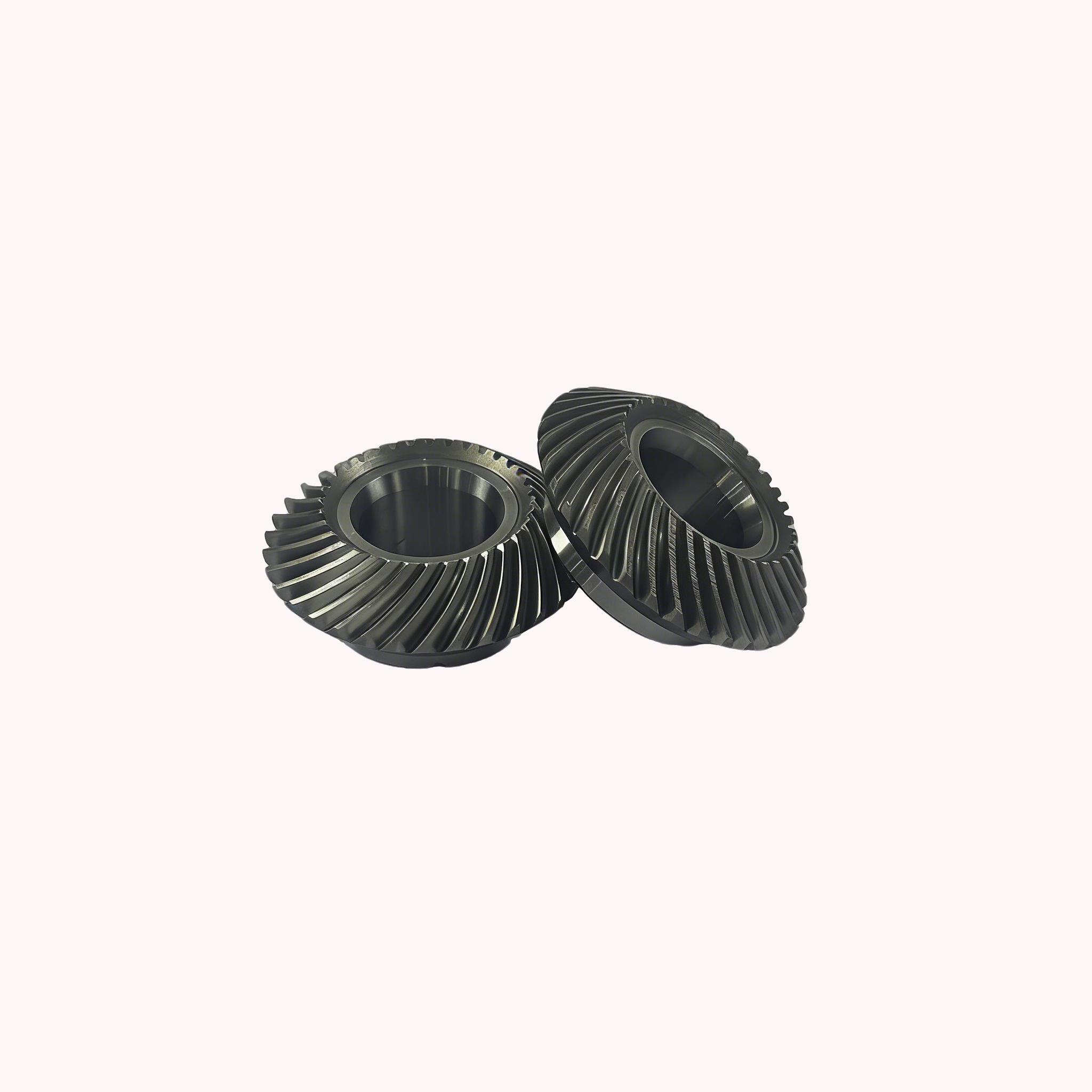

Model XB-003-C (Part No.BQBB0101070 RH, Size 050) & XB-004-C (Part No.BQBB0101080 LH, Size 050) are paired spiral bevel gears.
Specifications: 20° pressure angle, module 0.7, 34 teeth, transmission ratio 1, spiral angle 35°. Bore diameter 10mm, outer gear diameter 23.8mm, overall length 9.5mm, unit weight 0.0152kg.
Made of 20CrMnTi alloy steel. Production process: sawing → turning → keyway machining → gear milling → heat treatment → shot blasting → boring, facing, chamfering (guide radius) → precision gear grinding.
With high dimensional accuracy and excellent wear & fatigue resistance, these gears serve as core transmission parts for reducers.
Additional information
| XB-003-C and XB-004-C weight |
0.0152and0.0152 |
|---|---|
| XB-003-C and XB-004-C Core Components |
gear |
| XB-003-C and XB-004-C Craftsmanship |
Milling |
