0° straight tooth handwheel, middle 7.94, right-hand
03.08.0001-L (1.5M 21Z) Left-hand Gear and 03.08.0001-R (1.5M 21Z) Right-hand Gear
03.08.0049-L (Bevel Gear – L)
0370293800（SPLH042 BEVEL IN) and 0370293900（SPLH042 BEVE OUT）
This is SPLH042 matched spiral bevel gear pair, including left-hand input gear and right-hand output gear.
Material: 20CrMo.
Standard parameters: pressure angle 20°, module 1.1, 23 teeth.
Uniform dimension and weight.
Processed by precision machining, heat treatment, gear grinding and full inspection.
Features high precision and good wear resistance, widely used for reducer transmission assembly.
0370302100 SPIRAL BEVEL GEAR (IN) and 0370302200 SPIRAL BEVEL GEAR (OUT)
ASPJ-240-C and ASPJ-241-C are a set of matched spiral bevel gears for reducer.Material: 20CrMo; spec: 20° pressure angle, module 2.5, 25 teeth.Left-hand for input, right-hand for output.Processed by precision machining, heat treatment and full inspection, high precision and durable, ideal for reducer transmission.
0370SH7800 and 0370SH7900
SPJ-246-C (0370SH7800) and ASPJ-247-C (0370SH7900) are matched spiral bevel gears made of 20CrMo, suitable for reducers. The unified parameters are pressure angle 20° and module 1.5, which are 37° left-hand (28 teeth, gear ratio 1.428) and 37° right-hand (40 teeth) respectively. Manufactured by precision machining, heat treatment and full inspection, they have high precision and good wear resistance, meeting the needs of reducer transmission matching.
0370SH8900（SPIRAL BEVEL GEAR IN）Left-hand spiral bevel gear and 0370SH9000（SPIRAL BEVEL GEAR OUT）Right-hand spiral bevel gear
ASPJ-250-C (left-hand) and ASPJ-251-C (right-hand) are two types of 20CrMo spiral bevel gears, dedicated to reducer transmission. With a pressure angle of 20° and module of 2, they are respectively equipped with 18 teeth/45 teeth and 35° left/right-hand spiral structures. Processed through multiple precision procedures such as turning, gear milling, heat treatment, gear grinding and wire-cut keyway, they feature high accuracy, good wear resistance and stable transmission, suitable for reducer transmission matching.
080672631 (40G-1/4 MP) Gear Shaft
10170015 Small Gear for Submersible Oil Diaphragm Pump and 10170016 Large Gear for Submersible Oil Diaphragm Pump
QZ-042-C
Module 3.5 left-hand spiral bevel gear, 20° pressure angle, 15 teeth, ratio 27/15, 35°L spiral angle; ID 25mm, OD 60mm, total length 40mm, weight 0.0350kg. 20CrMo steel, precision machined for submersible oil diaphragm pump and power tools.
QZ-043-C
Module 3.5 right-hand spiral bevel gear, 20° pressure angle, 27 teeth, 35°R spiral angle; ID 22mm, OD 92mm, total length 26mm, weight 0.0965kg. 20CrMo alloy steel, high precision grinding for submersible oil diaphragm pump transmission.
106349‑00023454 Left‑hand Gear (Without Keyway) and 106349‑00023454 Right‑hand Gear (Without Keyway)
QZ‑054‑C & QZ‑055‑C are left‑hand and right‑hand keyless spiral bevel gears for power tools, made of 20CrMo.
Specifications: 20° pressure angle, module 1, 30 teeth, 35° helix angle.
Precision‑processed via gear milling, heat treatment, shot blasting and gear grinding, with high strength and wear resistance for power tool transmission systems.
12925004 Small Helical Gear
The 12925004 small helical gear (helical gear type) has a module of 0.9769, pressure angle of 14.5° and helix angle of 45°/L, with 15 teeth. Made of 20CrMo material, it is fabricated via sophisticated processes including normalizing, hobbing and nitriding heat treatment. Boasting a compact size (addendum circle diameter 22.67mm, total length 17mm, weight 0.0171kg), it is a dedicated transmission component for sewing equipment, featuring stable transmission, wear resistance and long service life.

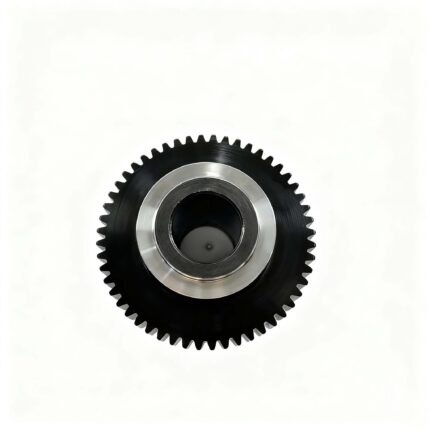

12BGL-8X-Head-006-Lower Shaft Gear-52-1.25
The 12BGL-8X-Head-006-Lower Shaft Gear-52-1.25 is a dedicated spur gear for sewing equipment. Crafted from 20CrMo material, it undergoes a series of precision processes including sawing, hobbing, heat treatment and blackening. With a pressure angle of 20°, module of 1.25, 52 teeth, inner diameter of 20mm, addendum circle diameter of 67.5mm, total length of 45mm and weight of 0.5575kg, it can transmit power stably and is suitable for the transmission systems of various industrial sewing machines.
