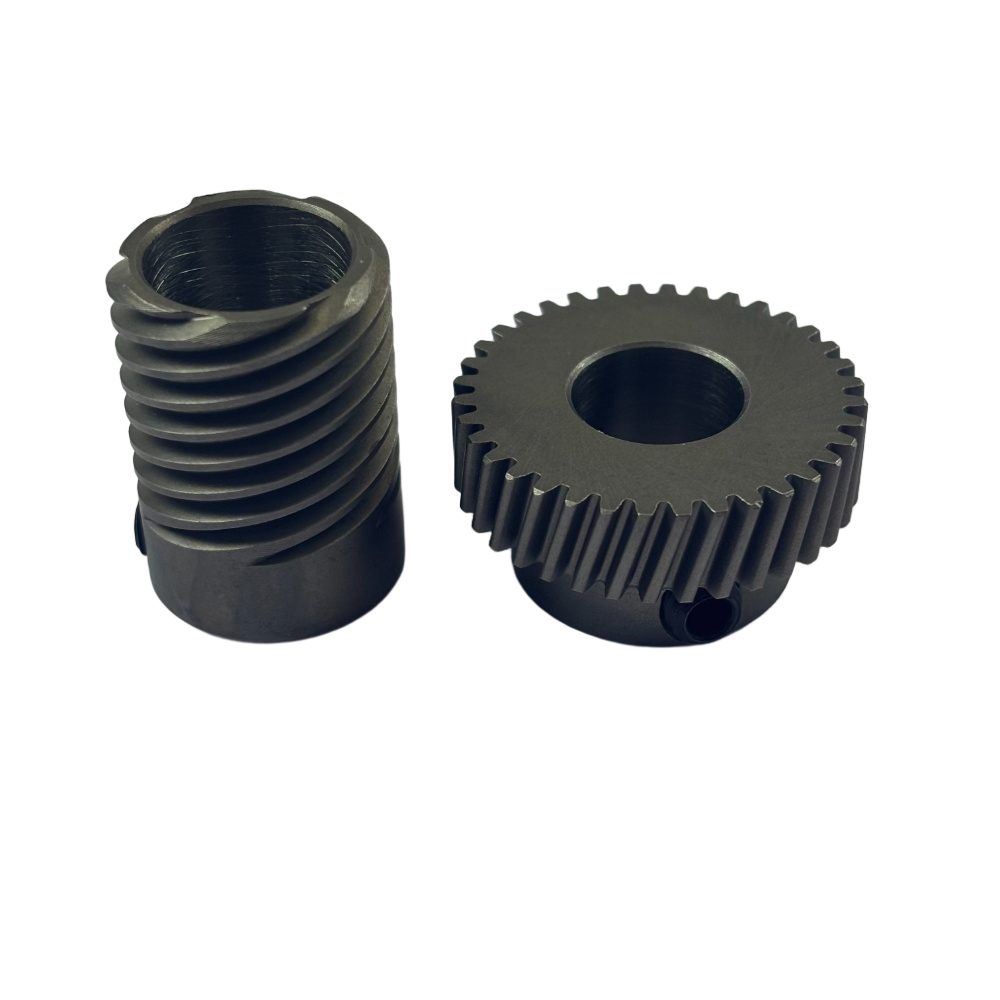

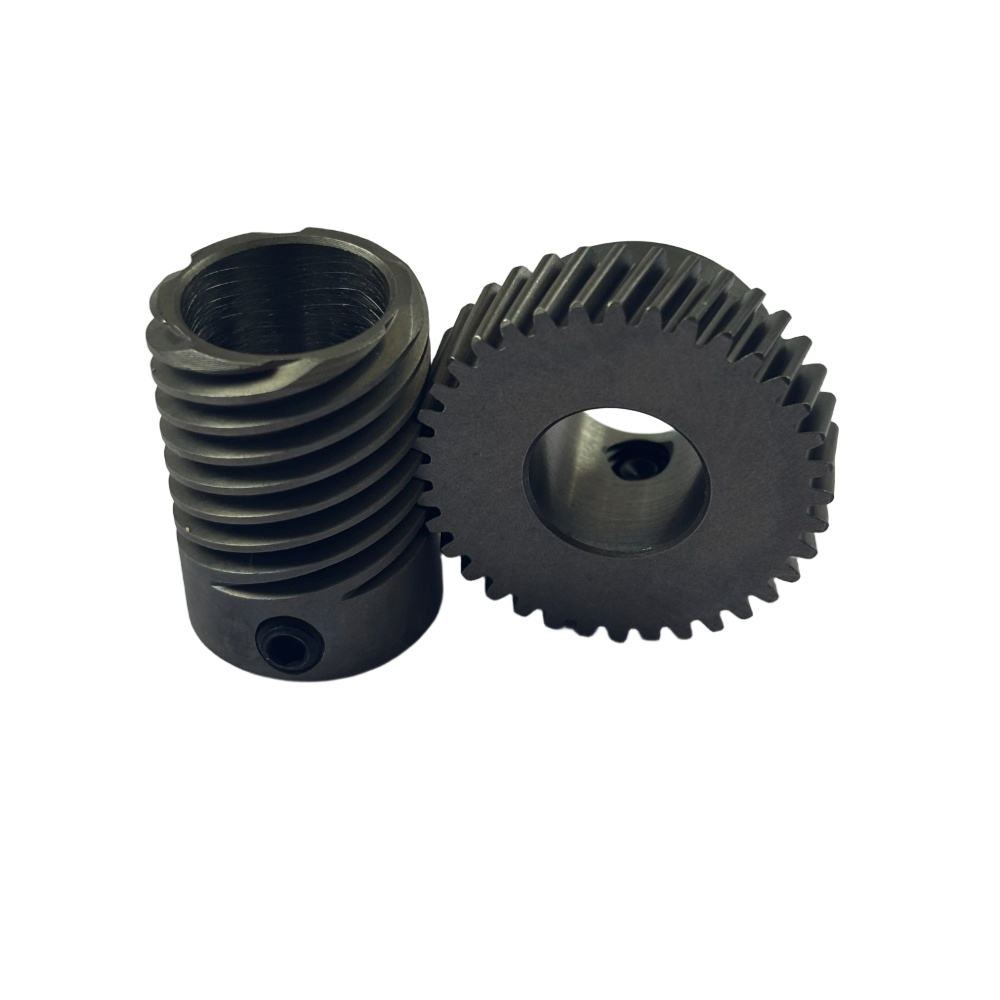

1533-8 Tooth Gear and 1533-T32 Gear
1533-8 Tooth Gear and 1533-T32 Gear $4.20piece

1533-6 Tooth Gear and 1533-T36 Gear

$2.52

1533-6 Tooth Helical Gear: 20CrMo helical gear for sewing machines, module 0.8, 6 teeth, 15.12°R helix angle, precision-engineered, stable and efficient transmission​
1533-T36 Helical Gear: 20CrMo helical gear for sewing equipment, module 0.8, 36 teeth, 15.12°R helix angle, high-precision, strong adaptability

Add to compare
Add to wishlist
SKU: 1533-001-C and 1533-004-C Category:
Description

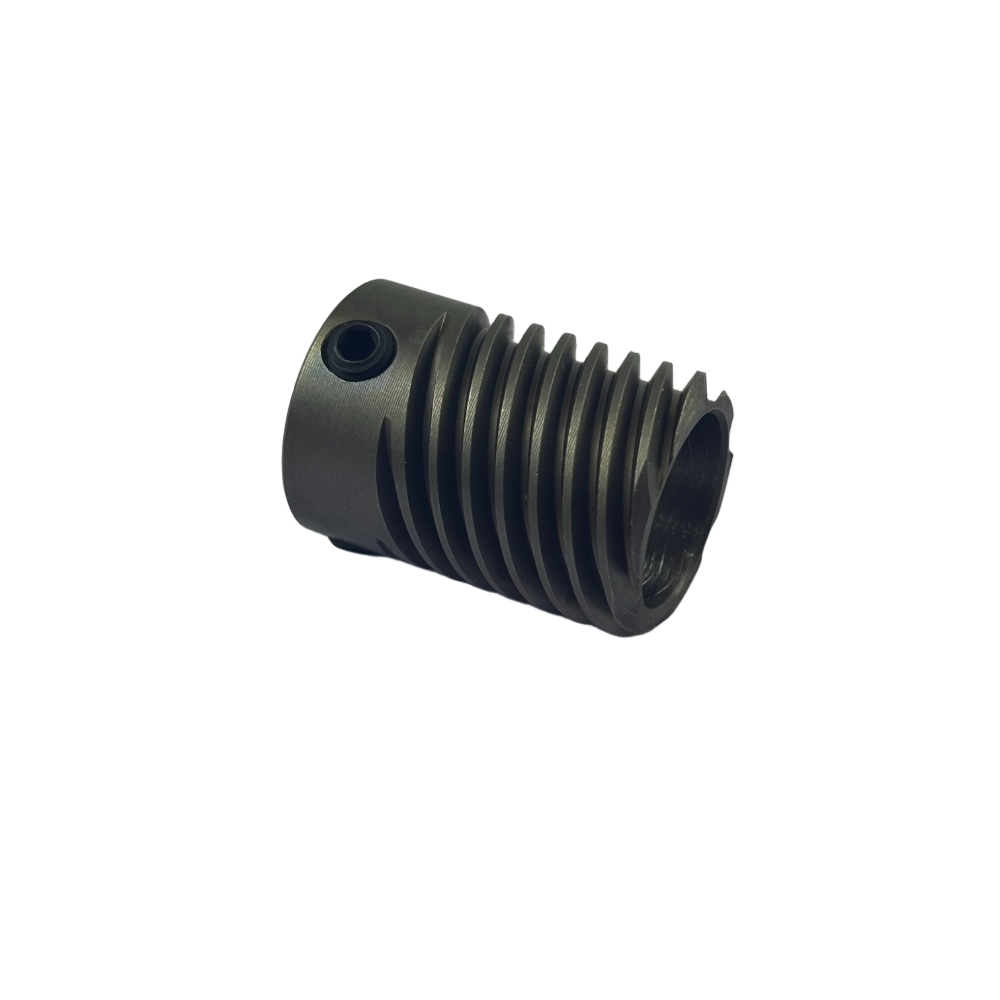

1533-6 Tooth Helical Gear

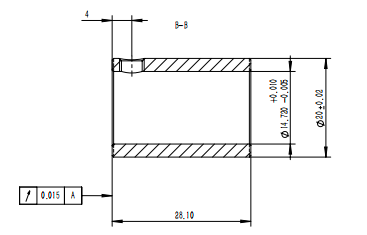

This product is a dedicated helical gear for sewing equipment, crafted from high-quality 20CrMo alloy steel, delivering excellent mechanical properties and wear resistance. Boasting precise core parameters, it features a pressure angle of 20°, module of 0.8, 6 teeth, speed ratio of 6, right-hand helix angle of 15.12°, inner diameter of 14.72mm, outer tooth diameter of 20mm, total length of 28mm, and a net weight of only 0.0235kg. Its compact and lightweight structure is perfectly suited for the lightweight installation requirements of sewing machinery.
The production process adheres to a precision workflow: normalizing – turning – screw hole machining – reaming – gear hobbing – heat treatment – shot blasting – reaming – screw assembly. Rigorous control over each process ensures the gear achieves high tooth profile accuracy and excellent meshing performance, enabling stable operation with low noise during transmission. It serves as an indispensable core transmission component that effectively guarantees the efficient and stable operation of sewing equipment.

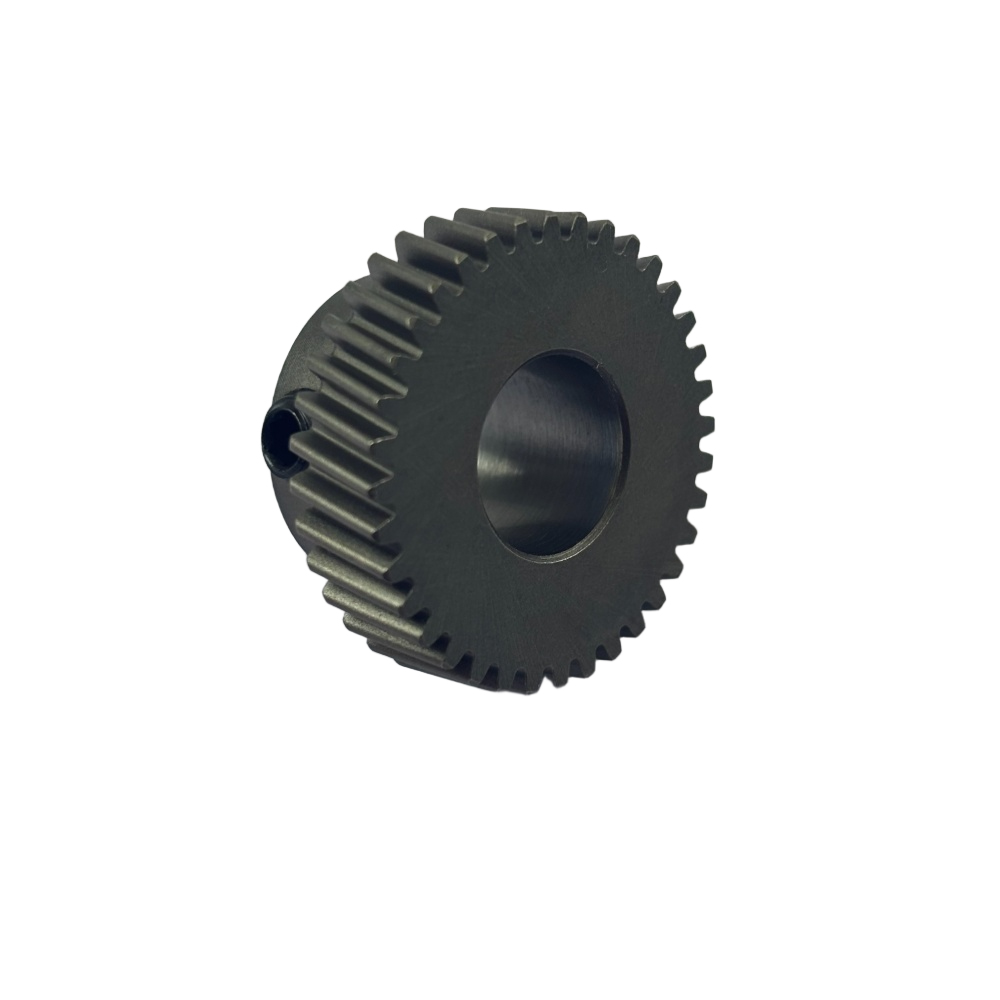

1533-T36 Helical Gear

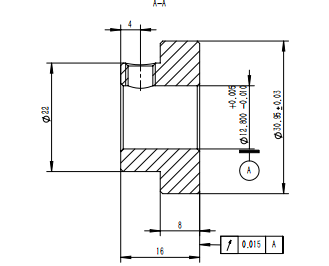

This product is a high-precision helical gear specially designed for sewing equipment, made of 20CrMo alloy steel that balances toughness and durability. It is configured with optimal key parameters: pressure angle of 20°, module of 0.8, 36 teeth, right-hand helix angle of 15.12°, inner diameter of 12.8mm, outer tooth diameter of 30.95mm, total length of 16mm, and a net weight of 0.0469kg. Its structural design matches the compact installation space constraints of sewing machinery.
The manufacturing process follows a standardized precision procedure, including normalizing – turning – screw hole machining – reaming – gear hobbing – heat treatment – shot blasting – reaming – screw assembly. The gear realizes high transmission accuracy and stable meshing, which can effectively improve the operational precision and work efficiency of sewing equipment. It is a key accessory for achieving precise power transmission in sewing machinery.
Additional information
1533-001-C and 1533-004-C weight

0.0235 and 0.0469
1533-001-C and 1533-004-C Core Components

gear
1533-001-C and 1533-004-C Craftsmanship

Hobbing
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “1533-6 Tooth Gear and 1533-T36 Gear”
