AMC005 (Power Tool Holder Gear – φ15) and AMC005 (Power Tool Holder Gear – φ17)
$28.02piece

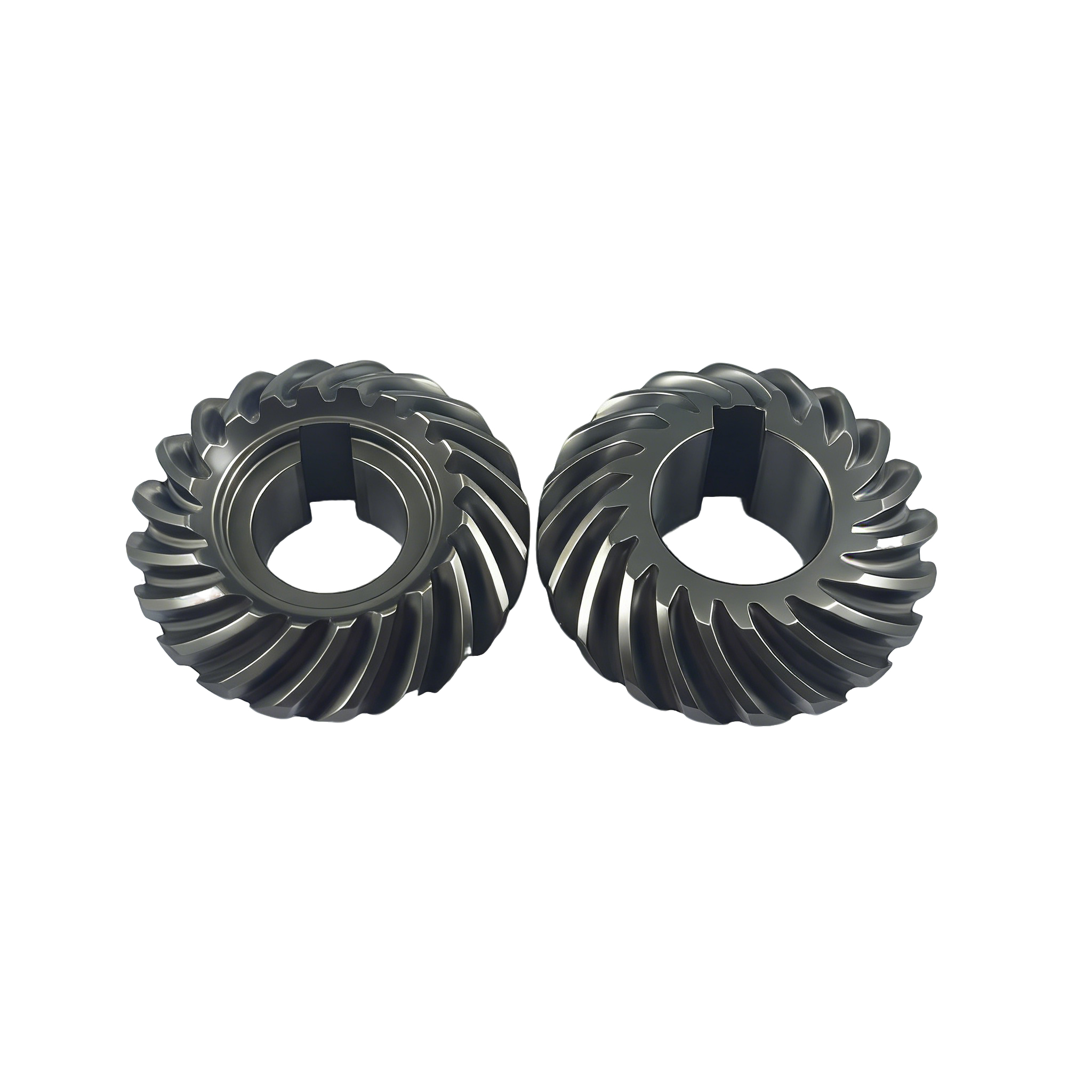

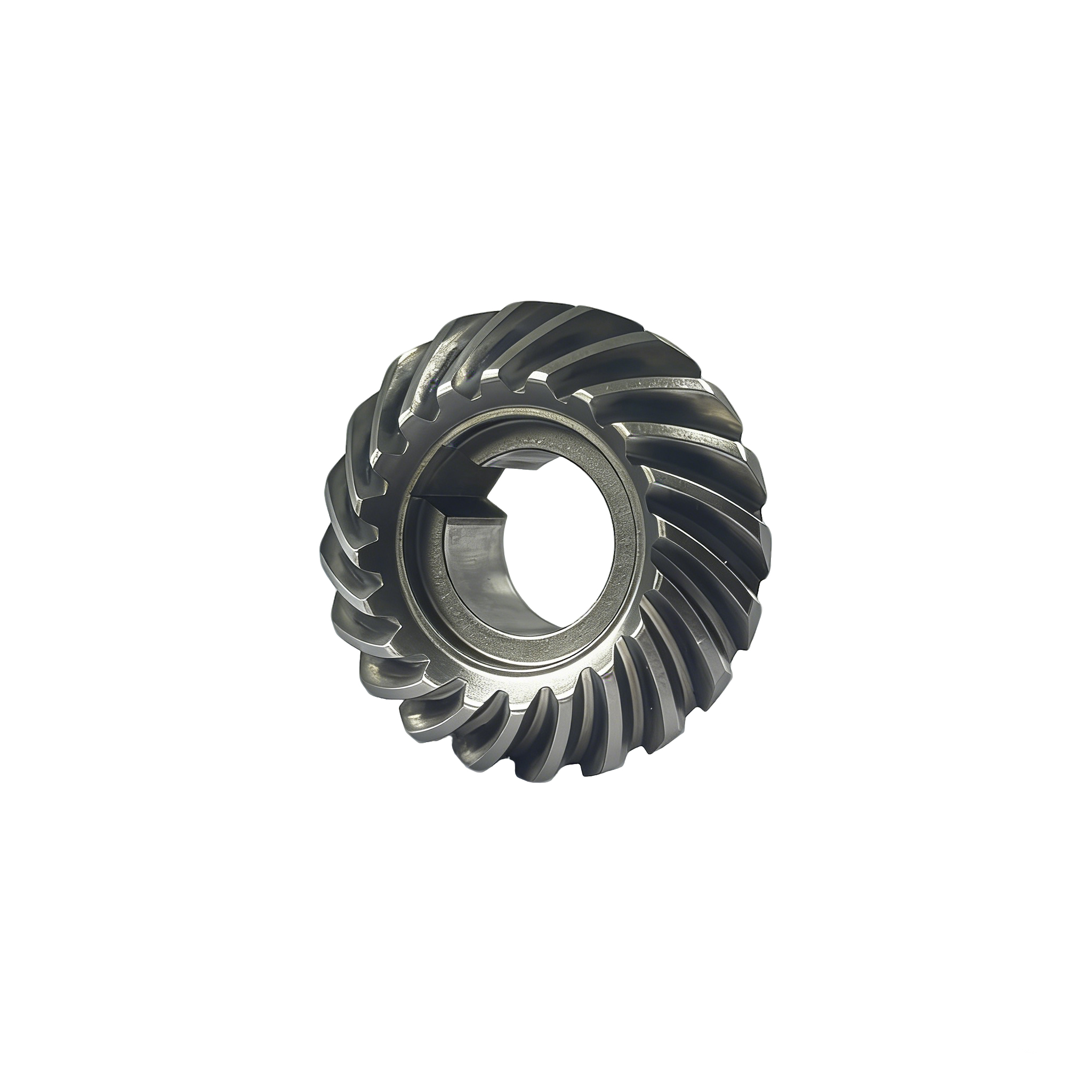

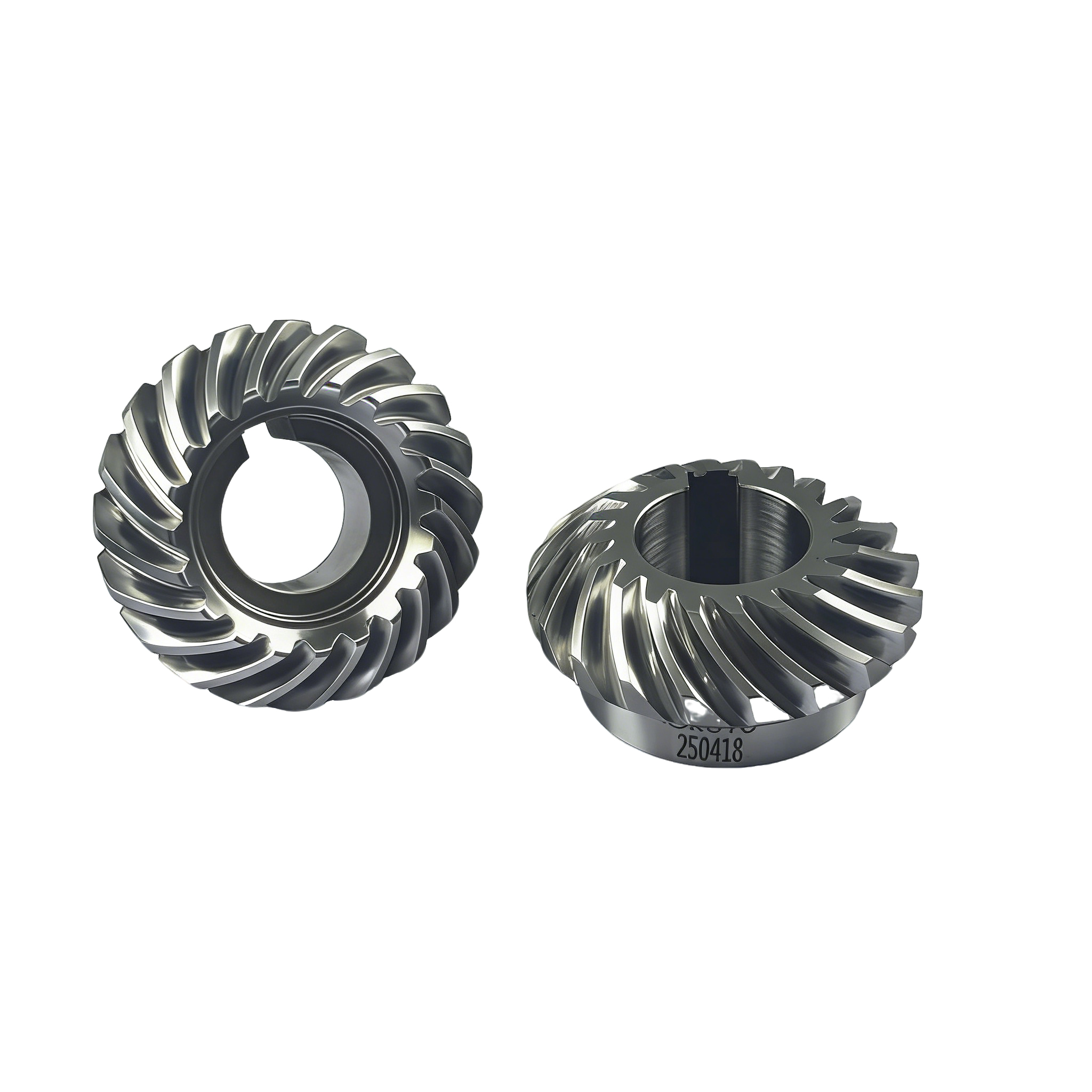

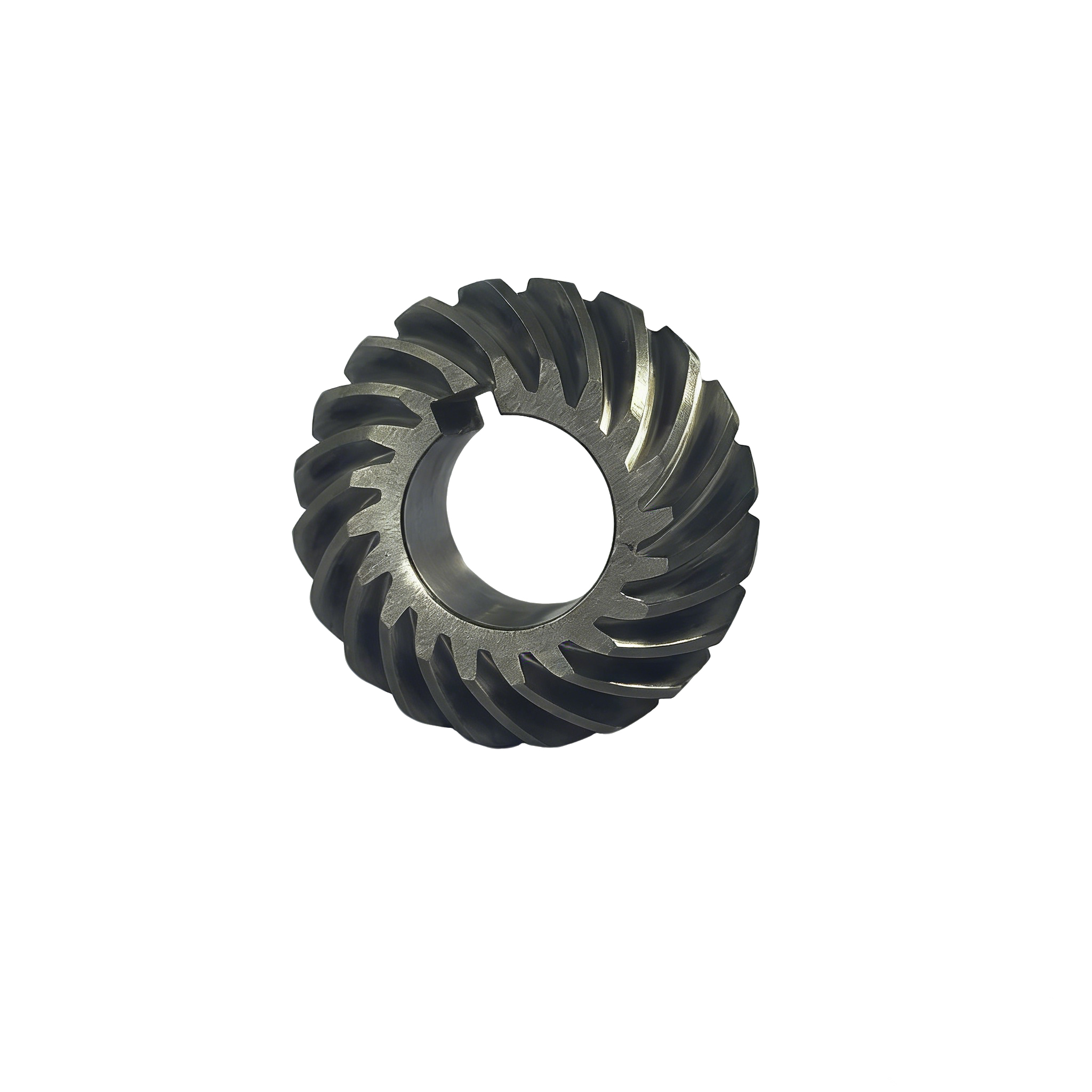

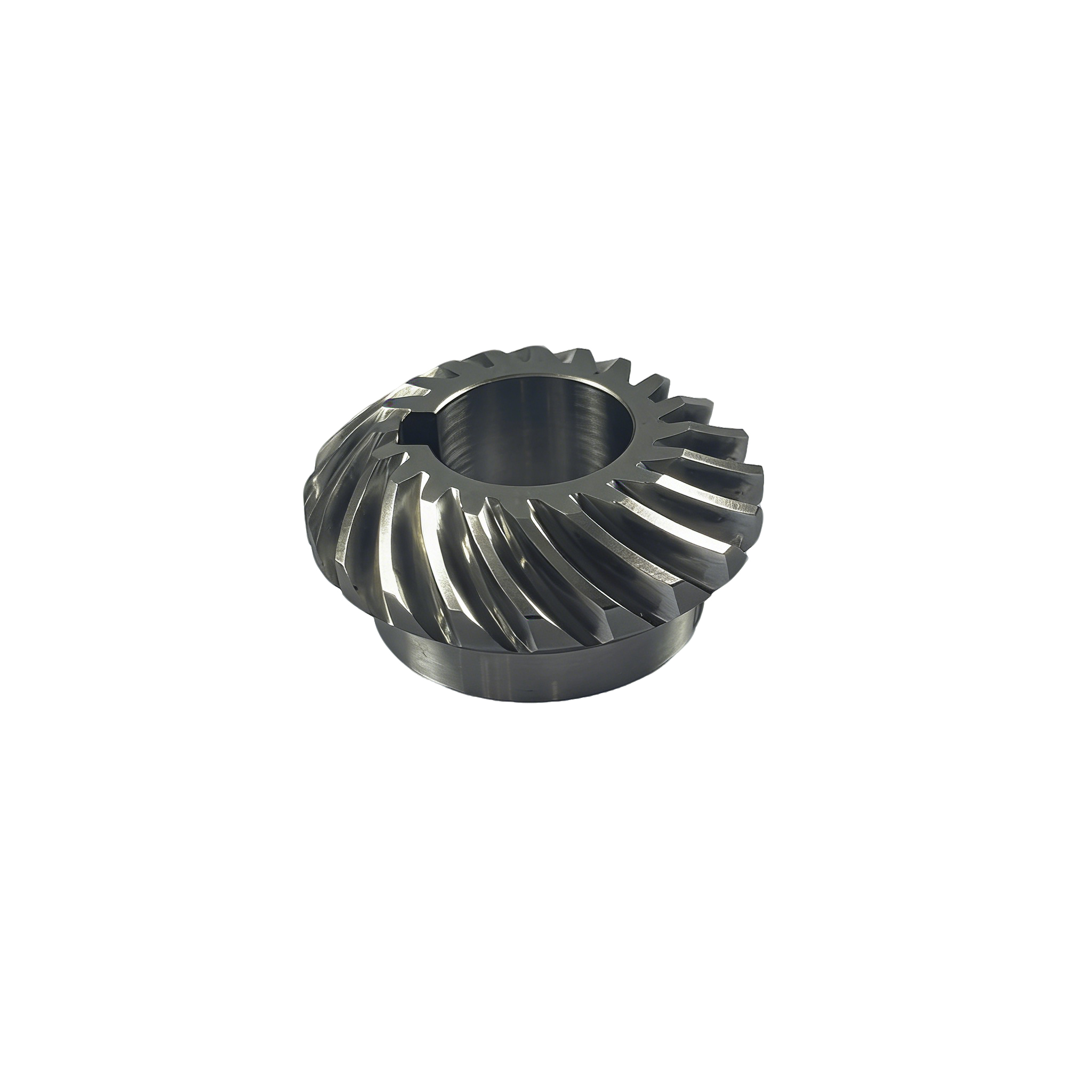

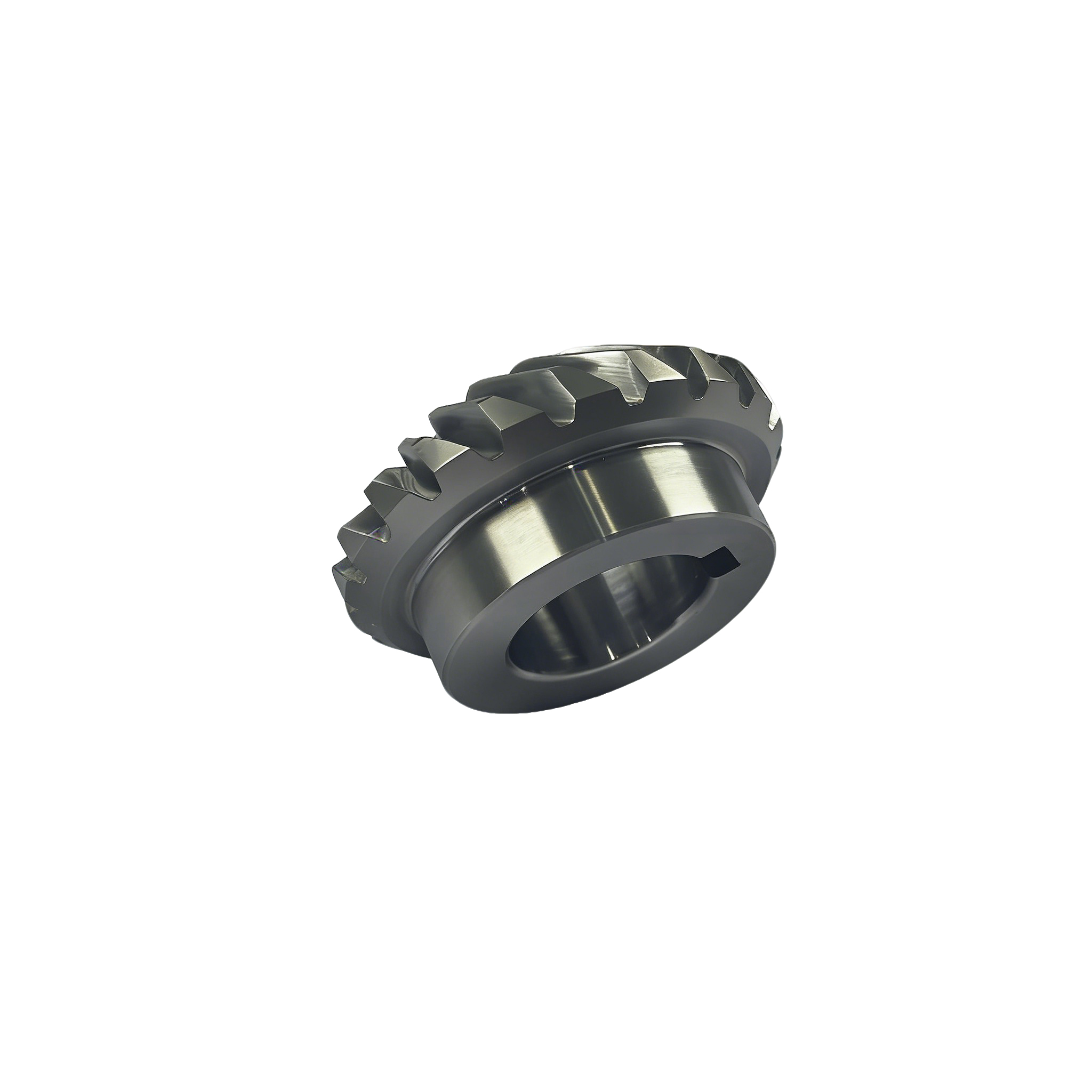

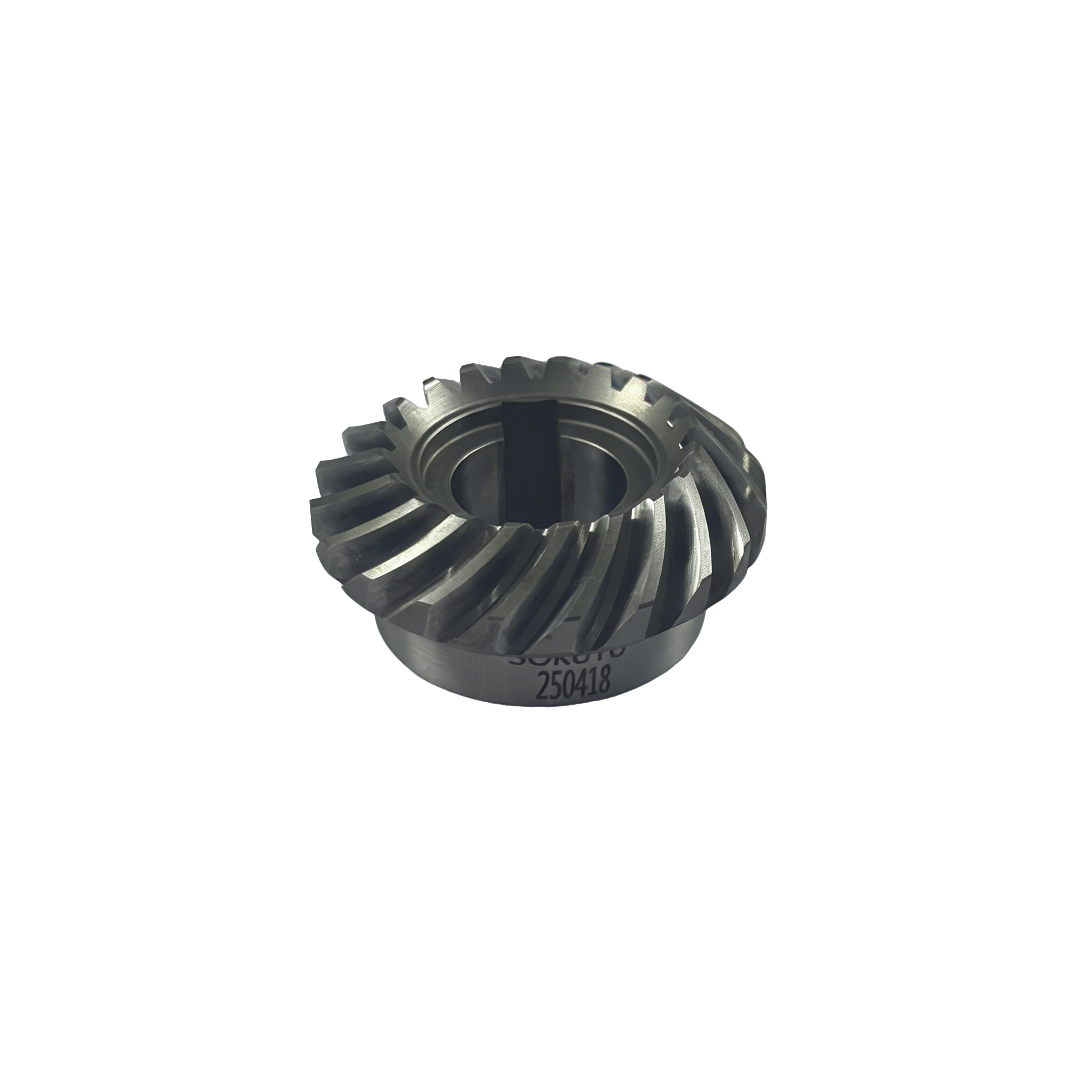

Two spiral bevel gears made of 20CrMnTi: SuYou-001-C (ID φ15, left-hand, 0.0797kg) and SuYou-002-C (ID φ17, right-hand, 0.0808kg). With module 2, 20 teeth and 20° pressure angle, they are precision-machined for power tool transmission.
Description
This series includes two spiral bevel gears: SuYou-001-C AMC005 Power Tool Holder Gear (φ15) and SuYou-002-C AMC005 Power Tool Holder Gear (φ17). Both feature a pressure angle of 20°, module of 2, 20 teeth, gear outer diameter of 39mm, and total length of 17.75mm. SuYou-001-C has an inner diameter of 15mm, weighs 0.0797kg with a 35° left-hand spiral angle; SuYou-002-C has an inner diameter of 17mm, weighs 0.0808kg with a 35° right-hand spiral angle, both with a speed ratio of 1. Made of 20CrMnTi, they are processed through precise procedures including sawing, turning, gear milling, heat treatment, shot blasting, wire-cut keyway, boring, end facing, OD turning, gear grinding and lapping in pairs, suitable for power tool transmission.
Additional information
| SuYou-001-C and SuYou-002-C weight |
0.0797and0.0808 |
|---|---|
| SuYou-001-C and SuYou-002-C Core Components |
gear |
| SuYou-001-C and SuYou-002-C Craftsmanship |
Milling |
