32001088-00 Shaft
$1.30piece

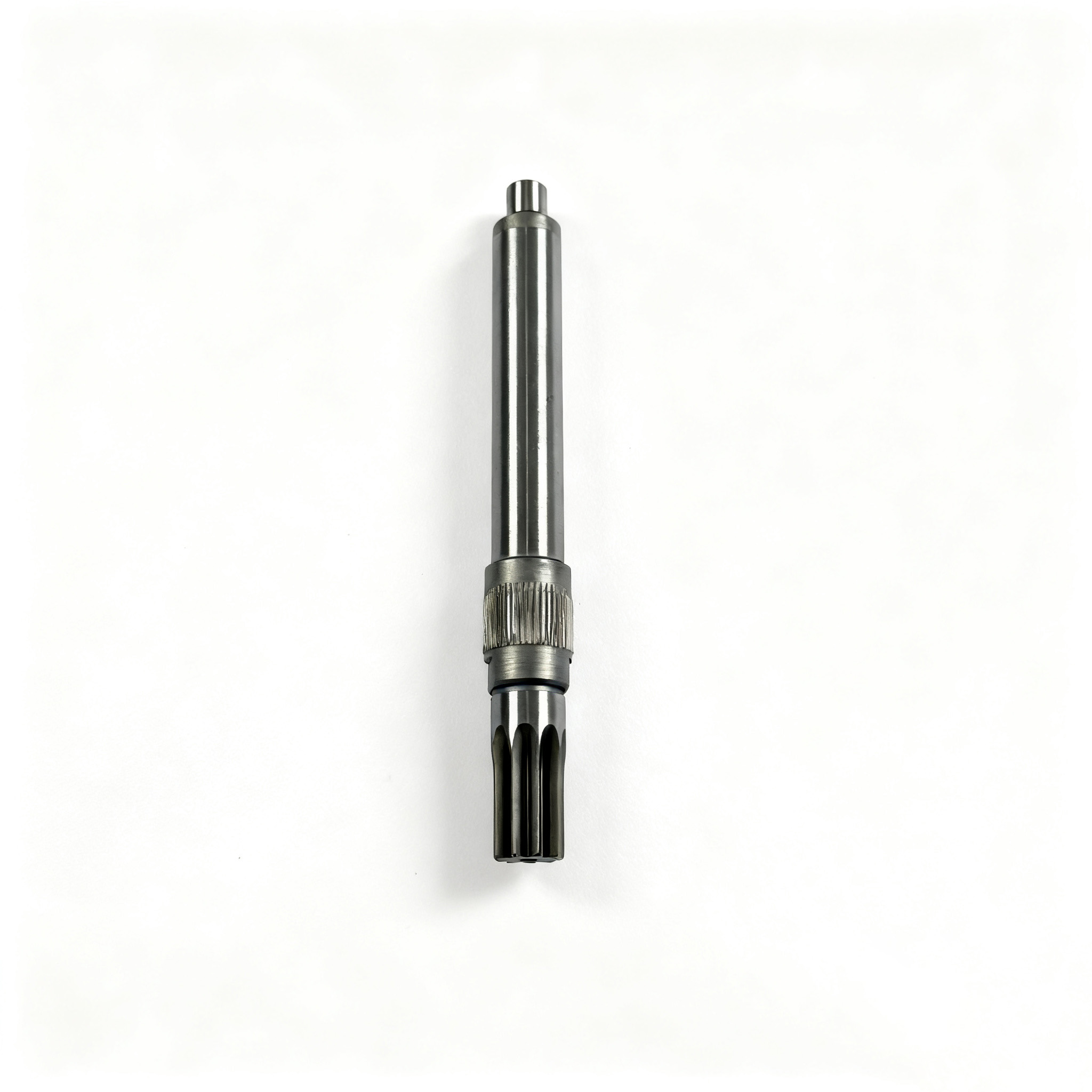

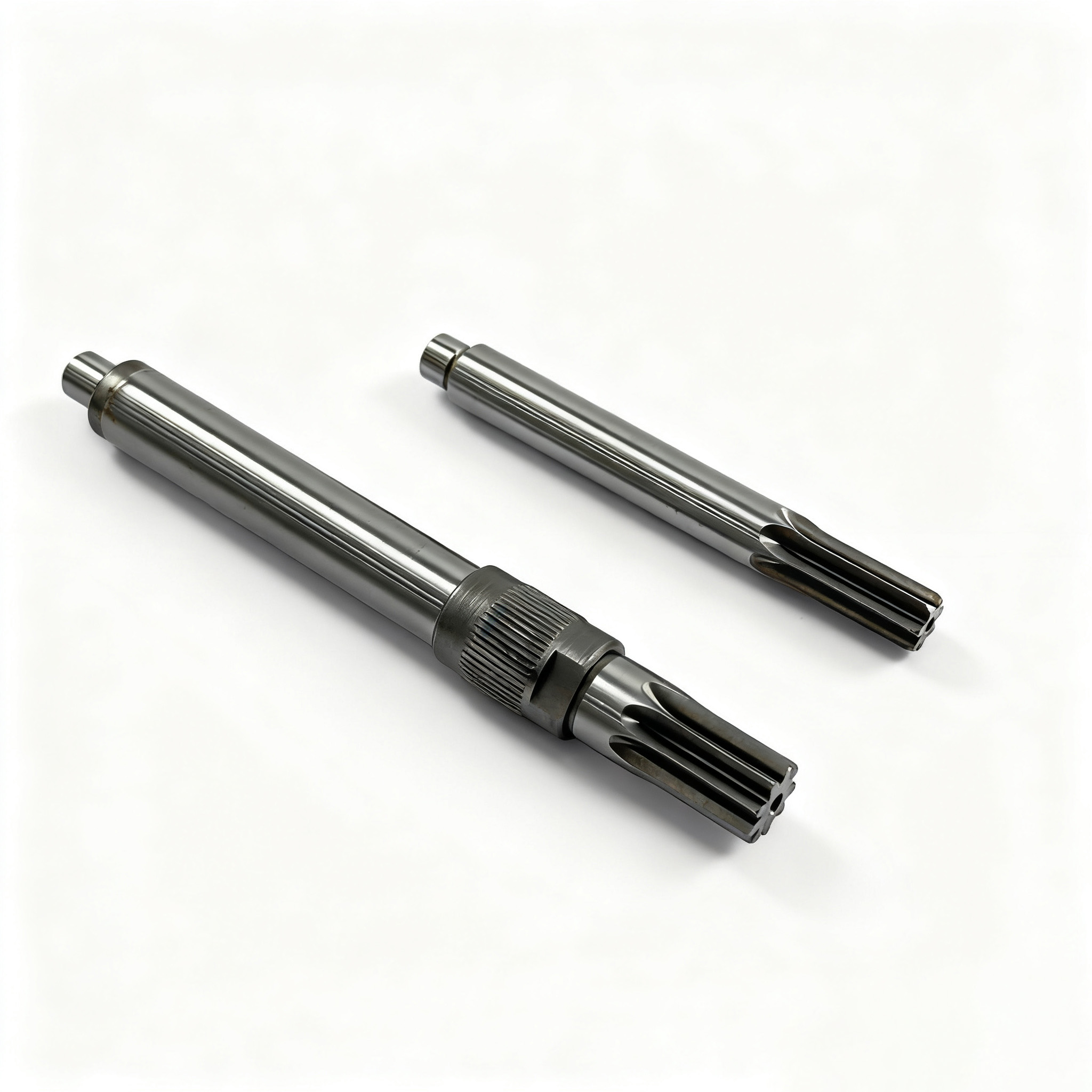

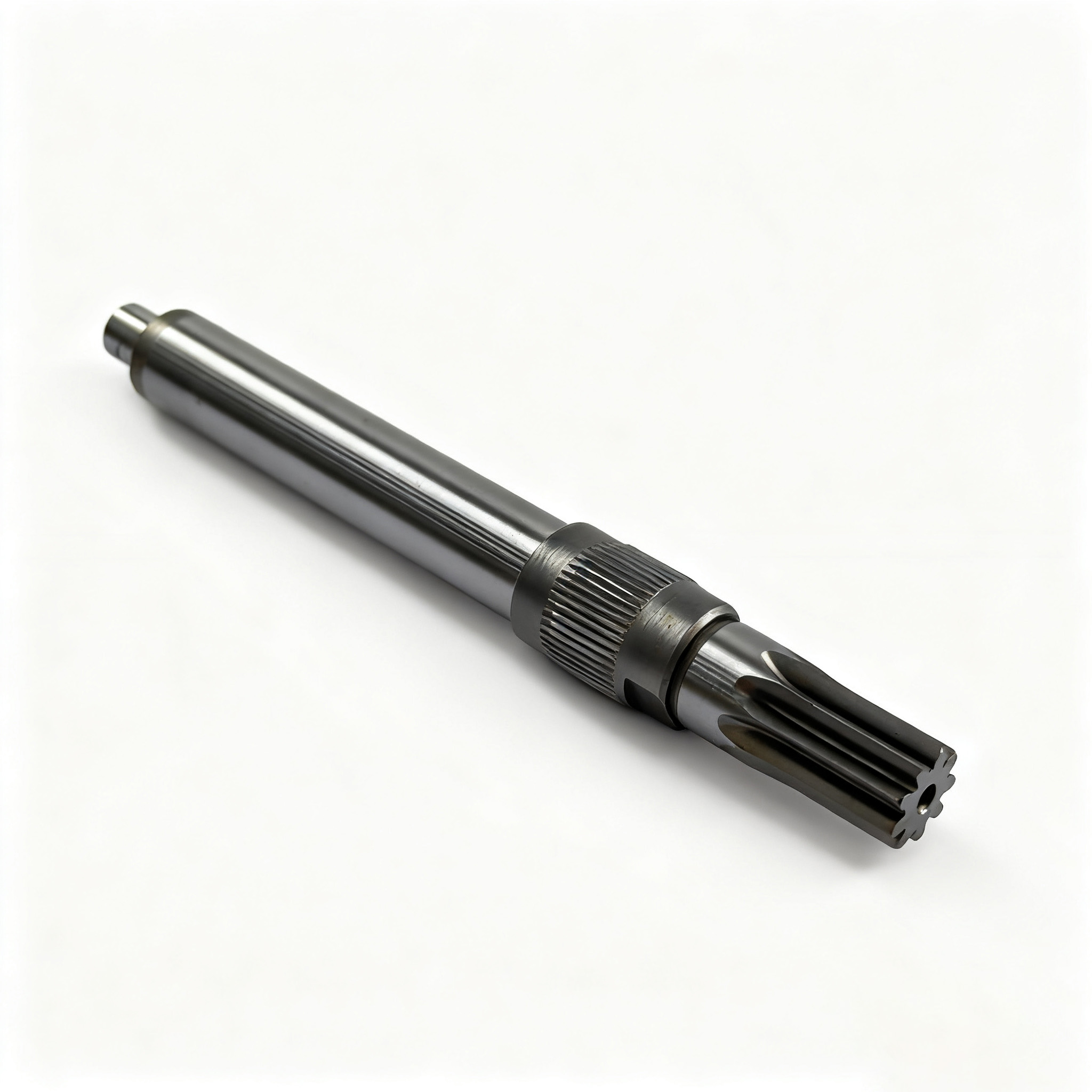

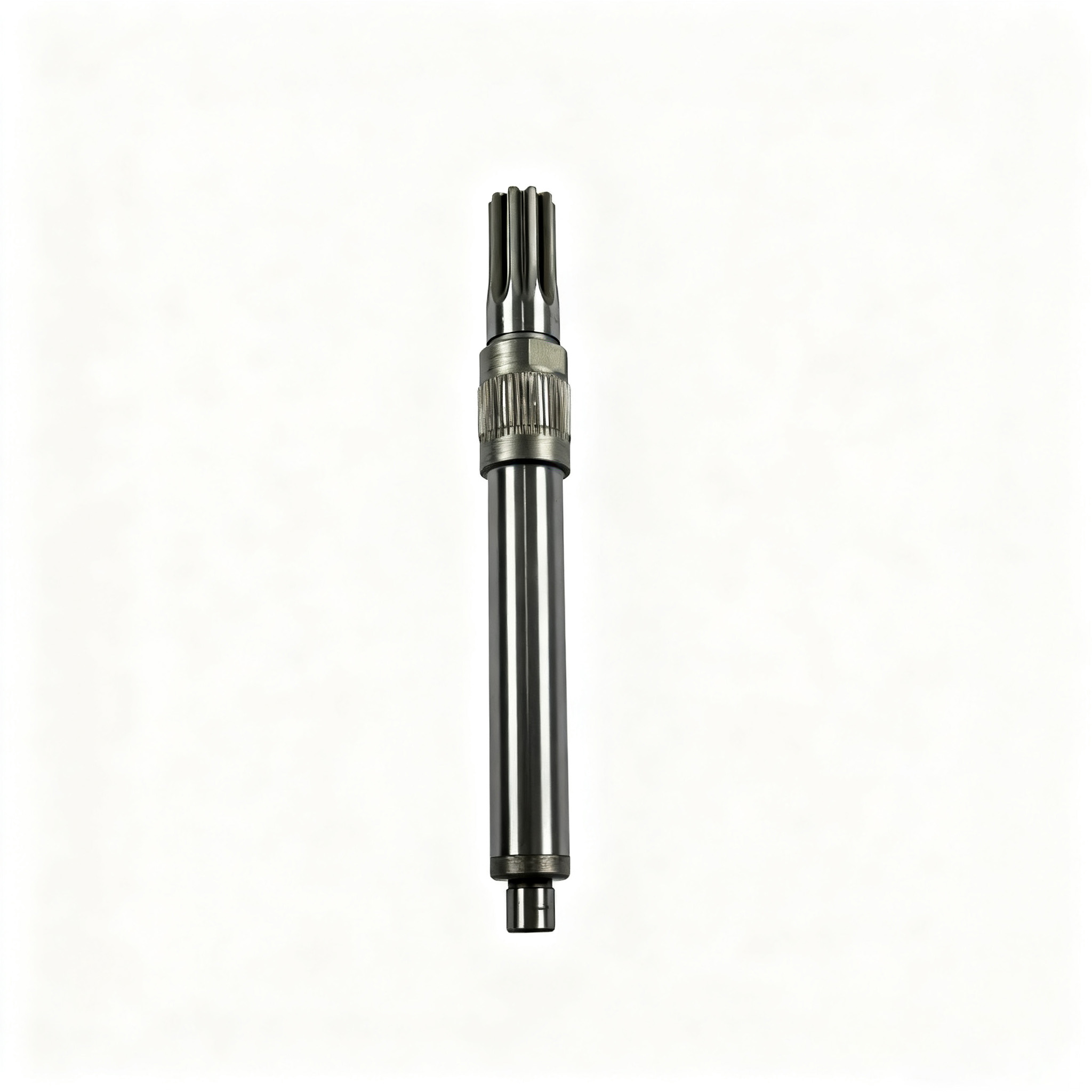

The 32001088-00 Shaft is a spur gear component made of 20CrMo steel. It features a pressure angle of 20°, module of 0.8, 9 teeth, and a helix angle of 0°, with a shaft diameter of 10mm, outer tooth diameter of 9.4mm, total length of 96.5mm, and unit weight of 0.041kg. Precision-machined via multiple processes, it is a dedicated transmission gear for power tools.
Description
Product Name: 32001088-00 Shaft
Product Category: Spur Gear
This product is made of high-quality 20CrMo alloy steel, with precise core technical parameters: pressure angle of 20°, module of 0.8, number of teeth of 9, helix angle of 0°, shaft diameter of 10mm, outer tooth diameter of 9.4mm, total length of 96.5mm, and unit weight of 0.041kg.
The product is manufactured through a strict multi-process workflow: normalizing → turning → rough grinding of clamping position → rough grinding and correction of reference → gear hobbing → heat treatment + correction → shot blasting → outer diameter grinding → 100% appearance inspection. Each process is subject to high-precision quality control to ensure the dimensional accuracy and structural stability of the product.
As a professional power tool gear, it is suitable for the transmission systems of various power tools, capable of efficiently transmitting torque and providing solid transmission support for the stable operation of power tools.
Additional information
| weight |
0.041 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
