BEVEL IN,0370302500(0370-SH54-00(060-2) and BEVEL OUT,0370302600(0370-SH55-00(060-2)
$19.09piece
ASPJ-243-C (input) and ASPJ-244-C (output) are a set of matched spiral bevel gears for reducer.
Material: 20CrMo; Pressure angle 20°, module 1.25.
13 teeth left-hand drive gear & 26 teeth right-hand driven gear with gear ratio 2.
Precision machined, heat treated and fully inspected, high accuracy and durable for reducer transmission.
Description

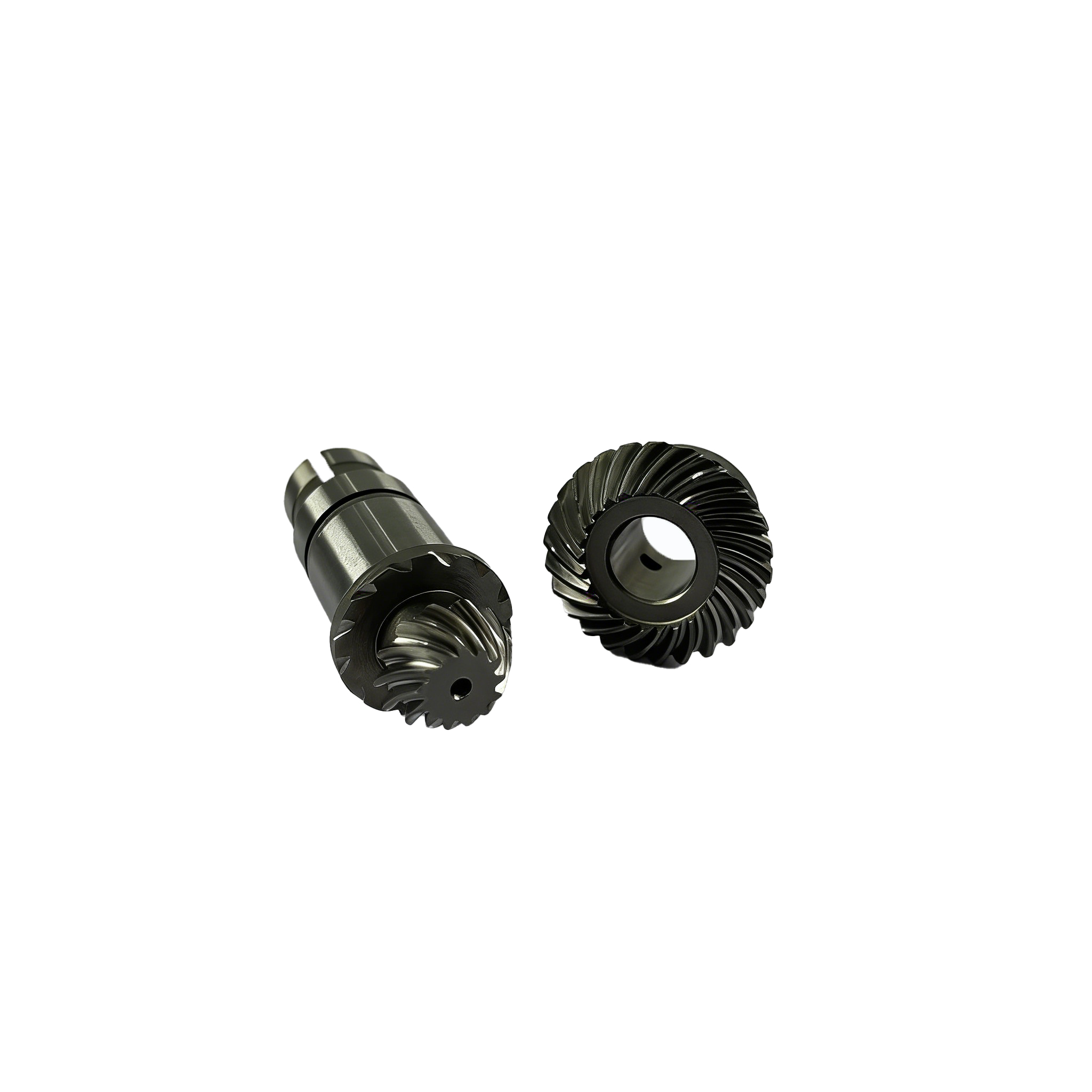

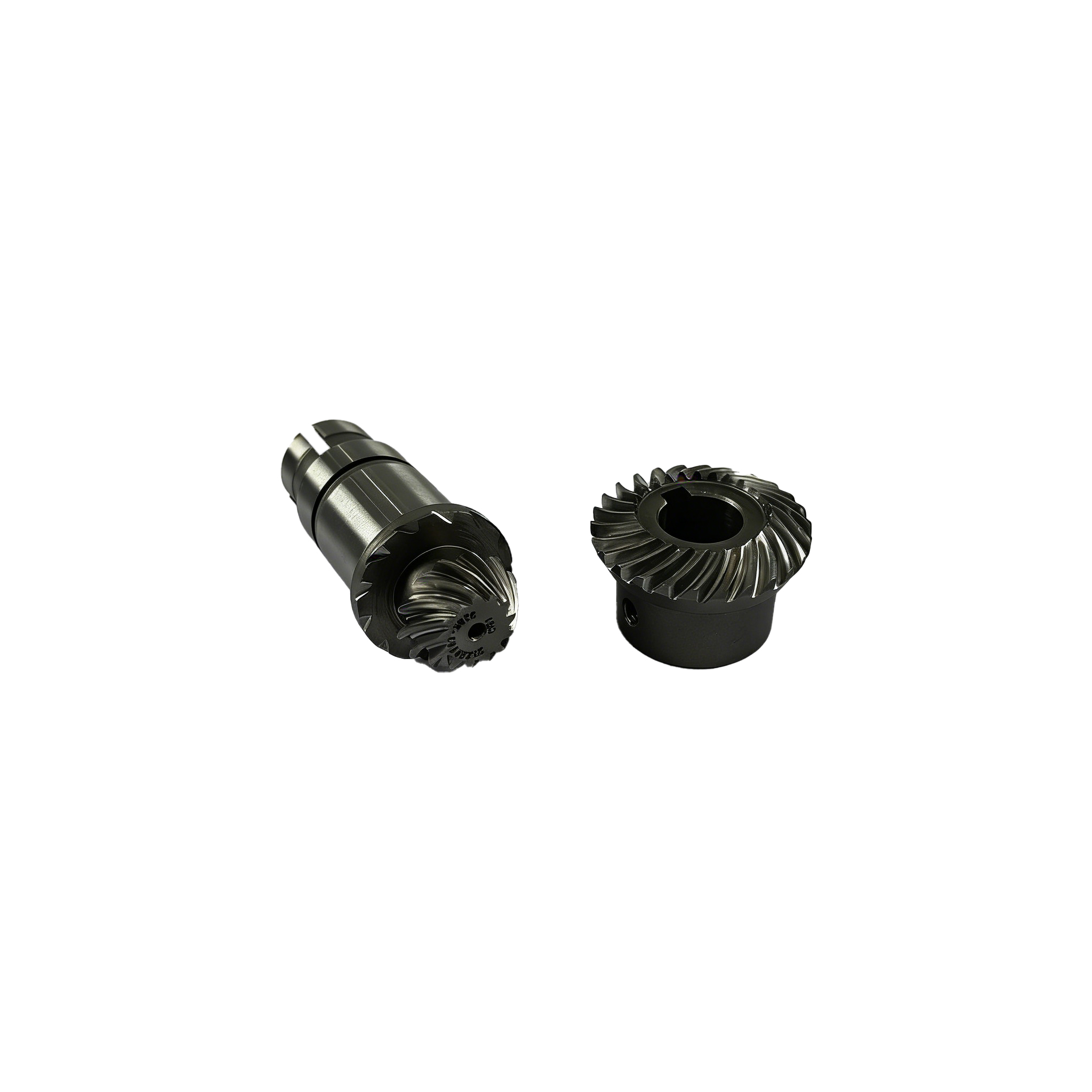

This is a matched pair of spiral bevel gears: ASPJ-243-C (Input) and ASPJ-244-C (Output).
Part No.:
ASPJ-243-C: BEVEL IN, 0370302500 (0370-SH54-00(060-2))
ASPJ-244-C: BEVEL OUT, 0370302600 (0370-SH55-00(060-2))
Both gears are made of 20CrMo alloy steel, applied for reducer transmission.
Unified specification: pressure angle 20°, module 1.25.

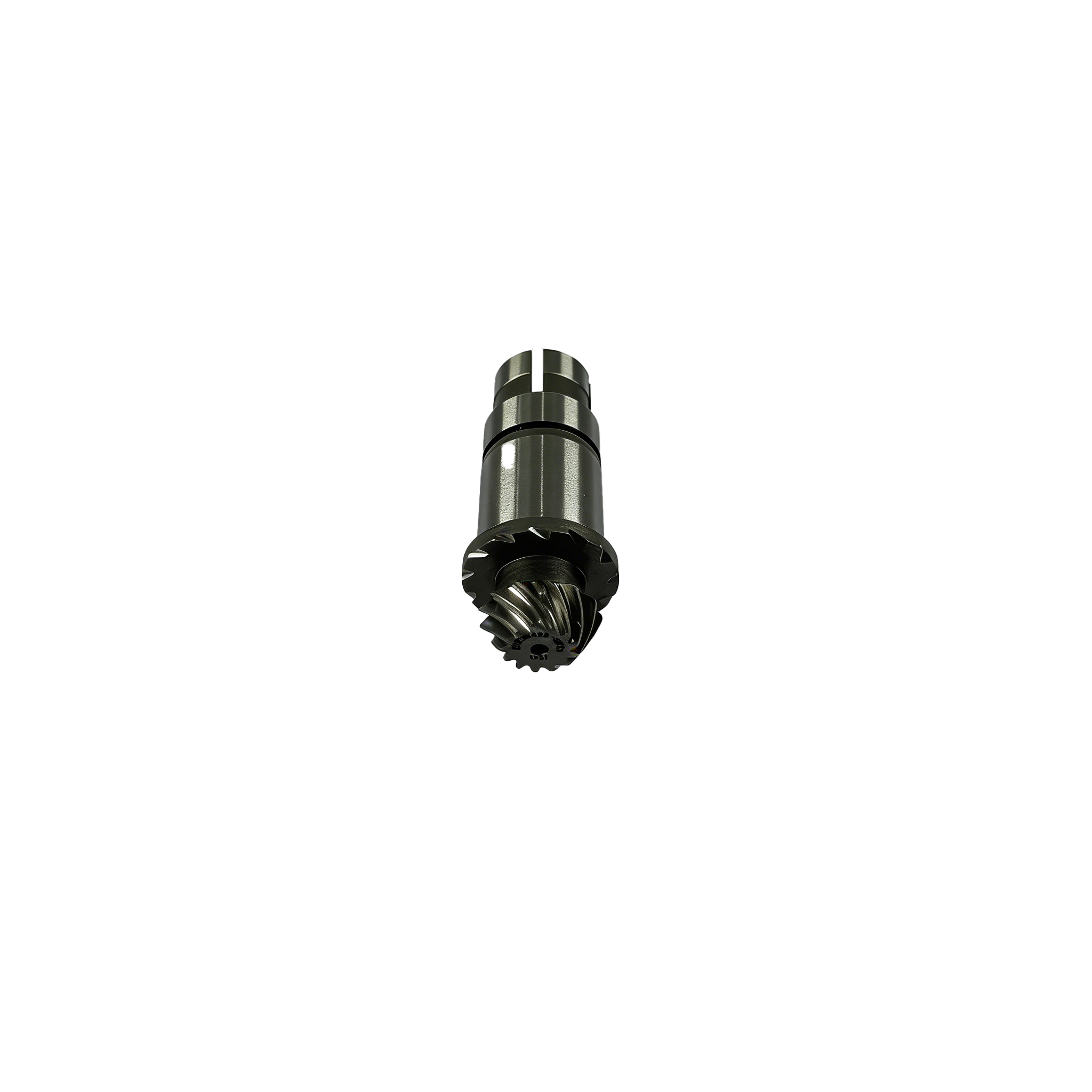

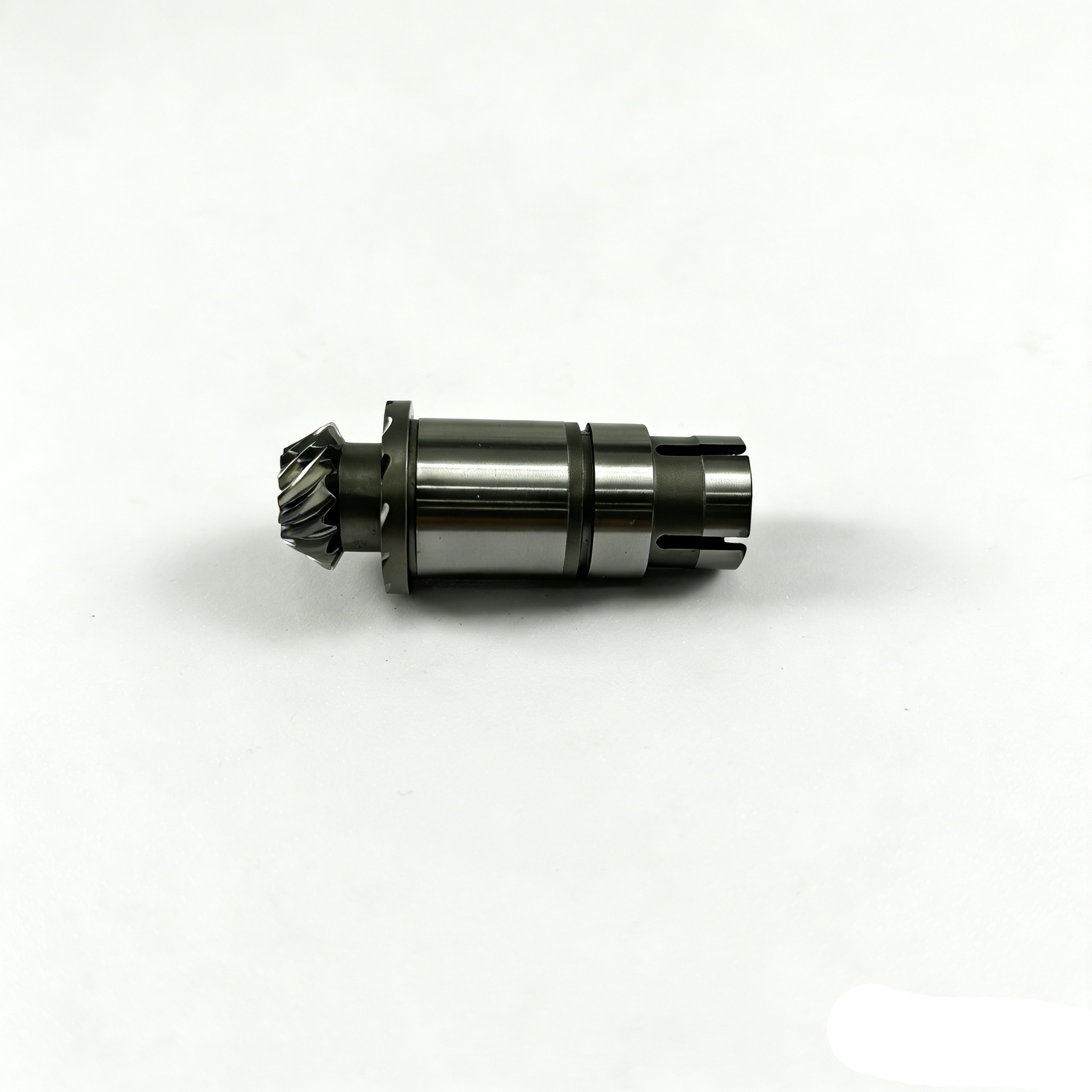

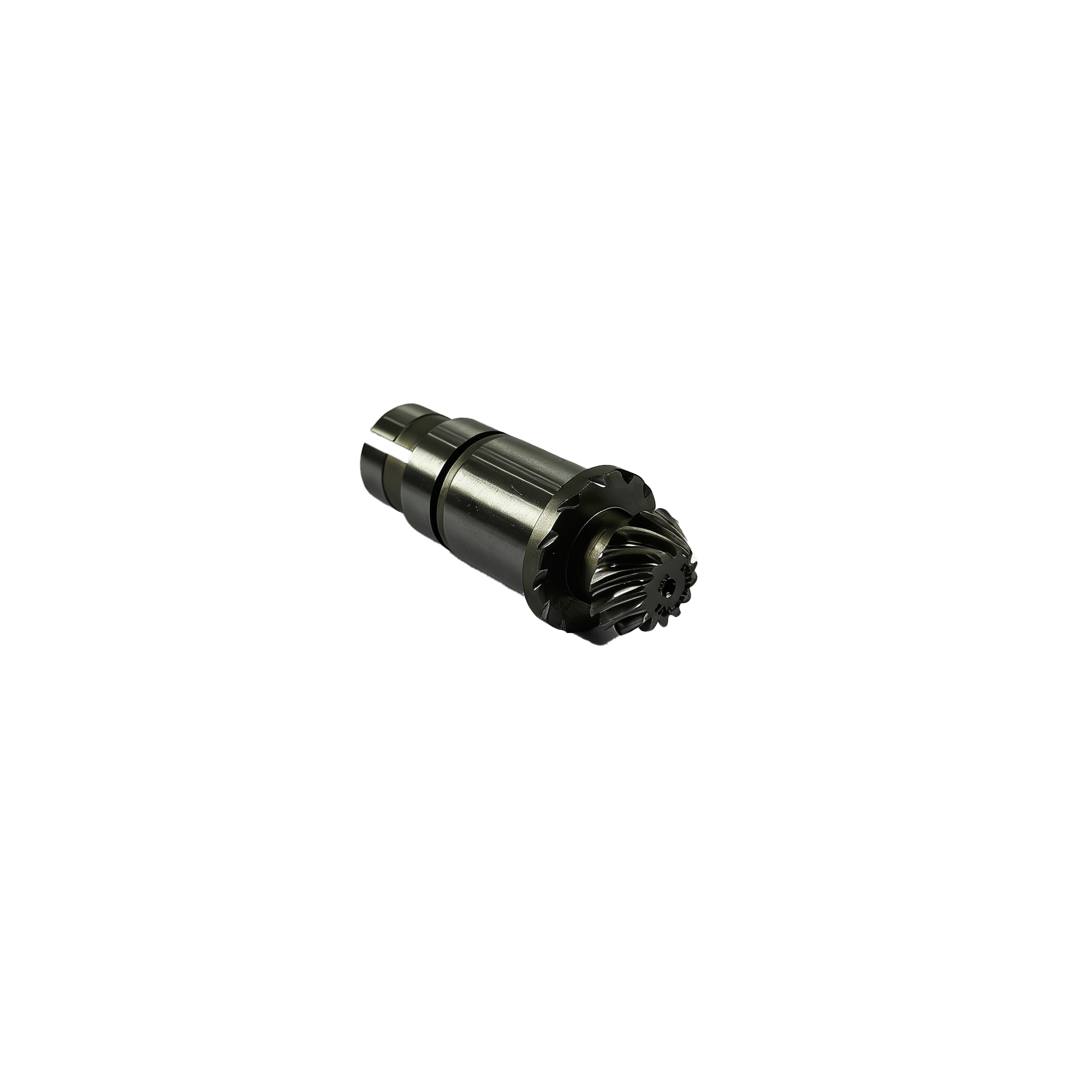

ASPJ-243-C Input Gear: 13 teeth, gear ratio 2, spiral angle 35° left-hand, gear outer diameter 24mm, overall length 18.5mm, weight 0.0789kg.

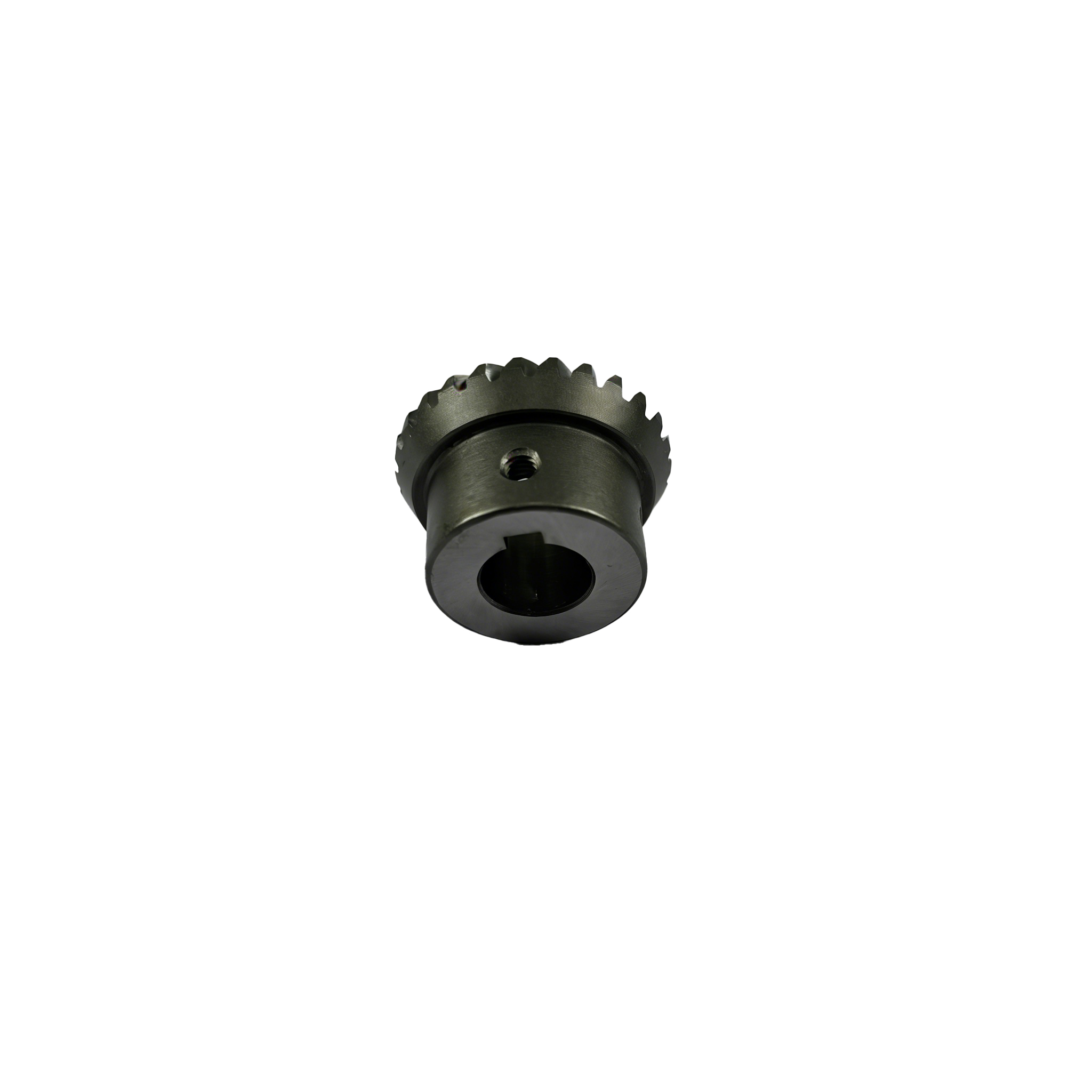

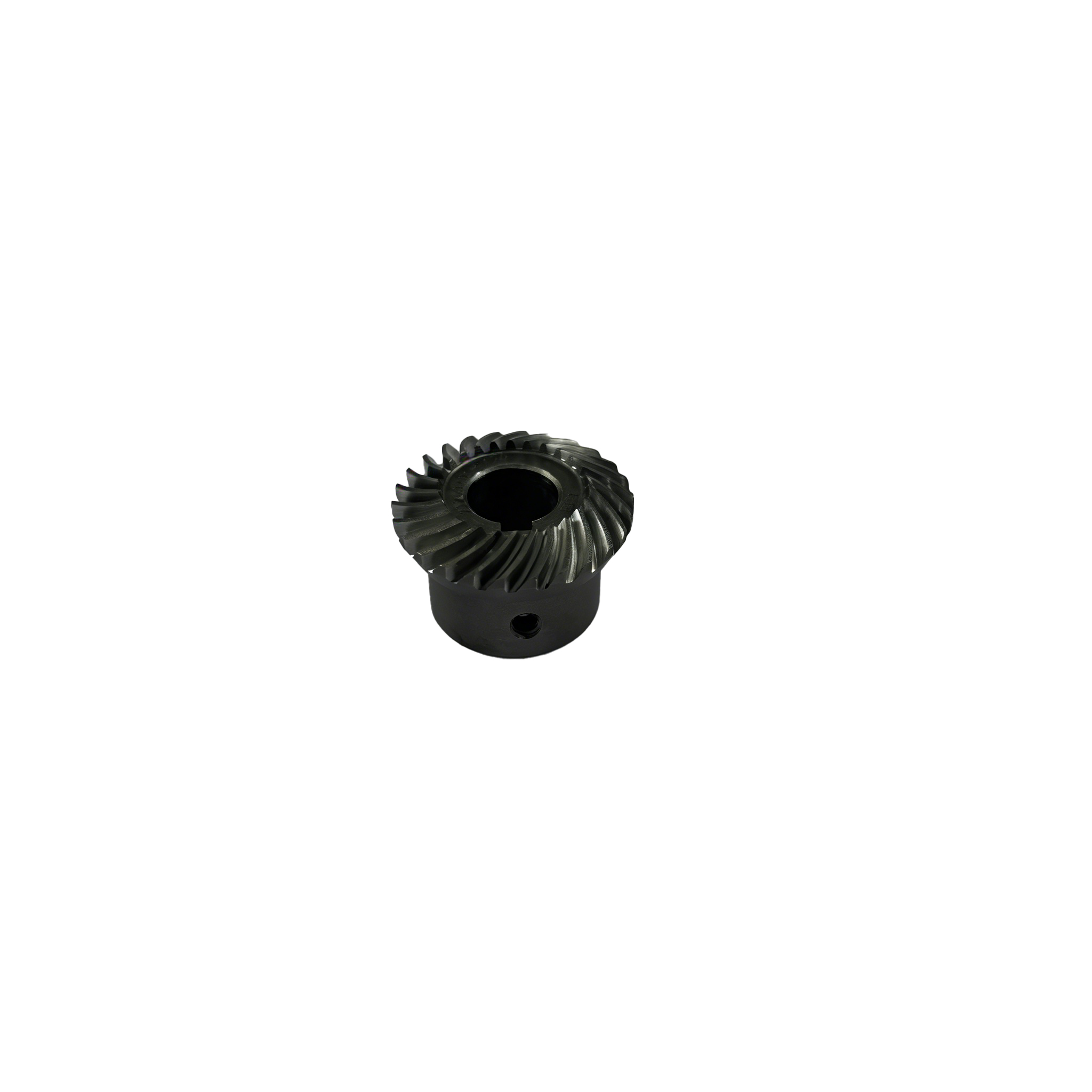

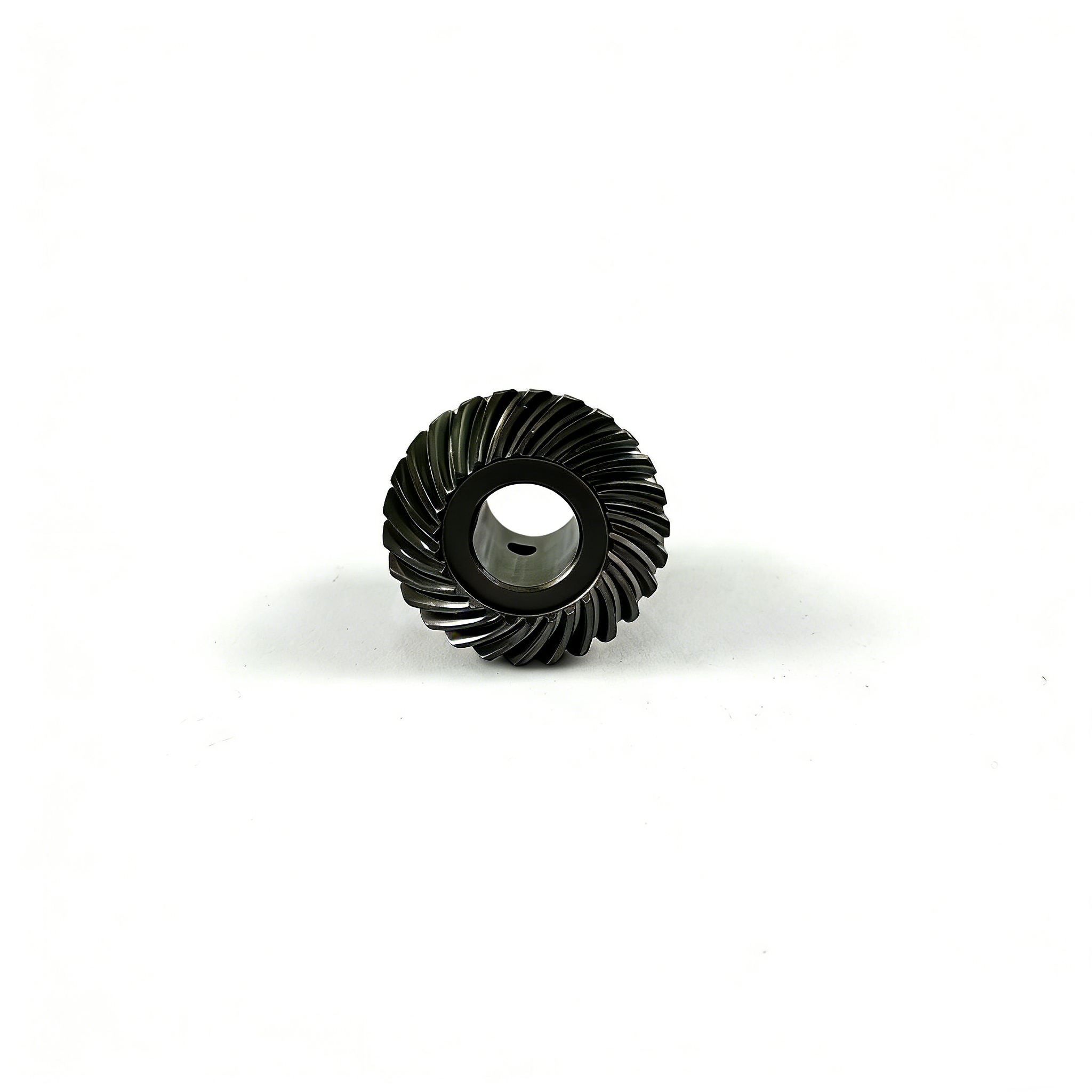

ASPJ-244-C Output Gear: 26 teeth, spiral angle 35° right-hand, inner bore 12mm, gear outer diameter 32mm, overall length 20.5mm, weight 0.0624kg.
Manufacturing process:
ASPJ-243-C: Sawing → Turning → Gear milling → Heat treatment → Hanging shot blasting → Outer diameter grinding → Boring → Re-grinding outer diameter → Gear grinding → Wire cutting → Marking → Full visual inspection.
ASPJ-244-C: Sawing → Turning → Screw hole processing → Reaming → Gear milling → Heat treatment → Hanging shot blasting → Reaming → Facing → Gear grinding → Wire-cutting keyway → Marking → Full visual inspection.
With high precision, good wear resistance and stable performance, suitable for reducer power transmission assembly.
Additional information
| ASPJ-243-CandASPJ-244-C weight |
0.0789and0.0624 |
|---|---|
| ASPJ-243-CandASPJ-244-C Core Components |
gear |
| ASPJ-243-CandASPJ-244-C Craftsmanship |
Milling |
