AWS-M1.5Z24-YT-R Bevel Gear Shaft and AWS-M1.5Z24-YT-L Bevel Gear 图纸 / 参数表简洁写法
$24.93piece

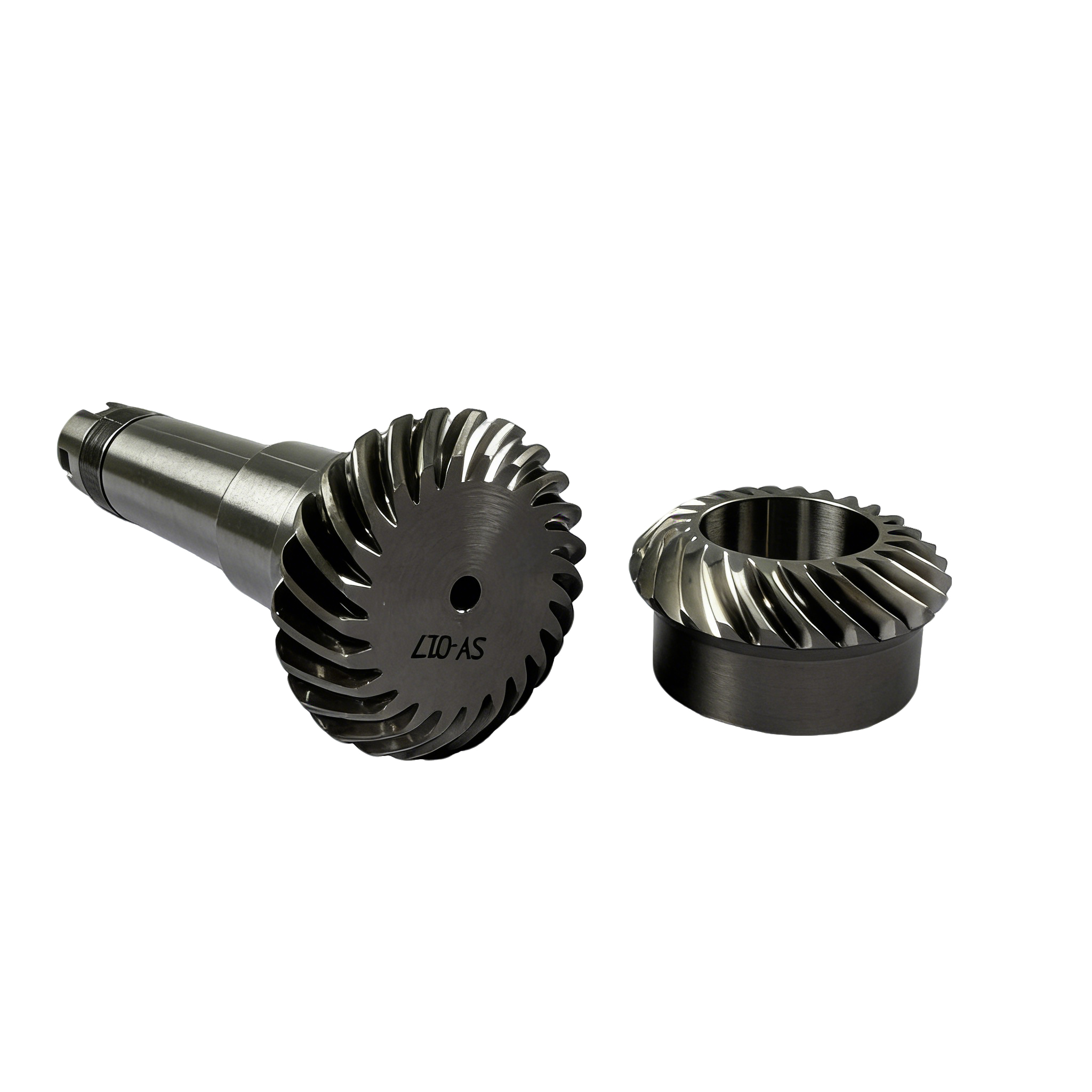

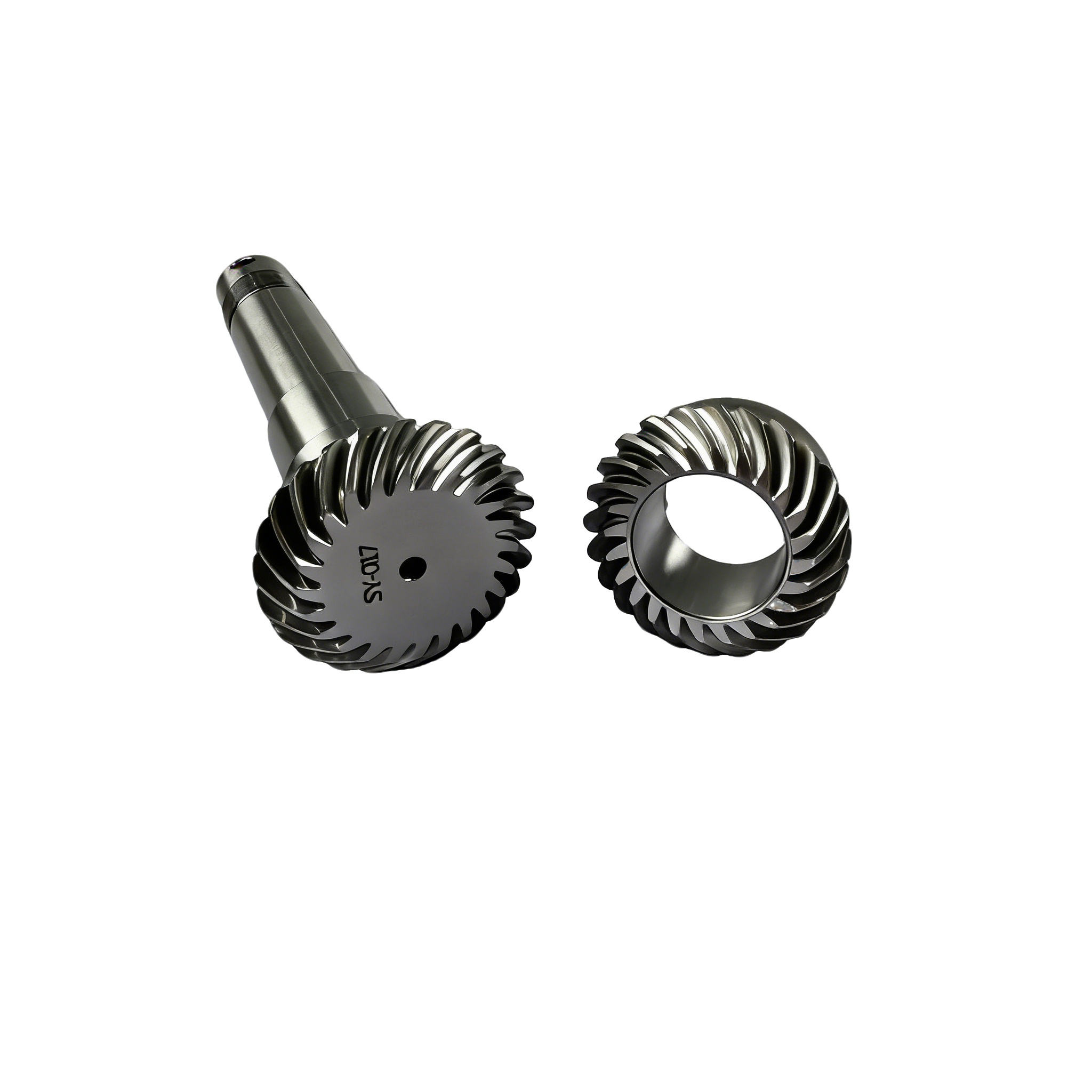

A matched gear set made of 20CrMnTi, module 1.5, 24 teeth, 20° pressure angle. SuYou-016-C is a right-hand gear shaft, SuYou-017-C is a left-hand bevel gear, precision machined for power tool applications.
Description
This series includes a set of transmission gears for power tools, both made of 20CrMnTi with 20° pressure angle, module 1.5, 24 teeth and 37.5° spiral angle. They are manufactured through precise machining and heat treatment for high accuracy and wear resistance.
• SuYou-016-C Bevel Gear Shaft: Right-hand, shaft diameter 36mm, gear OD 36mm, total length 118.4mm, weight 0.2487kg.

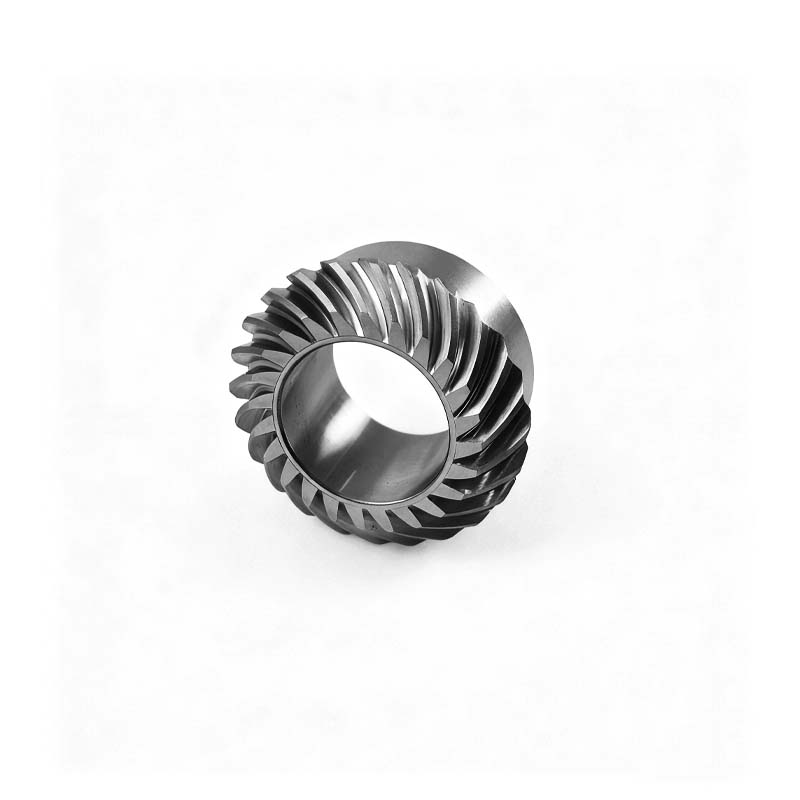

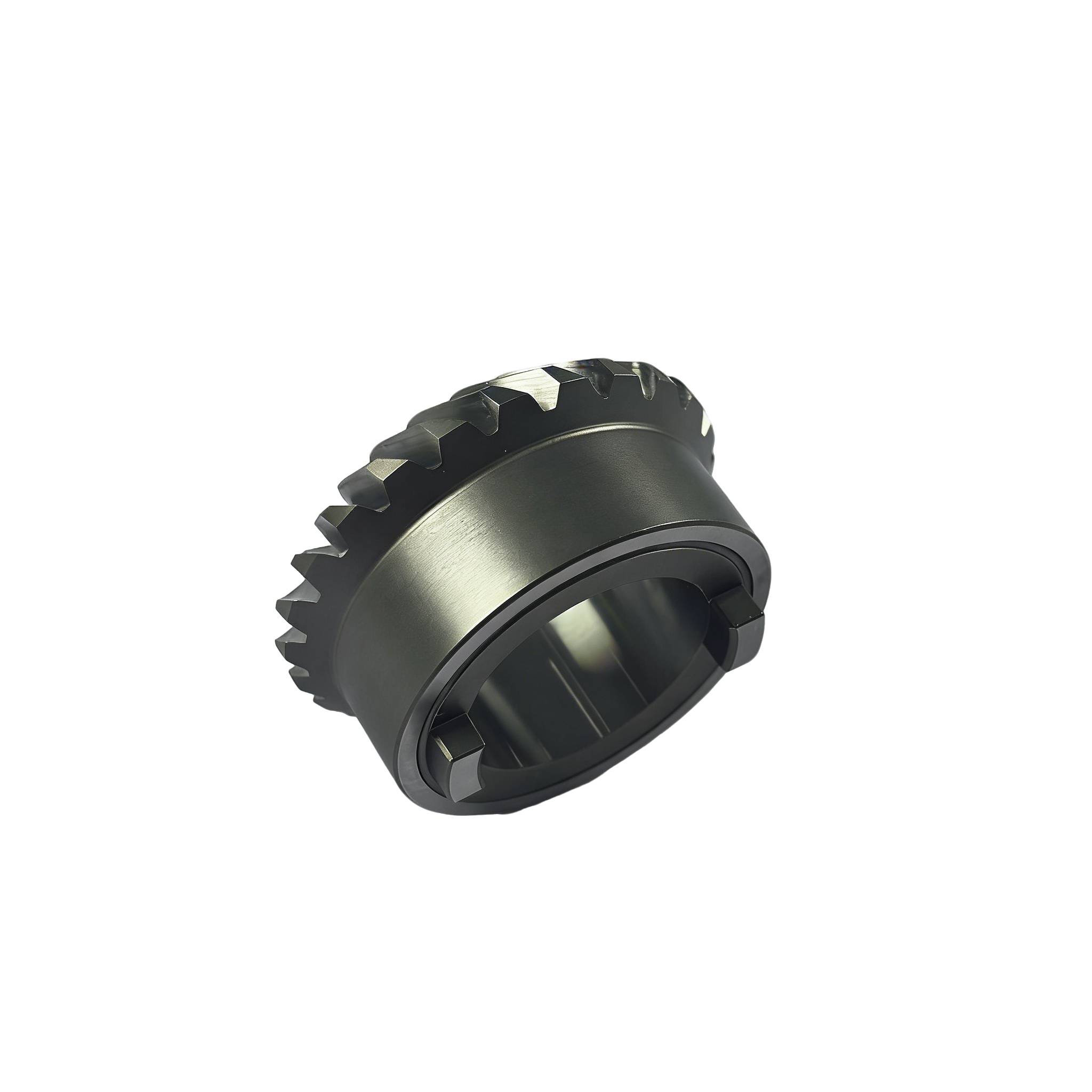

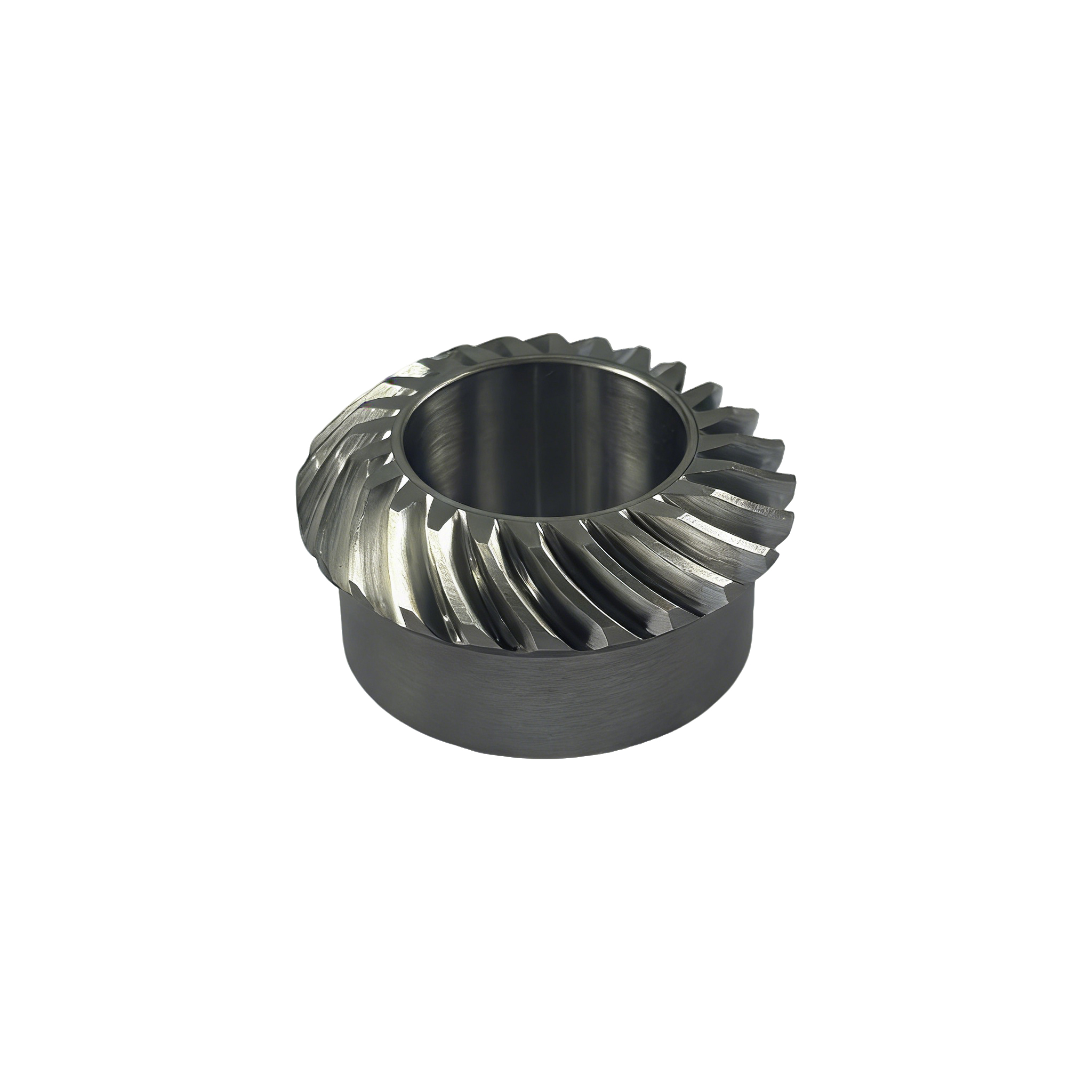

• SuYou-017-C Bevel Gear: Left-hand, inner diameter 20mm, gear OD 36mm, total length 17.4mm, weight 0.0675kg.
They are used as a matched pair for power tool transmission systems.
Additional information
| SuYou-016-C and SuYou-017-C weight |
0.2487and0.0675 |
|---|---|
| SuYou-016-C and SuYou-017-C Core Components |
gear |
| SuYou-016-C and SuYou-017-C Craftsmanship |
Milling |
