2024479 Gear
$3.00piece

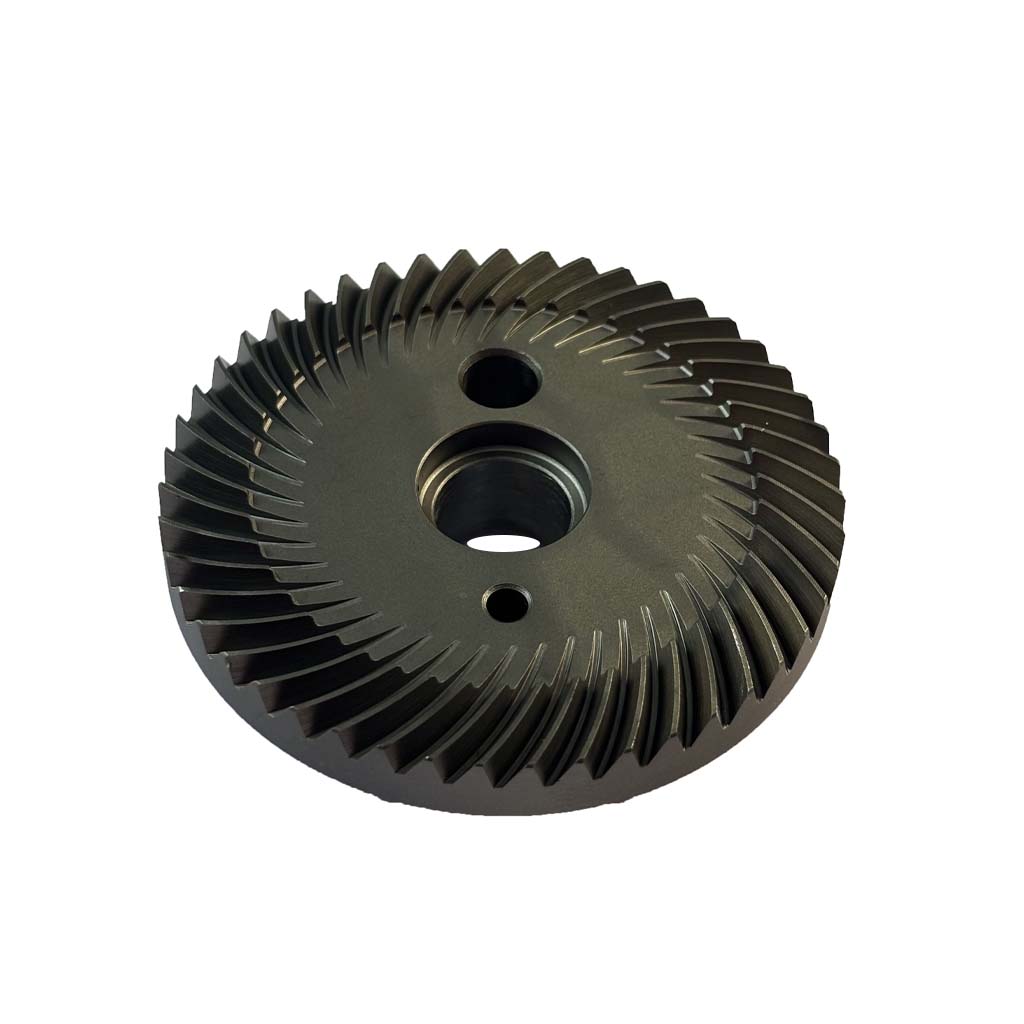

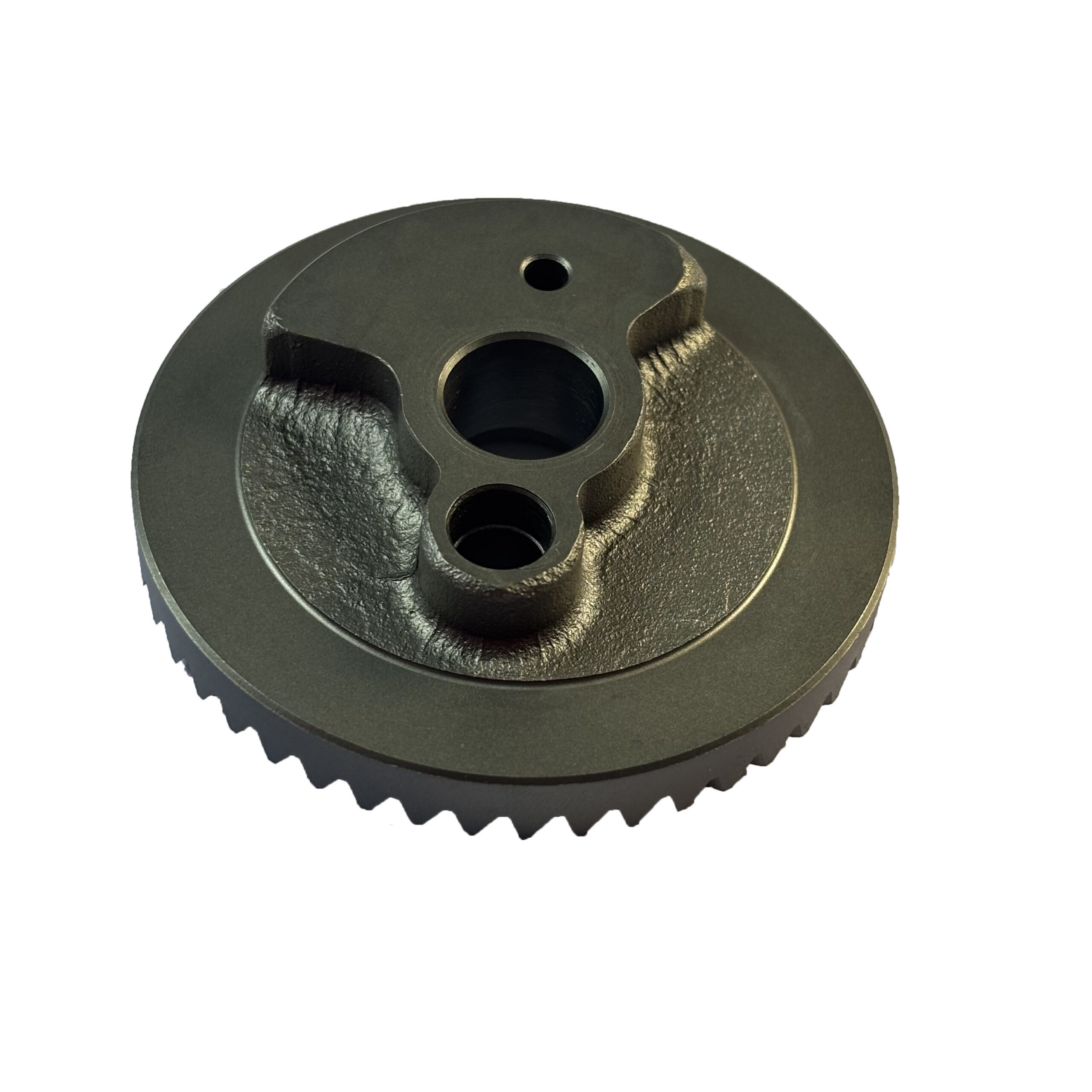

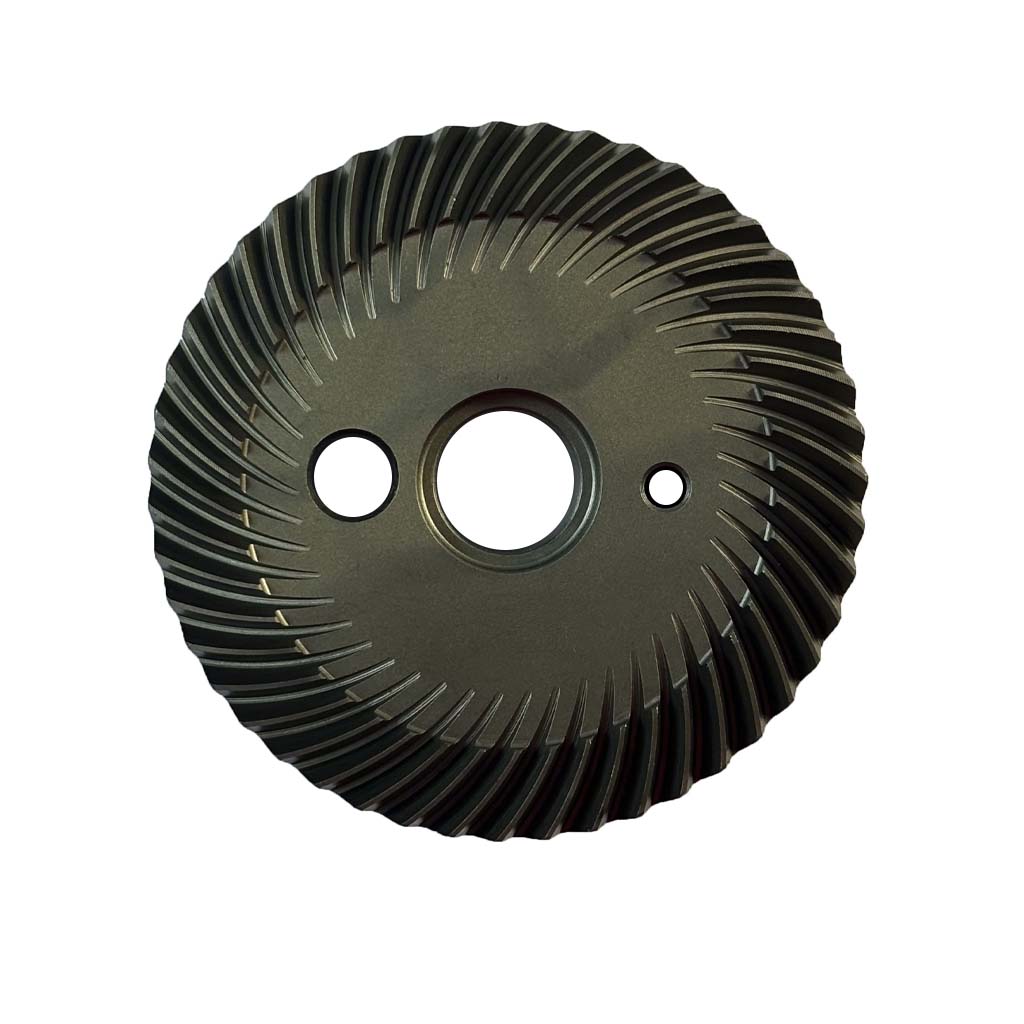

2024479 Spiral Bevel Gear is a dedicated transmission component for electric tools. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.5, 47 teeth, and a spiral angle of 35°/R, with an inner diameter of 14mm, an outer diameter of 68.8mm, a total length of 18.05mm, and a single weight of 0.2636kg. Produced via multiple precision machining and full inspection procedures, it delivers stable transmission and high durability.
Description
Additional information
| weight |
0.2636 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Precision Casting |
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products

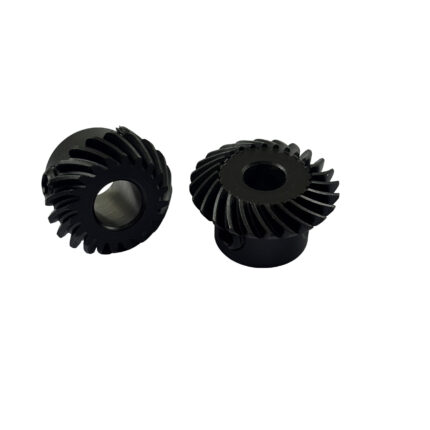

50WF1-043 Hook Gear (341 Pinion)and50WF1-040 Lower Shaft (341 Gear Wheel)
BZ-008-C (50WF1-043 Hook Gear/341 Pinion) and BZ-009-C (50WF1-040 Lower Shaft/341 Gear Wheel) are exclusive supporting spiral bevel gears for 341 model sewing equipment. Both are made of 20CrMo and processed through multiple precision processes. Core parameters: pressure angle 20°, module 0.7, helix angle 36.393° (right-hand/left-hand rotation respectively); BZ-008-C: 16 teeth, speed ratio 2, inner diameter 7.94mm, addendum diameter 12mm, weight 0.0617kg; BZ-009-C: 32 teeth, inner diameter 9.5mm, addendum diameter 29.421mm, weight 0.0303kg. Used in supporting pairs, they feature precise and stable transmission, suitable for the transmission needs of sewing equipment.

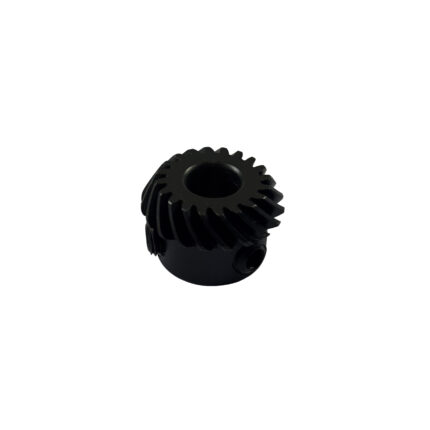

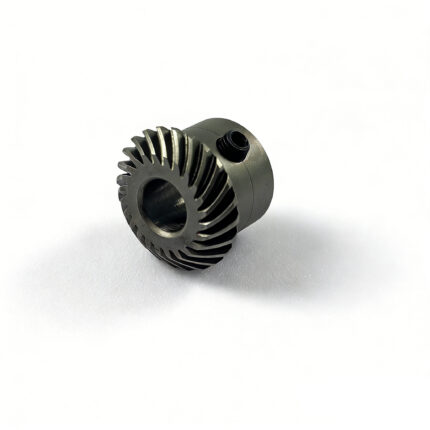

Top Feed Drive Gear
Top Feed Spiral Bevel Drive Gear (exclusive for sewing machinery): 20° pressure angle, 1 module, 26 teeth, 35°/L spiral angle, 7mm inner diameter, 26mm outer tooth diameter, 12.7mm overall length, 0.0294kg weight. Made of 20CrMo via multi-step precision processes, it meets the transmission needs of the top feed mechanism of sewing equipment.

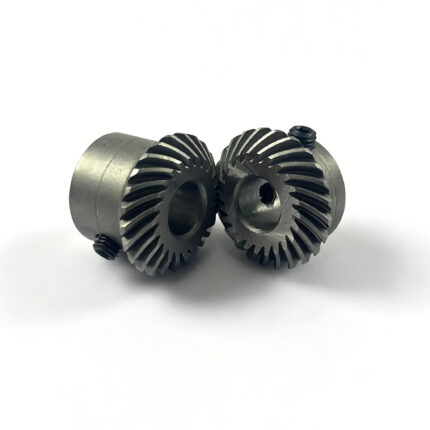

Φ14.73 Left-hand (LH) Straight Teeth and Φ7.94 Right-hand (RH) Straight Teeth
The two models of spur spiral bevel gears (Φ14.73 Left-hand, Φ7.94 Right-hand) are made of 20CrMo material and manufactured through multiple precision processes. With parameters including 20° pressure angle, 0.97 module, 33 teeth and 0° helix angle, both gears have a tooth outer diameter of 32mm. The Φ14.73 model has a total length of 17.65mm and a weight of 0.0487kg, while the Φ7.94 model has a total length of 15.65mm and a weight of 0.0566kg. Specially designed for sewing equipment, these gears are characterized by stable transmission, wear resistance and durability.
