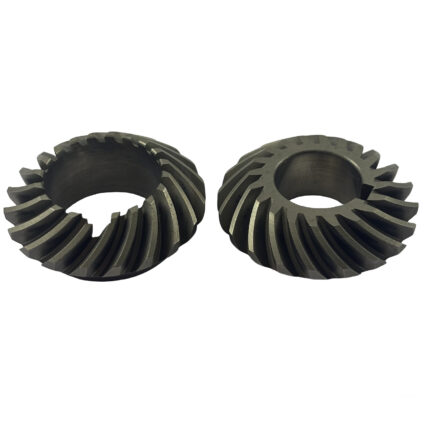

STRA030-G04-A Drive Bevel Gear and STRA030-G04-B Driven Bevel Gear
STRA030-G04-A Drive Bevel Gear and STRA030-G04-B Driven Bevel Gear $4.80piece

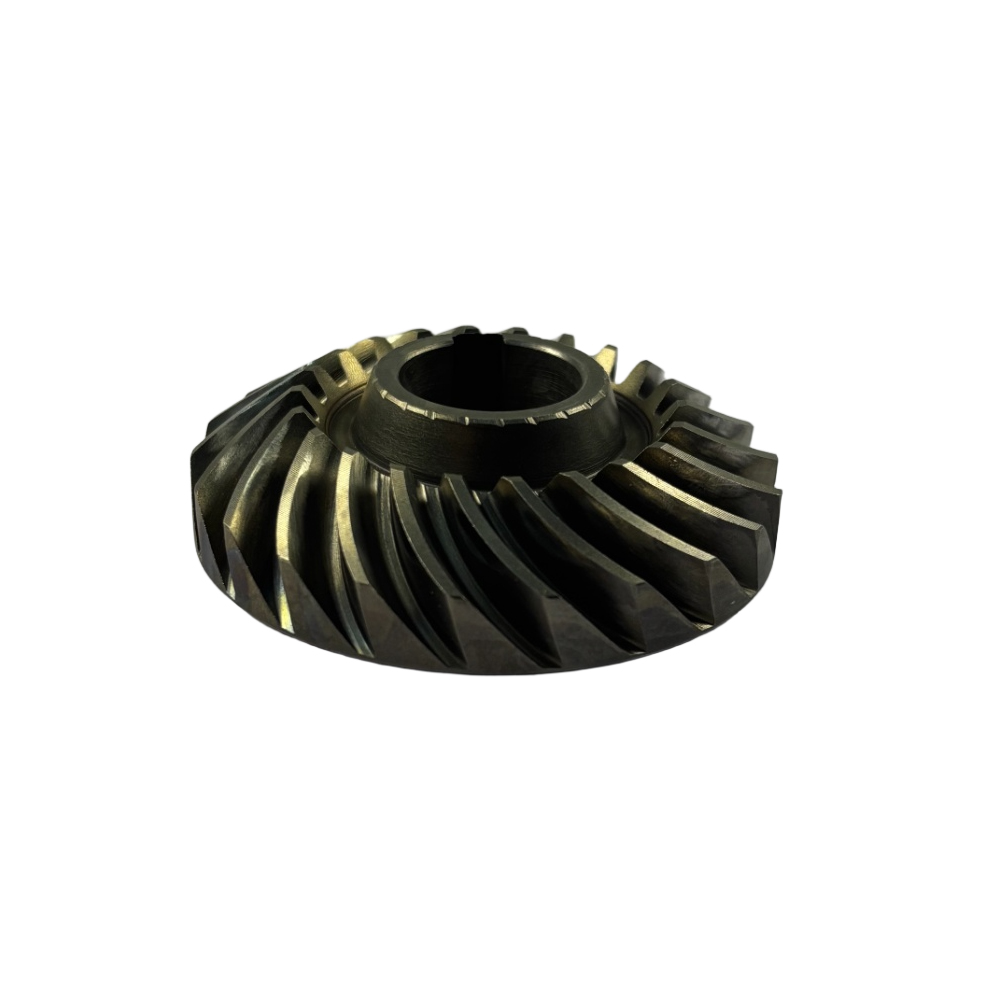

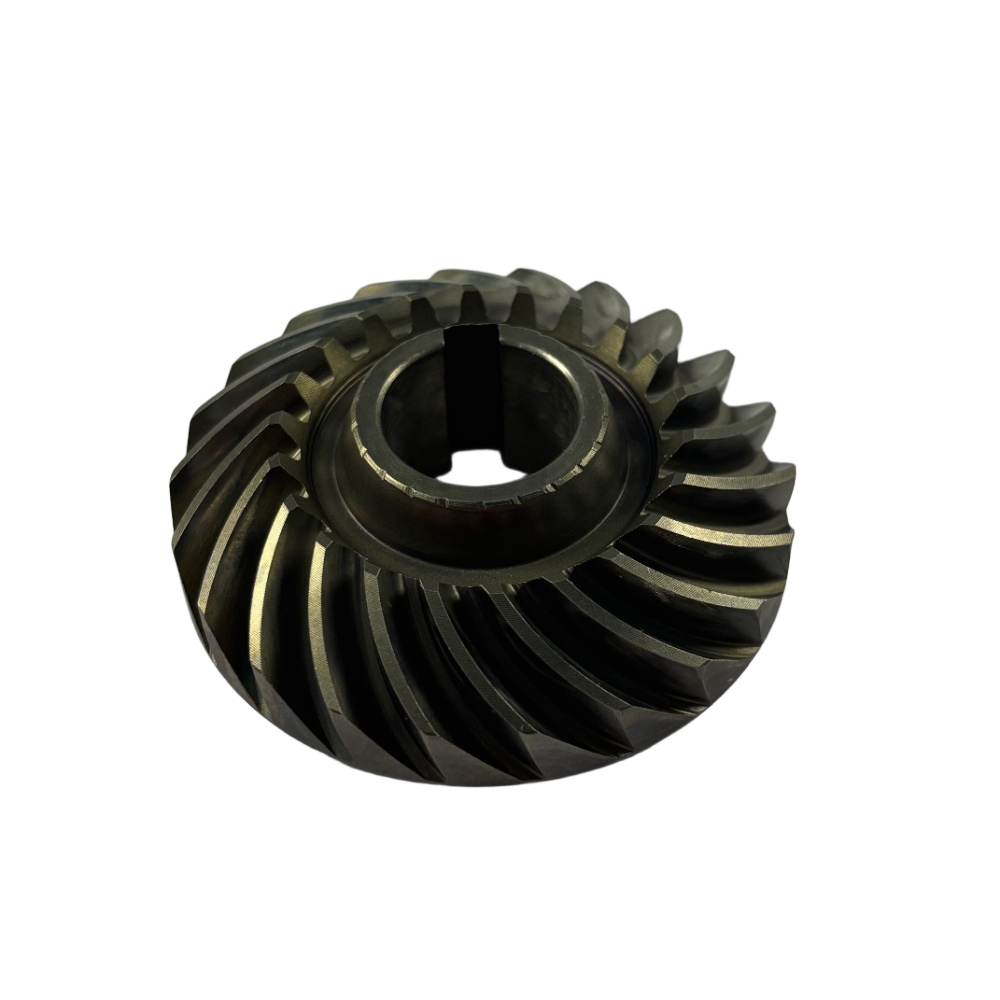

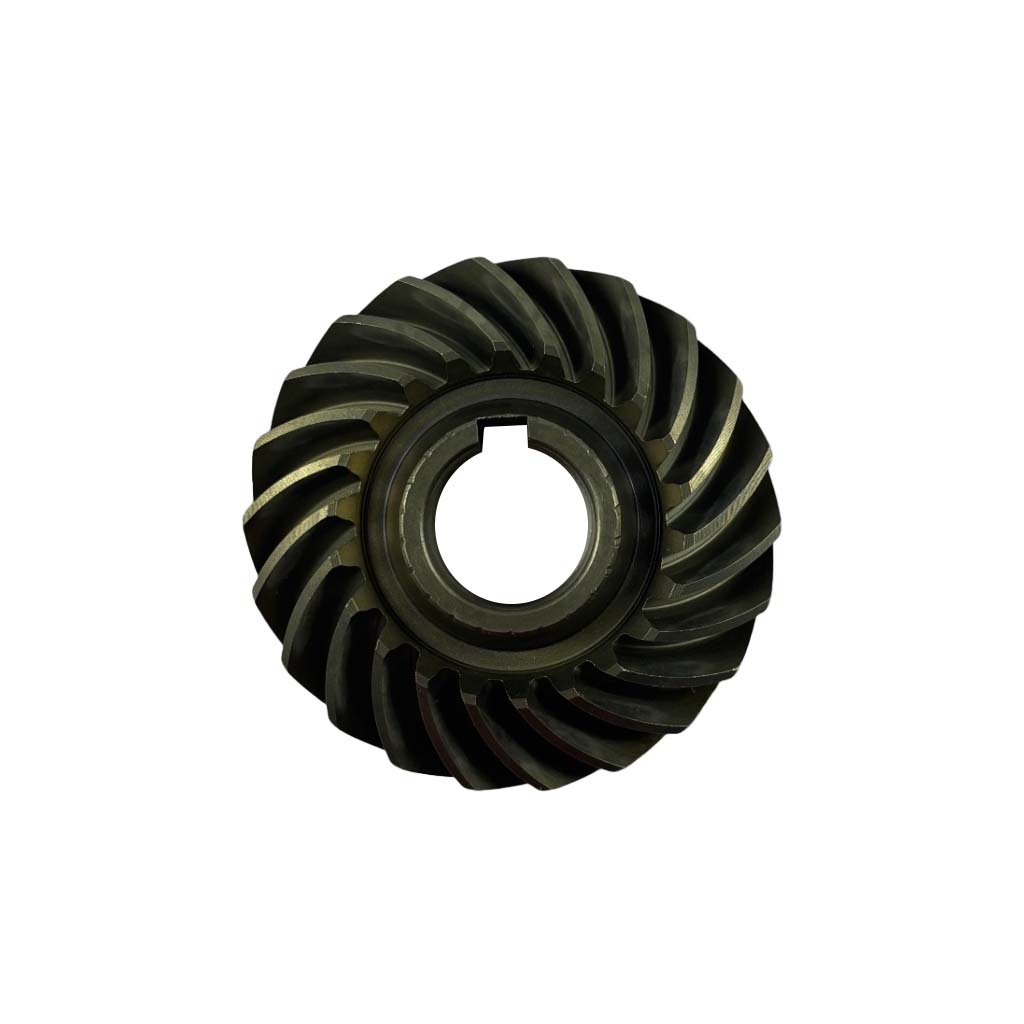

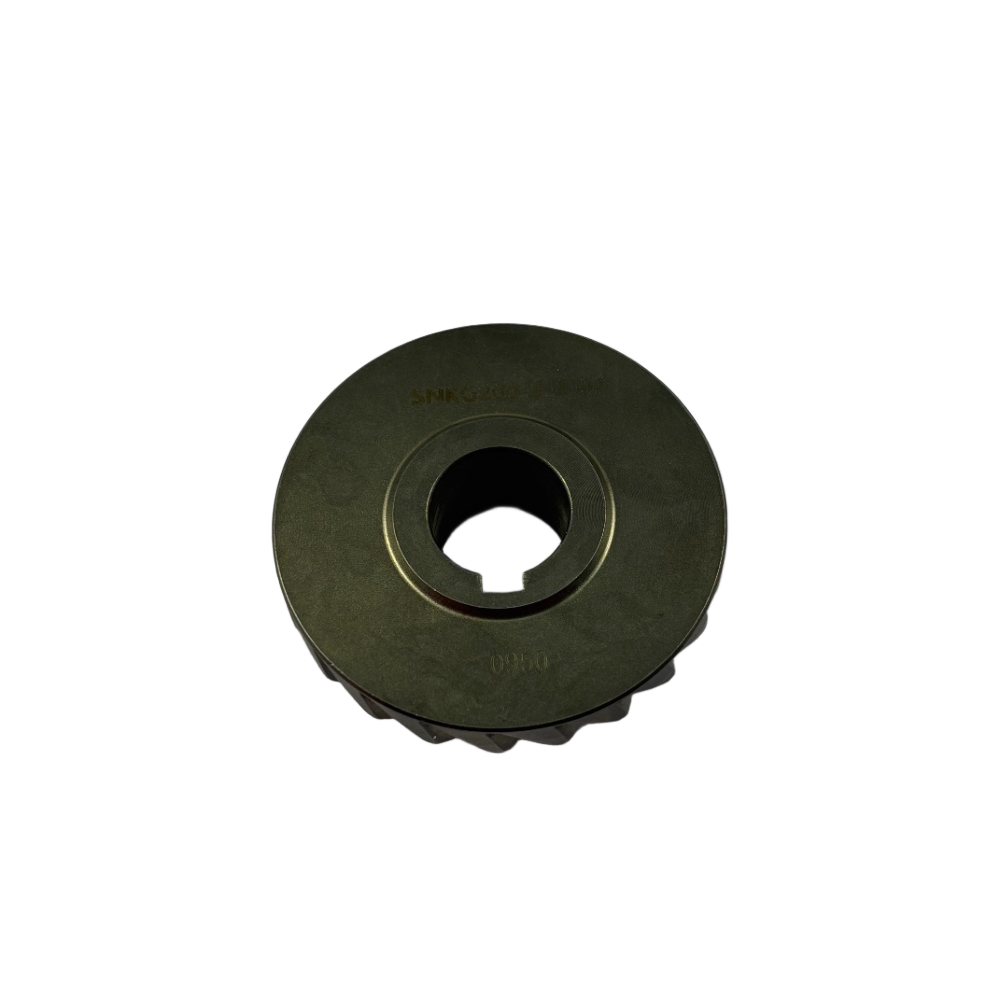

Bevel Gear SNKG200-2-2-04

$3.40piece

SNKG200-2-2-04 spiral bevel gear is made of 20CrMnTi, with a module of 2.5 and a pressure angle of 20°. Manufactured via a series of precision processes, it features high precision and stable transmission. Suitable for reducer transmission systems, it weighs only 0.1625kg and delivers reliable performance.

Add to compare
Add to wishlist
SKU: XG-009-C Category:
Description
Product Name: SNKG200-2-2-04 Bevel GearProduct Category: Spiral Bevel Gear
This product is a high-precision transmission component specially designed for reducers. Made of premium 20CrMnTi material, it boasts excellent wear resistance and impact resistance. The product features precisely controlled core technical parameters: a pressure angle of 20°, a module of 2.5, 22 teeth, a helix angle of 35°/L, an inner diameter of 17mm, an addendum circle diameter of 56.271mm, an overall length of 17mm and a unit weight of only 0.1625kg. Its lightweight design can effectively reduce the operating load of the reducer.
The production process strictly follows a full set of procedures: normalizing – turning – gear milling – heat treatment – chamfering – shot blasting – reaming – surface coating – matched lapping – marking – 100% visual inspection. Through multiple precision machining and testing steps, the product ensures high tooth profile accuracy, uniform meshing clearance and stable, low-noise transmission. This bevel gear can efficiently transmit power to meet the working condition requirements of reducers. It can maintain stable performance during long-term continuous operation and is widely used in the transmission systems of various reducer equipment, providing reliable guarantee for the efficient operation of the equipment.
Additional information
weight

0.1625
Core Components

gear
Craftsmanship

Precision Casting
