0370SG8400 Finished Product (JY12)
$37.85piece
AT065-M2-2020L-16K5-M
$20.38piece
ZYJ-003-C (AT065-M2-2020L-16K5-M): Right-hand spiral bevel gear. Pressure angle 20°, module 2, 20 teeth, gear ratio 1, spiral angle 35°. Weight: 0.1 kg. Precision machined, for sewing equipment transmission.
Description
ZYJ-003-C (AT065-M2-2020L-16K5-M)

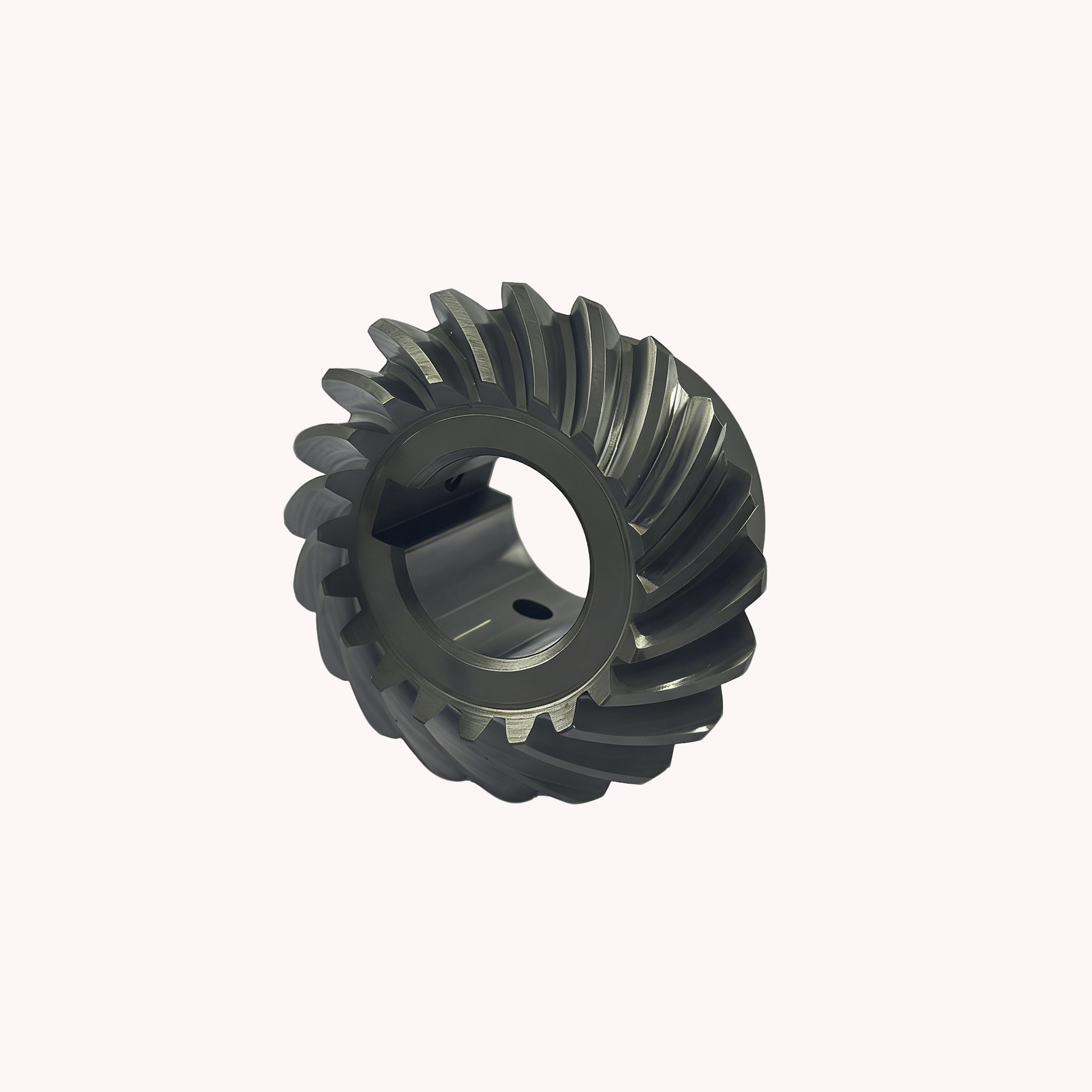

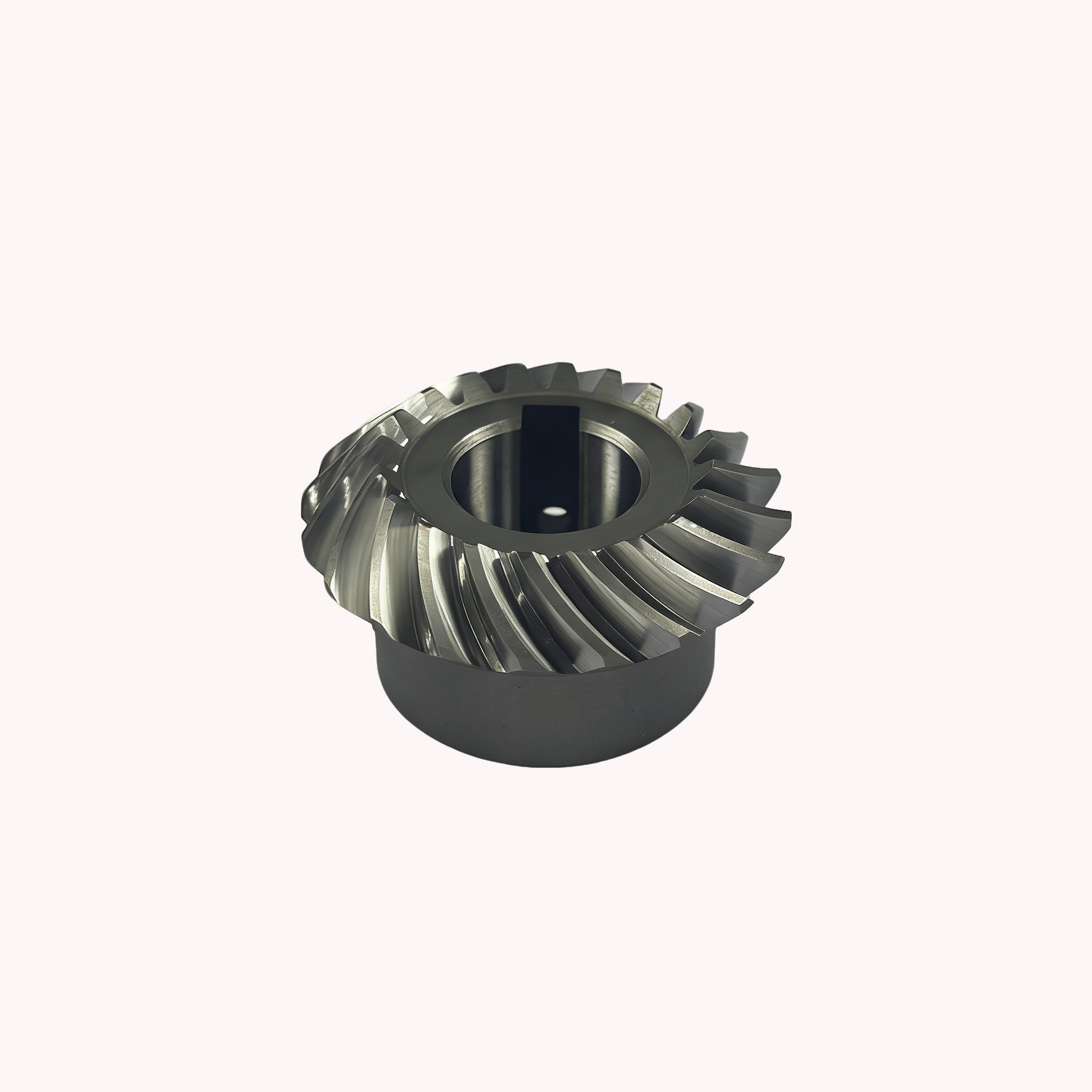

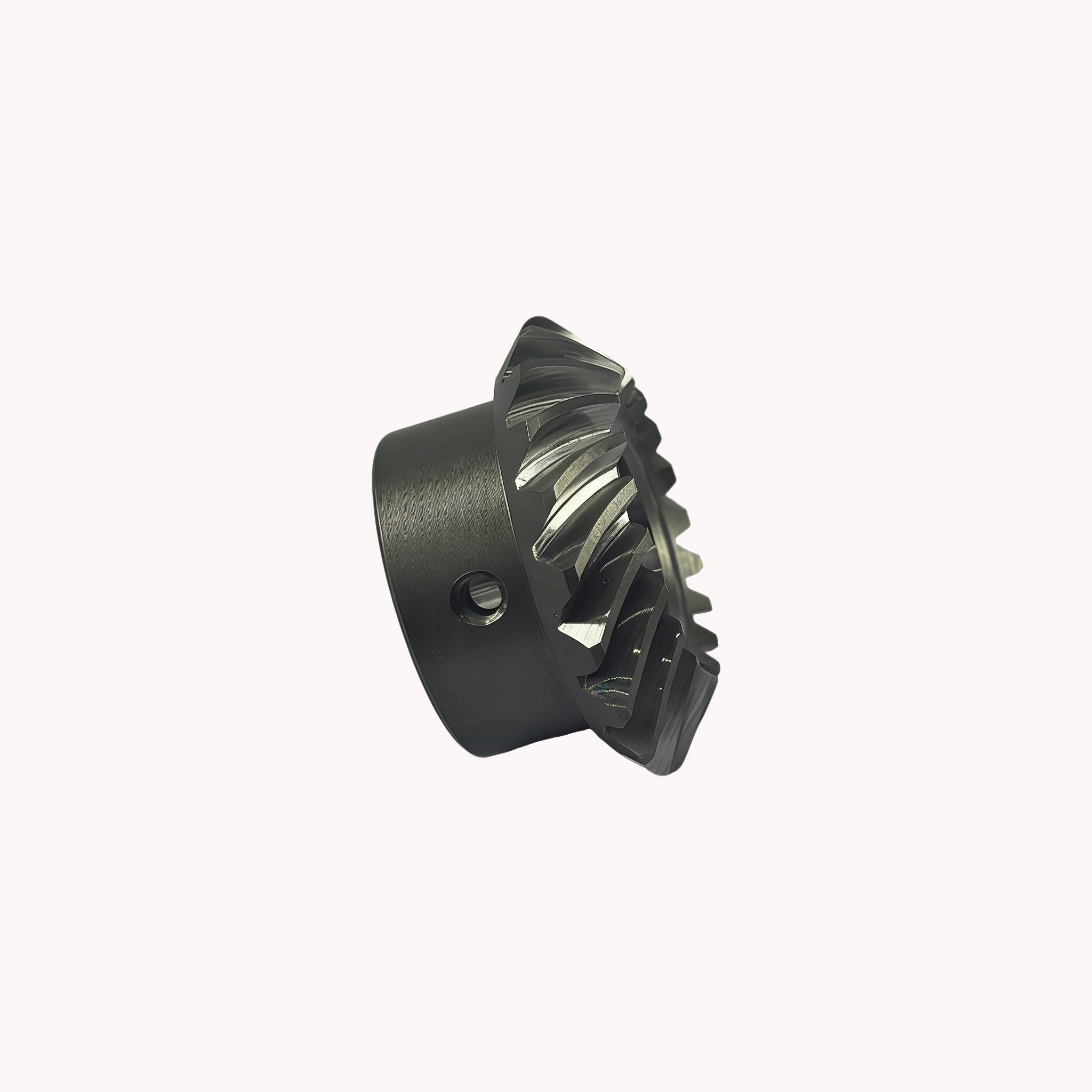

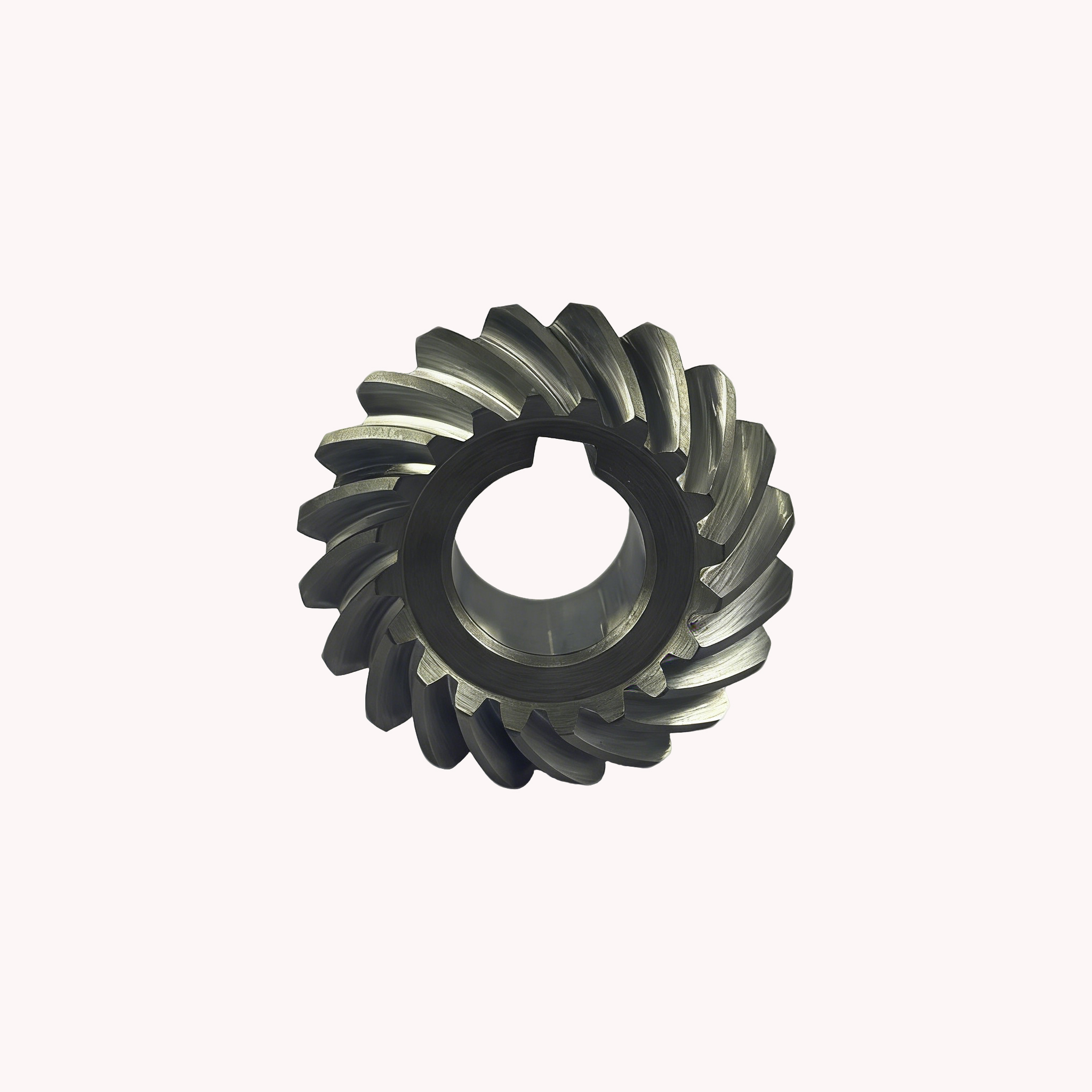

This is a right-hand spiral bevel gear, part number ZYJ-003-C, model AT065-M2-2020L-16K5-M. It has a pressure angle of 20°, module 2, 20 teeth and gear ratio of 1, with a spiral angle of 35° right-hand. The inner diameter is 16 mm, gear tip diameter 41.6 mm, overall length 22 mm, and unit weight 0.1 kg.
The gear is manufactured through complete precision processes: sawing, turning, keyway machining, gear milling, heat treatment, shot blasting, boring, facing, guide radius chamfering and gear grinding. It features high dimensional accuracy and stable transmission performance, specially used as drive gear for sewing equipment.
Additional information
| ZYJ-003-C weight |
0.1 |
|---|---|
| ZYJ-003-C Core Components |
gear |
| ZYJ-003-C Craftsmanship |
Milling |
