Bevel Gear Shaft 4037013

$3.00piece

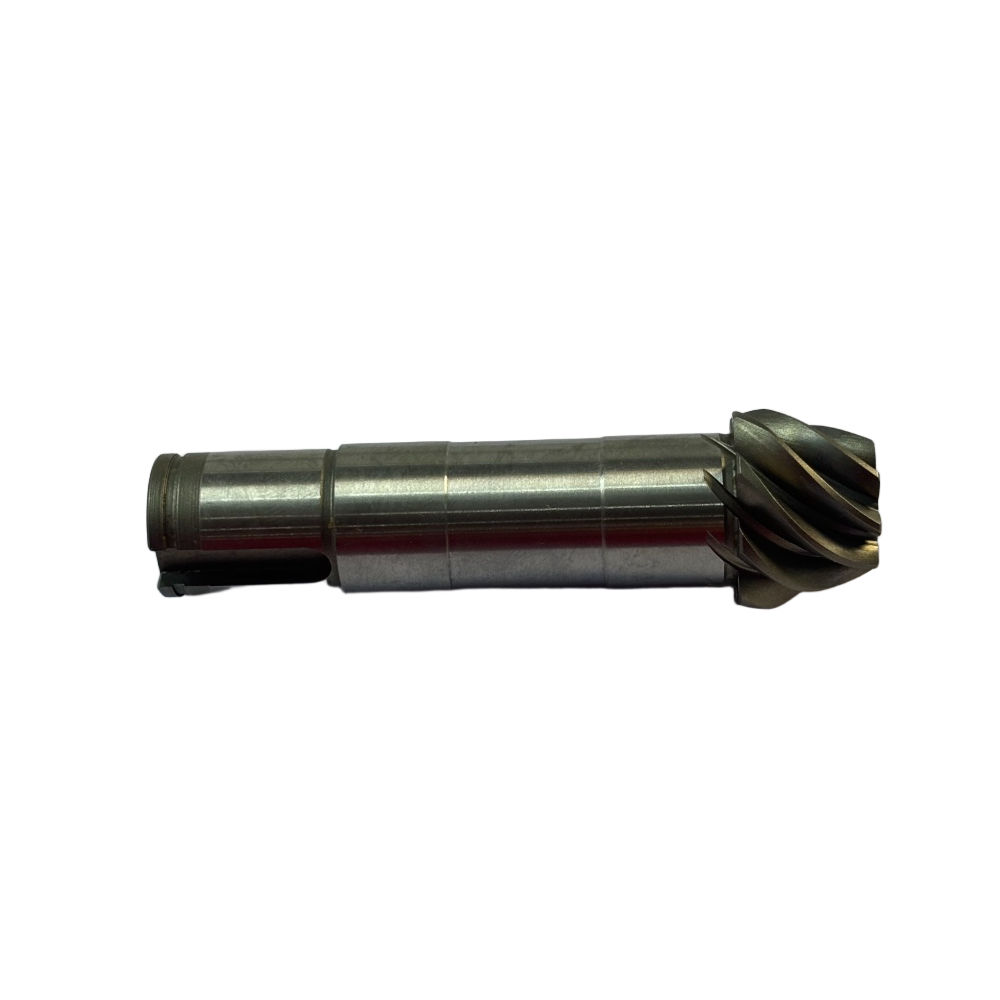

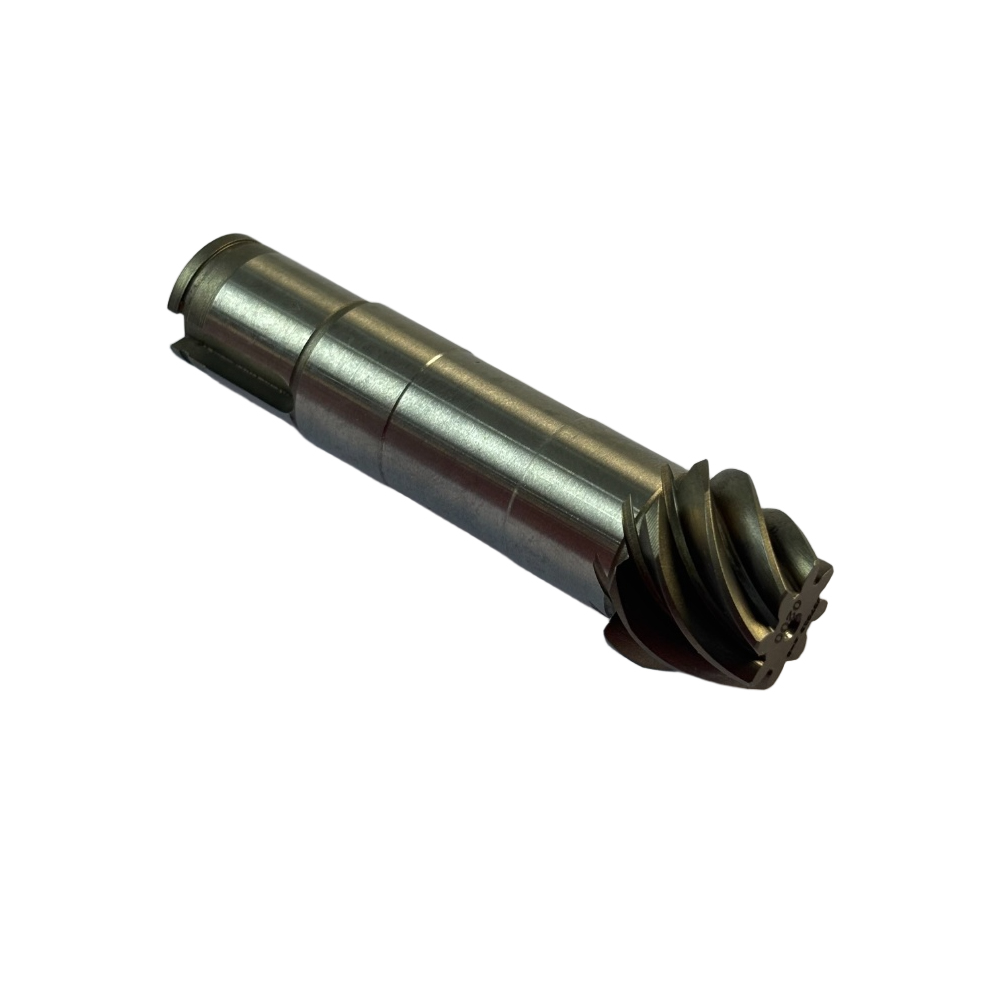

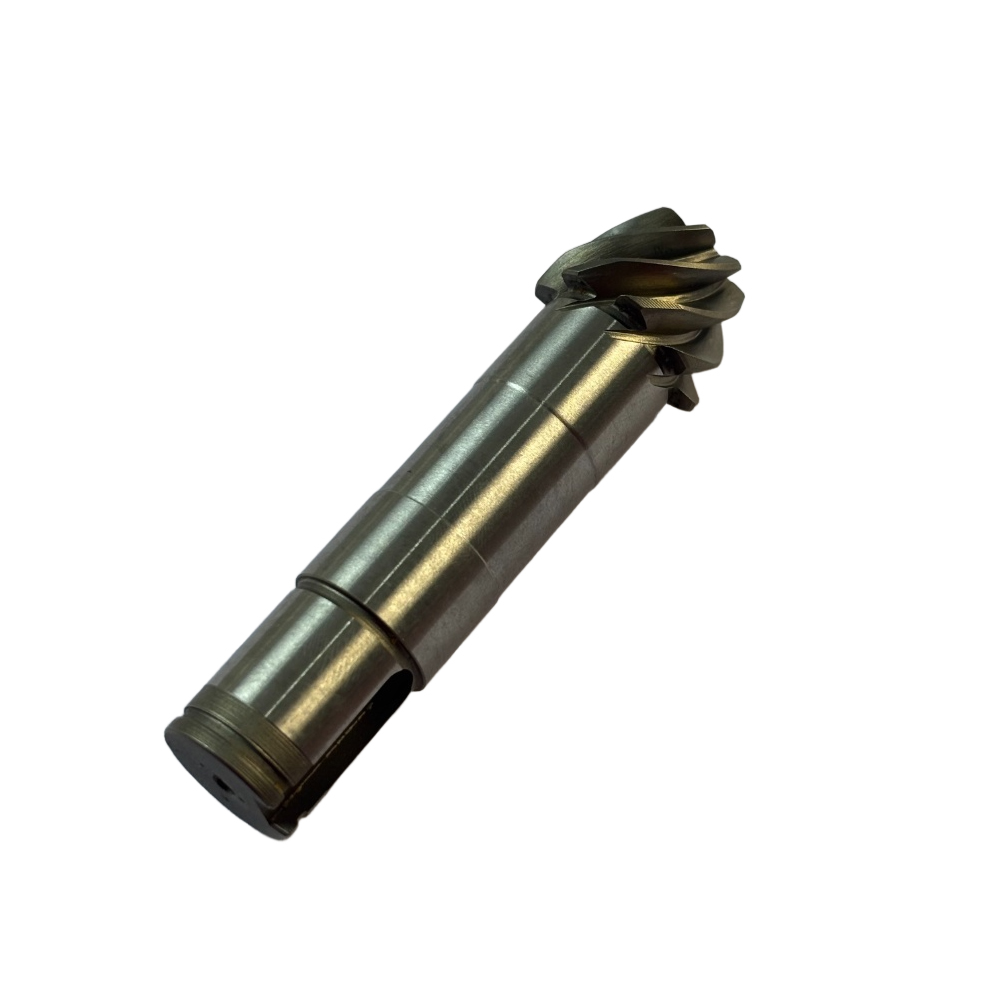

The 4037013 Bevel Gear Shaft is a special transmission component for reducers, made of 20CrMnTi material and manufactured through multiple precision processes including normalization, turning, keyway machining, gear milling and heat treatment. Its core parameters are 20° pressure angle, 2.12 module, 8 teeth and 35° right-hand rotation, with a shaft diameter of 17mm, total length of 78.11mm and weight of 0.1295kg. It features stable transmission, wear resistance and durability.

Add to compare
Add to wishlist
SKU: XG-002-C Category:
Description
The 4037013 Bevel Gear Shaft is an integrated transmission component combining gear and shaft structures, specially developed and designed for the power transmission system of reducers. It is suitable for high-precision and high-load operating conditions of various reducer equipment.
This bevel gear shaft is made of high-quality 20CrMnTi alloy carburizing steel, which has excellent hardenability, wear resistance and impact resistance, and can fully meet the requirements of long-term stable operation of reducers. Its manufacturing process is strictly controlled through multiple precision procedures: first, normalization treatment is carried out to optimize the metallographic structure of the material and improve machinability; then turning is performed to finish the basic shape of the shaft and gear part, and rough grinding of the clamping position ensures positioning accuracy for subsequent processes; keyway machining is completed by a machining center to ensure precise assembly with other components; professional gear milling technology is then adopted to shape the tooth profile, combined with heat treatment to enhance the overall mechanical properties; shot blasting removes surface oxide layers and burrs, and the outer diameter grinding process further improves shaft accuracy; the core matched lapping process effectively ensures tooth surface meshing accuracy and reduces transmission noise; finally, marking and full appearance inspection are completed to ensure that product quality fully complies with technical standards.
In terms of core technical parameters, this bevel gear shaft adopts a tooth profile design with a 20° pressure angle, 2.12 module and 8 teeth, with a helix angle of 35°/R (right-hand rotation). The shaft diameter is 17mm, the tooth outer diameter is 21.975mm, the total length is 78.11mm, and the single weight is 0.1295kg. With a compact structure and high transmission efficiency, it can efficiently meet the power transmission requirements of reducers and provide reliable support for the stable operation of equipment.
Additional information
weight

0.1295
Core Components

gear
Craftsmanship

Precision Casting
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Bevel Gear Shaft 4037013”
