Z-91-384094-15 Spur Gear
$2.20piece

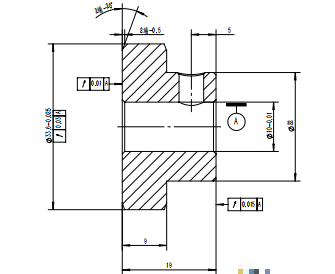

The Z-91-384094-15 Spur Gear is made of 20CrMo steel, featuring a pressure angle of 20°, module of 0.8, 40 teeth, and a helix angle of 0°. It has an inner diameter of 10mm, outer tooth diameter of 33.6mm, total length of 19mm, and unit weight of 0.0708kg. Precision-machined through multiple processes, it is a dedicated transmission component for sewing equipment.
Description
Product Name: Z-91-384094-15 Spur Gear
Product Category: Spur Gear
This product is manufactured from high-quality 20CrMo alloy steel, with accurate and controllable core technical parameters: pressure angle of 20°, module of 0.8, number of teeth of 40, helix angle of 0°, inner diameter of 10mm, outer tooth diameter of 33.6mm, total length of 19mm, and unit weight of 0.0708kg.
The product is produced following a strict multi-process workflow: normalizing → turning → screw hole machining → reaming → gear hobbing → heat treatment → shot blasting → blackening → secondary reaming → surface coating → screw assembly. Dimensional accuracy and surface quality are controlled throughout the entire process to ensure stable and reliable transmission performance of the product.
As a professional sewing machine gear, it is suitable for the transmission systems of various sewing equipment, capable of accurately realizing power transmission for fabric feeding and providing solid support for the efficient and continuous operation of sewing work.
Additional information
| weight |
0.0708 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
