KA09108 Counter Gear 20T
KA09108 20-Teeth Counter Spur Gear
Made of 20CrMnTi, it has a pressure angle of 20°, module of 1.5, helix angle of 0°, addendum circle diameter of 33mm, overall length of 13.9mm and weight of 0.0546kg, with a 12mm hexagonal bore design. Manufactured through a series of precision processes, it is wear-resistant and durable, serving as a core component for reverse transmission of reducers.
New Model Motor Spur Gear TKA170-0280-S (Straight Shaft)
Model TLY-003-C1 new straight shaft motor spur gear fits TKA170-0280-S reducer. Made of 20CrMo steel, it adopts 20° pressure angle, module 2 and 20 teeth with 24° helix angle. Its gear outer diameter is 45 mm and single weight is 0.1529 kg. Manufactured via multiple processes including gear hobbing, heat treatment and precision gear grinding, this gear boasts high precision and great wear resistance for reducer transmission.
Presser Foot Lifting & Thread Trimming Driving Gear (Finished Product)
The Presser Foot Lifting & Thread Trimming Driving Gear (Finished Product) is a dedicated spur gear for sewing equipment. Crafted from 20CrMo material through precise processes including hobbing and heat treatment, it features a pressure angle of 20°, module of 0.8 and 30 teeth. With a compact size (inner diameter 10mm, addendum circle diameter 25.6mm, total length 12mm) and a weight of just 0.025kg, it accurately drives the presser foot lifting and thread trimming actions of sewing machines, and is suitable for various types of sewing equipment.
SP-CLX165-A2-1-14-C1 (Motor Gear Shaft)
SP-CLX216-A2-2-56-A1 (Input Gear)
SP-CLX216-A3-2-53-A1 (Input Gear)
TC1-4-23m1.5D18 Input Drive Gear

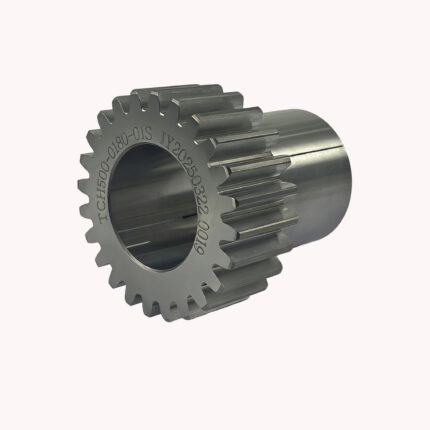

TCH500-0180-01S Straight Shaft Motor Spur Gear
TLY-008-C straight shaft motor spur gear is compatible with TCH500-0180-01S reducer. Constructed of 20CrMo steel, it features 20° pressure angle, module 2.5, 24 teeth and 35° helix angle. Its gear outer diameter is 65 mm, total length 65 mm and unit weight 0.5475 kg. Processed by gear hobbing, heat treatment and precision gear grinding, this gear features high precision and stable wear-resistant transmission for reducer power transmission.

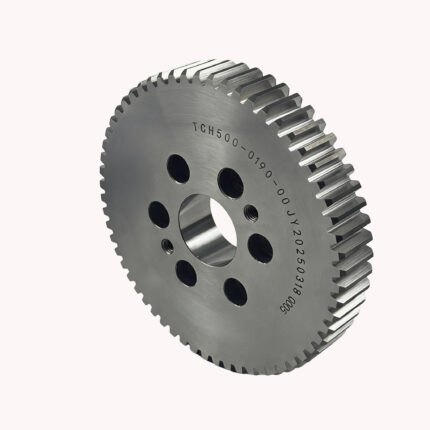

TCH500-0190-00 Worm Spur Gear
TLY-007-C worm matching spur gear is compatible with TCH500-0190-00 reducer. Made of 20CrMo steel, it has 20° pressure angle, module 2.5, 60 teeth and 1/100 transmission ratio. Its gear outer diameter is 155 mm, total length 25 mm and single weight 3.12 kg. Processed by rough hobbing, heat treatment and precision gear grinding, this gear delivers high precision, stable and wear-resistant transmission for reducers.

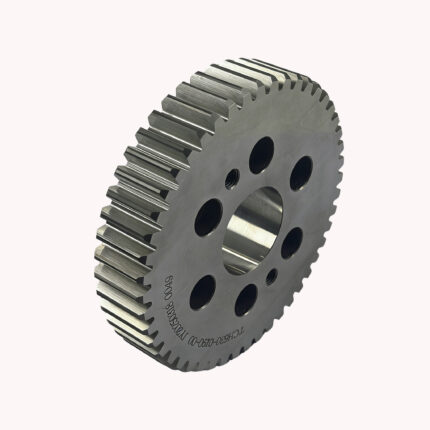

TCH630-0190-00 Worm Spur Gear
TLY-009-C worm matching spur gear fits TCH630-0190-00 reducer. Made of 20CrMo steel, it has 20° pressure angle, module 2.5, 45 teeth and 1/100 transmission ratio. Its gear outer diameter is 125 mm, total length 25 mm and unit weight 1.8565 kg. Processed by gear hobbing, heat treatment and precision gear grinding, it features high precision and stable wear-resistant transmission for reducers.
TKA170-0180-00 Worm Spur Gear
TLY-004-C worm matching spur gear fits TKA170-0180-00 reducer. Constructed of 20CrMo steel, it features 20° pressure angle, module 2, 25 teeth and 1/100 transmission ratio. The gear outer diameter is 54 mm, total length 20 mm and single weight 0.2044 kg. Processed by turning, machining center milling, heat treatment and precision gear grinding, it delivers high precision and stable wear-resistant transmission for reducers.
TKA170-0280-01S Straight Shaft Motor Gear
Model TLY-003-C, TKA170-0280-01S straight shaft motor spur gear with 20° pressure angle, module 2 and 20 teeth. Dimensions: inner diameter 24mm, shaft diameter 30mm, gear outer diameter 44mm, overall length 45mm, weight 0.1322kg. Constructed from 20CrMo steel and processed via full precision procedures including hobbing, heat treatment and gear grinding, it is wear-resistant and durable for reducer transmission applications.
