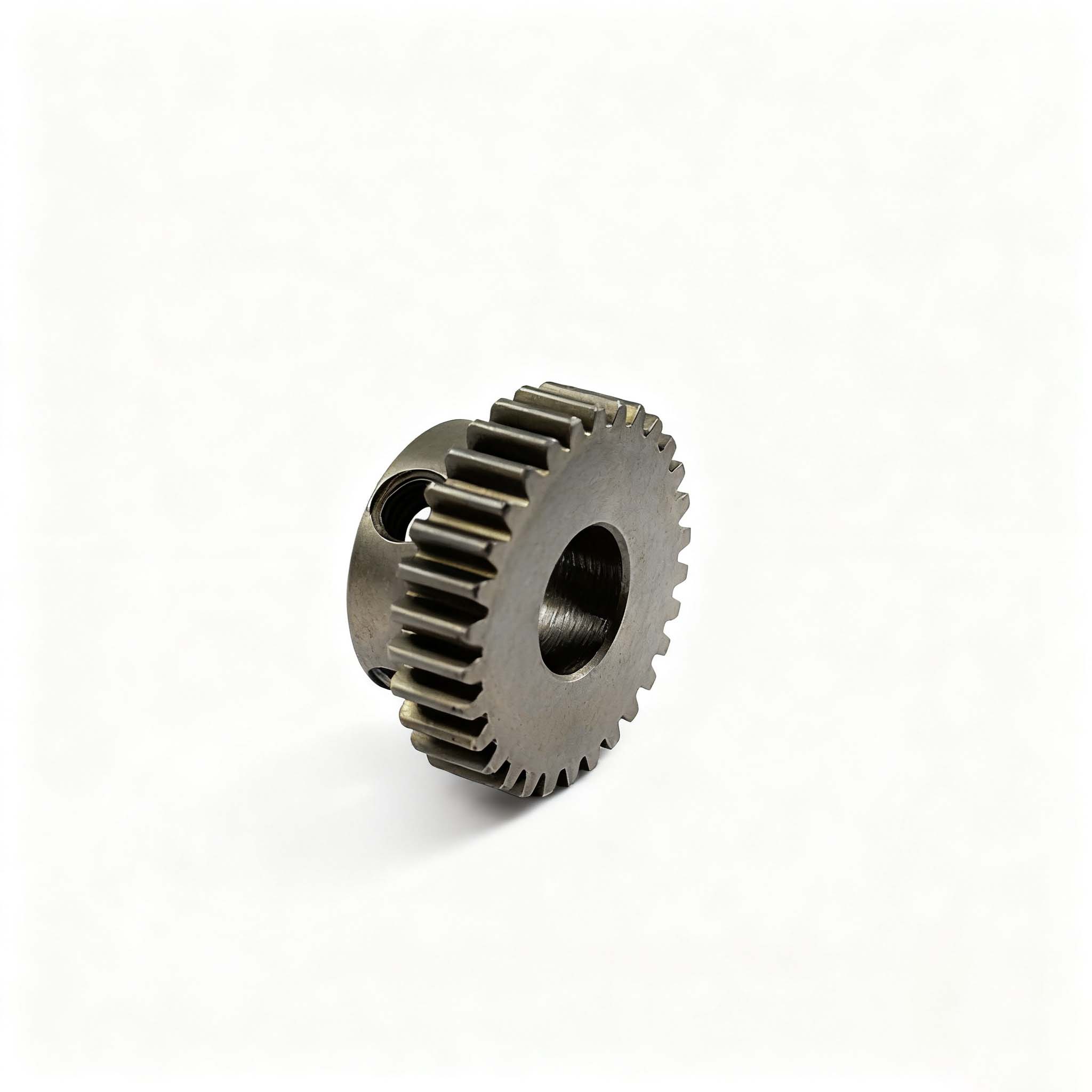

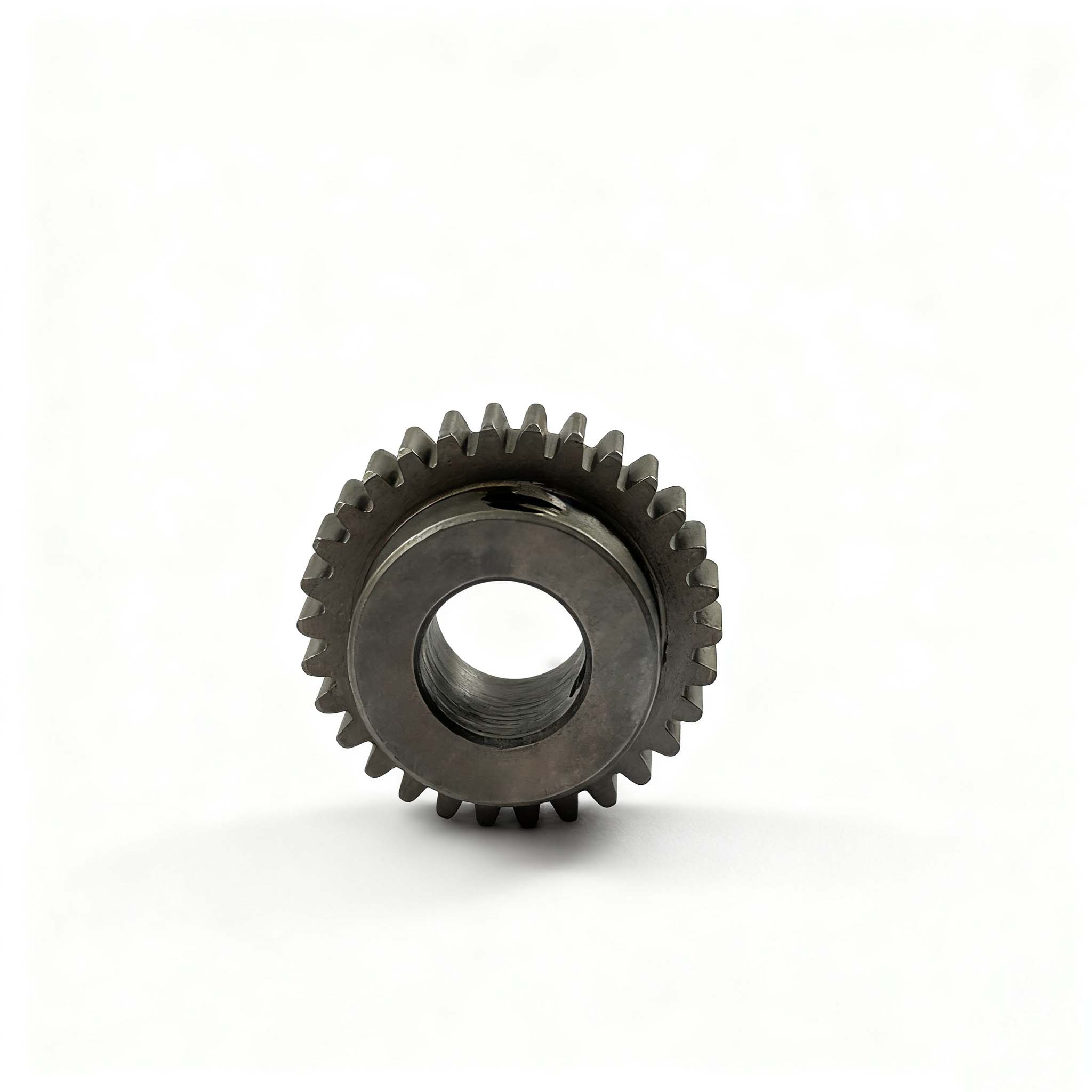

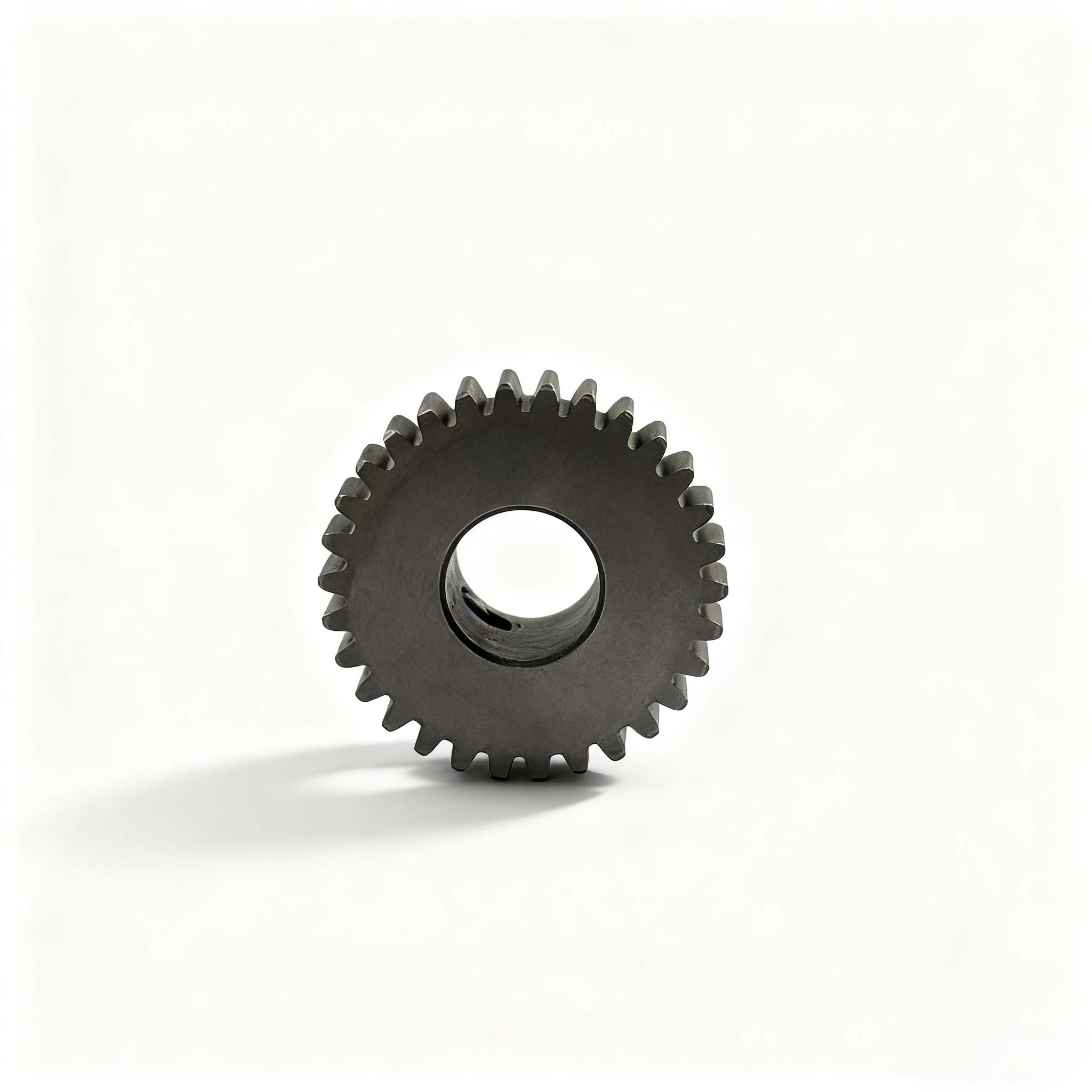

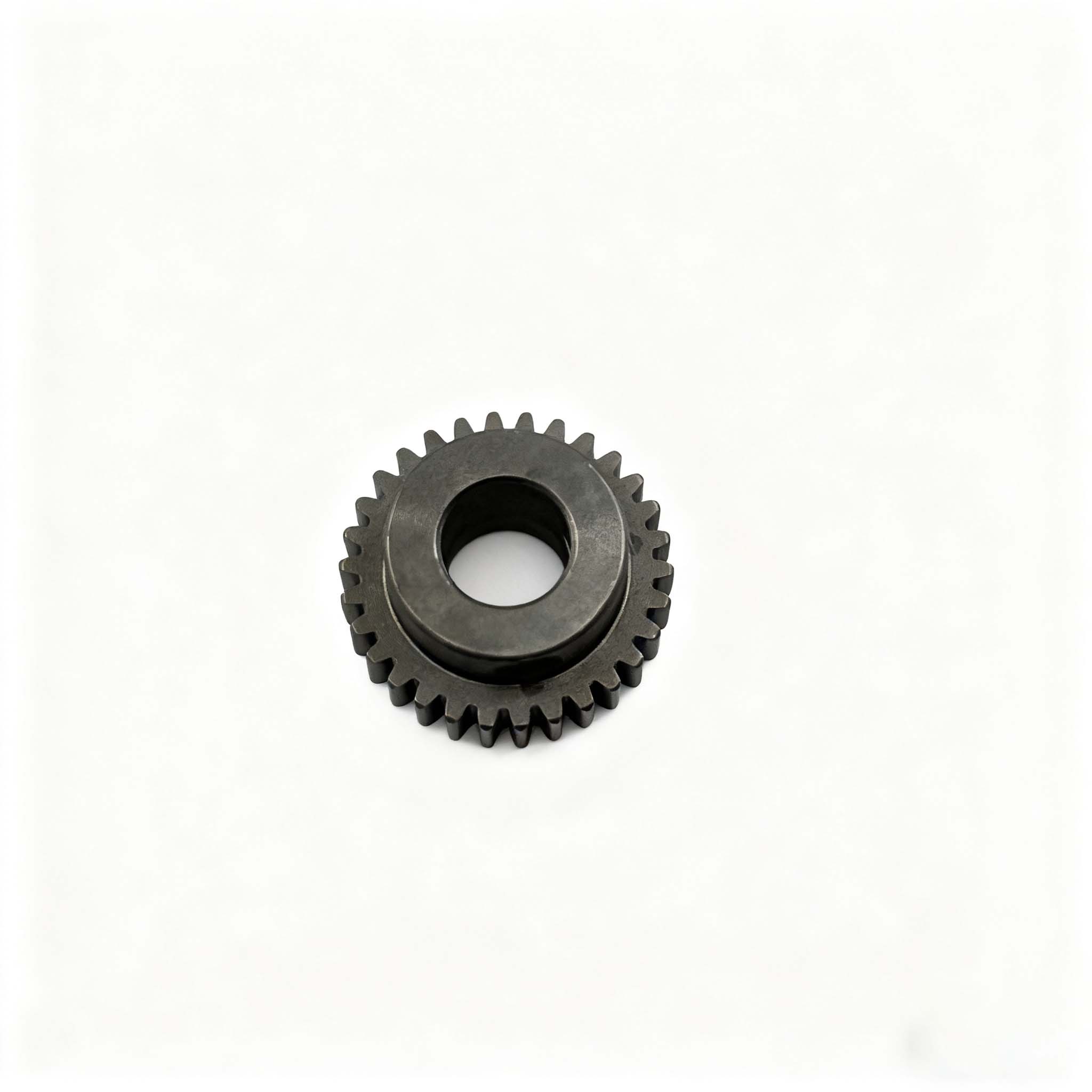

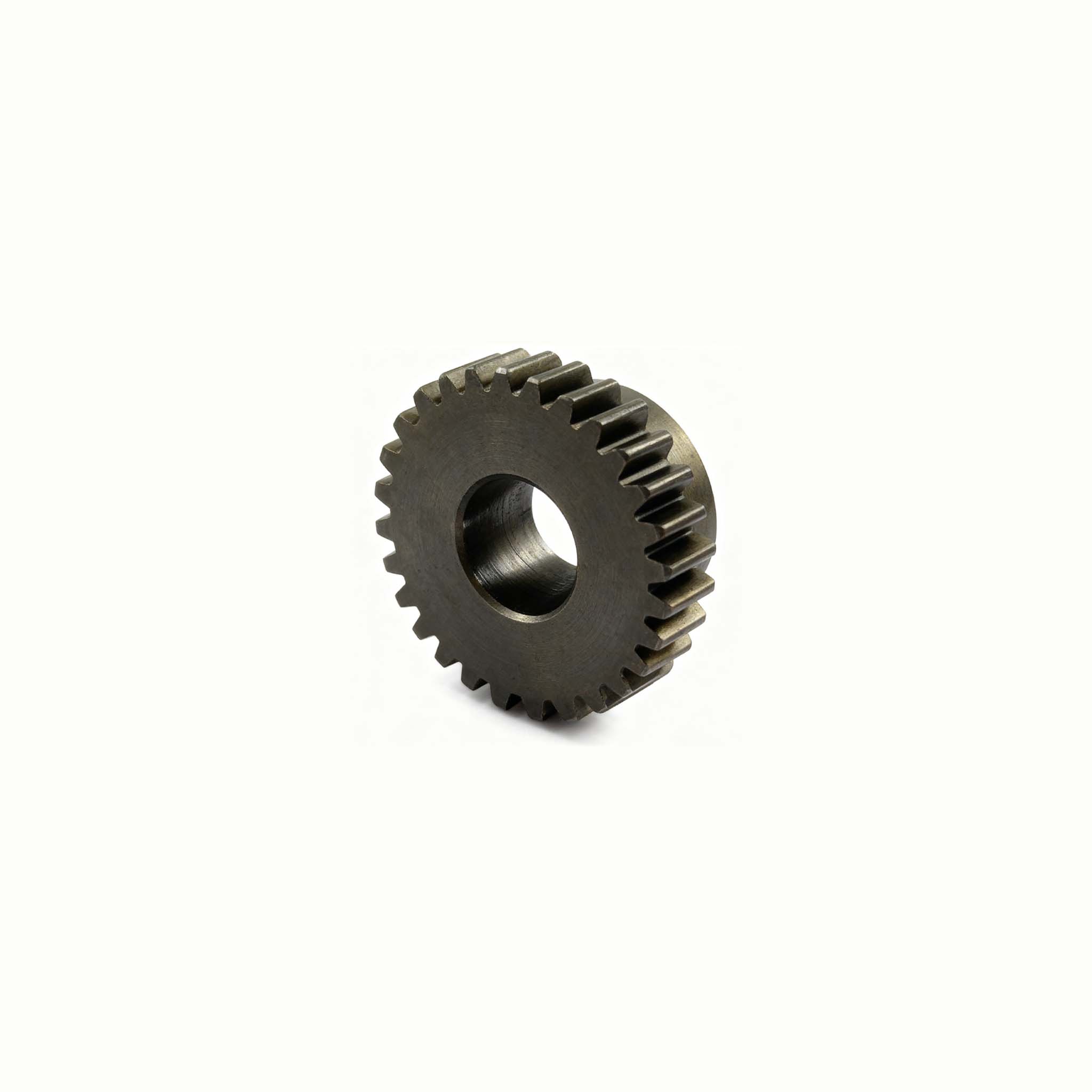

Presser Foot Lifting & Thread Trimming Driving Gear (Finished Product)
$1.50piece
The Presser Foot Lifting & Thread Trimming Driving Gear (Finished Product) is a dedicated spur gear for sewing equipment. Crafted from 20CrMo material through precise processes including hobbing and heat treatment, it features a pressure angle of 20°, module of 0.8 and 30 teeth. With a compact size (inner diameter 10mm, addendum circle diameter 25.6mm, total length 12mm) and a weight of just 0.025kg, it accurately drives the presser foot lifting and thread trimming actions of sewing machines, and is suitable for various types of sewing equipment.
Description
Additional information
| weight |
0.025 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
