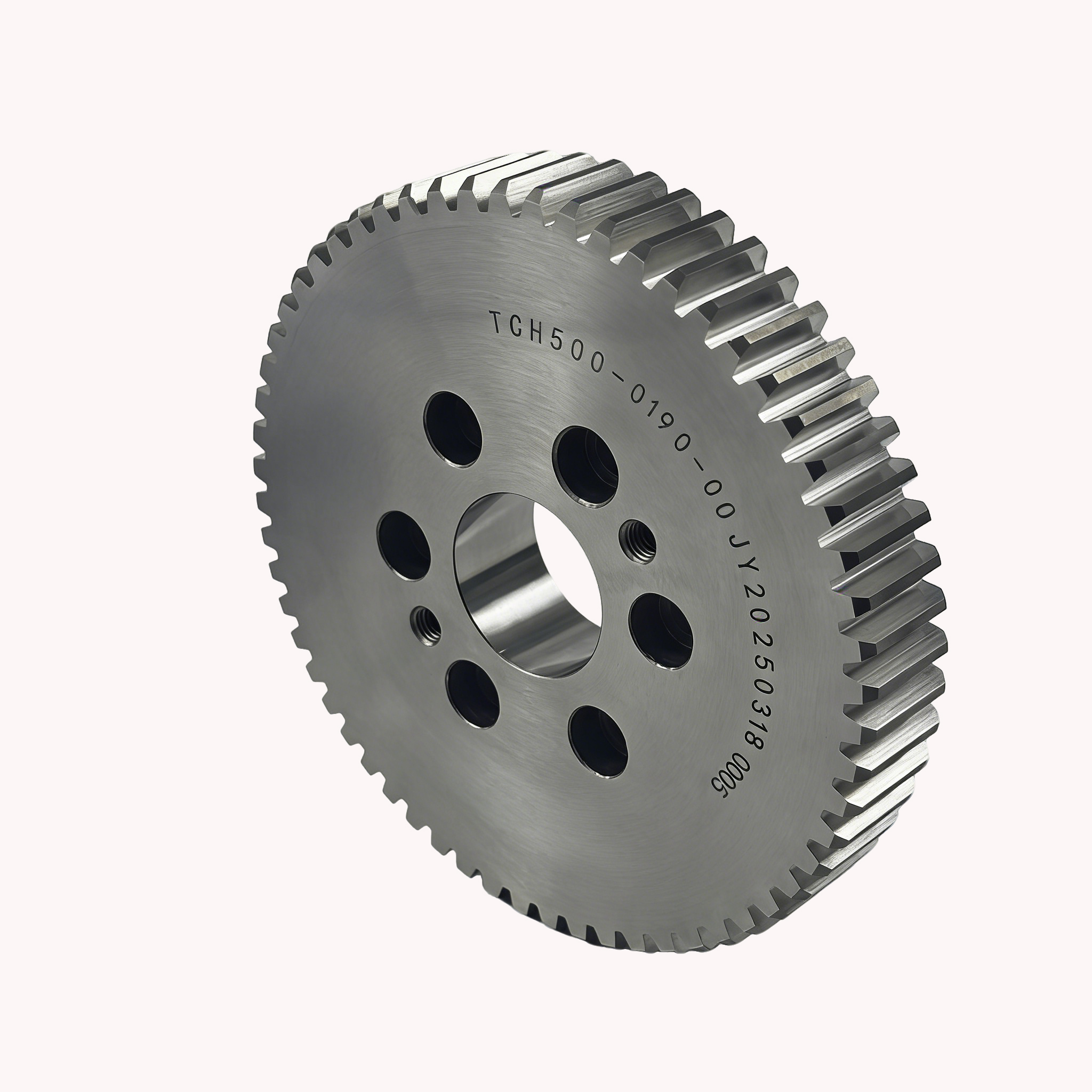

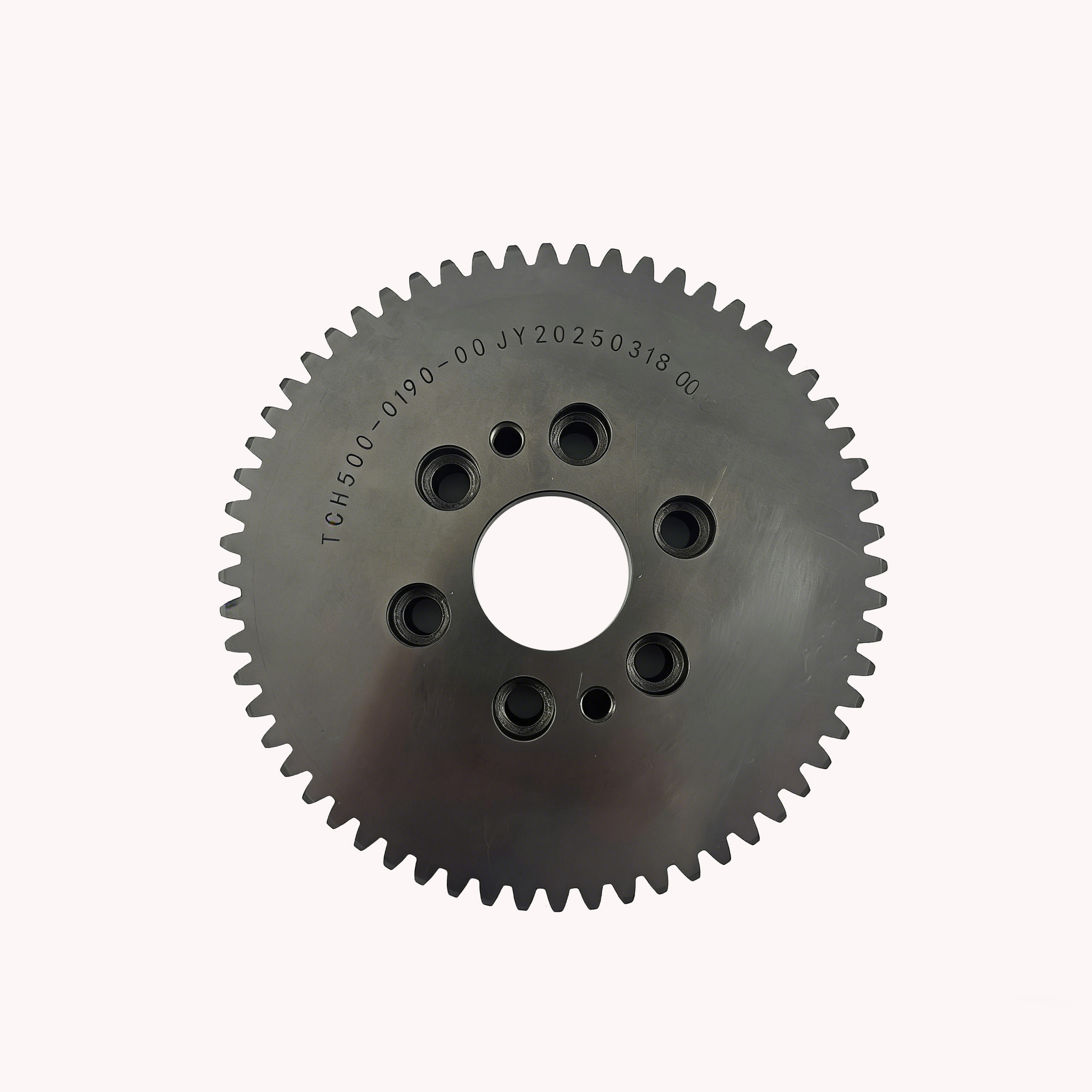

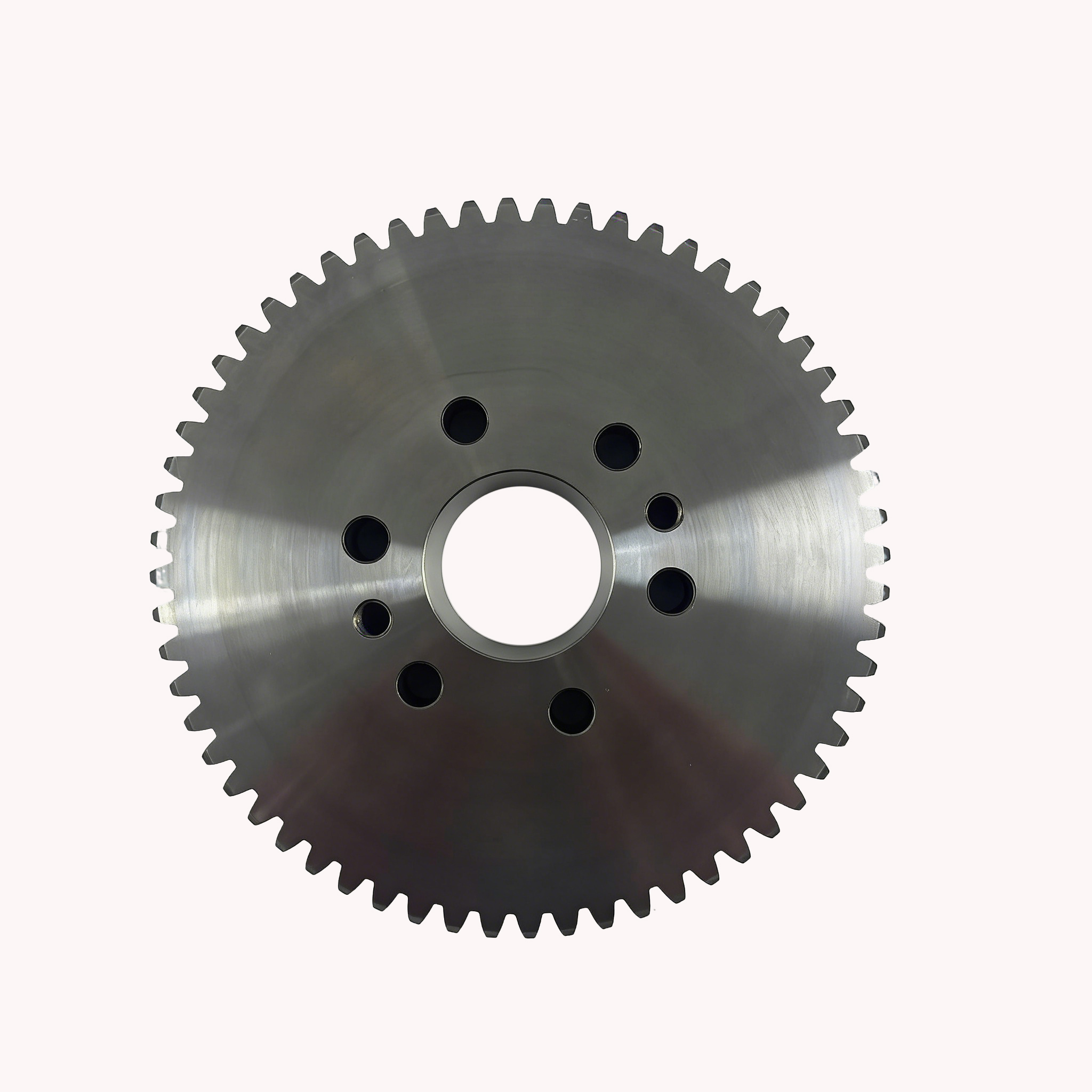

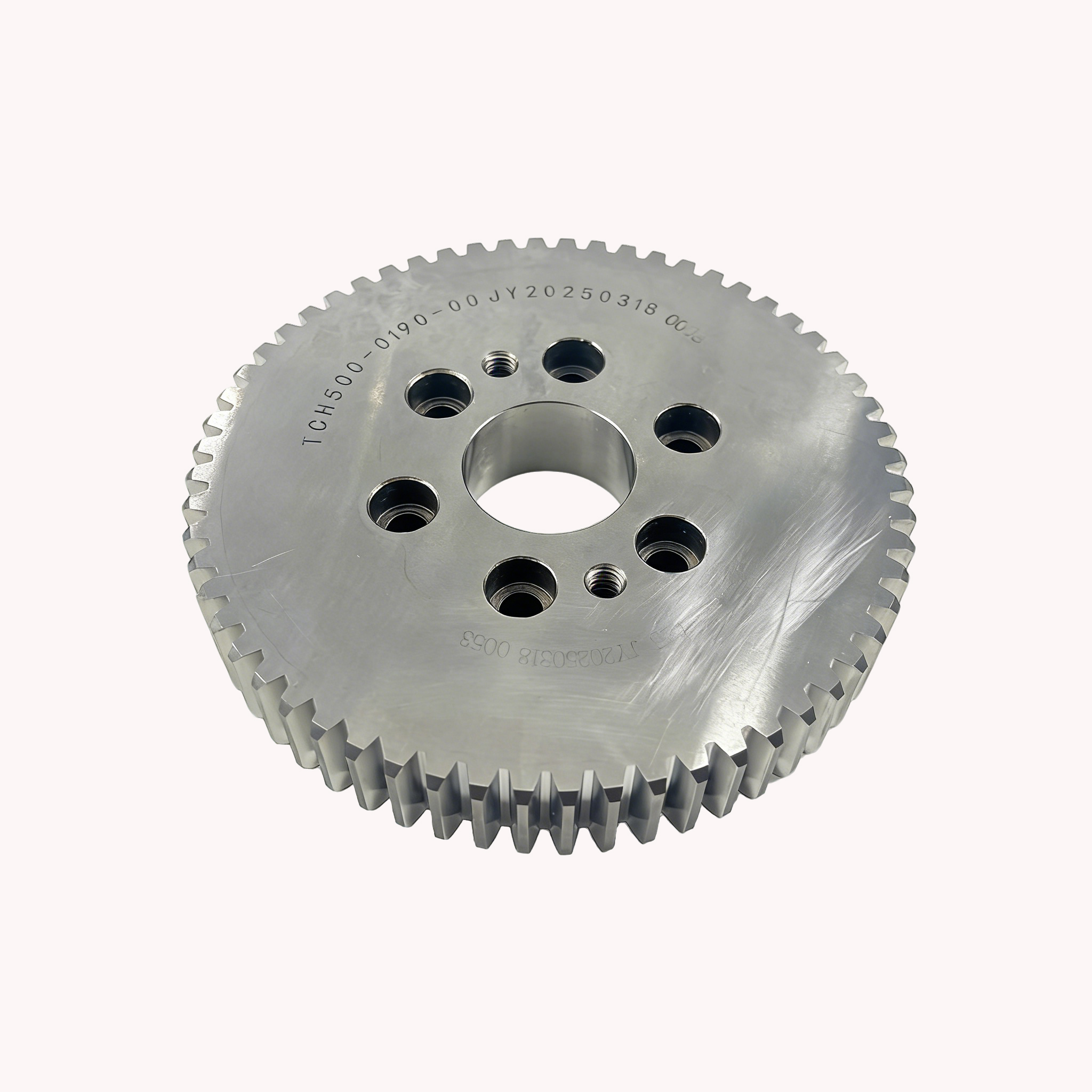

TLY-007-C worm matching spur gear is compatible with TCH500-0190-00 reducer. Made of 20CrMo steel, it has 20° pressure angle, module 2.5, 60 teeth and 1/100 transmission ratio. Its gear outer diameter is 155 mm, total length 25 mm and single weight 3.12 kg. Processed by rough hobbing, heat treatment and precision gear grinding, this gear delivers high precision, stable and wear-resistant transmission for reducers.
Description
Model TLY-007-C is a worm matching spur gear for TCH500-0190-00, specially used as transmission gear for reducers.
Technical parameters: 20° pressure angle, module 2.5, 60 teeth, 39T with transmission ratio 1/100, gear outer diameter 155 mm, overall length 25 mm, single unit weight 3.12 kg.
Manufactured from 20CrMo alloy steel, the gear features high strength, good hardenability and excellent inherent wear resistance. The complete production flow covers sawing, turning, rough hobbing, hardening heat treatment, chamfering, hanging shot blasting, boring, facing & outer diameter turning, surface capping, wire EDM, deburring, precision gear grinding and marking.
Heat treatment improves the hardness of tooth surfaces, and subsequent precision grinding ensures high tooth profile accuracy. The gear runs smoothly with outstanding wear resistance and long service life. It is installed inside TCH500 series reducers and cooperates with worms to realize speed reduction and power transmission.
