SP-CLX216-A2-2-56-A1 (Input Gear)
$10.22piece

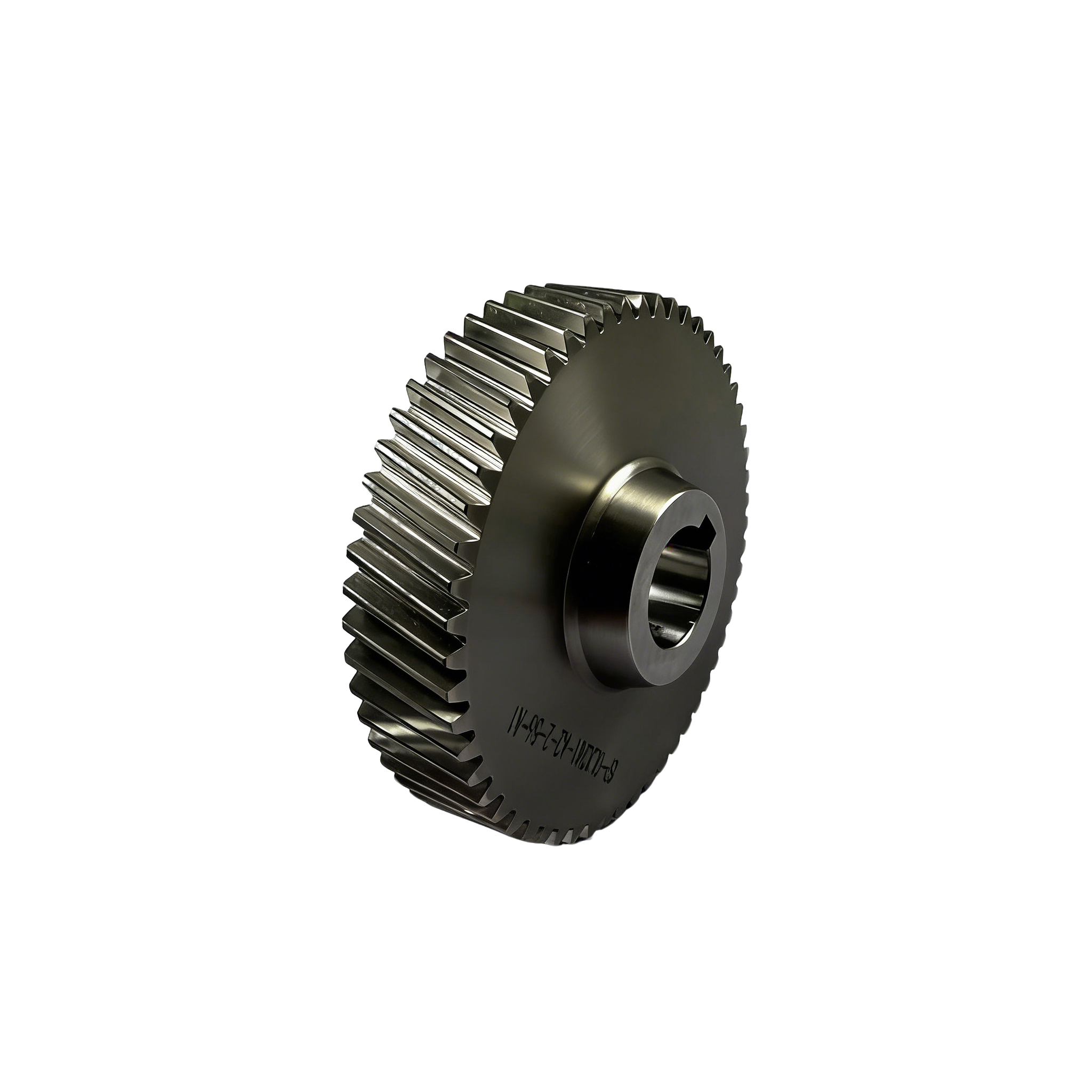

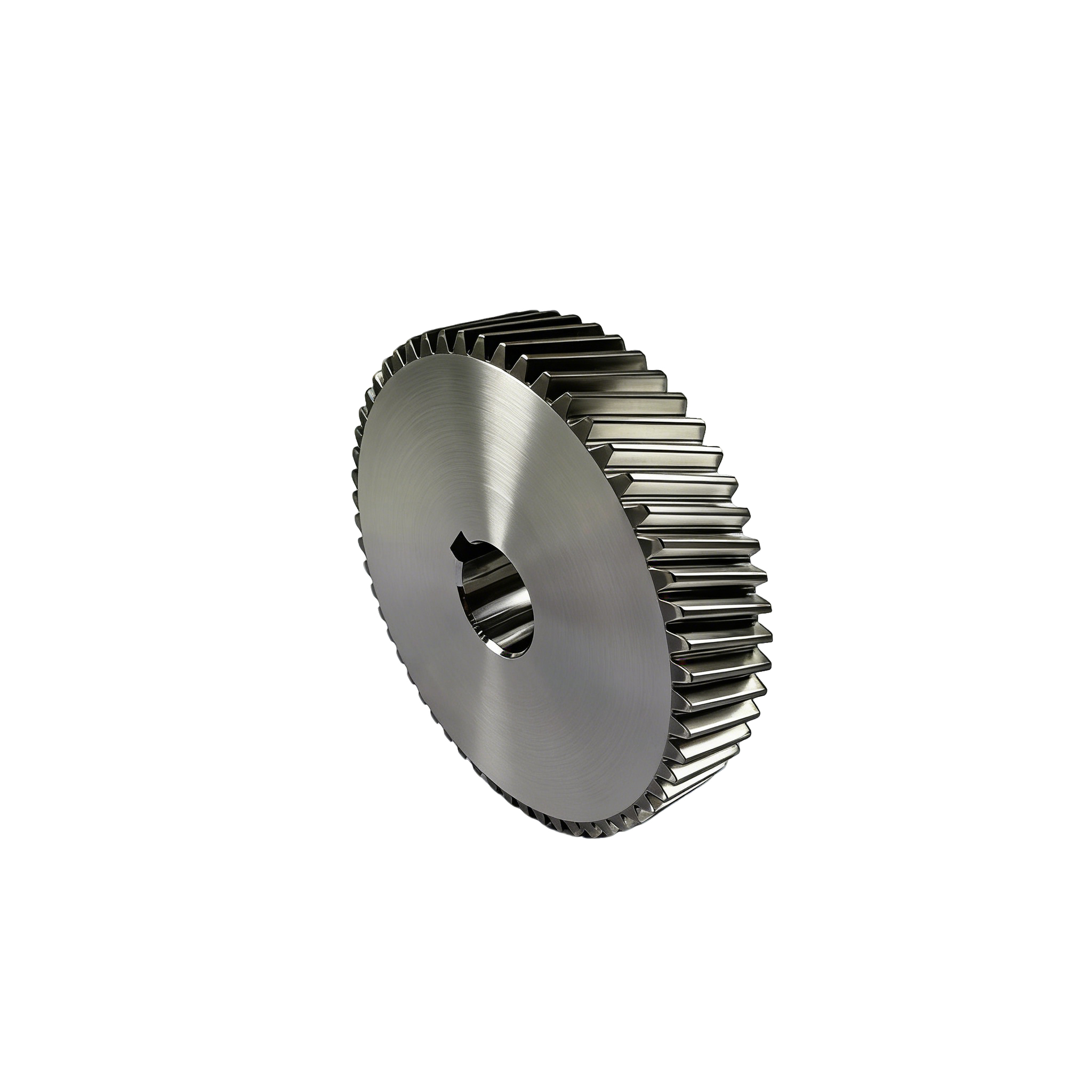

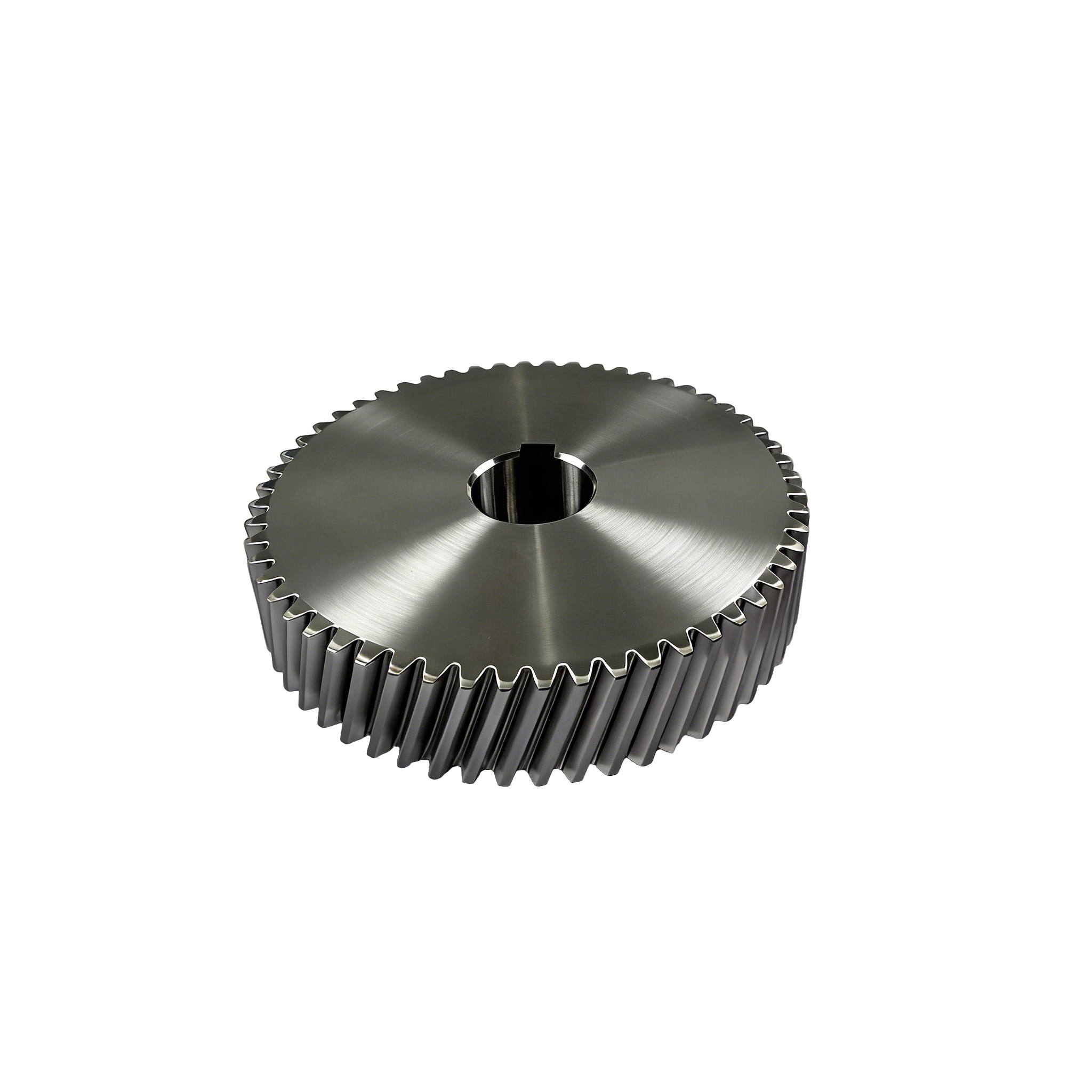

SPKJ-015-C is an input helical gear with module 1.5, 56 teeth and 18° right-hand helix angle. Made of 20CrMnTi via precision machining, it has a total length of 29 mm and weight of 0.9745 kg, designed for speed reducers.
Description
Product Model: SPKJ-015-C, corresponding specification: SP-CLX216-A2-2-56-A1 (Input Gear), which belongs to the bevel gear category for reducer gears. The core parameters of the product are as follows: pressure angle 20°, module 1.5, number of teeth 56, helix angle 18°/R, inner diameter 20mm, gear outer diameter 91.1mm, total length 29mm, and weight 0.9745kg. It is made of 20CrMnTi material, and the processing technology includes multiple precision processes such as sawing, turning, rough hobbing, heat treatment, chamfering, shot blasting, boring + face flattening, total length grinding, gear grinding and marking. The processing process is standardized to ensure product precision. It is mainly used in the reducer transmission system as the core transmission component at the input end.
Additional information
| weight |
0.9745 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
2020869
The 2020869 helical gear (dedicated for power tools) has a pressure angle of 20°, module of 0.8, 8 teeth and helix angle of 15°/R. With a shaft diameter of 8mm, outer diameter of 8.7mm, total length of 87mm and weight of 0.045kg, it is made of 20CrMo material through precision processes including normalizing, hobbing and heat treatment + correction, featuring stable transmission and high fatigue resistance.
2024421(2024524)
The 2024421 (2024524) helical gear (dedicated for power tools) has a pressure angle of 20°, module of 1.25, 51 teeth and helix angle of 20°/L. With an inner diameter of 14mm, outer diameter of 69.5mm, total length of 10.5mm and weight of 0.1747kg, it is made of 20CrMo material through precision processes including normalizing, hobbing, heat treatment and boring. It is characterized by high torque resistance, stable transmission and long service life.
211WF1-014 Finished Hook Shaft Pinion and 211WF1-005 Finished Lower Shaft Main Gear
211WF1-014 Finished Hook Shaft Pinion and 211WF1-005 Finished Lower Shaft Main Gear are finished helical gears made of 20Cr, with a pressure angle of 20° and a module of 1, and both have a helix angle of 45°/L. Processed via multiple precision manufacturing procedures, they are suitable for the transmission system of sewing equipment, delivering stable transmission with excellent wear resistance.
32001099-00
Model 32001099-00 helical gear is made of 20CrMo, produced via precision processes including normalizing, hobbing, heat treatment correction and multiple outer diameter grinding. It has a pressure angle of 20°, module of 0.8, 8 teeth, 20° left-hand helix angle, 8mm shaft diameter, 8.894mm tooth outer diameter and 0.0429kg weight, serving as a dedicated transmission component for power tools.
855718 Finished Lower Shaft Main Gear and 855717 Hook Shaft Pinion
855718 Finished Lower Shaft Main Gear and 855717 Hook Shaft Pinion are helical gears made of 20CrMo, with a pressure angle of 20° and a module of 1, and their helix angles are set as 15°/R and 15°/L respectively. Processed via multiple precision manufacturing procedures, they are suitable for the transmission system of sewing equipment, delivering stable transmission with excellent wear resistance.
D-94-172270-91 Presser Foot Lifting Gear
The D-94-172270-91 Presser Foot Lifting Gear is a helical gear made of 20CrMnTi, featuring a pressure angle of 20°, a module of 1 and 72 teeth. Processed via multiple precision procedures, it offers excellent wear resistance and corrosion protection, and is ideal for the presser foot lifting mechanism of sewing equipment with accurate and stable transmission performance.
