TCH500-0180-01S Straight Shaft Motor Spur Gear
$30.57piece

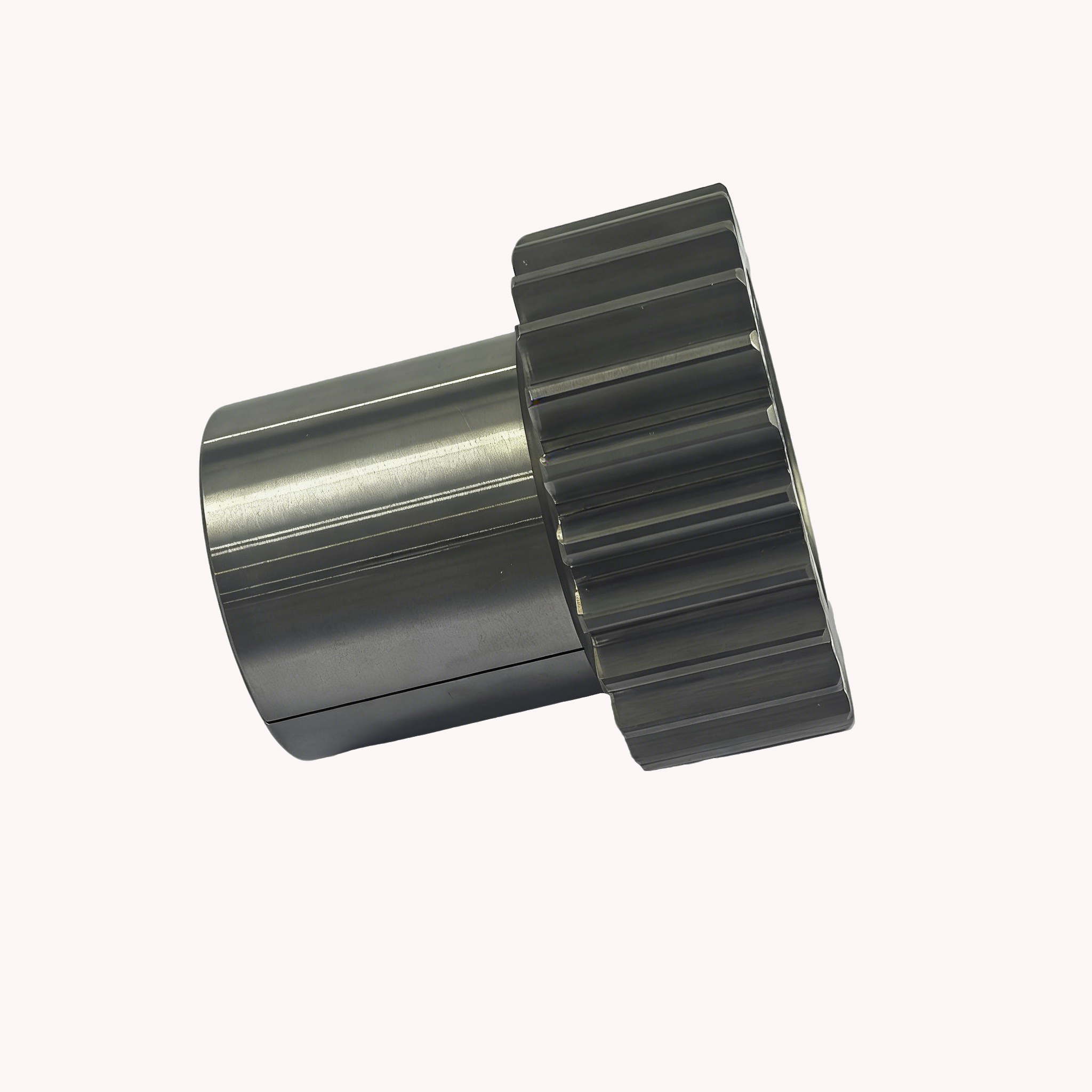

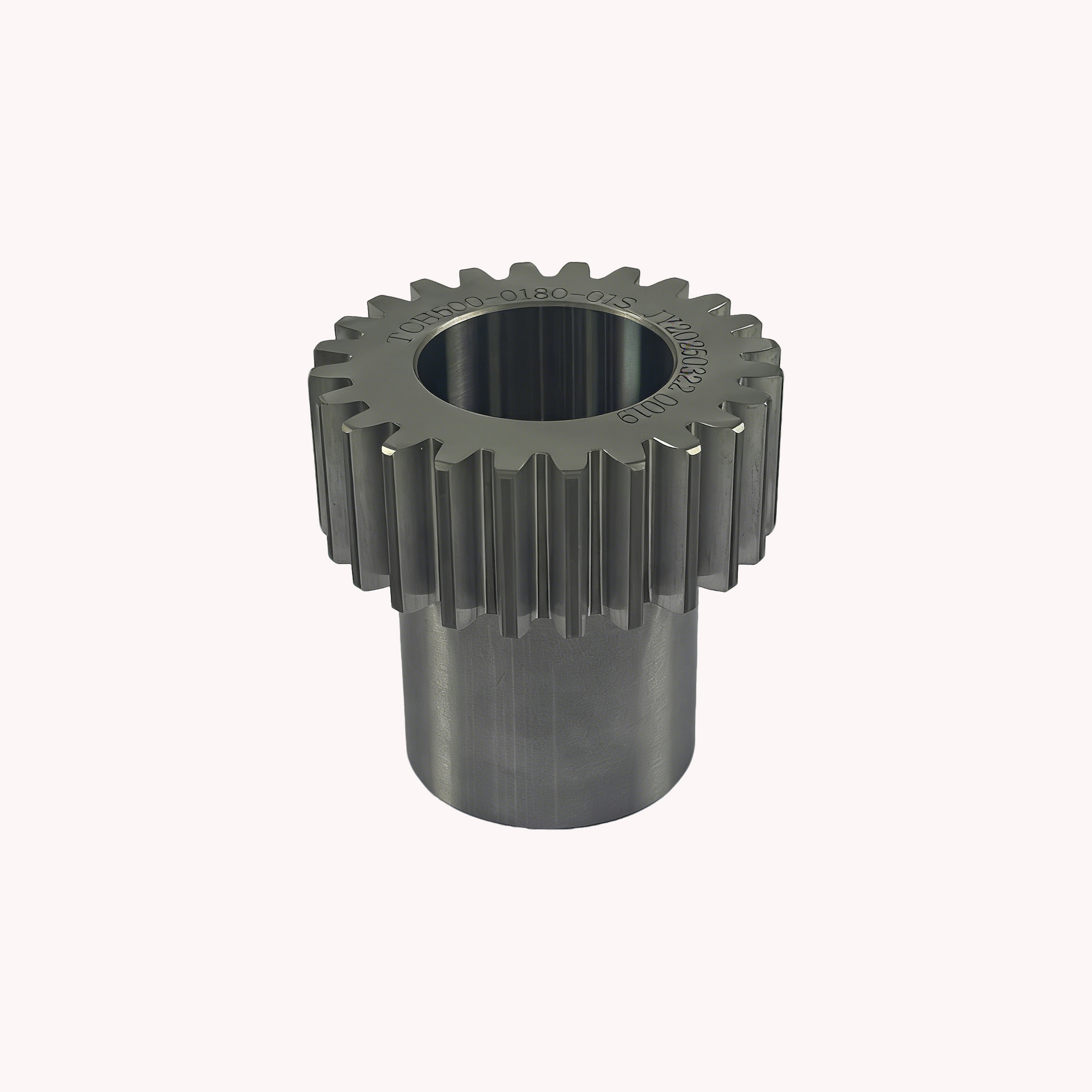

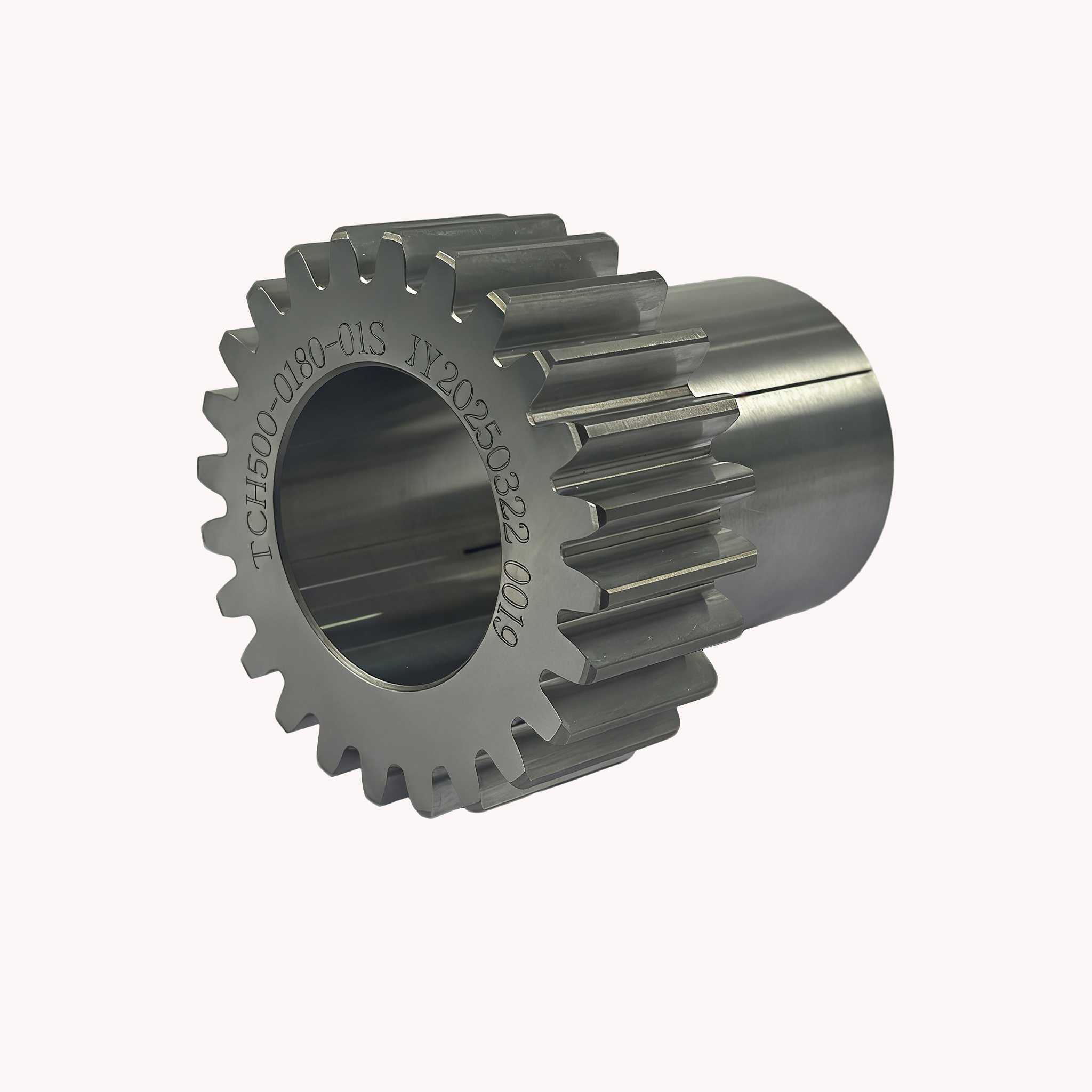

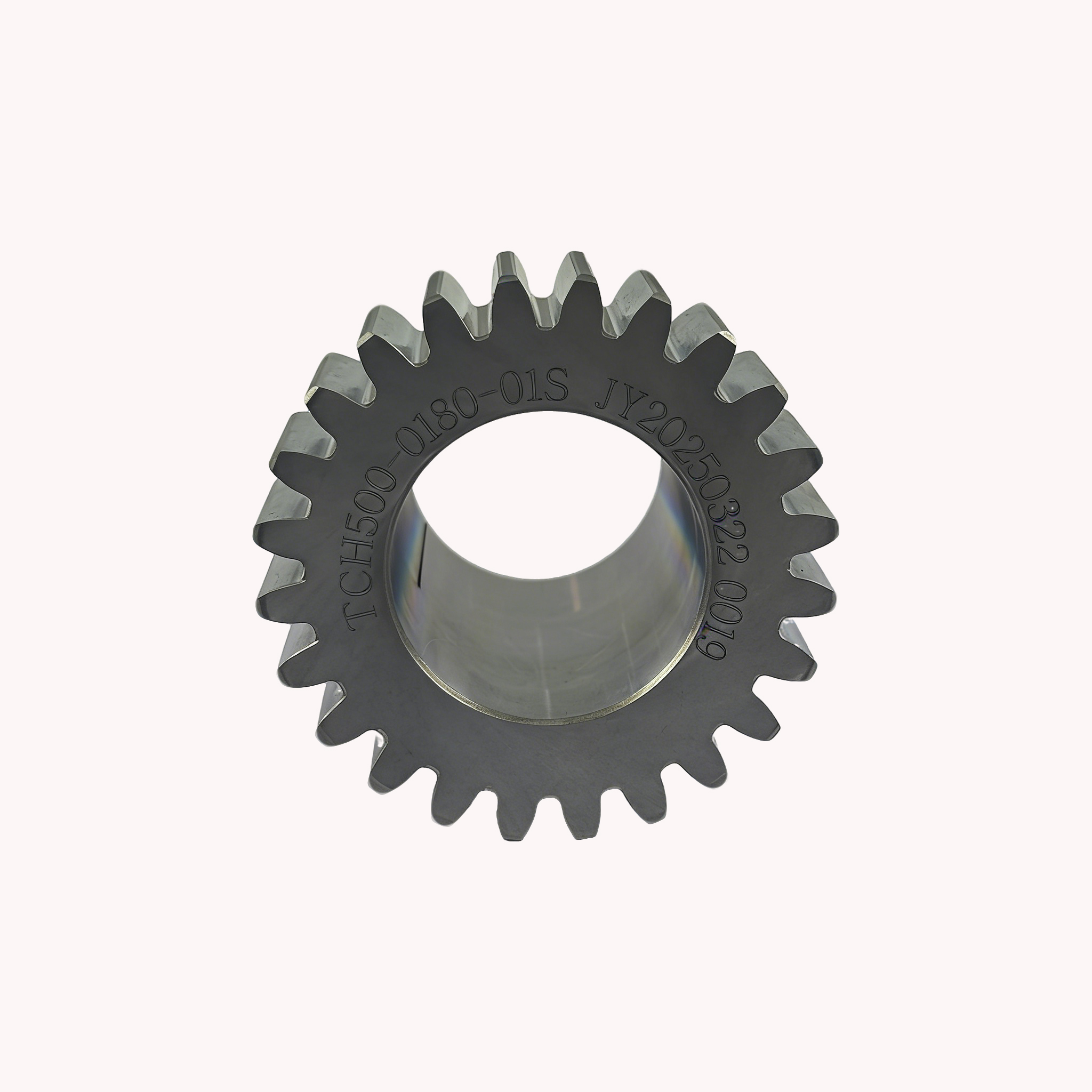

TLY-008-C straight shaft motor spur gear is compatible with TCH500-0180-01S reducer. Constructed of 20CrMo steel, it features 20° pressure angle, module 2.5, 24 teeth and 35° helix angle. Its gear outer diameter is 65 mm, total length 65 mm and unit weight 0.5475 kg. Processed by gear hobbing, heat treatment and precision gear grinding, this gear features high precision and stable wear-resistant transmission for reducer power transmission.
Description
Model TLY-008-C is a straight shaft motor spur gear matching TCH500-0180-01S, which is a dedicated transmission spur gear for reducers.
Key technical parameters: 20° pressure angle, module 2.5, 24 teeth, 35° helix angle; gear outer diameter 65 mm, overall length 65 mm, single piece weight 0.5475 kg.
Made of 20CrMo alloy steel, the gear has high material strength, good hardenability and excellent basic wear resistance. The full mature manufacturing process includes sawing, turning, gear hobbing, hardening heat treatment, hanging shot blasting, boring & facing, surface grinding, precision gear grinding and marking.
Heat treatment increases tooth surface hardness, and subsequent precision grinding delivers high tooth profile accuracy. The gear runs smoothly with long wear-resistant service life. It fits TCH500 series reducers and serves as the core internal transmission gear for straight shaft motors.
Additional information
| TLY-008-C weight |
0.5475 |
|---|---|
| TLY-008-C Core Components |
gear |
| TLY-008-C Craftsmanship |
Hobbing |
