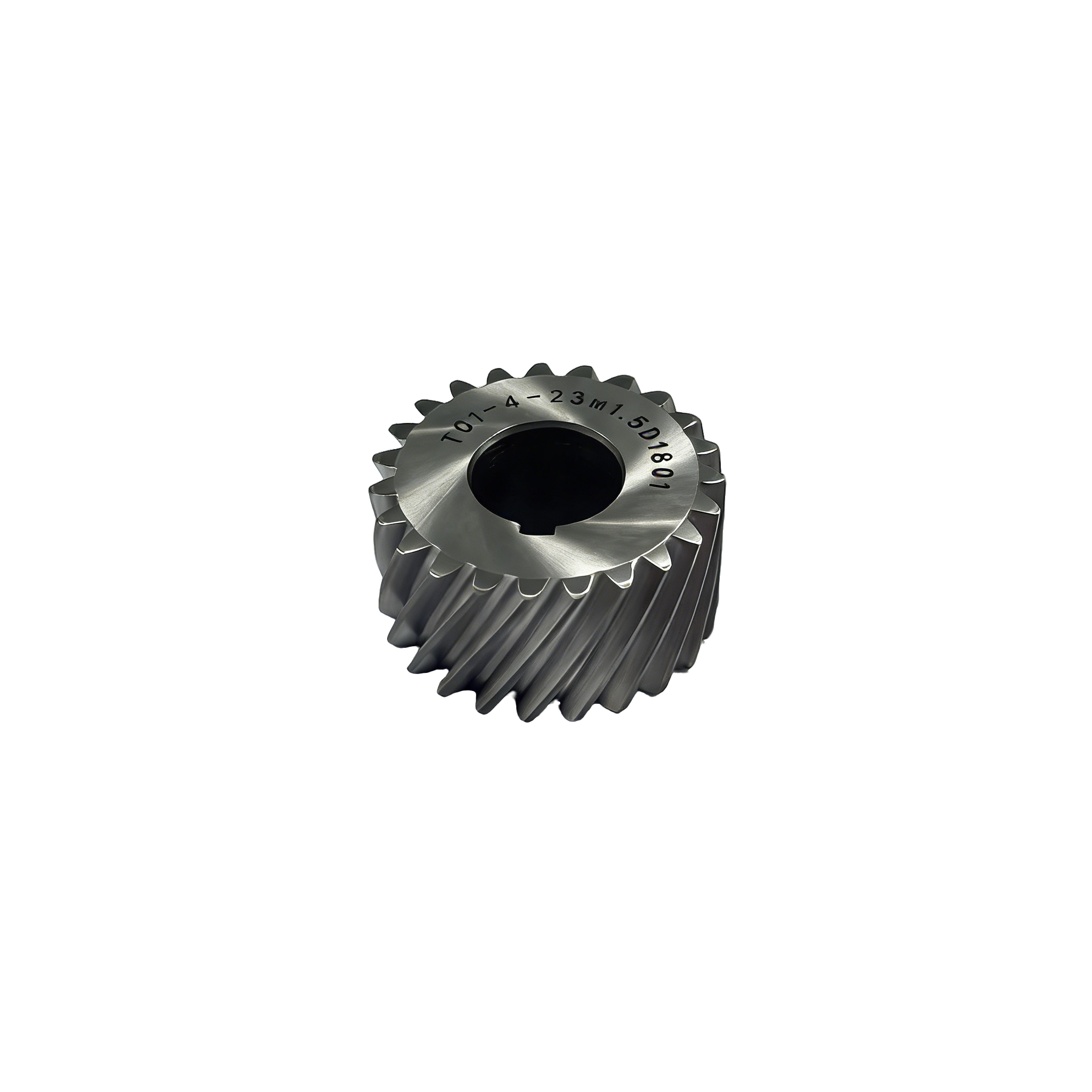

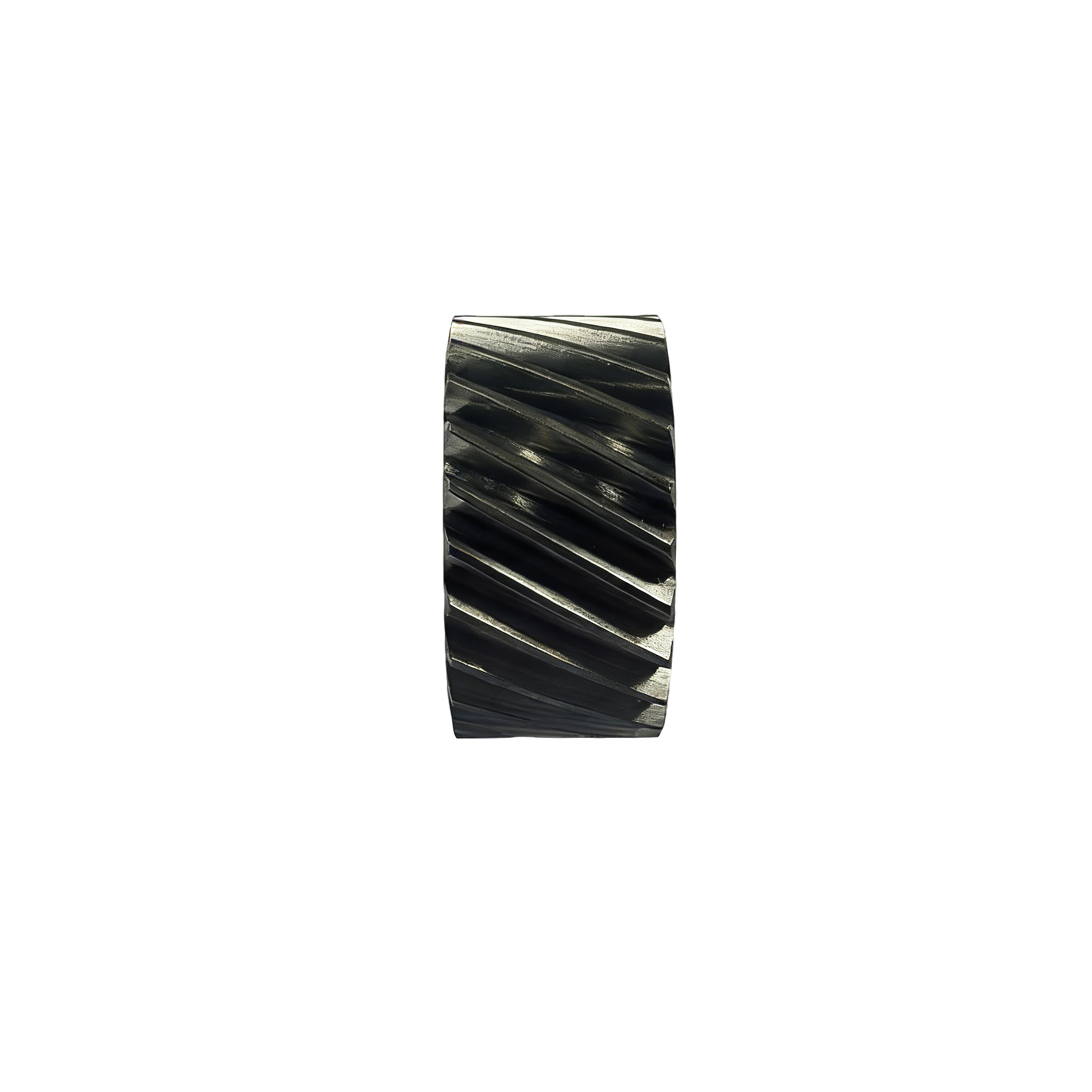

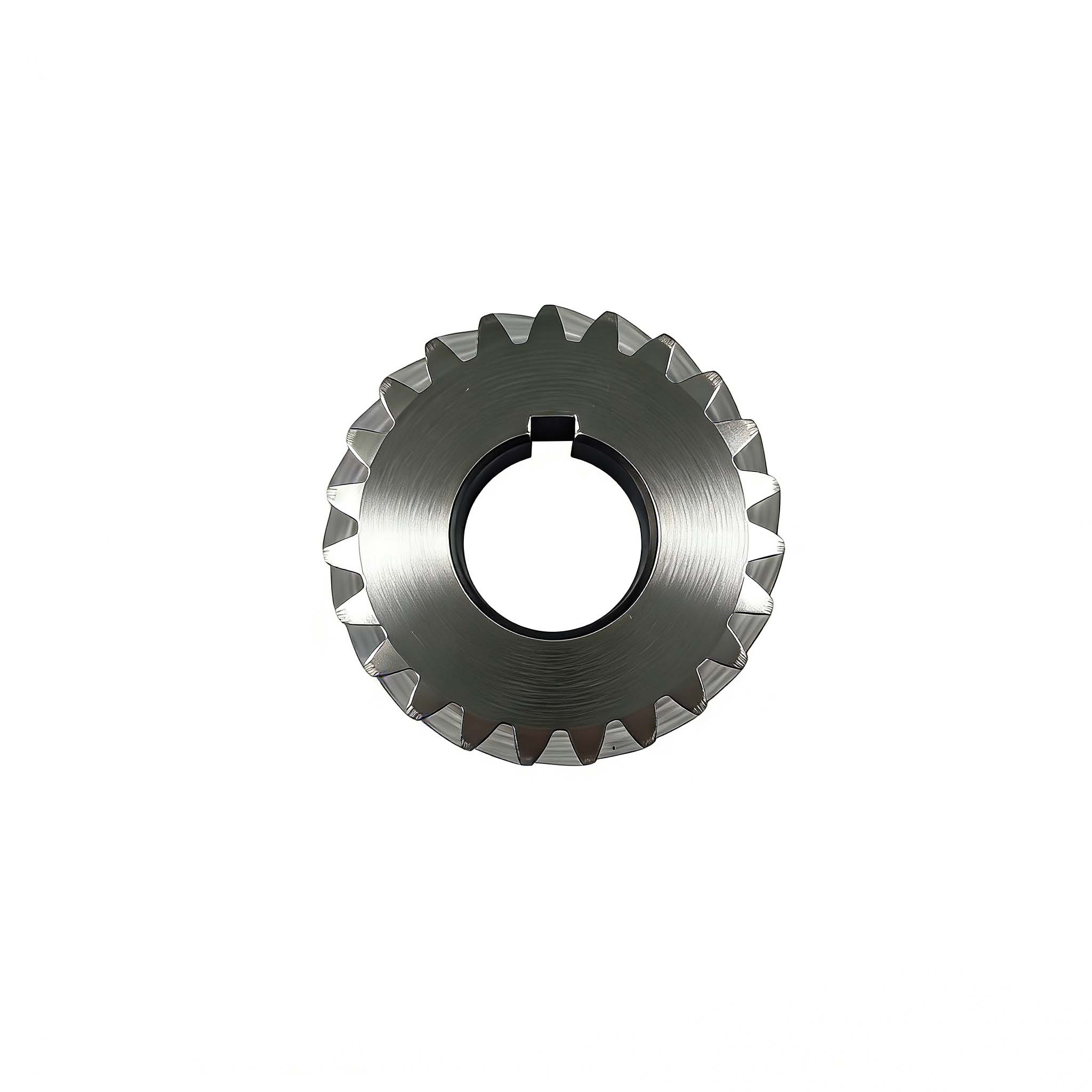

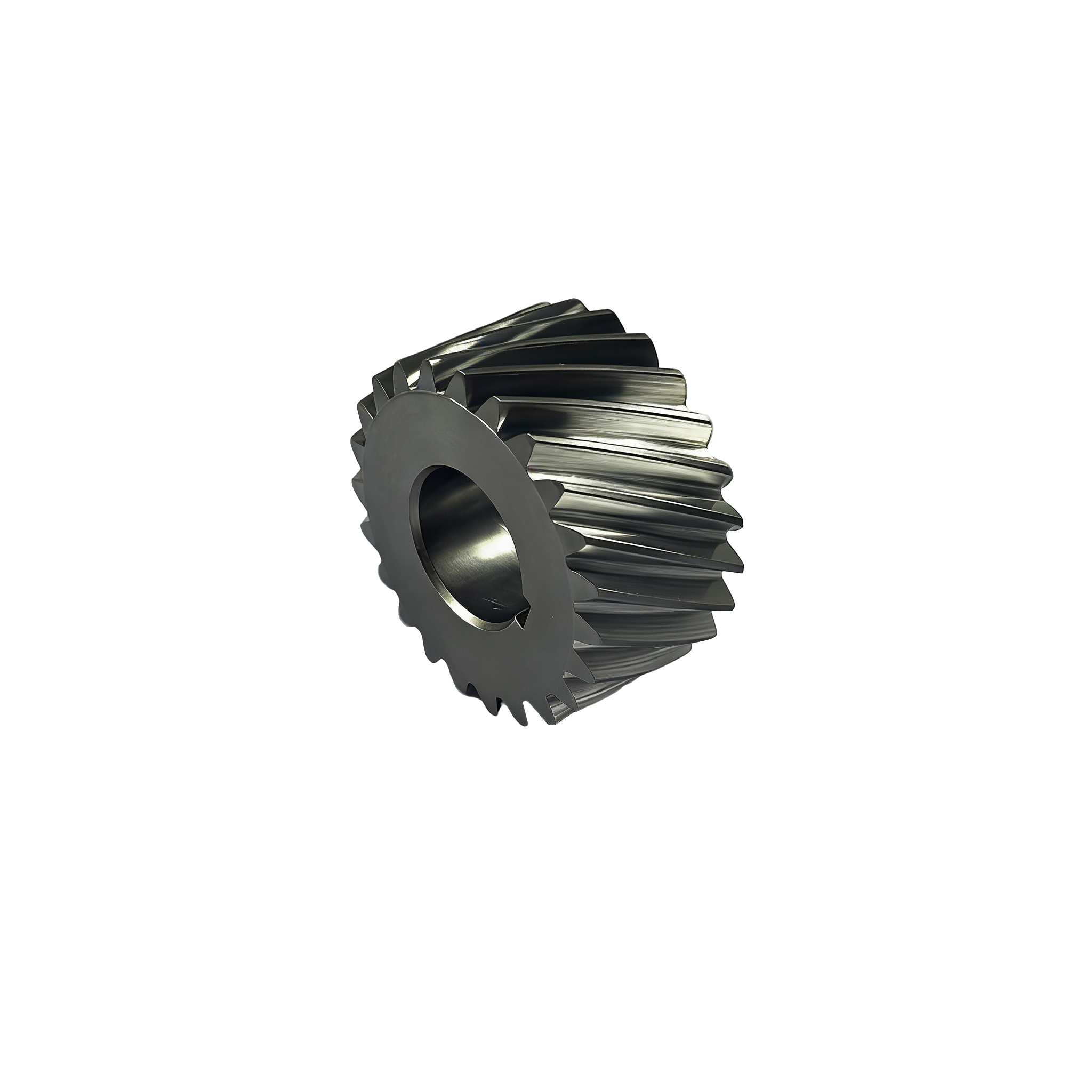

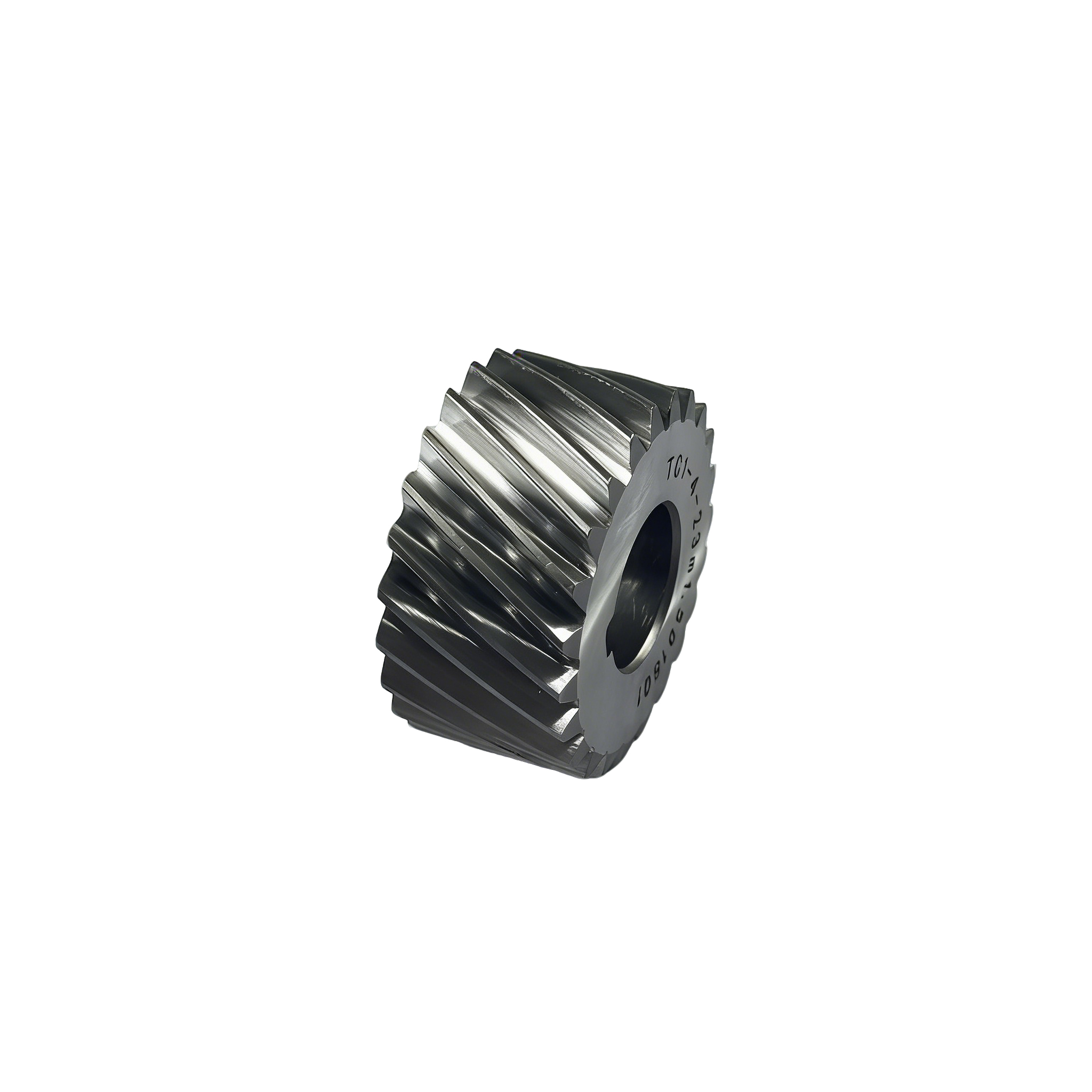

TC1-4-23m1.5D18 Input Drive Gear
$2.94piece
QBY-011-C is a helical input drive gear made of 20CrMnTi. It has 23 teeth, 28° right-hand helix, module 1.5, inner diameter 18mm, weight 0.1683kg. It is suitable for reducers, with stable transmission and good wear resistance.
Description
Model: QBY-011-C
Product Name: TC1-4-23m1.5D18 Input Drive Gear
Type: Helical Gear
Parameters: Pressure angle 20°, module 1.5, 23 teeth, helix angle 28° right-hand (RH), inner diameter 18mm, tooth outer diameter 42.939mm, total length 22mm, weight 0.1683kg
Material: 20CrMnTi
Process: Sawing, turning, rough hobbing, chamfering, heat treatment, reaming, facing, gear grinding, marking, full appearance inspection
Application: Reducer gear, used as an input drive gear to transmit power, suitable for the input end of reducers.
QBY-011-C is a helical input drive gear made of 20CrMnTi. It is manufactured through multiple precision processing procedures, with high tooth surface accuracy ensured by hobbing and gear grinding. After heat treatment, it has good mechanical strength and wear resistance, featuring stable operation and reliable power transmission for reducers.
Additional information
| weight |
0.1683 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
