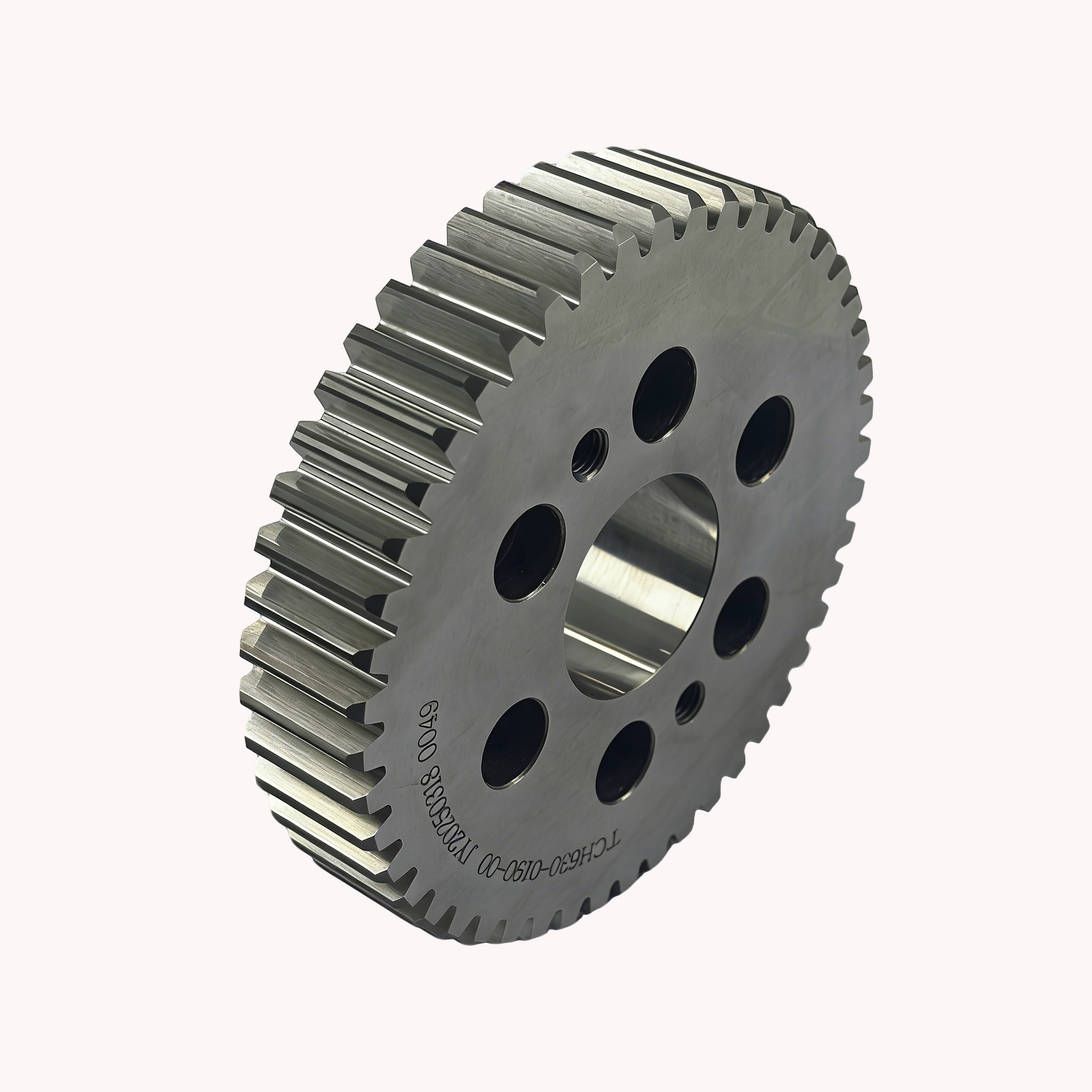

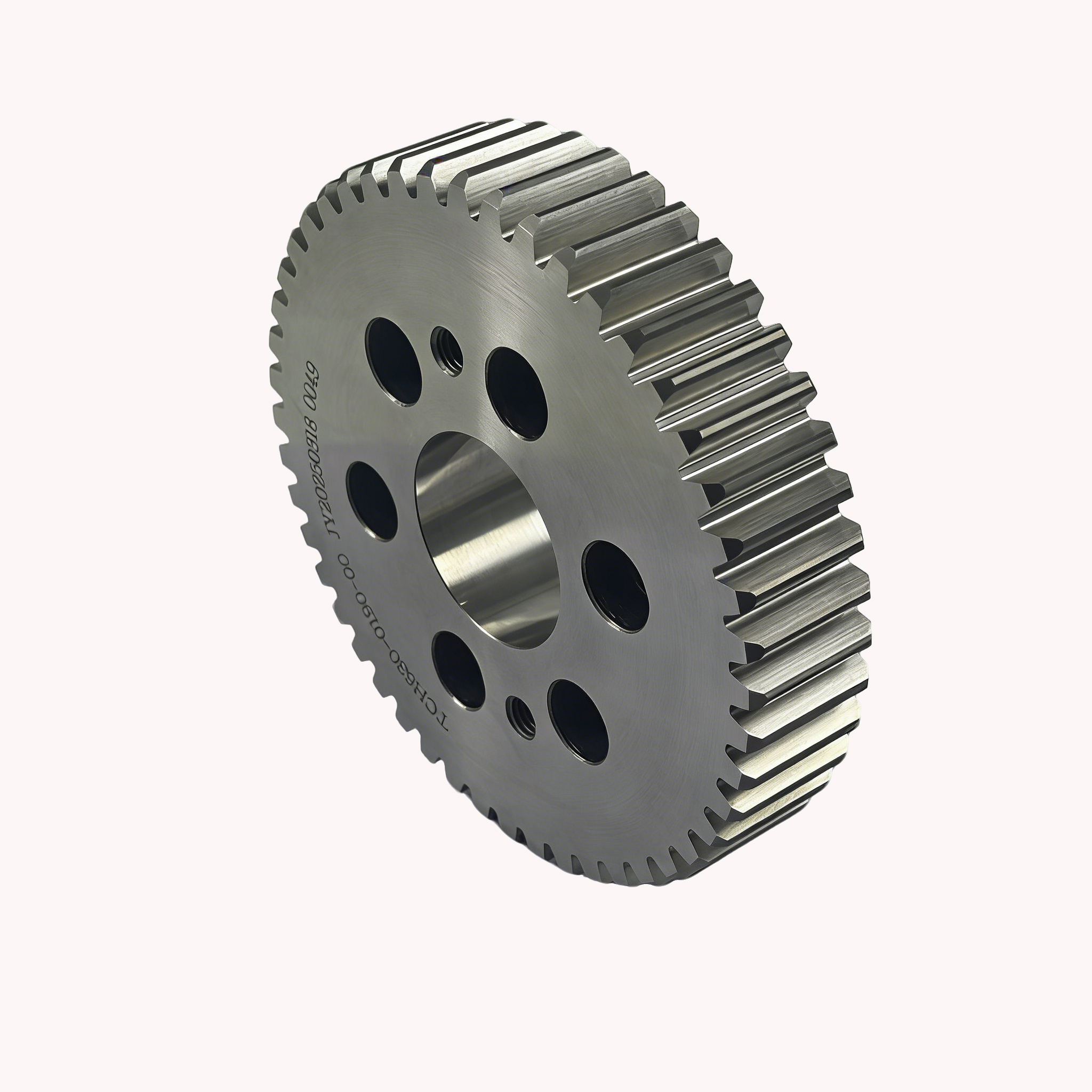

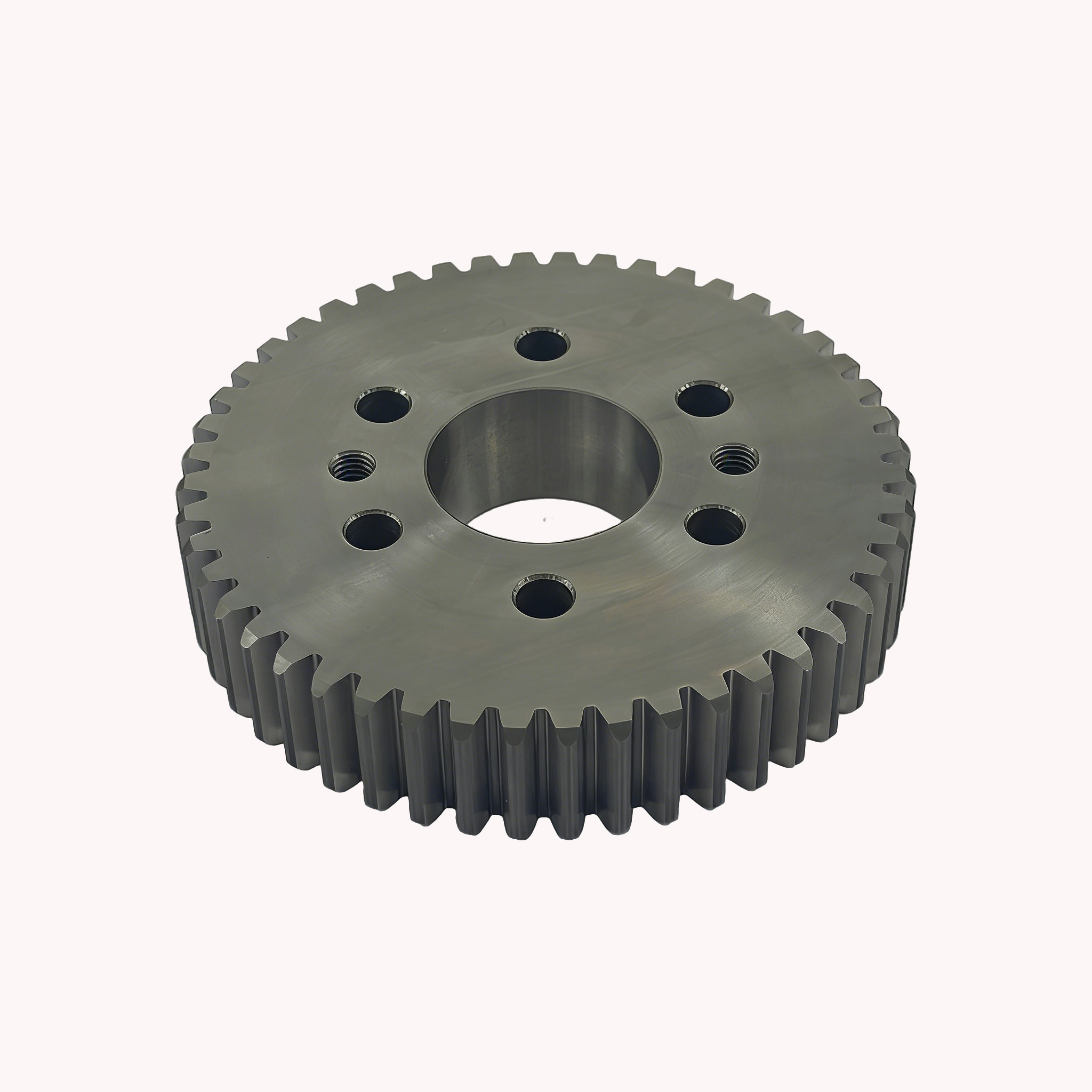

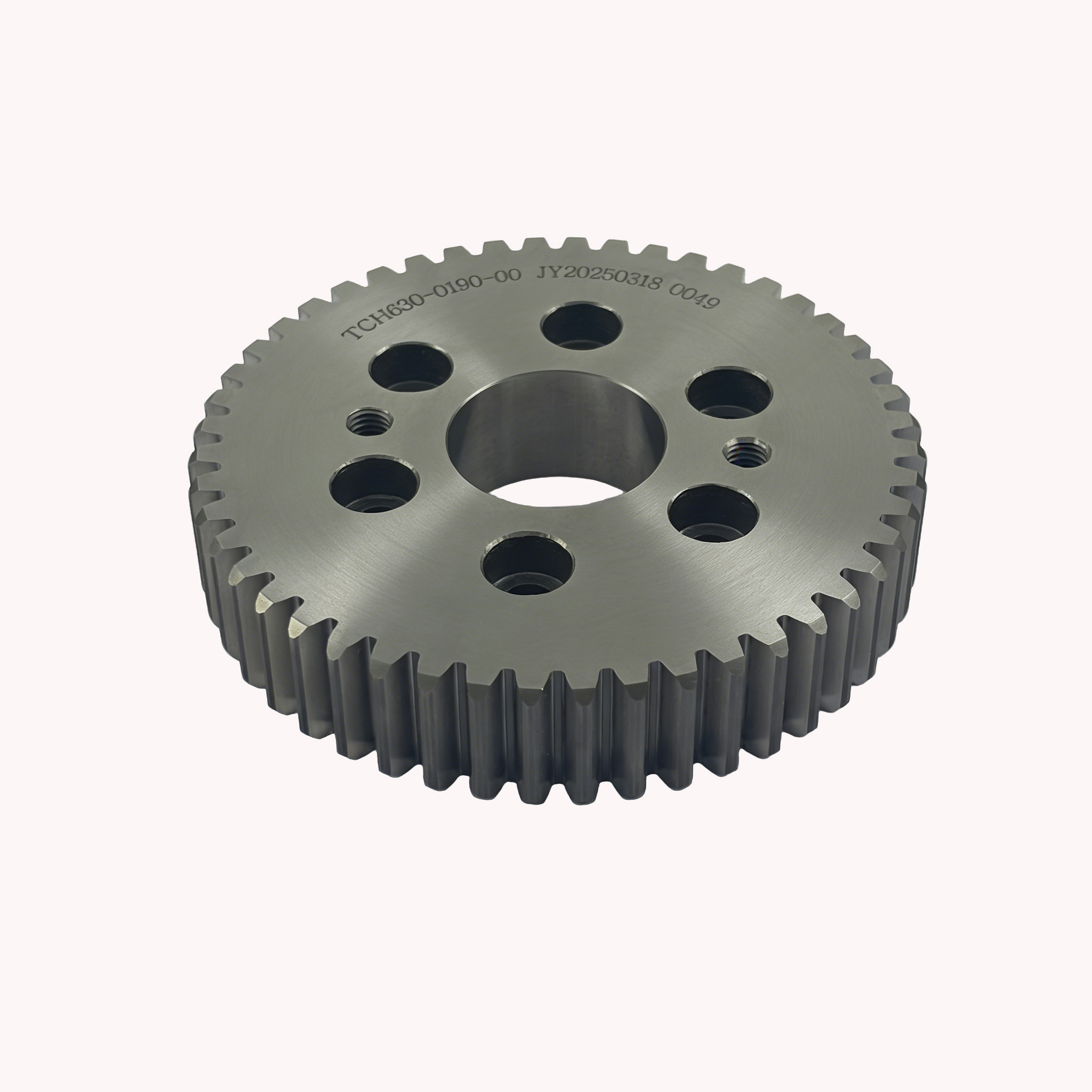

TCH630-0190-00 Worm Spur Gear
$44.83piece
TLY-009-C worm matching spur gear fits TCH630-0190-00 reducer. Made of 20CrMo steel, it has 20° pressure angle, module 2.5, 45 teeth and 1/100 transmission ratio. Its gear outer diameter is 125 mm, total length 25 mm and unit weight 1.8565 kg. Processed by gear hobbing, heat treatment and precision gear grinding, it features high precision and stable wear-resistant transmission for reducers.
Description
Model TLY-009-C is a worm-matching spur gear for TCH630-0190-00, a dedicated transmission gear for reducers.
Technical specifications: 20° pressure angle, module 2.5, 45 teeth, 39.5T with transmission ratio 1/100, gear outer diameter 125 mm, overall length 25 mm, single piece weight 1.8565 kg.
Made of 20CrMo alloy steel, this gear boasts high strength, good hardenability and outstanding wear resistance. Its full production process includes sawing, turning, gear hobbing, hardening heat treatment, hanging shot blasting, boring & facing, surface grinding, precision gear grinding and marking.
Heat treatment improves tooth surface hardness, and precision grinding ensures high-precision tooth profile. The gear delivers smooth transmission, strong wear resistance and long service life. It is installed inside TCH630 series reducers and meshes with worms to realize speed reduction and power transmission.
Additional information
| TLY-009-C weight |
1.8565 |
|---|---|
| TLY-009-C Core Components |
gear |
| TLY-009-C Craftsmanship |
Hobbing |
