SP-CLX216-A3-1-16-A1 (Motor Gear Shaft)
$11.62piece
SP-CLX165-A1-1-16-B1 (Motor Gear Shaft)
$7.84piece
SP-CLX216-A3-2-53-A1 (Input Gear)
$9.66piece

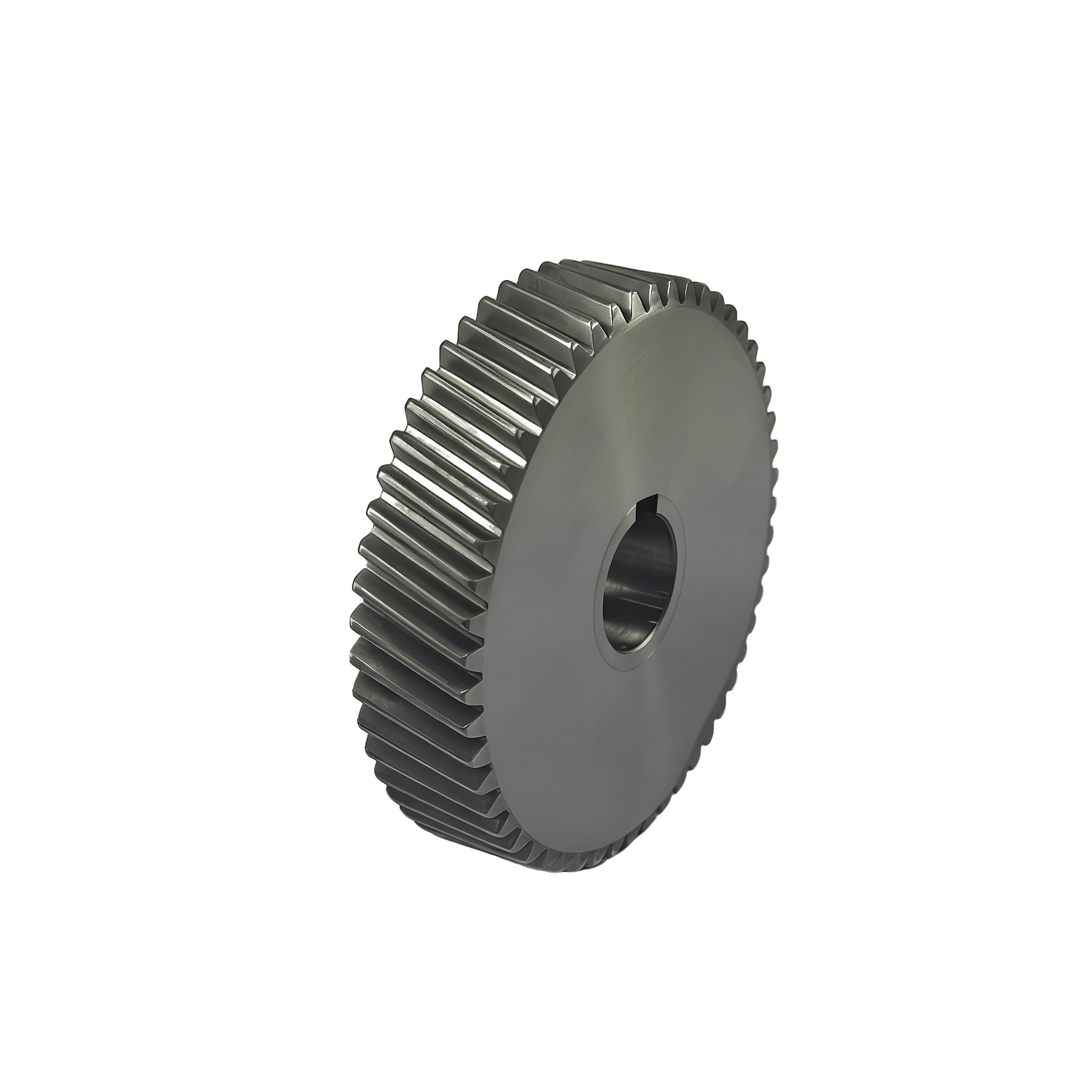

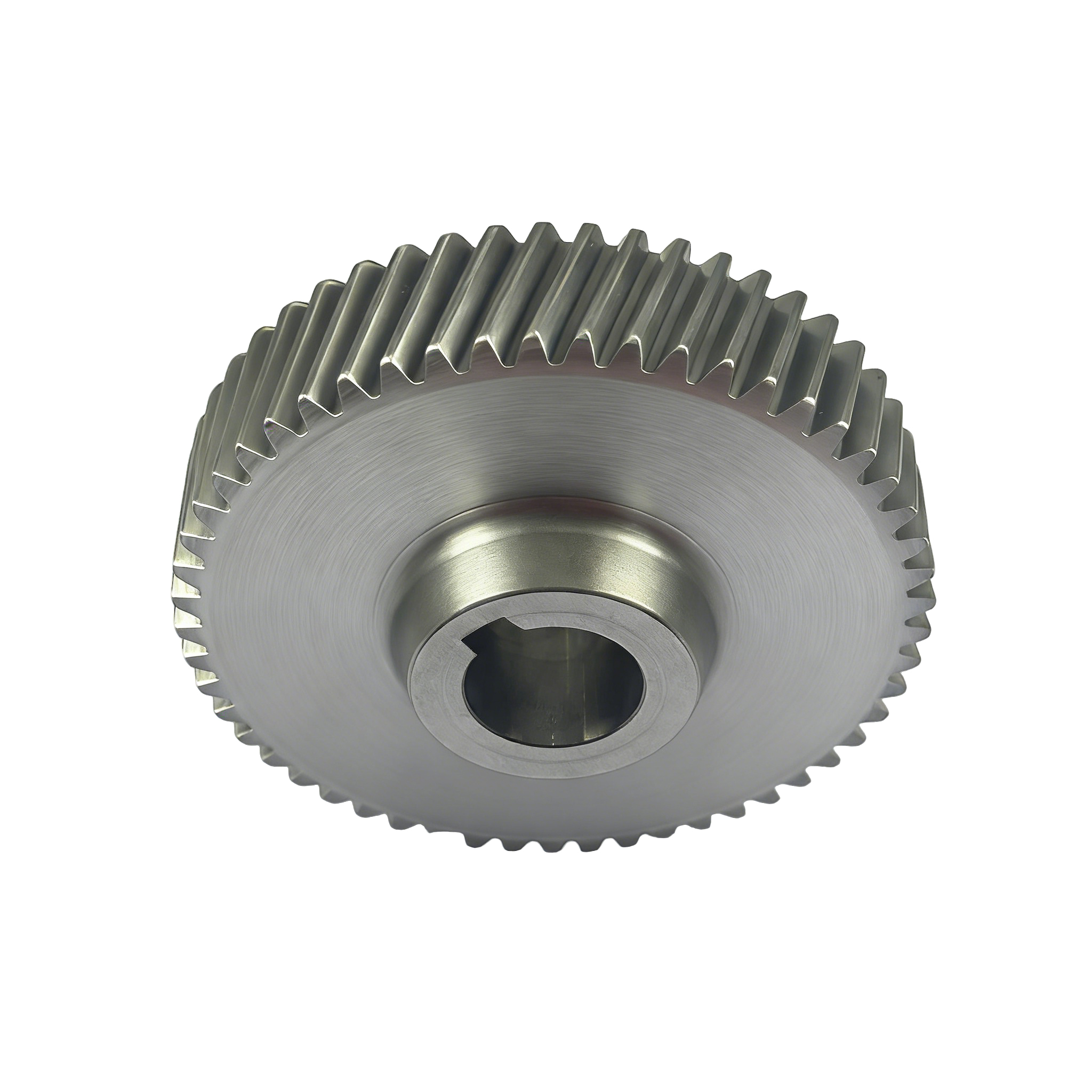

SPKJ-017-C input helical gear, module 1.5, 53 teeth, 18° right-hand helix, made of 20CrMnTi via precision machining, total length 29 mm, for speed reducers.
Description
SPKJ-017-C (SP-CLX216-A3-2-53-A1) is an input helical gear for reducers, with pressure angle 20°, module 1.5, 53 teeth, 18° right-hand helix angle, inner diameter 20 mm, gear outer diameter 86.89 mm, total length 29 mm, weight 0.858 kg. Made of 20CrMnTi through precision processes including sawing, turning, rough hobbing, heat treatment, chamfering, shot blasting, boring & facing, total length grinding, gear grinding and marking. It is mainly used as a transmission part in reducers.
Additional information
| weight |
0.858 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
12925004 Small Helical Gear
The 12925004 small helical gear (helical gear type) has a module of 0.9769, pressure angle of 14.5° and helix angle of 45°/L, with 15 teeth. Made of 20CrMo material, it is fabricated via sophisticated processes including normalizing, hobbing and nitriding heat treatment. Boasting a compact size (addendum circle diameter 22.67mm, total length 17mm, weight 0.0171kg), it is a dedicated transmission component for sewing equipment, featuring stable transmission, wear resistance and long service life.
1533-6 Tooth Gear and 1533-T36 Gear
1533-6 Tooth Helical Gear: 20CrMo helical gear for sewing machines, module 0.8, 6 teeth, 15.12°R helix angle, precision-engineered, stable and efficient transmission
1533-T36 Helical Gear: 20CrMo helical gear for sewing equipment, module 0.8, 36 teeth, 15.12°R helix angle, high-precision, strong adaptability
2020869
The 2020869 helical gear (dedicated for power tools) has a pressure angle of 20°, module of 0.8, 8 teeth and helix angle of 15°/R. With a shaft diameter of 8mm, outer diameter of 8.7mm, total length of 87mm and weight of 0.045kg, it is made of 20CrMo material through precision processes including normalizing, hobbing and heat treatment + correction, featuring stable transmission and high fatigue resistance.
2024356
Model QY-011-C/2024356 helical gear is made of 20CrMo, with a pressure angle of 20°, module of 1.25, 41 teeth and 20° right-hand helix angle. Produced via multiple processes including hobbing and heat treatment, it has a tooth outer diameter of 56.8mm and weight of 0.138kg, serving as a dedicated transmission component for power tools.
32001099-00
Model 32001099-00 helical gear is made of 20CrMo, produced via precision processes including normalizing, hobbing, heat treatment correction and multiple outer diameter grinding. It has a pressure angle of 20°, module of 0.8, 8 teeth, 20° left-hand helix angle, 8mm shaft diameter, 8.894mm tooth outer diameter and 0.0429kg weight, serving as a dedicated transmission component for power tools.
D-94-172270-91 Presser Foot Lifting Gear
The D-94-172270-91 Presser Foot Lifting Gear is a helical gear made of 20CrMnTi, featuring a pressure angle of 20°, a module of 1 and 72 teeth. Processed via multiple precision procedures, it offers excellent wear resistance and corrosion protection, and is ideal for the presser foot lifting mechanism of sewing equipment with accurate and stable transmission performance.
