SPKJ-021-C motor gear shaft, module 1, 14 teeth, 24° left-hand helix, made of 20CrMnTi via precision machining, total length 241 mm, for speed reducers.
Description

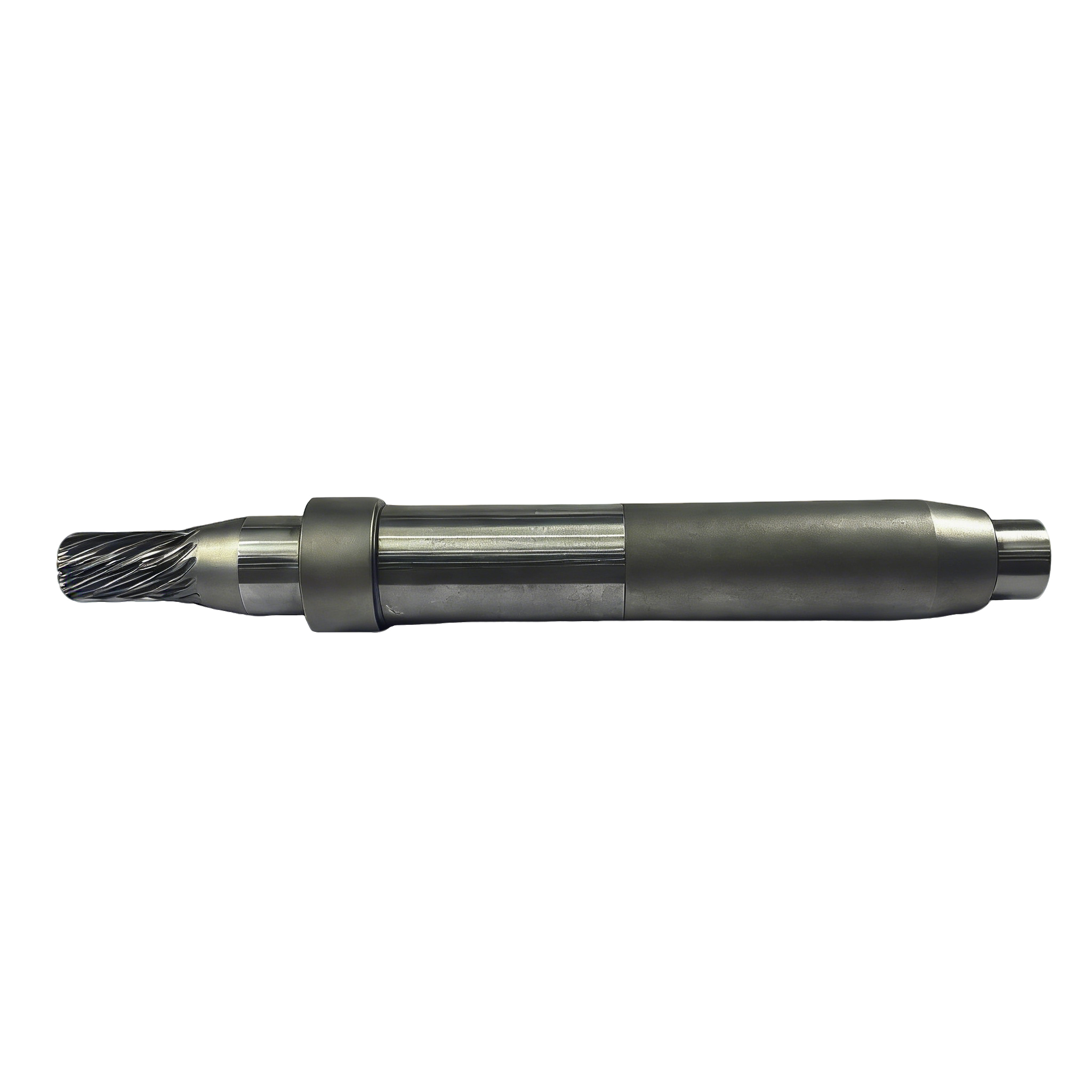

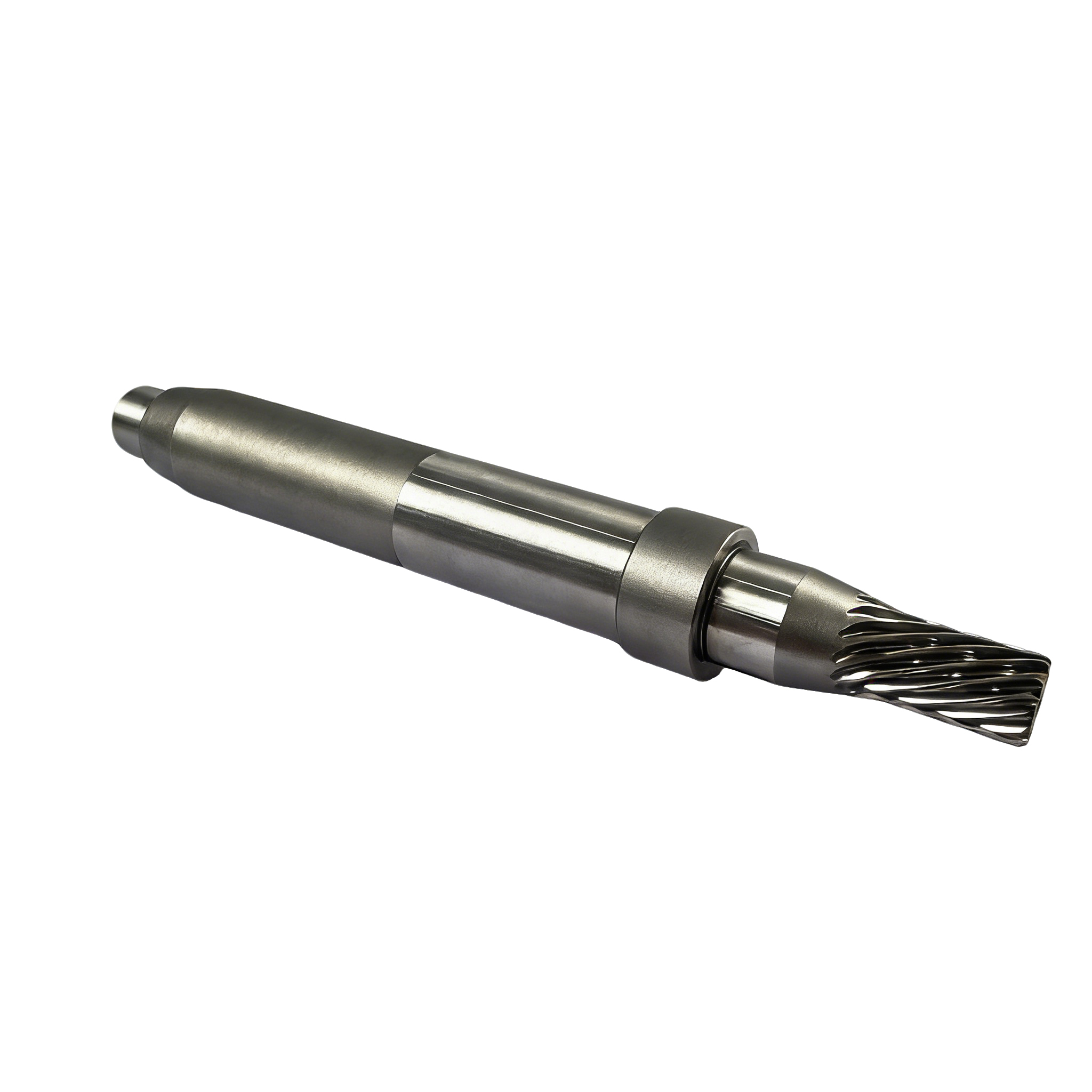

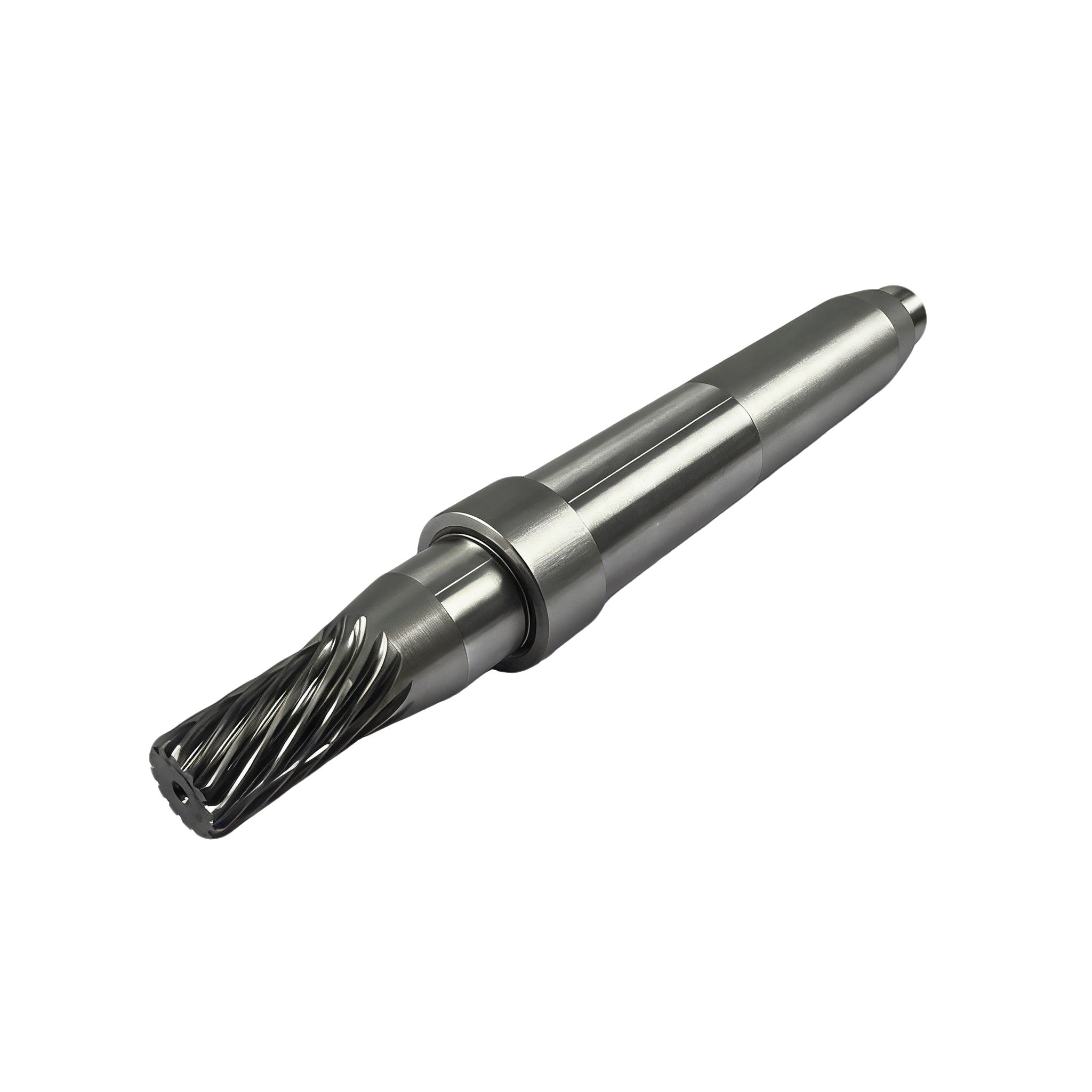

SPKJ-021-C (SP-CLX165-A2-1-14-C1) is a motor gear shaft for reducers. It has a pressure angle of 20°, module 1, 14 teeth, 24° left-hand helix angle, shaft diameter 34 mm, gear outer diameter 17.8 mm, total length 241 mm, weight 1.118 kg. Made of 20CrMnTi through precision processes including sawing, turning, hobbing, rough grinding for reference alignment, heat treatment with straightening, shot blasting, multiple outer diameter grinding & facing, finish hobbing and marking. It is mainly used in reducer transmission systems.
Additional information
| weight |
1.118 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
