New Model Motor Spur Gear TKA170-0280-S (Straight Shaft)
$13.14piece

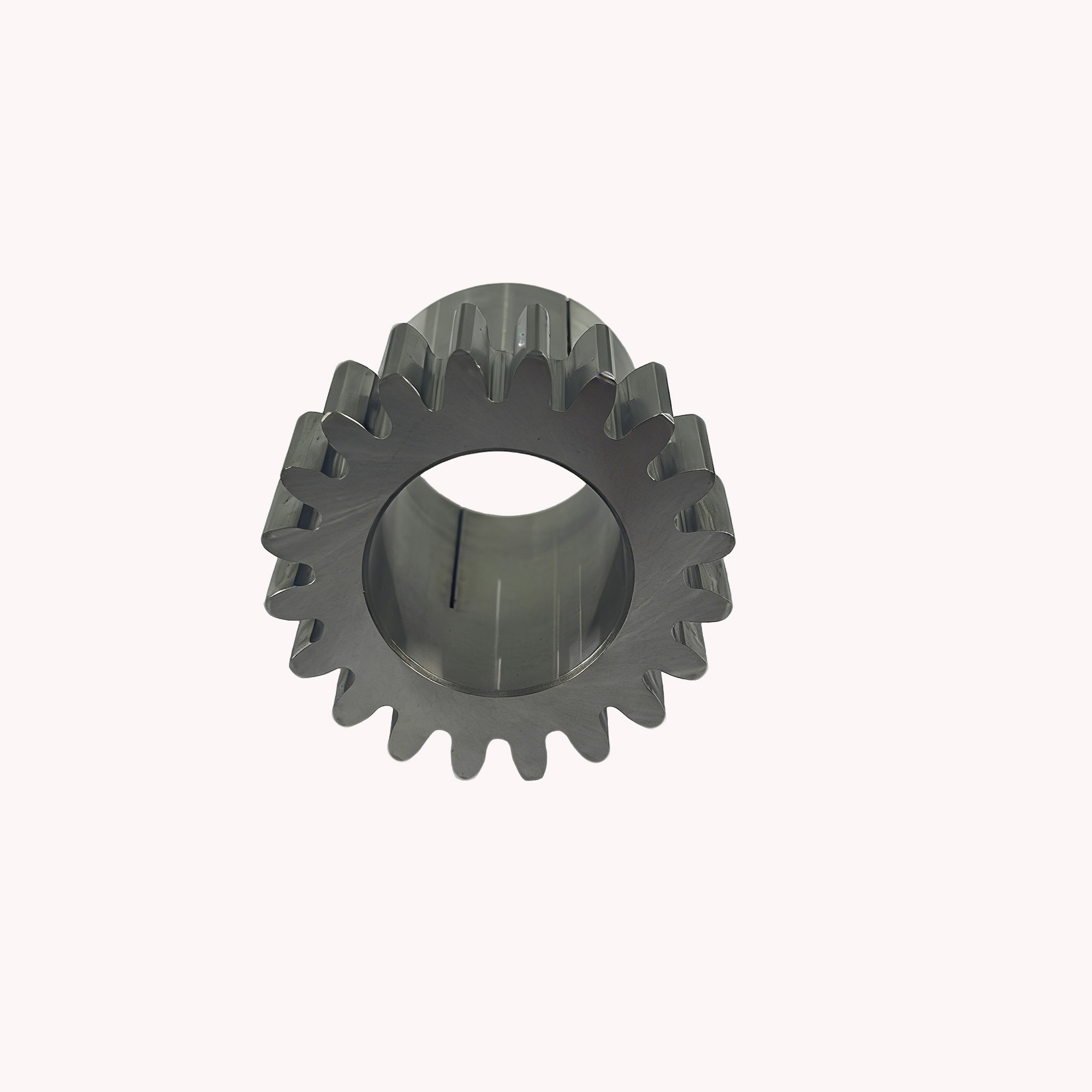

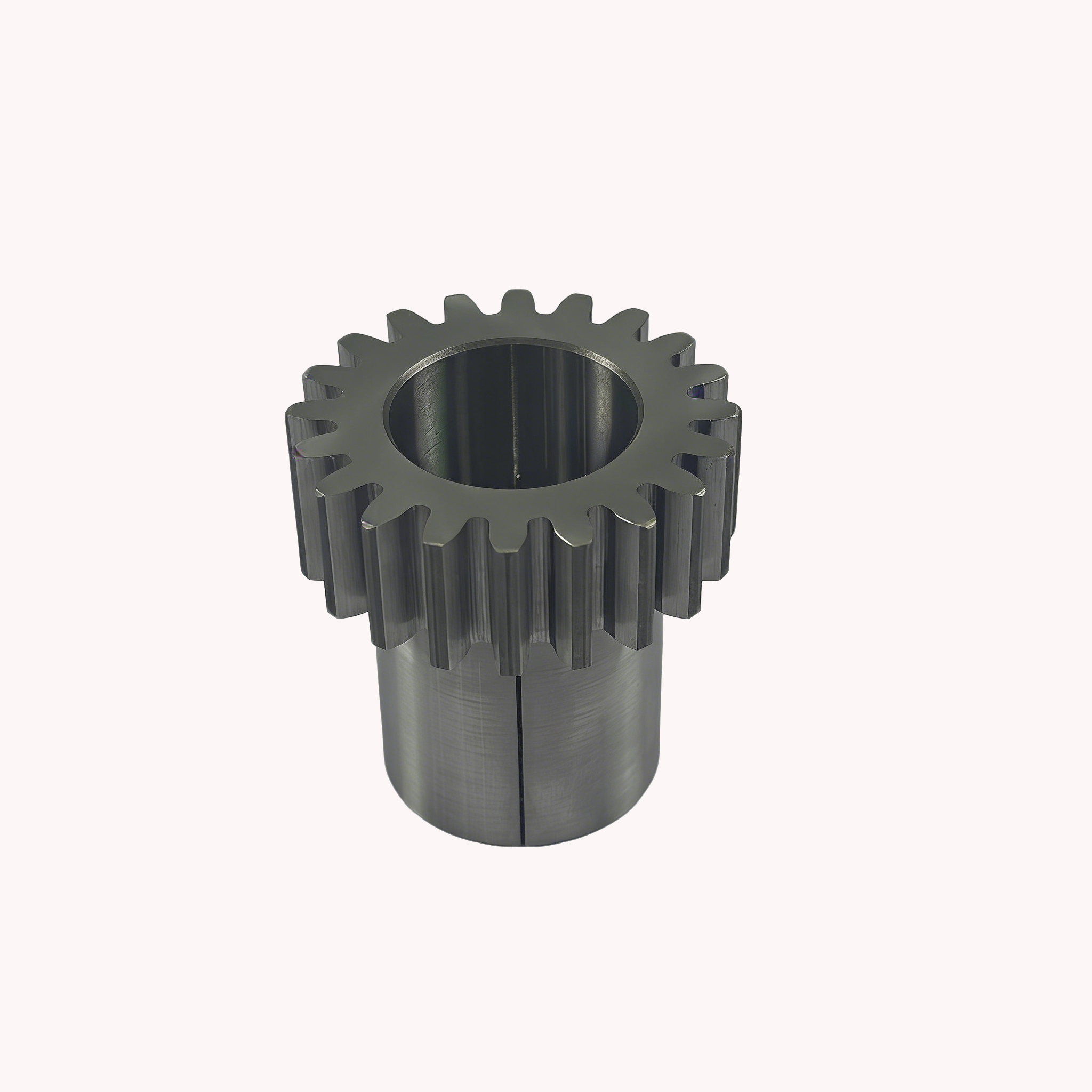

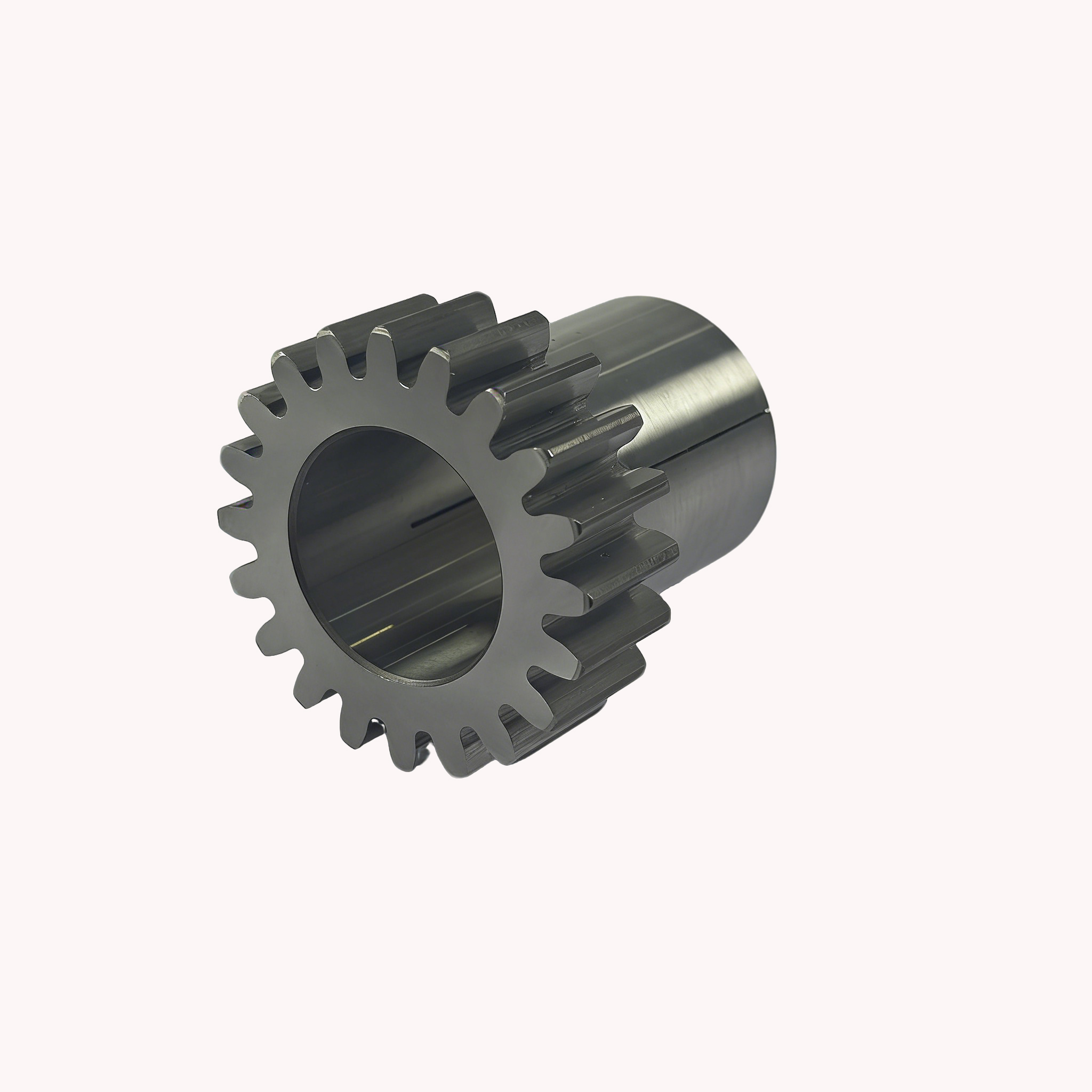

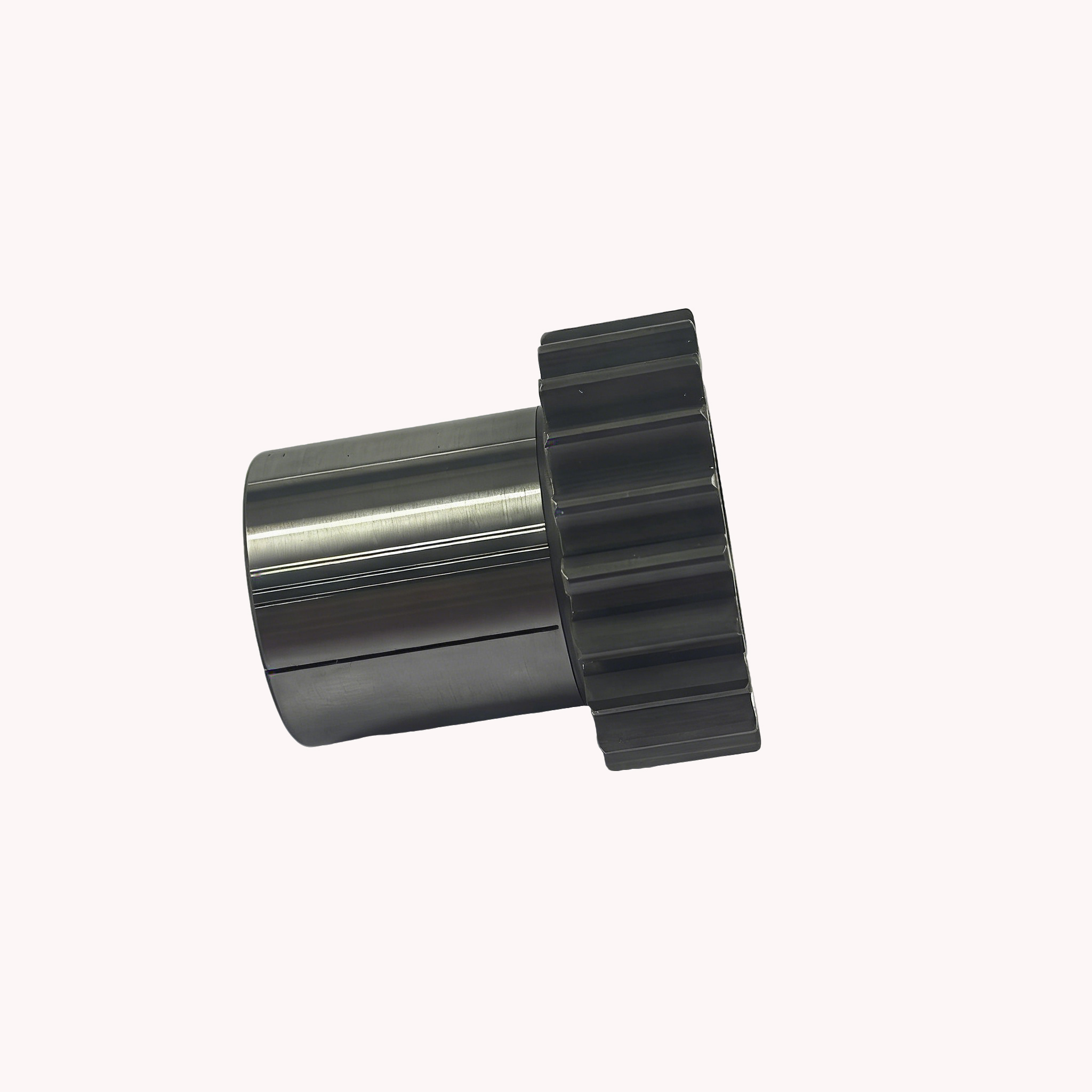

Model TLY-003-C1 new straight shaft motor spur gear fits TKA170-0280-S reducer. Made of 20CrMo steel, it adopts 20° pressure angle, module 2 and 20 teeth with 24° helix angle. Its gear outer diameter is 45 mm and single weight is 0.1529 kg. Manufactured via multiple processes including gear hobbing, heat treatment and precision gear grinding, this gear boasts high precision and great wear resistance for reducer transmission.
Description
Model: TLY-003-C1, the new straight shaft motor spur gear matching TKA170-0280-S, specially designed as transmission spur gear for reducers.
Basic gear parameters: 20° pressure angle, module 2, 20 teeth, 24° helix angle; inner diameter 30 mm, shaft diameter 44 mm, gear outer diameter 45 mm, single piece weight 0.1529 kg.
It is made of 20CrMo alloy structural steel with excellent comprehensive mechanical properties. The complete manufacturing process includes sawing, turning, rough gear hobbing, heat treatment, chamfering, hanging shot blasting, boring, facing & outer diameter turning, surface covering, wire EDM, deburring, precision gear grinding and marking.
Heat treatment enhances the gear hardness, and precision gear grinding delivers high tooth surface accuracy. This gear features smooth transmission and outstanding wear resistance with long service life. It is a core internal transmission component for straight shaft motors of TKA170 series reducers.
Additional information
| TLY-003-C1 weight |
0.1529 |
|---|---|
| TLY-003-C1 Core Components |
gear |
| TLY-003-C1 Craftsmanship |
Hobbing |
