220725030(J3020C-05-008C)-Gear M1 Z18
$14.10piece

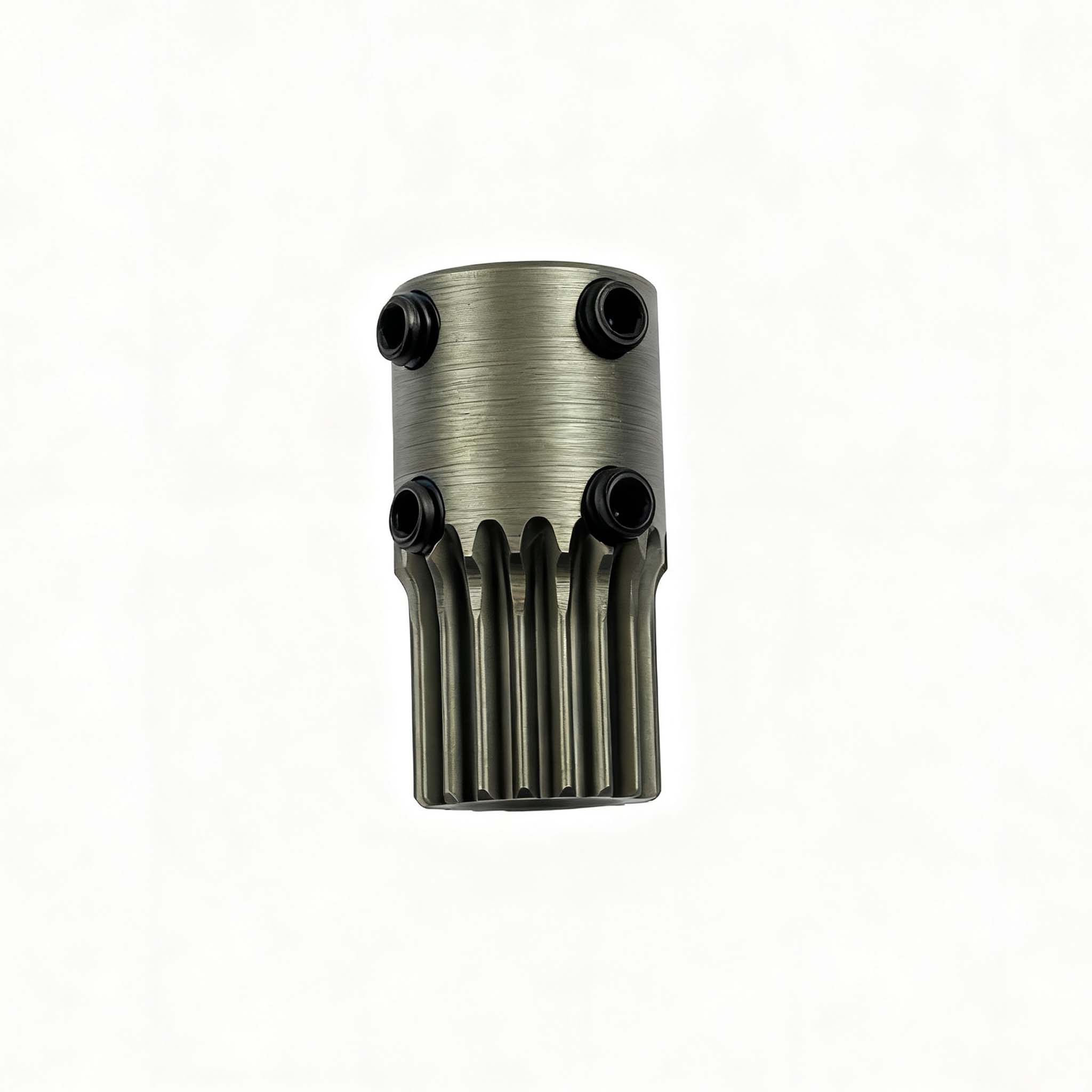

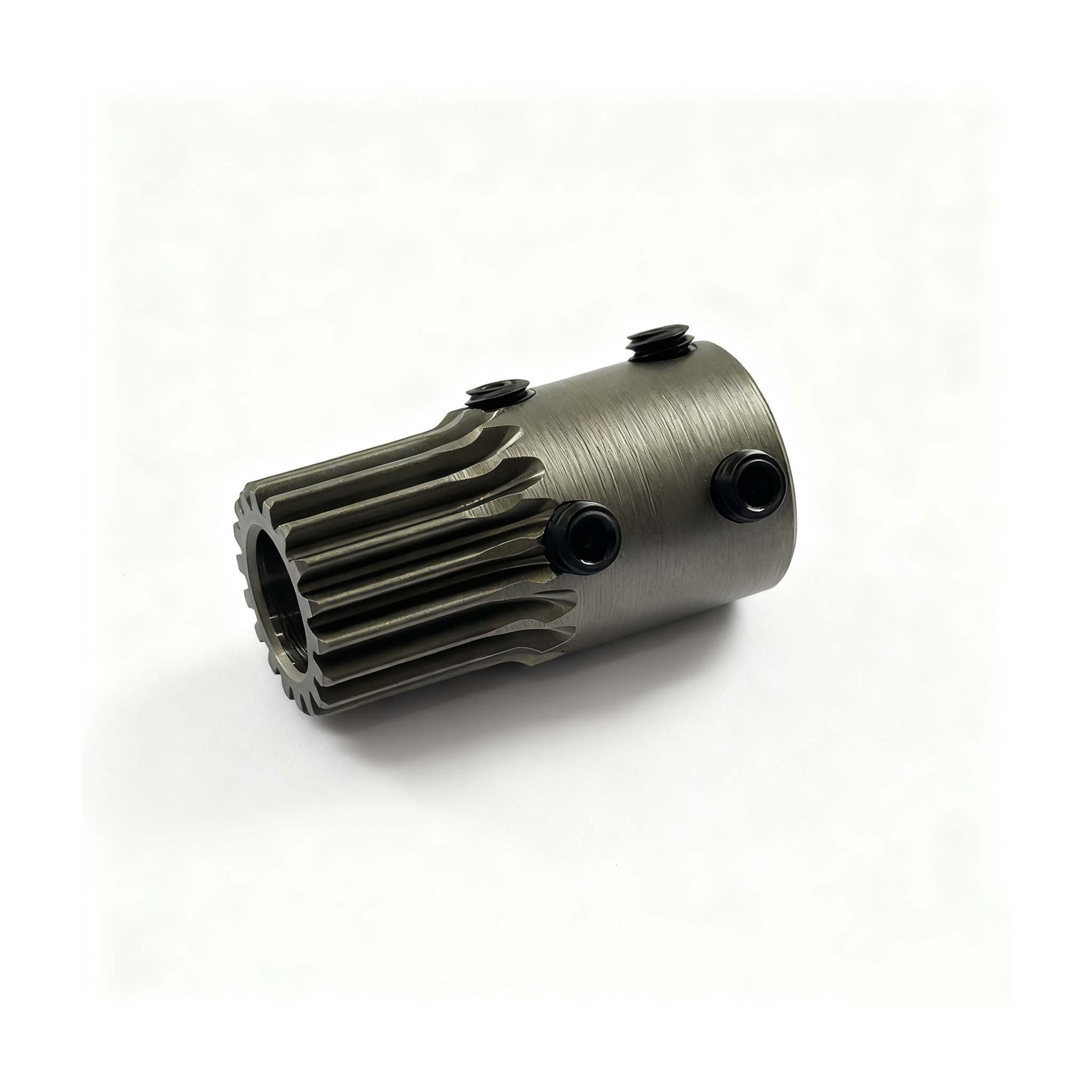

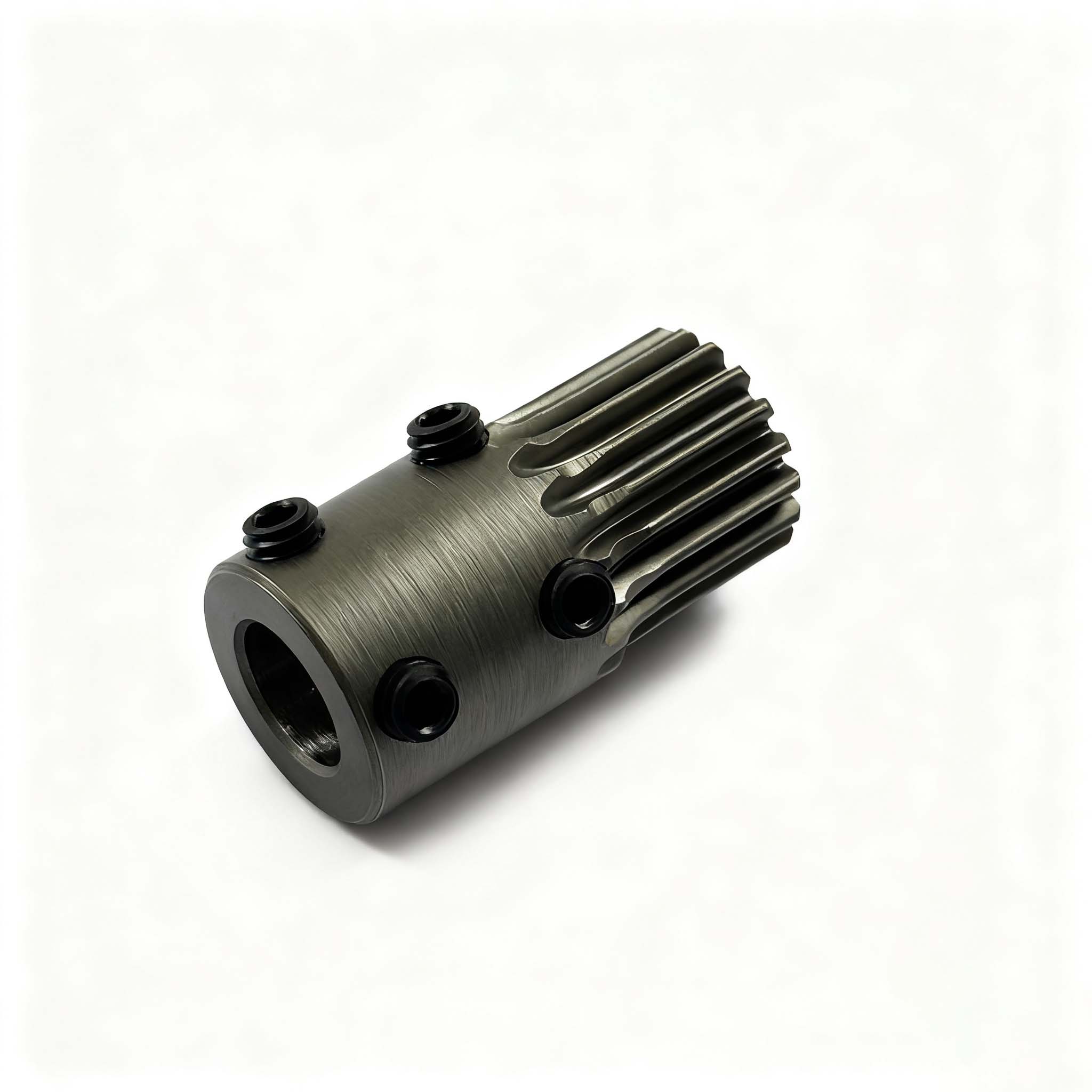

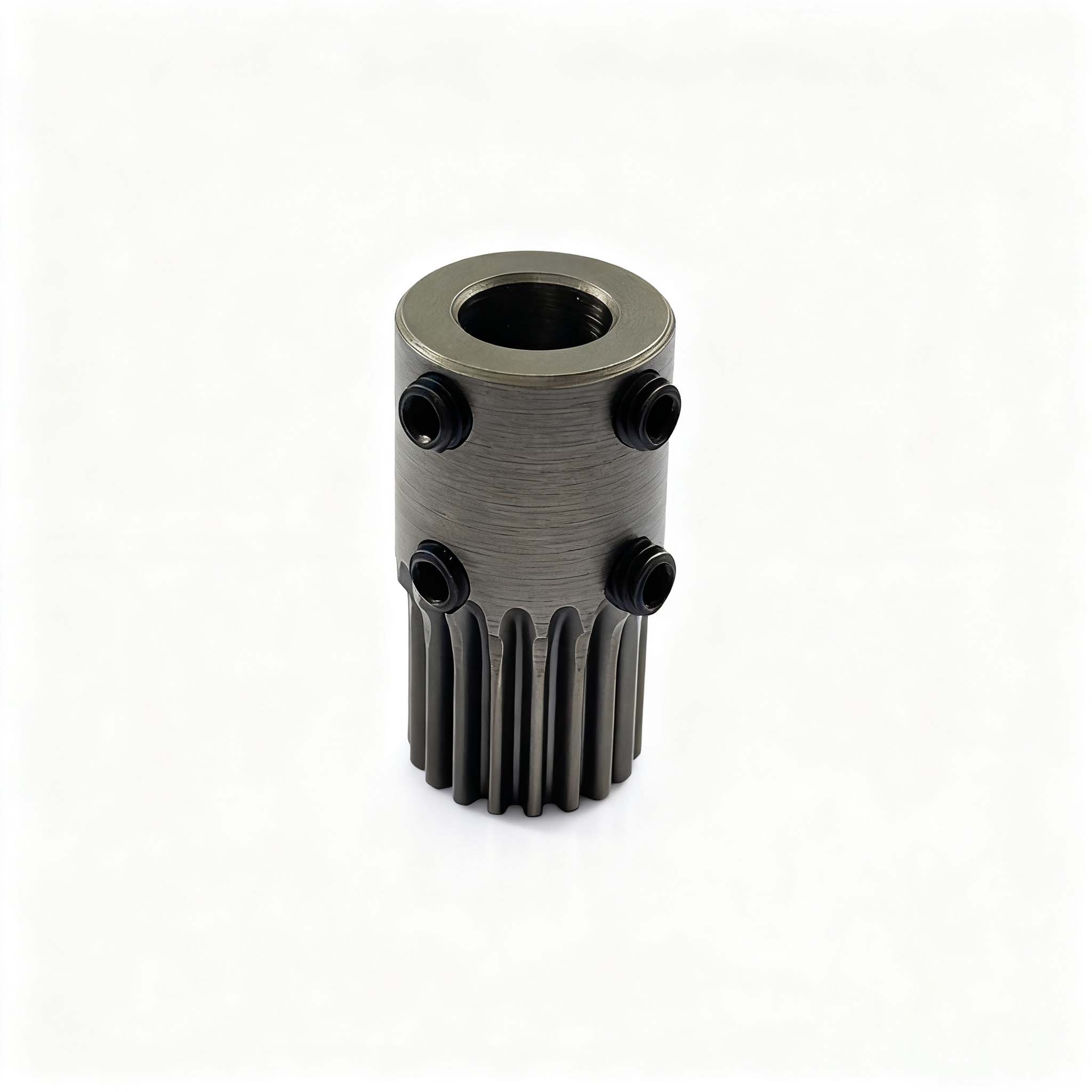

JY-023-C Spur Gear, 20CrMo, module 1, 18 teeth, bore Ø12mm, L=42mm, precision machined and assembled for sewing equipment.
Description
Model: JY-023-C (220725030(J3020C-05-008C)-Gear M1 Z18)
This is a spur gear for sewing equipment, made of 20CrMo alloy steel.
Parameters: pressure angle 20°, module 1, 18 teeth, helix angle 0°, inner bore 12mm, gear OD 20mm, total length 42mm, weight 0.0647kg.
Process: sawing, turning, threaded hole machining, reaming, gear hobbing, heat treatment, shot blasting, reaming, screw assembly.
It features high strength and good wear resistance, mainly used in transmission systems of sewing machinery.
Additional information
| weight |
0.0647 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
