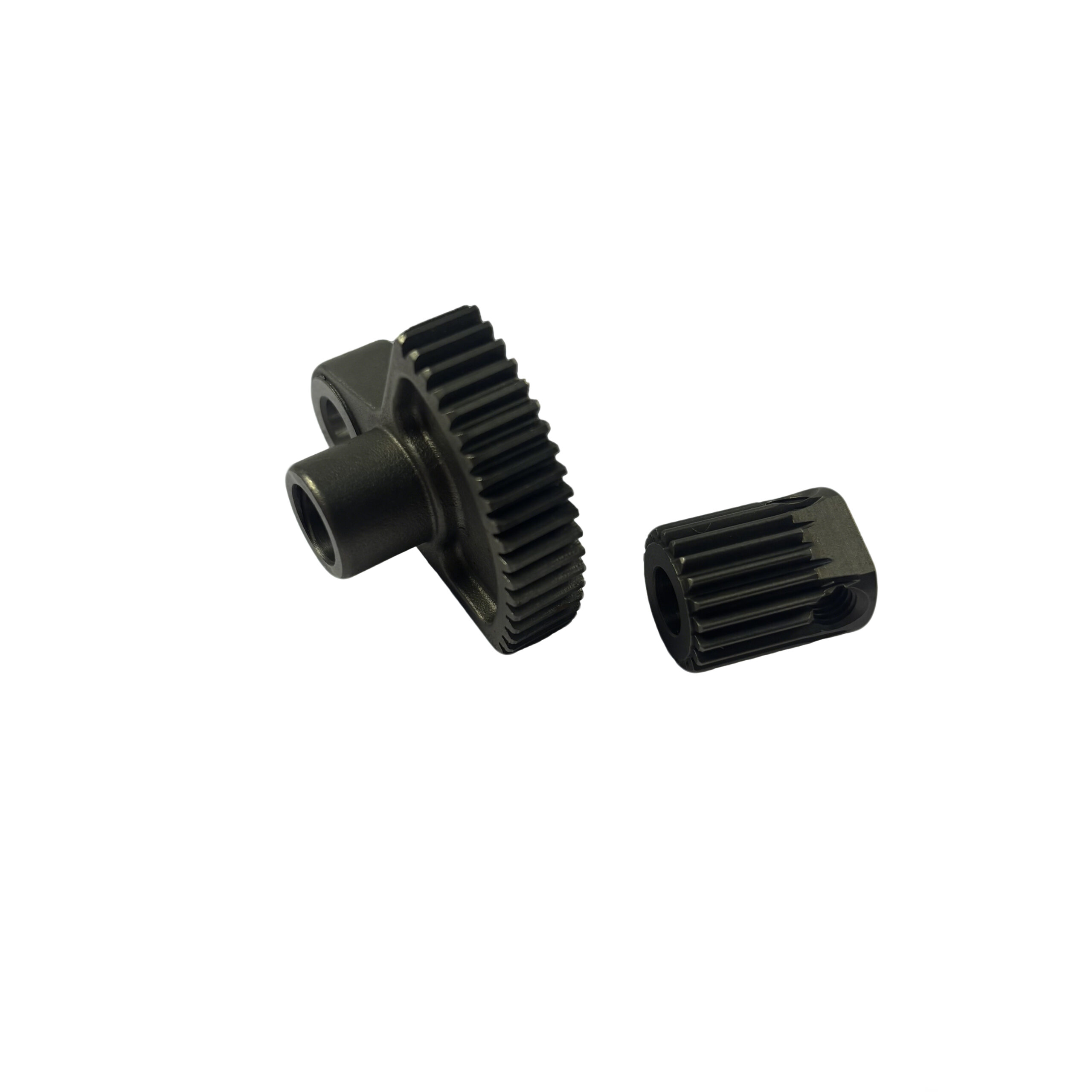

D-91-185660-05\齿轮 D-91-185667-05\齿轮 and D-91-185667-05\Gear
$6.30piece
D-91-185667-05\Spur Gear, with pressure angle 20°, module 0.8, 60 full-circumference teeth, inner diameter 10mm, tooth outer diameter 49.6mm, total length 24mm and weight 0.0764kg. Made of 20CrMo material and processed by precision technologies like gear shaping and bore grinding, it is a custom transmission component for sewing equipment.
Description
Product Name: D-91-185667-05\GearProduct Category: Spur GearCore Technical Parameters: Pressure angle 20°, module 0.8, total number of teeth 60 (full circumference), helix angle 0°, inner diameter 10mm, tooth outer diameter 49.6mm, total length 24mm, weight 0.0764kg; Parameters including speed ratio and offset distance are to be supplemented.Production Process: Adopting a sophisticated precision manufacturing process, the specific flow is normalizing → turning → gear shaping → heat treatment → shot blasting → reaming → facing → facing → bore grinding. Multiple processing and polishing steps ensure the assembly accuracy and smooth meshing performance of the gear.Product Material: Made of 20CrMo alloy structural steel, this material features stable performance, excellent wear resistance and deformation resistance, which can meet the application requirements of high-frequency transmission scenarios of sewing equipment.Product Attribute & Application: Custom-made product, serving as a core transmission component for sewing equipment, which can guarantee the power transmission efficiency and stability during the operation of the equipment.
Additional information
| DL-003-C and DL-004-C weight |
0.0248 and0.0764 |
|---|---|
| DL-003-C and DL-004-C Core Components |
gear |
| DL-003-C and DL-004-C Craftsmanship |
Precision Casting |
