TKA170-0280-01S Straight Shaft Motor Gear
$13.96piece

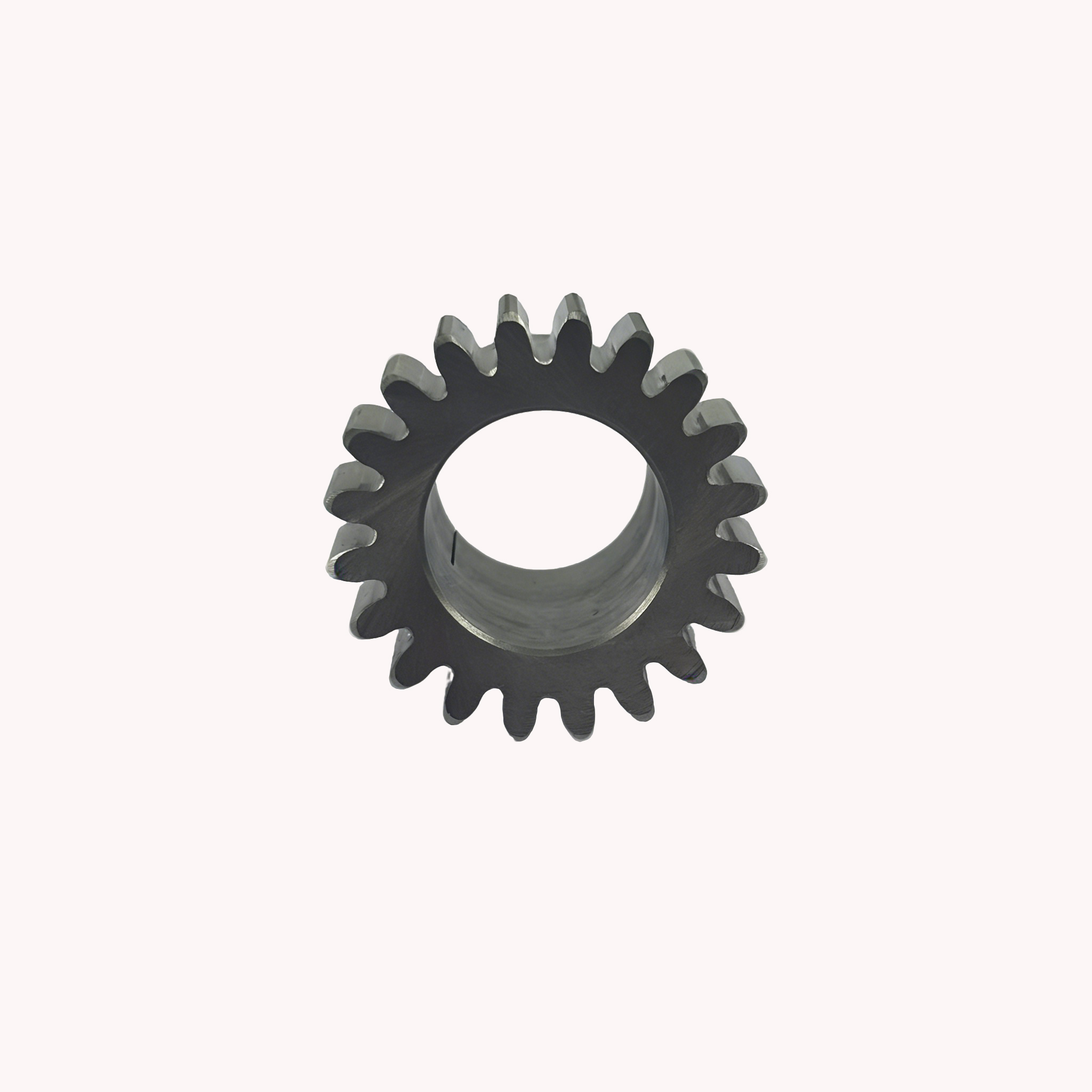

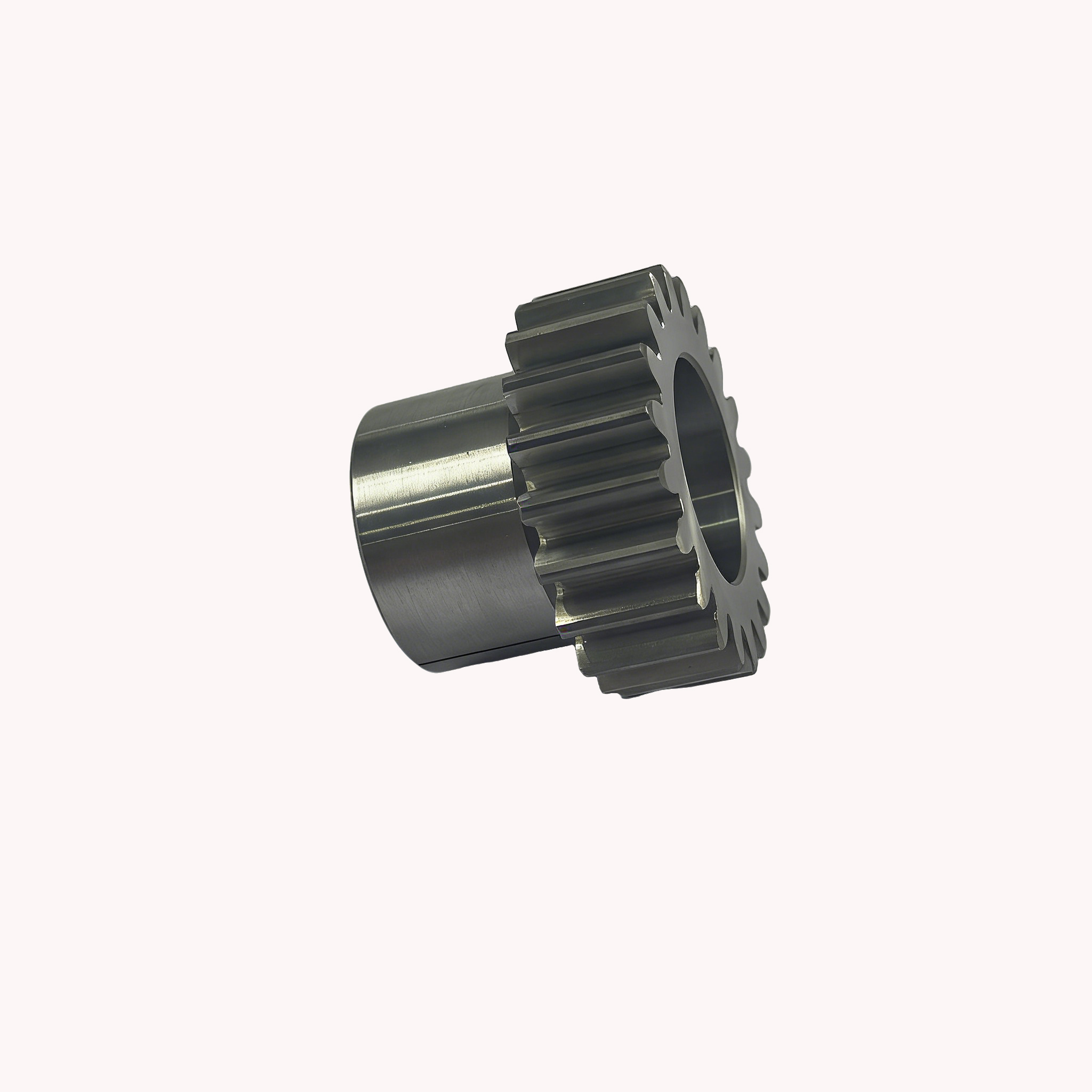

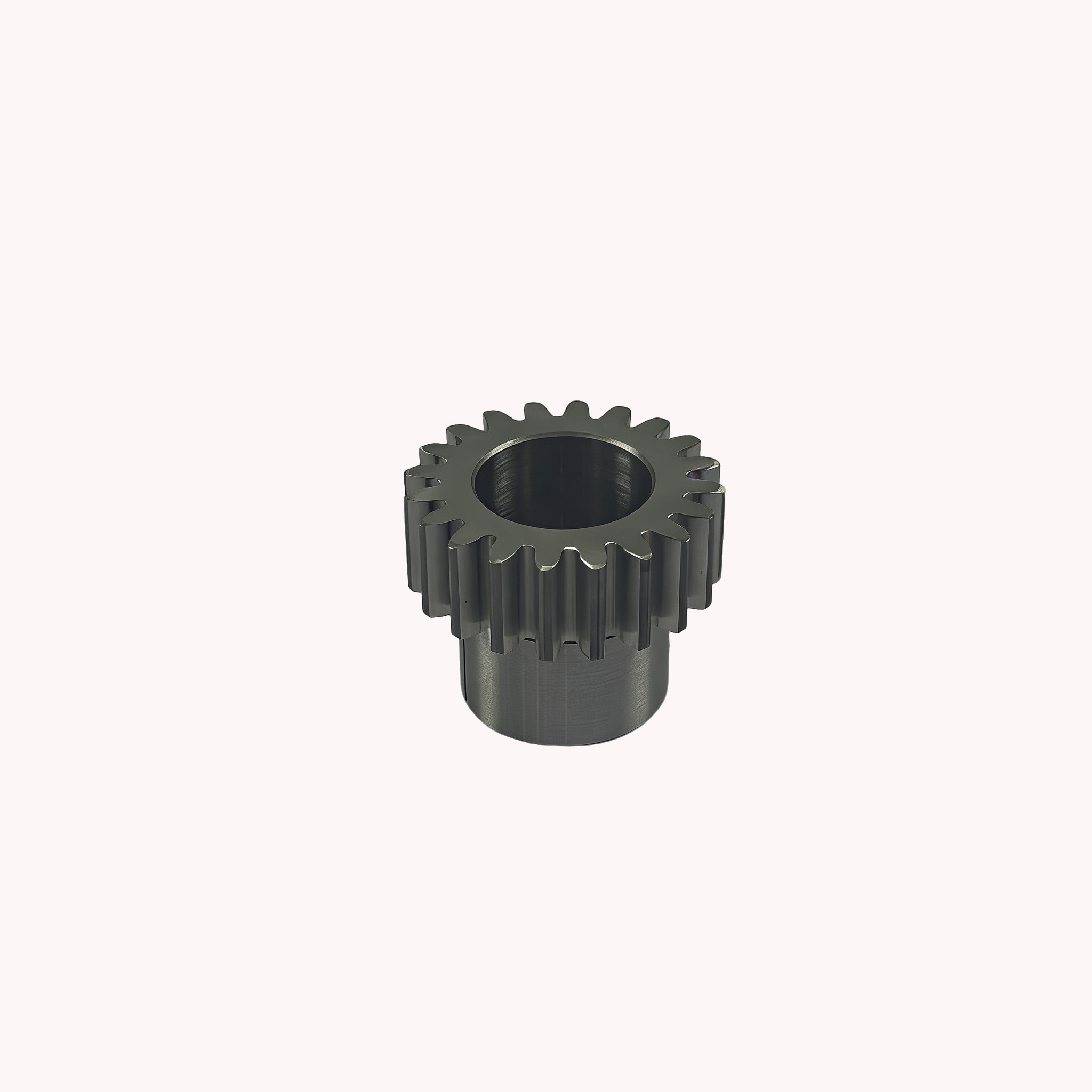

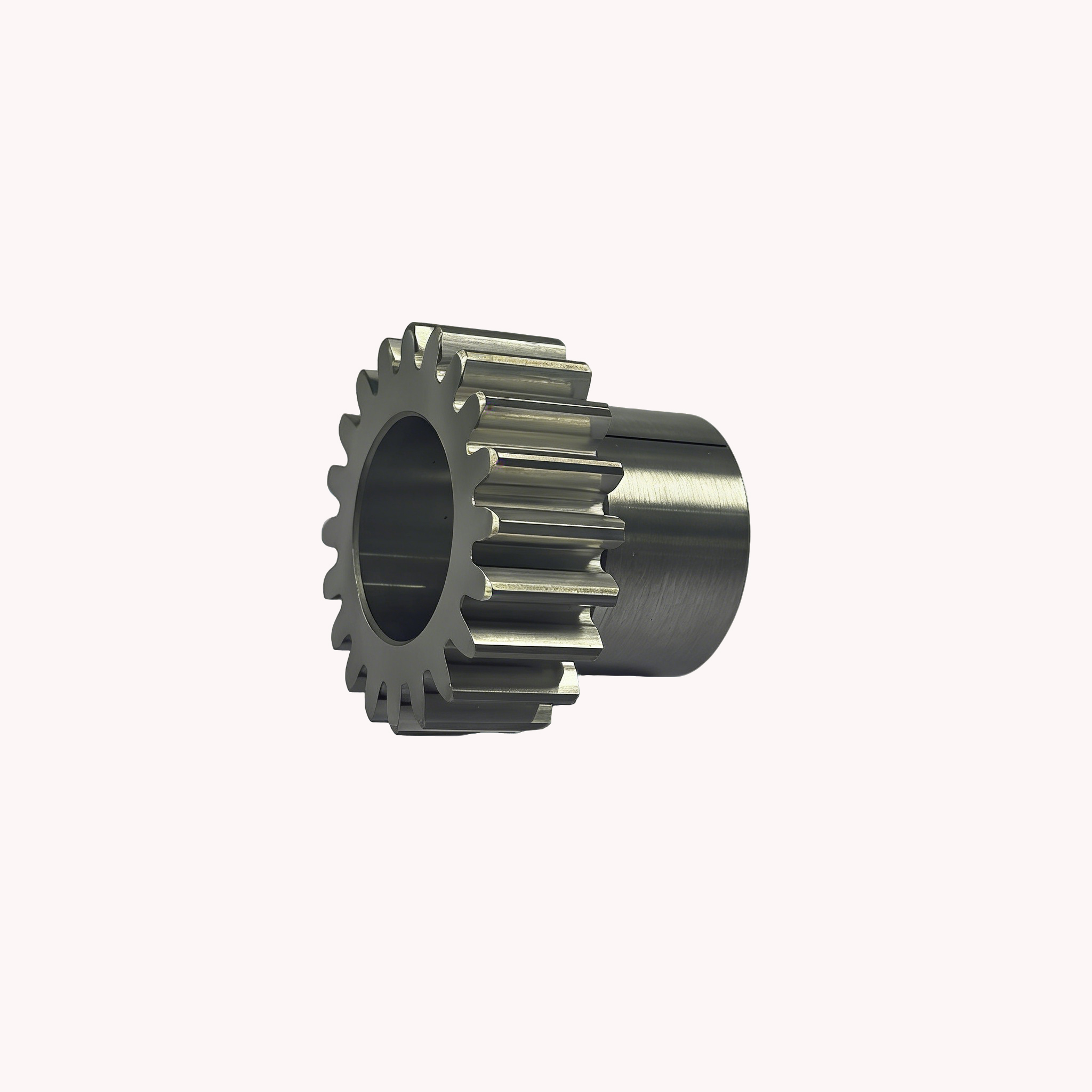

Model TLY-003-C, TKA170-0280-01S straight shaft motor spur gear with 20° pressure angle, module 2 and 20 teeth. Dimensions: inner diameter 24mm, shaft diameter 30mm, gear outer diameter 44mm, overall length 45mm, weight 0.1322kg. Constructed from 20CrMo steel and processed via full precision procedures including hobbing, heat treatment and gear grinding, it is wear-resistant and durable for reducer transmission applications.
Description
Model TLY-003-C, part number TKA170-0280-01S straight shaft motor spur gear. It features a pressure angle of 20°, module 2 and 20 gear teeth. The inner diameter is 24mm, shaft diameter 30mm, outer diameter of gear teeth 44mm, overall length 45mm, and single piece weight 0.1322kg.
Made of 20CrMo alloy structural steel, this gear goes through complete precision manufacturing processes: sawing, turning, gear hobbing, heat treatment, chamfering, hanging shot blasting, boring & facing, outer diameter grinding, surface finishing, precision gear grinding, wire cutting, deburring and marking. The finished gear boasts high tooth surface precision, qualified hardness, outstanding wear resistance and fatigue resistance.
Classified as spur gear, it is specially matched with reducers as the core transmission component of reduction devices. It delivers stable transmission and excellent load capacity for assembly of corresponding model drive motors.
Additional information
| TLY-003-C weight |
0.1322 |
|---|---|
| TLY-003-C Core Components |
gear |
| TLY-003-C Craftsmanship |
Hobbing |
