TKA170-0180-00 Worm Spur Gear
$12.59piece

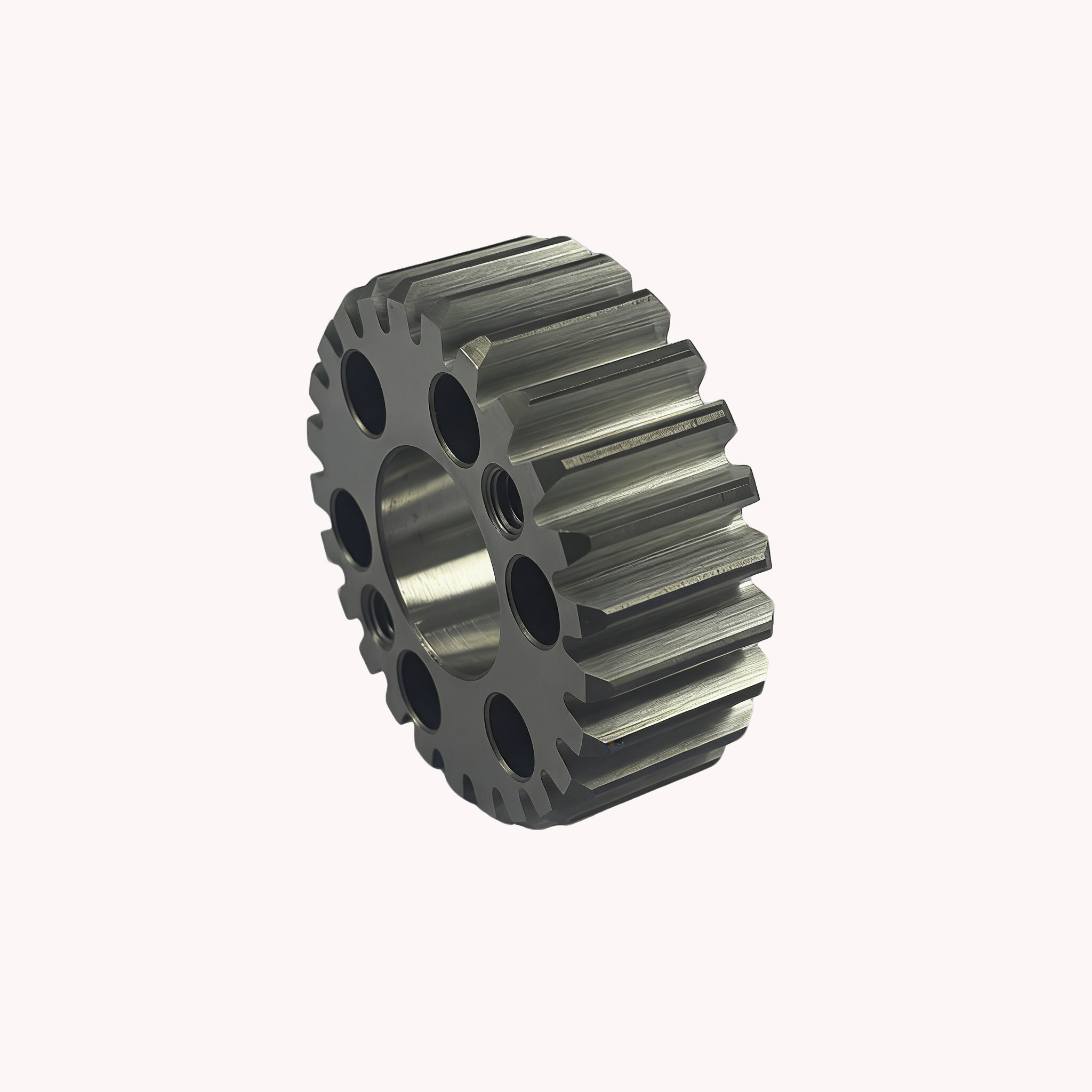

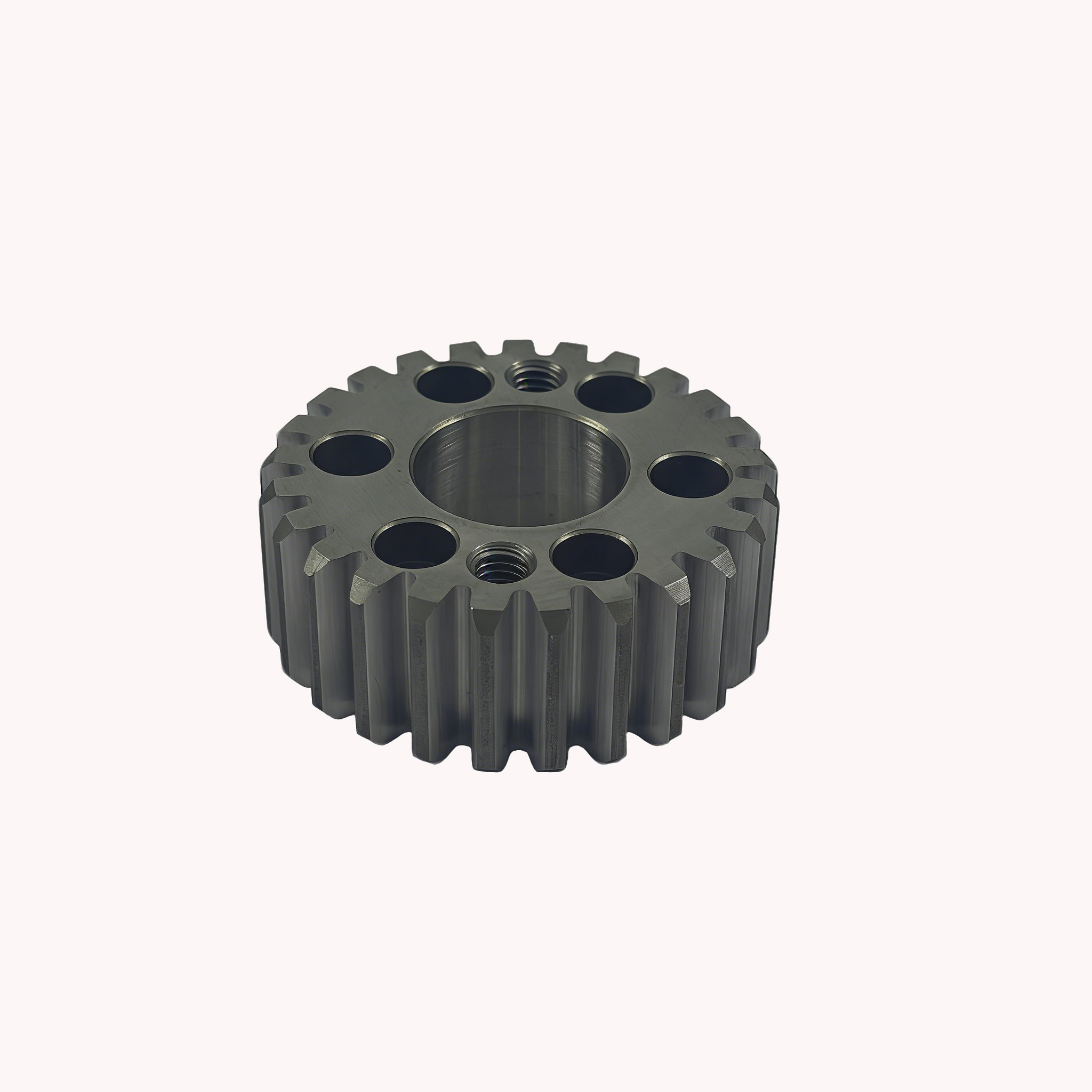

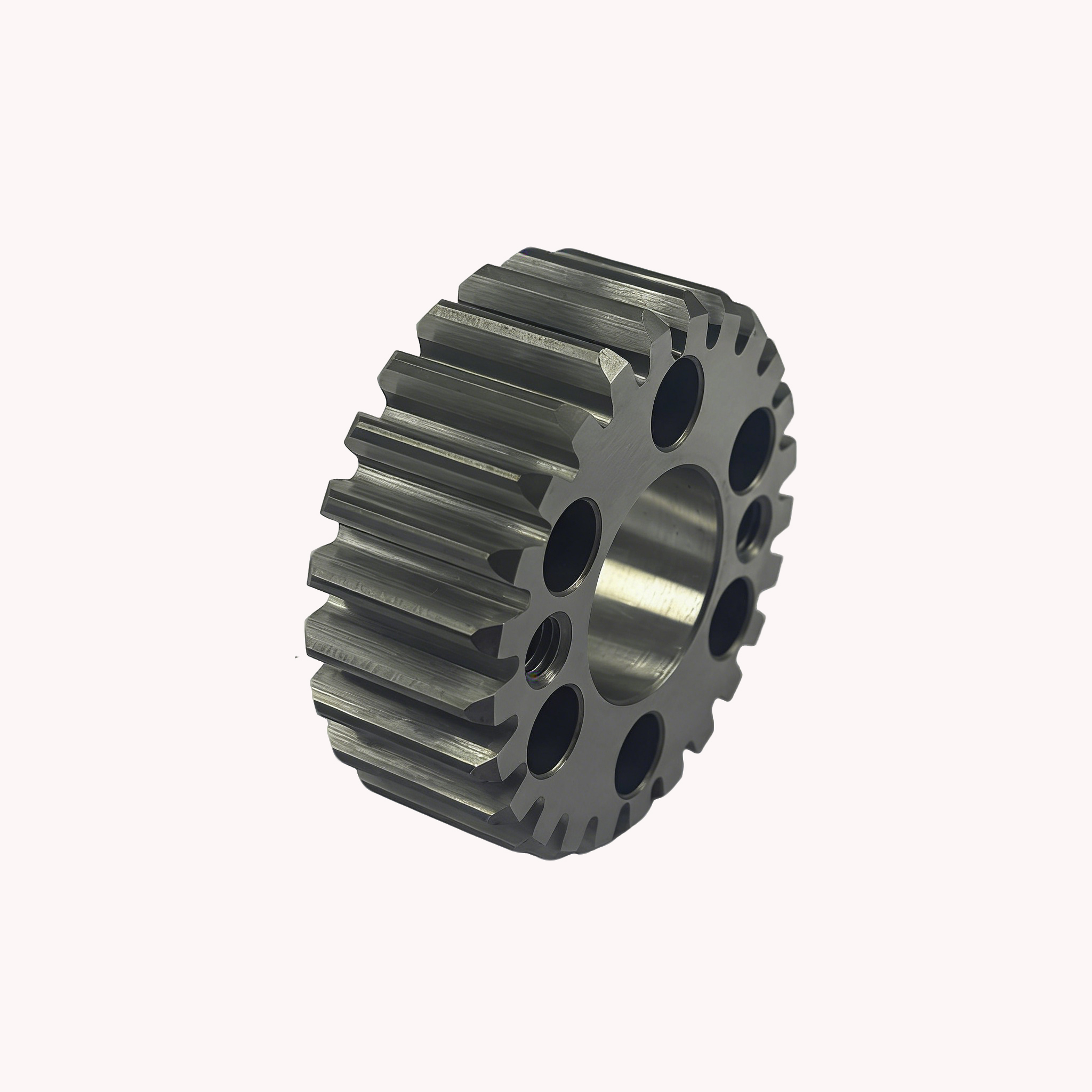

TLY-004-C worm matching spur gear fits TKA170-0180-00 reducer. Constructed of 20CrMo steel, it features 20° pressure angle, module 2, 25 teeth and 1/100 transmission ratio. The gear outer diameter is 54 mm, total length 20 mm and single weight 0.2044 kg. Processed by turning, machining center milling, heat treatment and precision gear grinding, it delivers high precision and stable wear-resistant transmission for reducers.
Description
Model TLY-004-C is a spur gear matched with worm for TKA170-0180-00, used as dedicated transmission gear for reducers.
Technical parameters: 20° pressure angle, module 2, 25 teeth, 24T with transmission ratio 1/100, gear outer diameter 54 mm, overall length 20 mm, unit weight 0.2044 kg.
This gear is made of 20CrMo alloy steel with good mechanical strength and wear resistance. Its full production procedures include sawing, turning, machining center processing, rough hobbing, hardening heat treatment, hanging shot blasting, boring & facing, surface grinding, precision gear grinding and marking.
Heat treatment improves tooth surface hardness, while precision grinding ensures high tooth profile accuracy. The gear operates smoothly with great wear resistance. It is installed inside TKA170 series reducers to work with worms for power reduction transmission.
Additional information
| TLY-004-C weight |
0.2044 |
|---|---|
| TLY-004-C Core Components |
gear |
| TLY-004-C Craftsmanship |
Hobbing |
