Z-94-174247-15 Finished Product and Z-94-174248-15 Finished Product
$4.30piece
ZJ-006-C
ZJ-006-C Spur Gear, 20CrMo, module 0.8, 20T, bore Ø8mm, L=26mm, blackened & assembled, for sewing equipment.
ZJ-007-C
ZJ-007-C Spur Gear, 20CrMnTi, module 0.8, 40T, bore Ø8mm, L=19mm, precision machined for sewing machinery.
Description

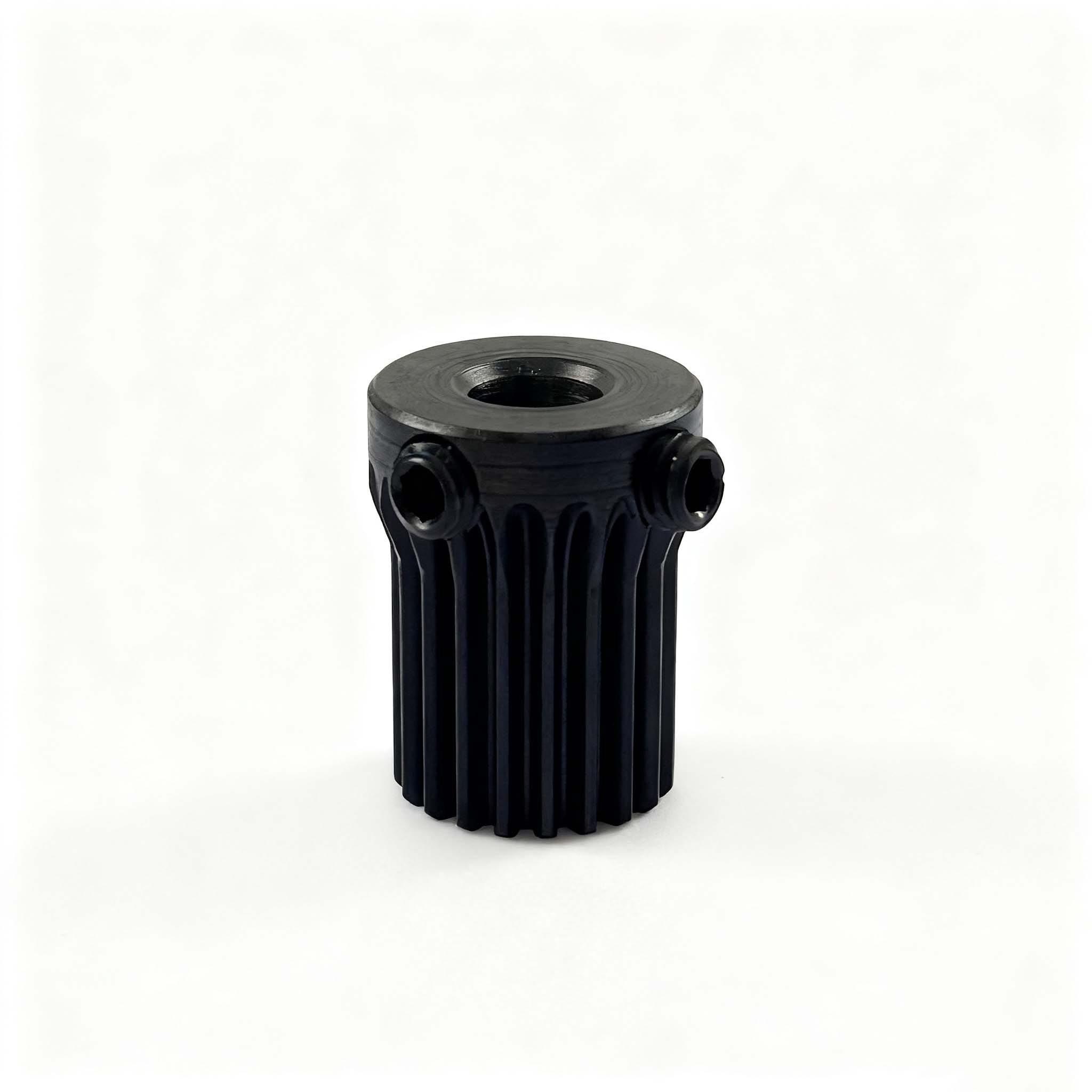

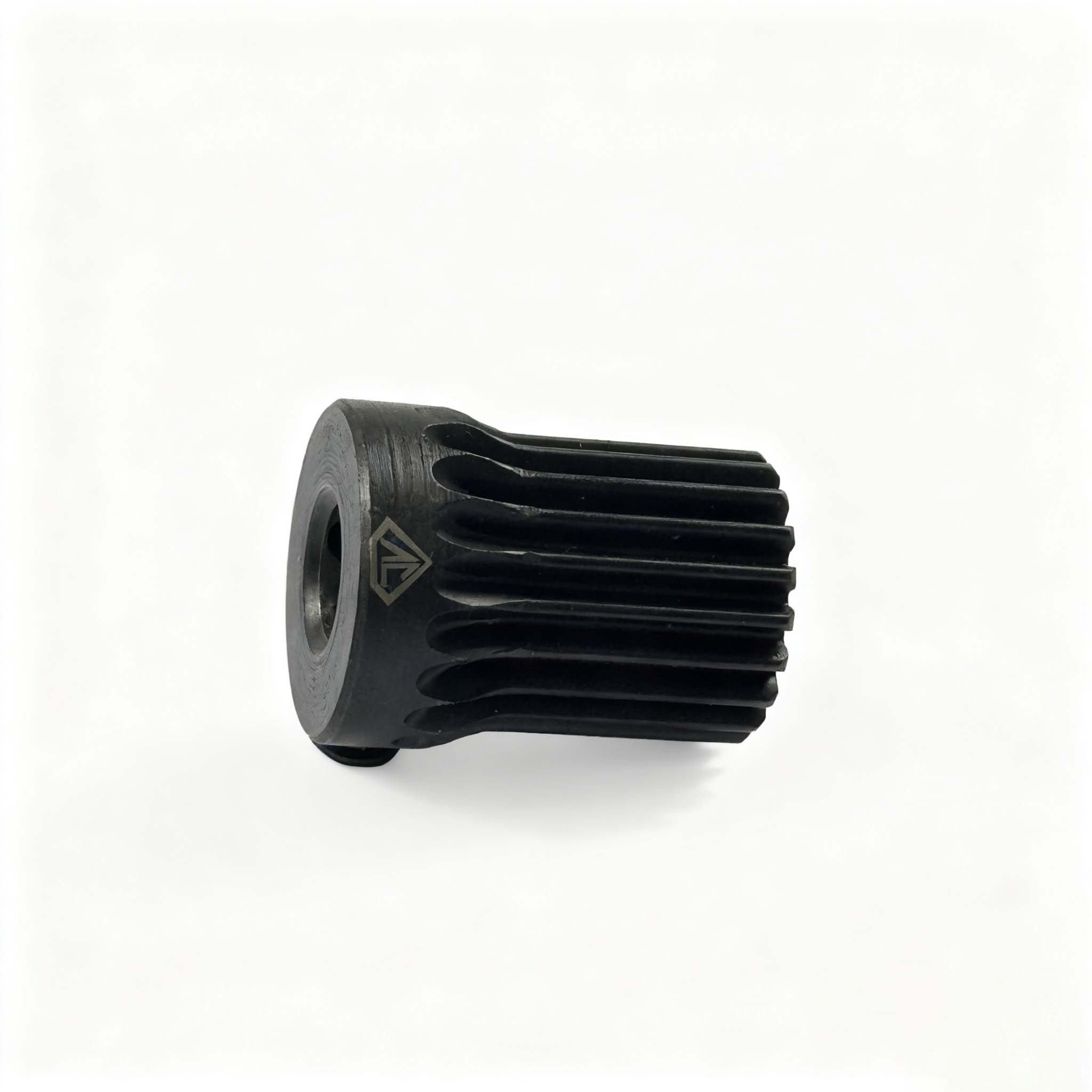

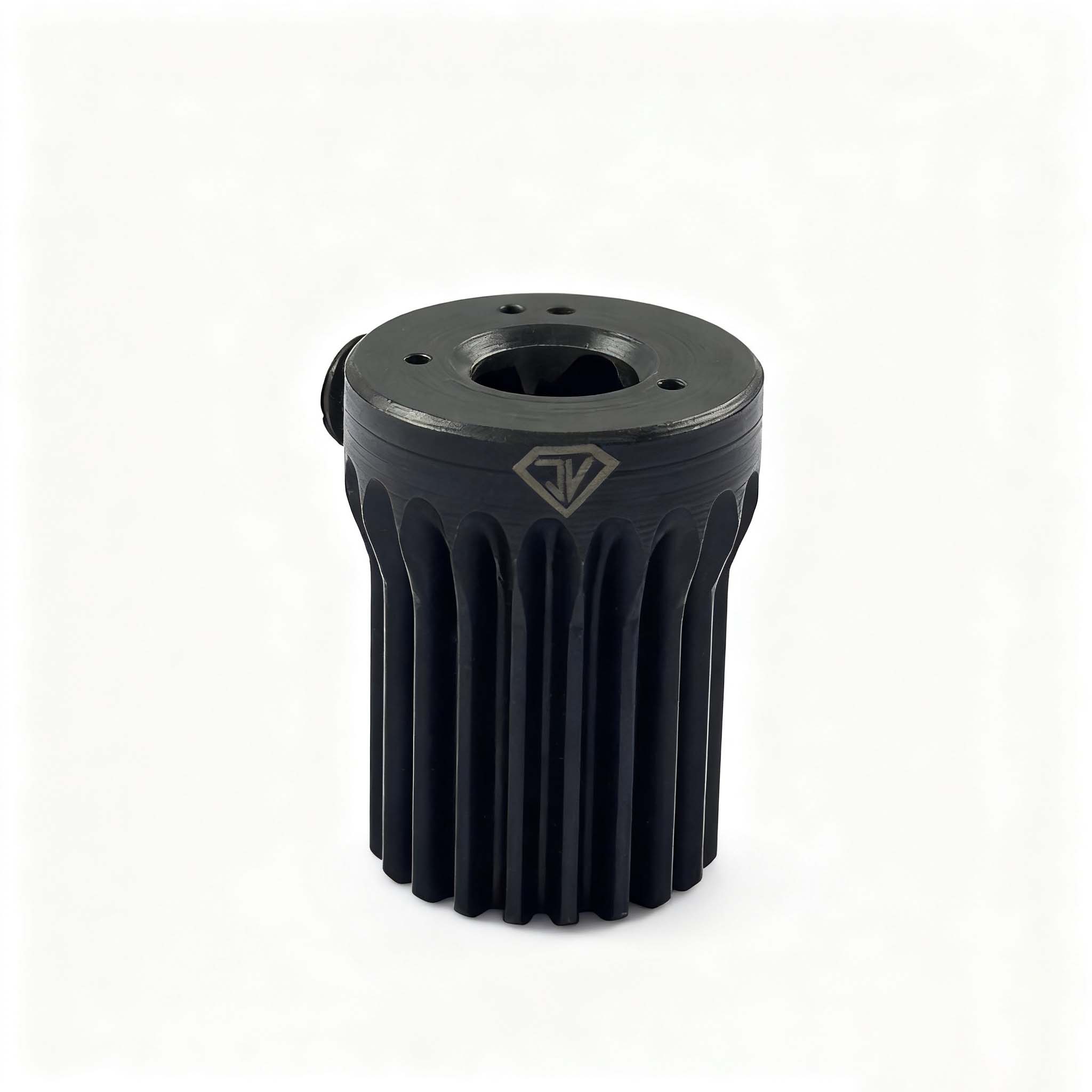

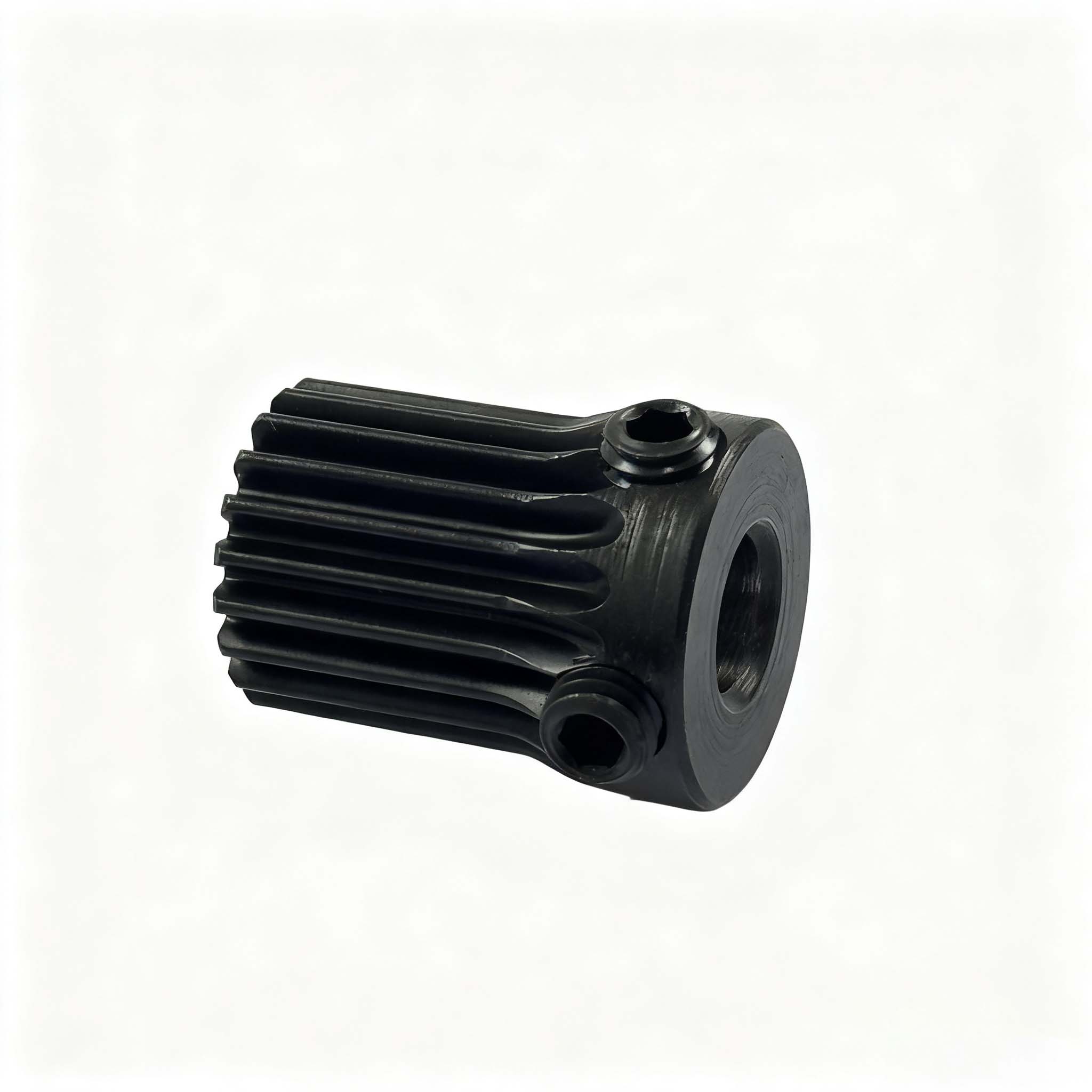

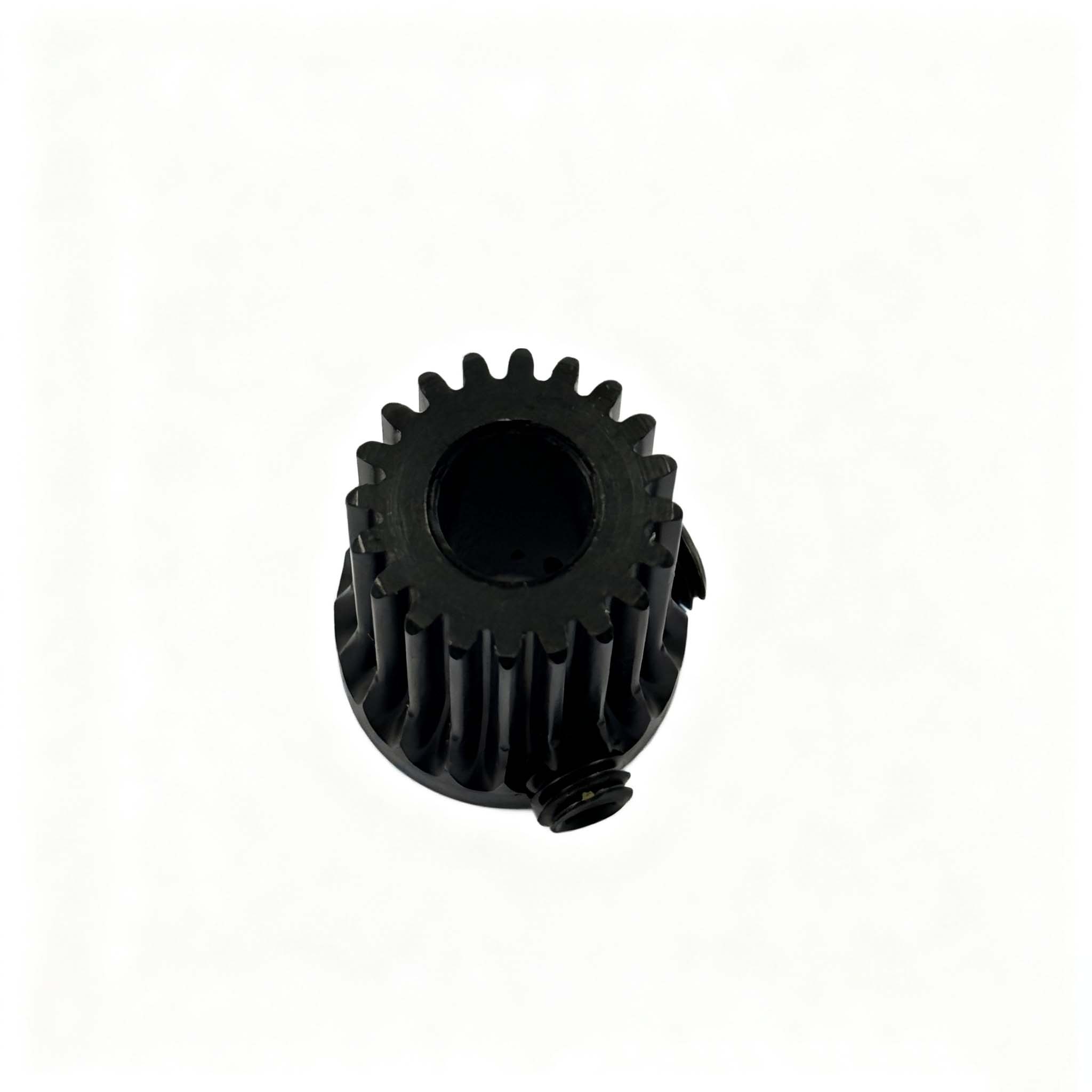

ZJ-006-C (Z-94-174247-15 Finished Product)
This is a spur gear for sewing equipment, made of 20CrMo alloy steel.
Parameters: pressure angle 20°, module 0.8, 20 teeth, ratio 2, helix angle 0°, inner bore 8mm, gear OD 17.6mm, total length 26mm, weight 0.0330kg.
Process: normalizing, turning, threaded hole machining, reaming, gear hobbing, heat treatment, shot blasting, blackening, reaming, screw assembly, marking.
With high precision, wear and corrosion resistance, it is mainly used for transmission in sewing machinery.

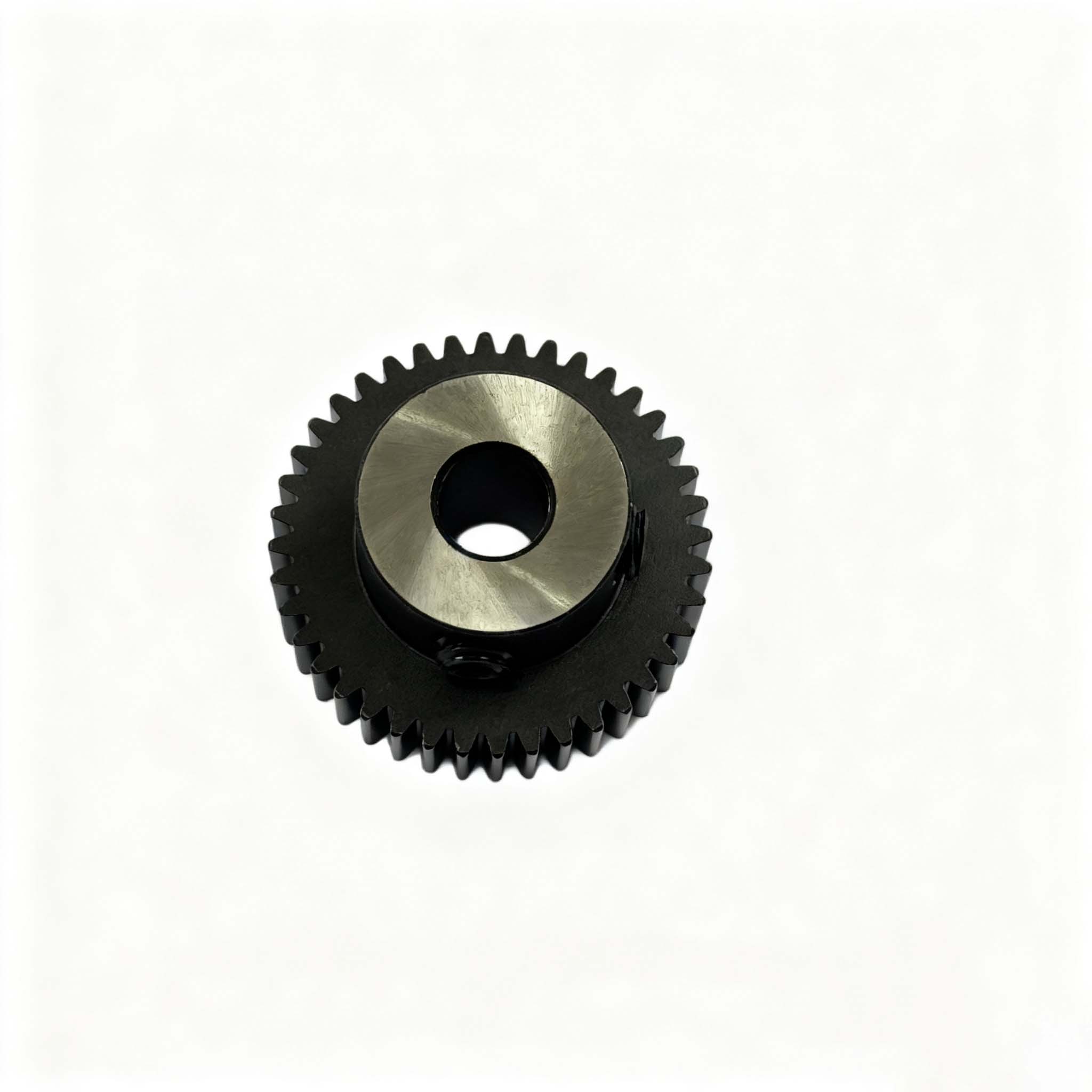

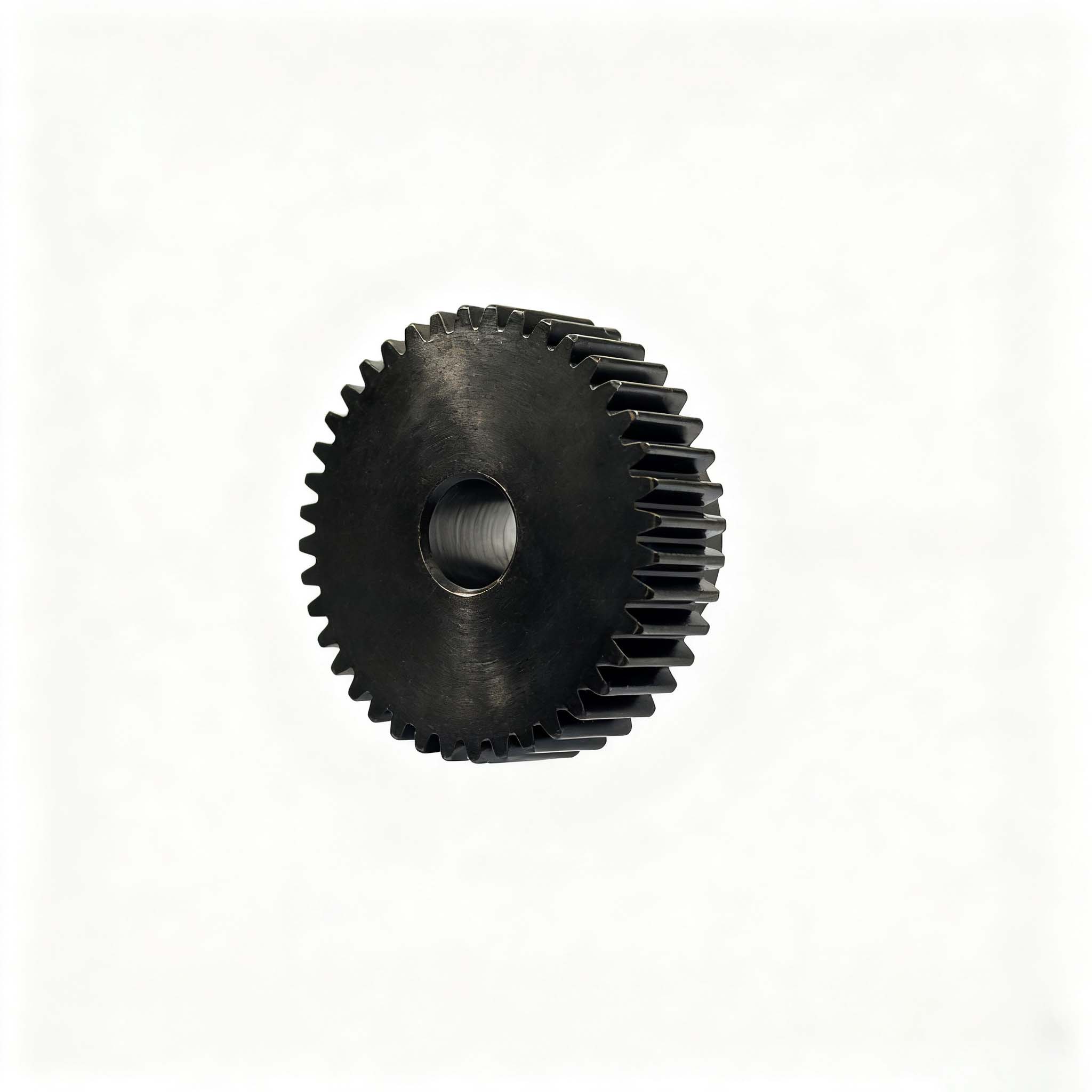

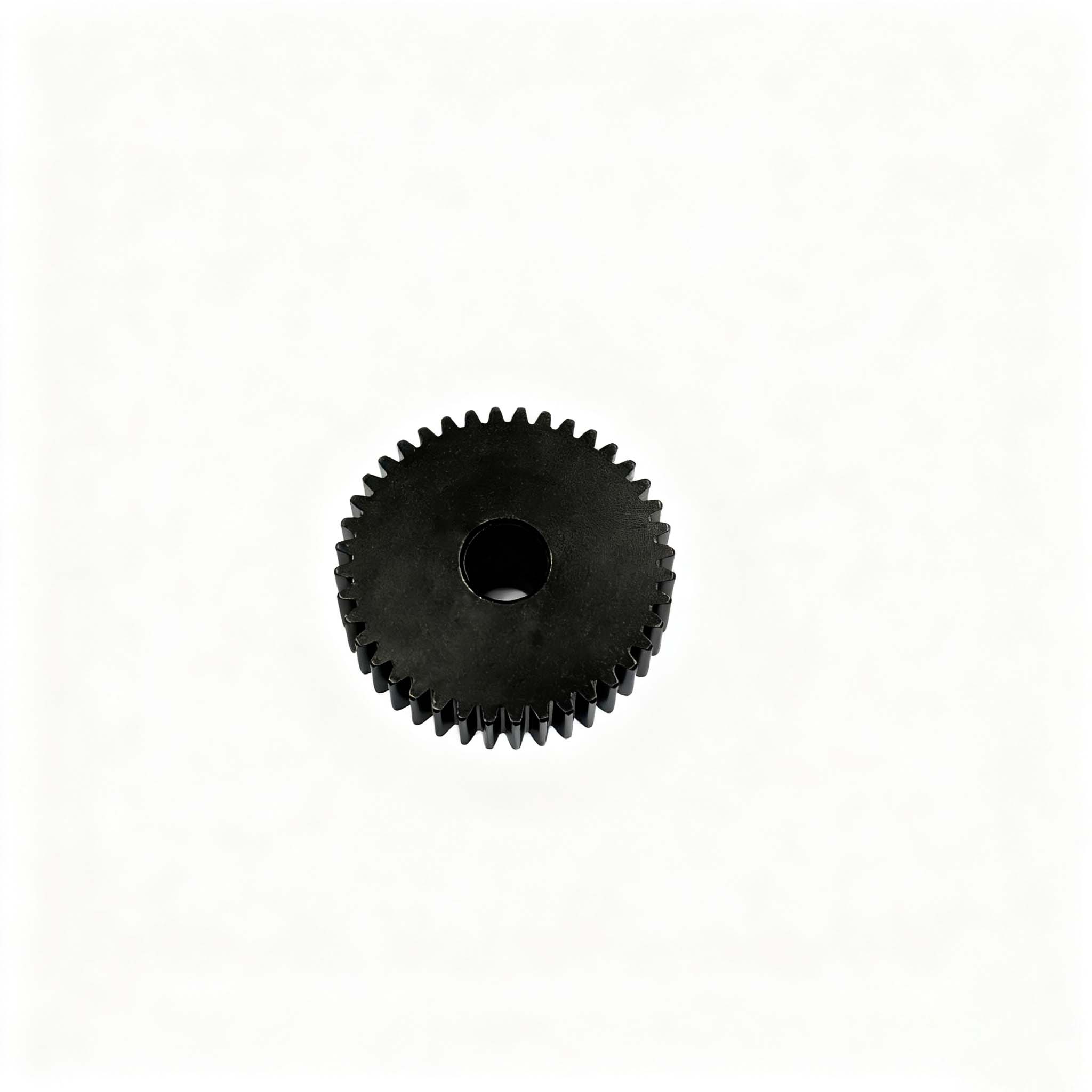

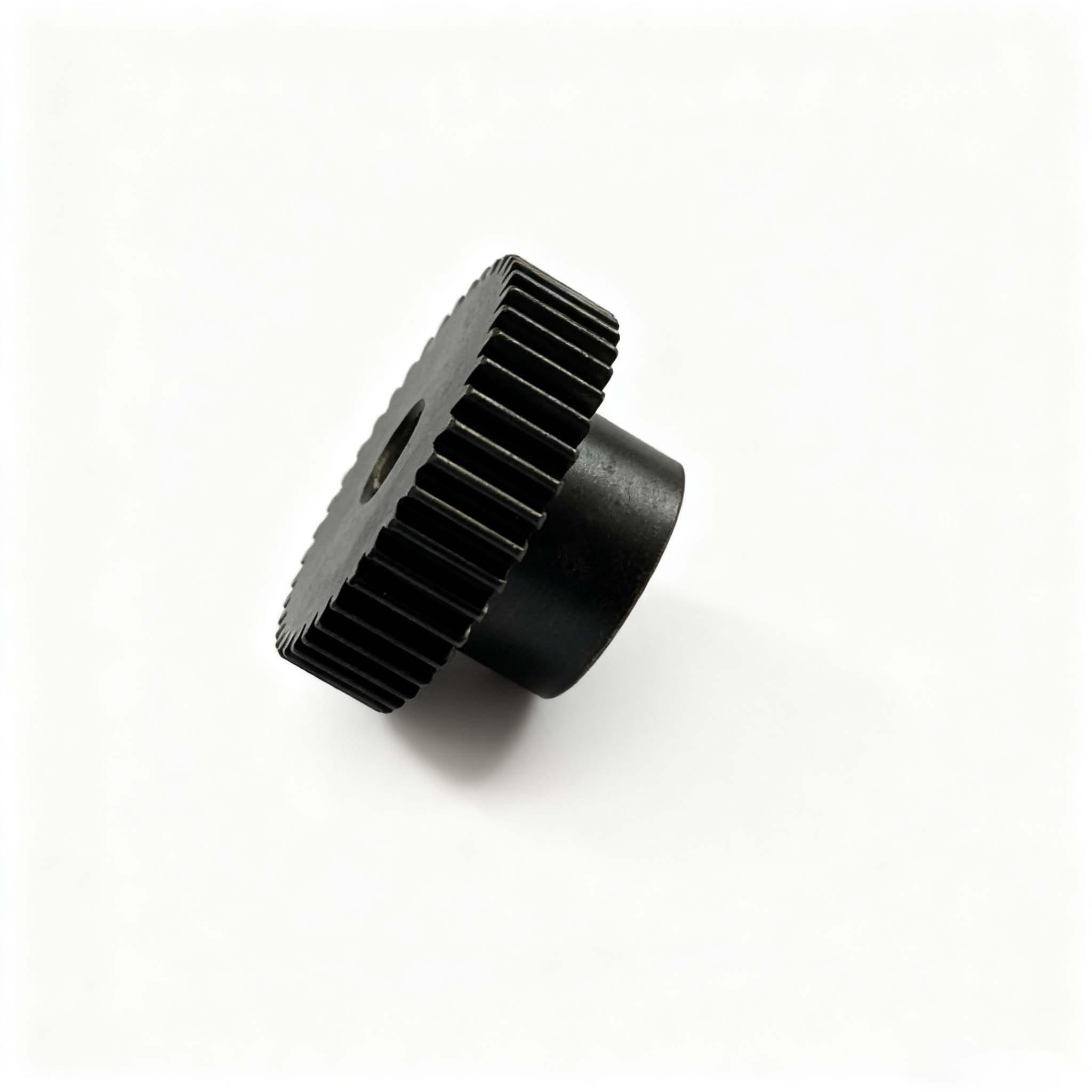

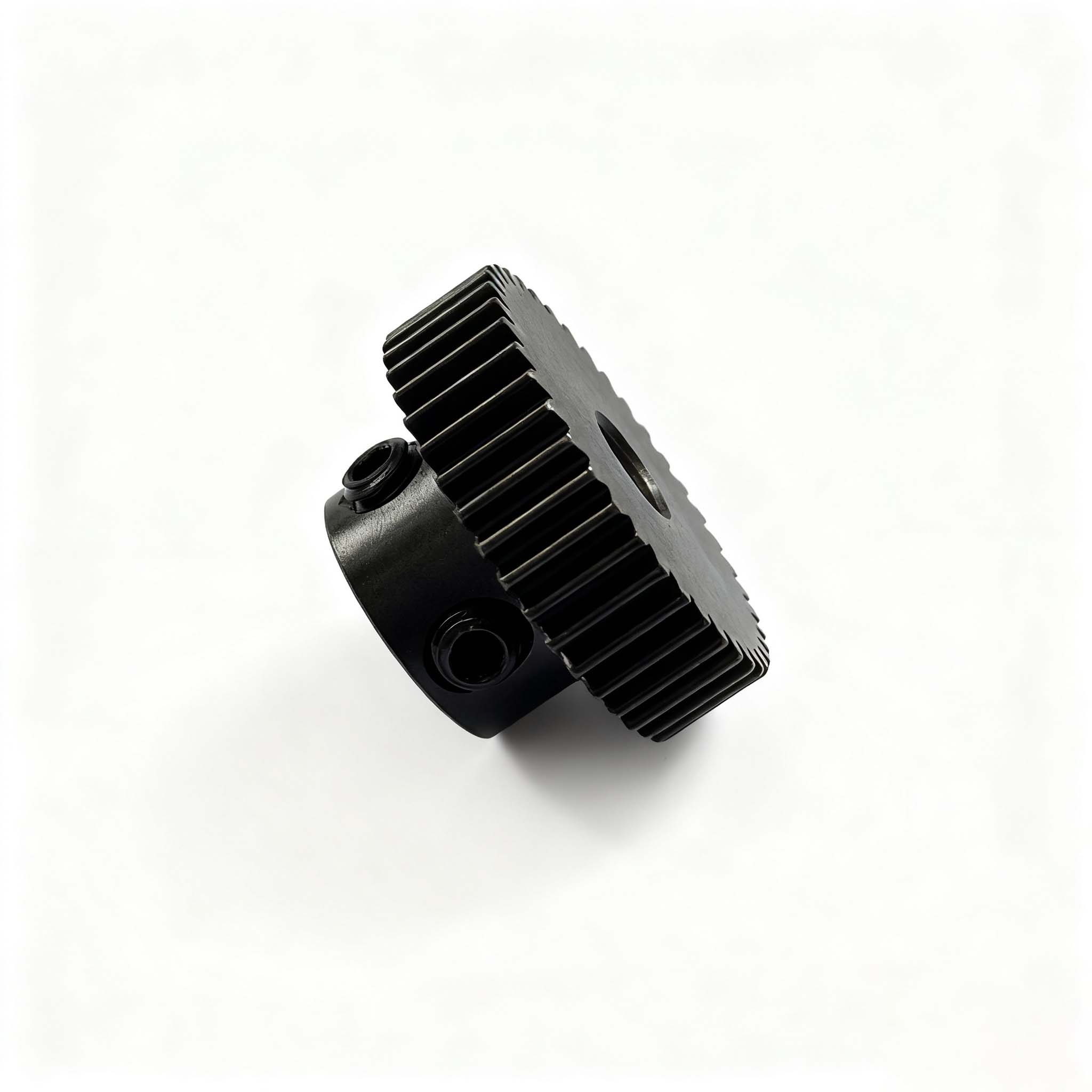

ZJ-007-C (Z-94-174248-15 Finished Product)
This is a matching spur gear for sewing equipment, made of 20CrMnTi alloy steel.
Parameters: pressure angle 20°, module 0.8, 40 teeth, helix angle 0°, inner bore 8mm, gear OD 33.6mm, total length 19mm, weight 0.0695kg.
Process: normalizing, turning, threaded hole machining, reaming, gear hobbing, heat treatment, shot blasting, blackening, reaming, facing, screw assembly.
Stable transmission and high wear resistance, matched with ZJ-006-C for sewing machine drive systems.
Additional information
| ZJ-006-CandZJ-007-C weight |
0.033and0.0659 |
|---|---|
| ZJ-006-CandZJ-007-C Core Components |
gear |
| ZJ-006-CandZJ-007-C Craftsmanship |
Hobbing |
