532.06-01-29 Bevel Gear
$1.68piece

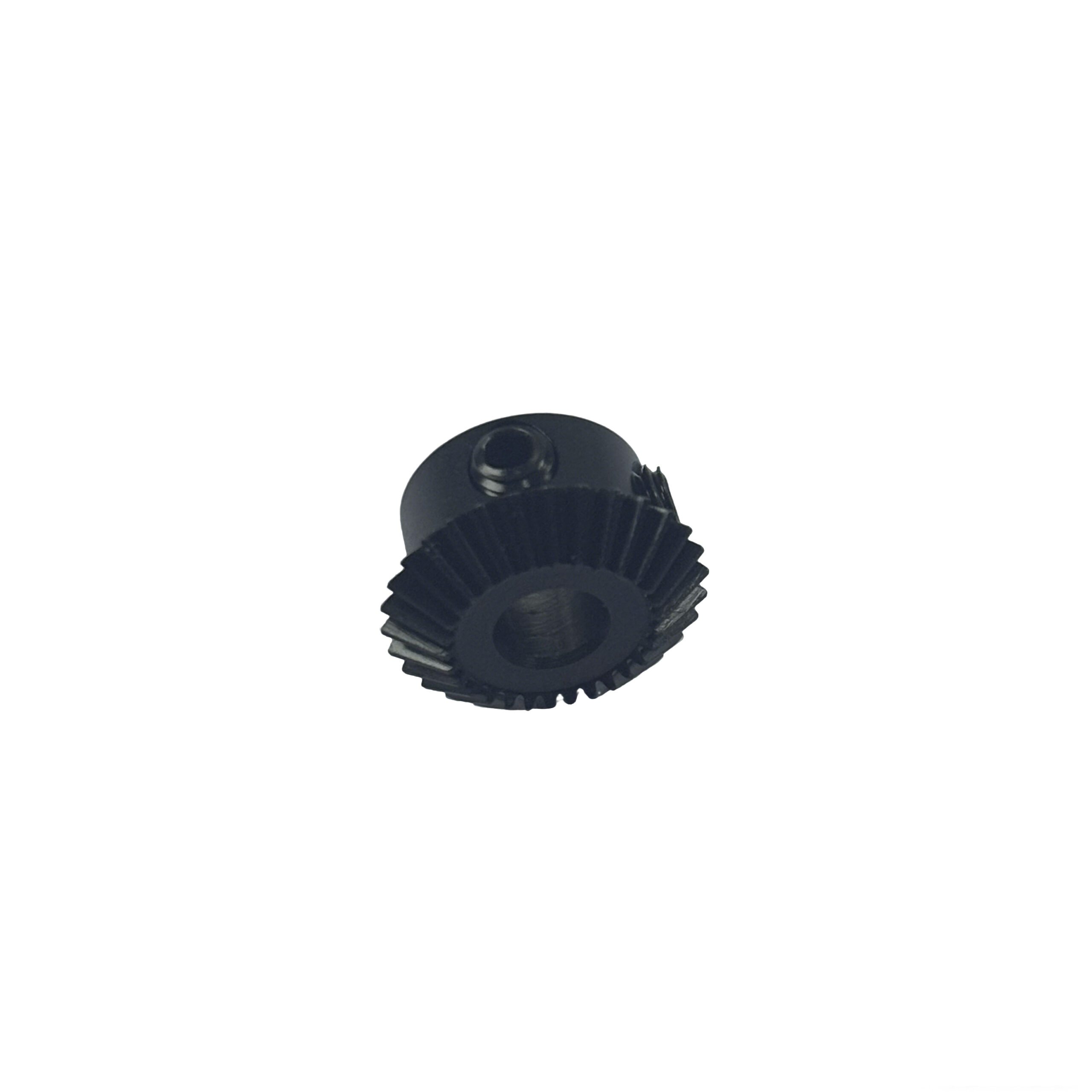

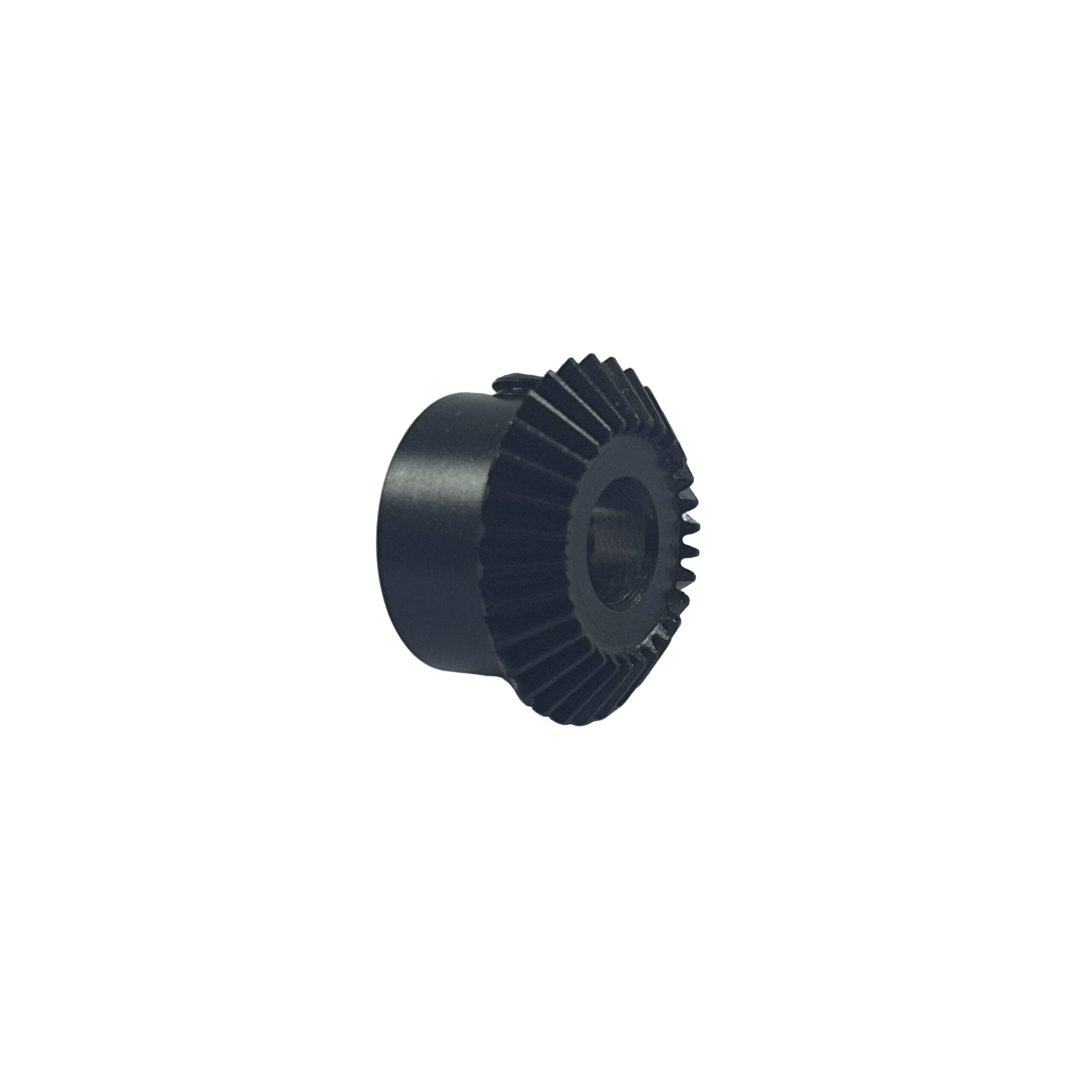

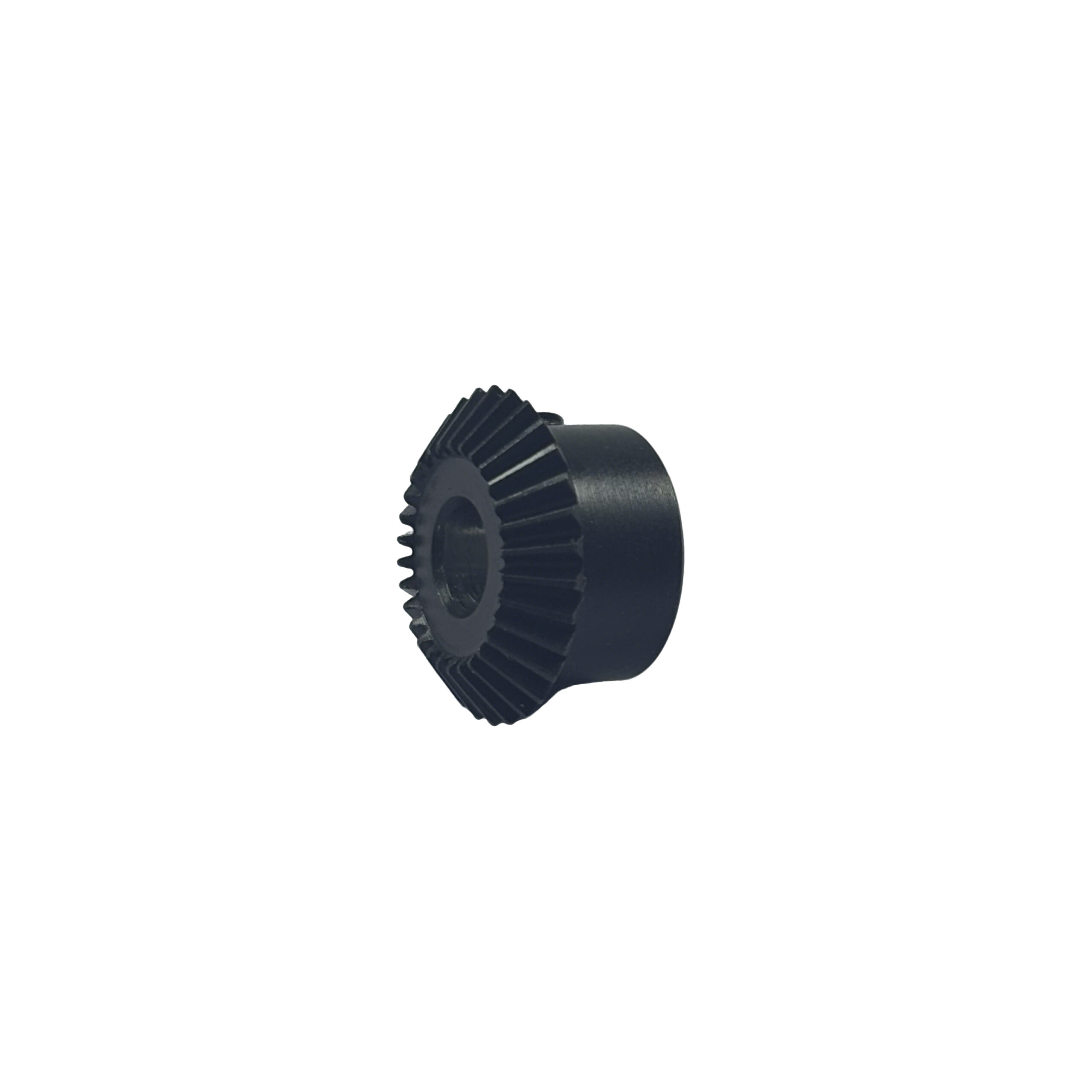

FS-011-C Straight Bevel Gear, 20CrMo, M0.5 Z30, bore 5mm, blackened & assembled, for sewing equipment.
Description
Model: FS-011-C (532.06-01-29 Bevel Gear)
This straight bevel gear is used for sewing equipment, made of 20CrMo alloy steel.
Parameters: pressure angle 20°, module 0.5, 30 teeth, inner bore 5mm, gear OD 15mm, length 9.2mm, weight 0.0061kg.
Process: sawing, turning, threaded hole machining, reaming, gear shaping, heat treatment, shot blasting, blackening, reaming, screw assembly.
Blackened for anti-rust, high precision and stable transmission for sewing machines.
Additional information
| weight |
0.0061 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
shaping |
