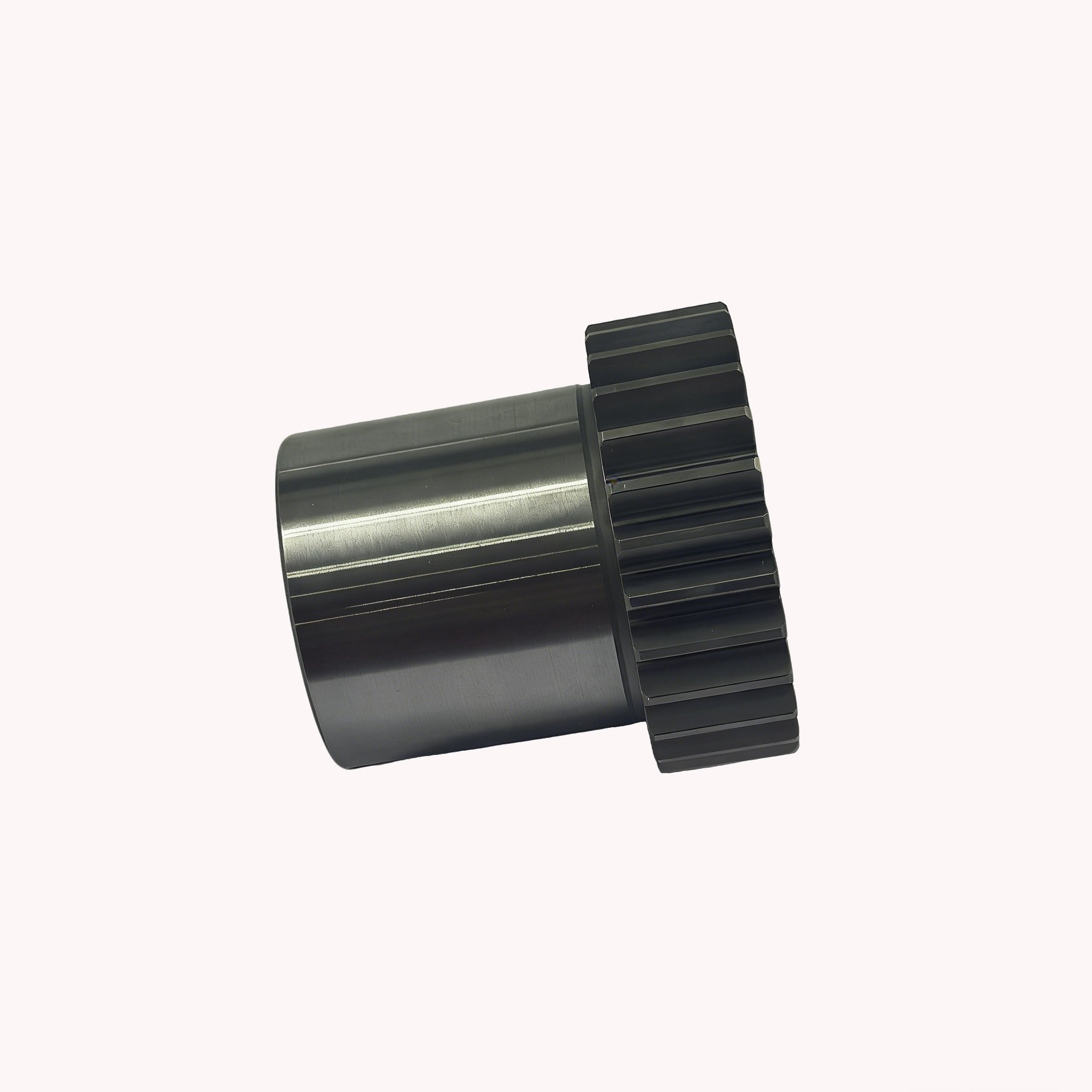

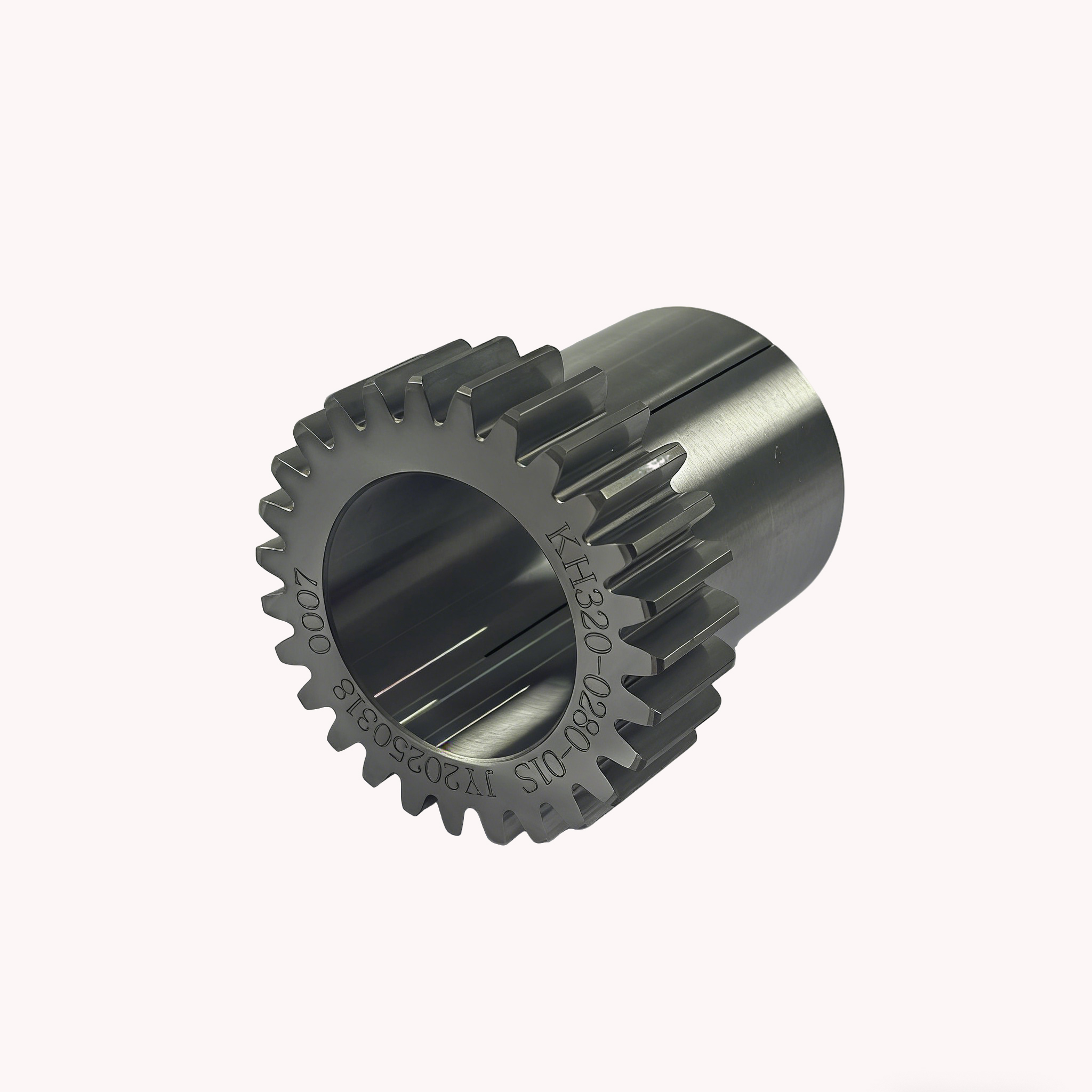

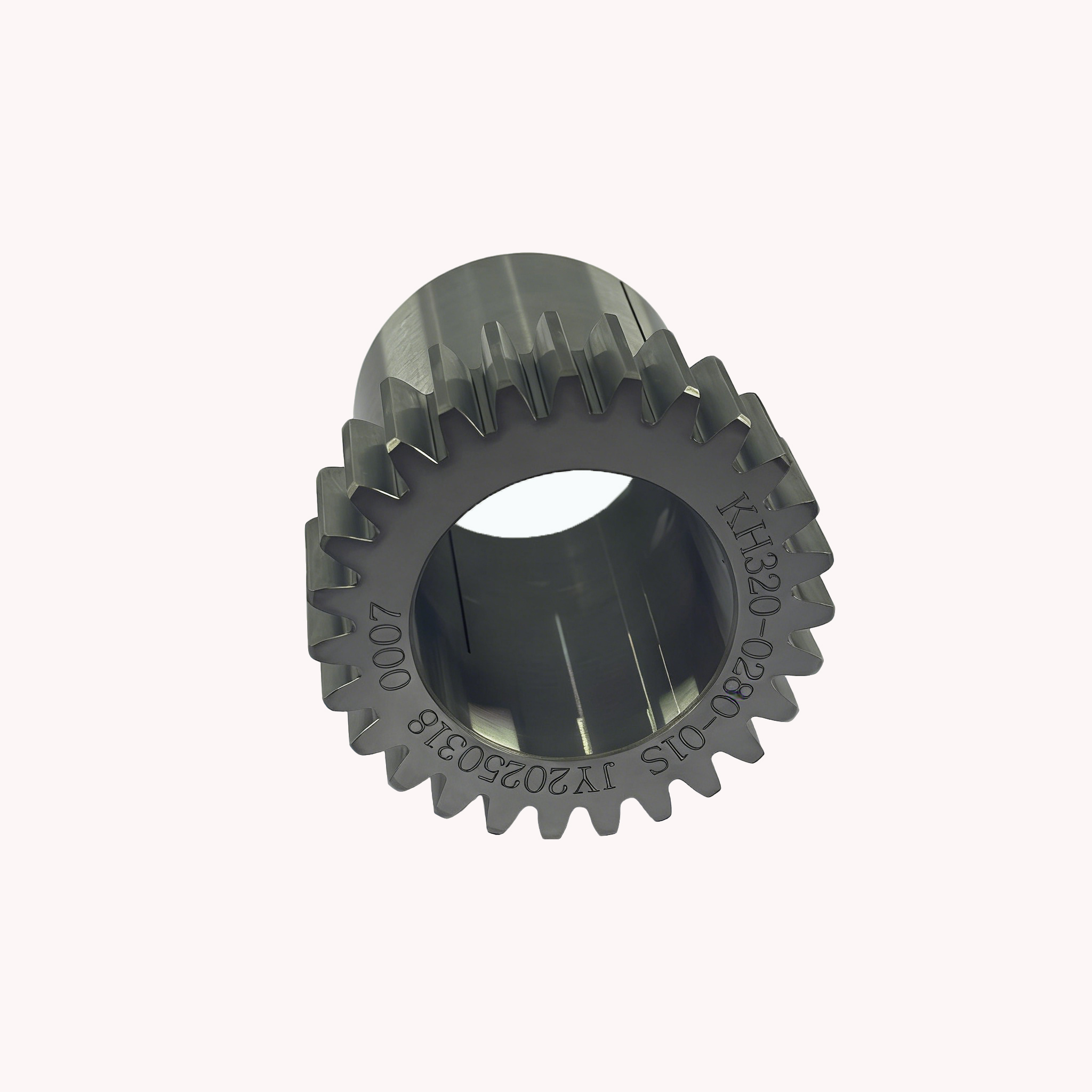

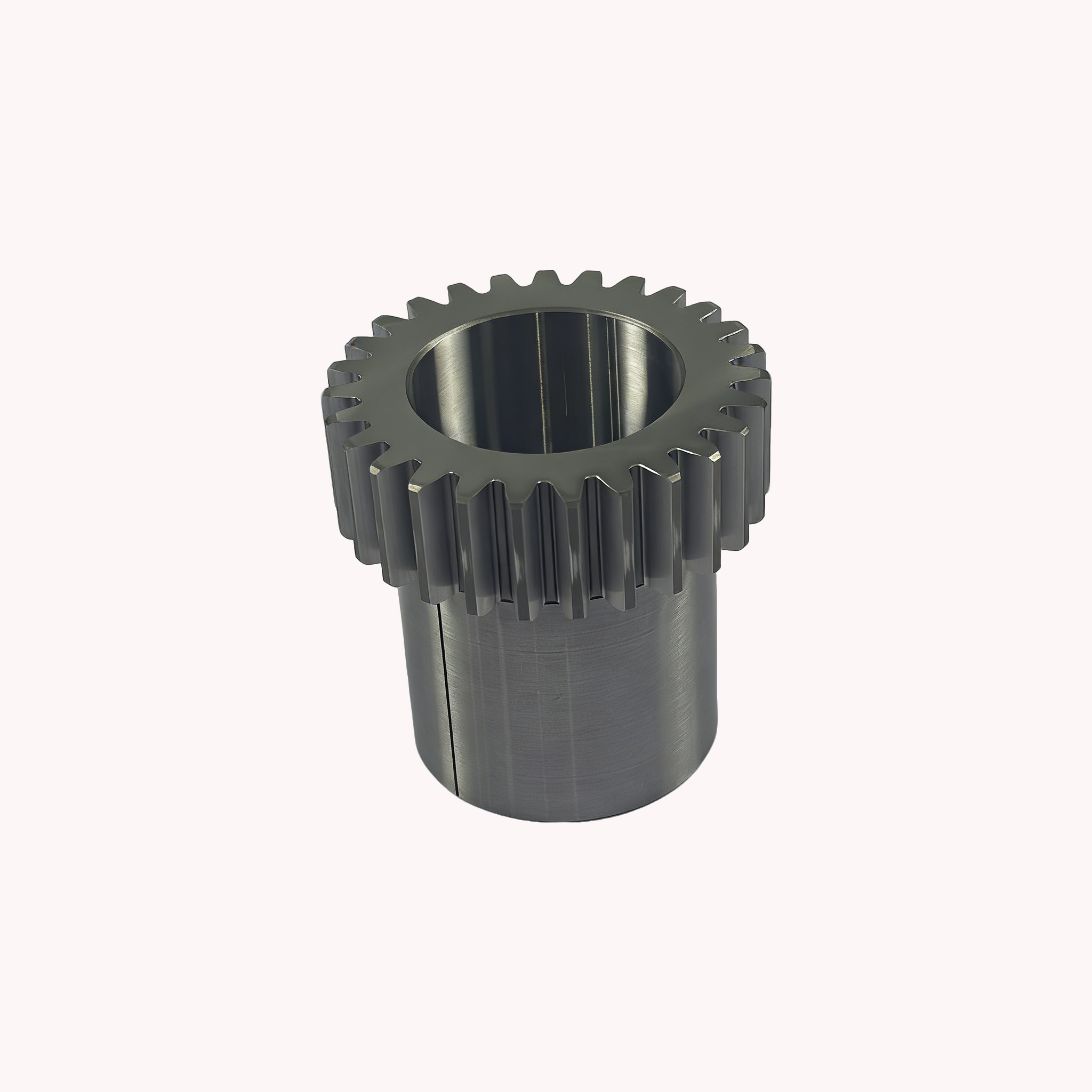

TKH320-0280-01S Straight Shaft Motor Spur Gear
$26.49piece
TLY-005-C straight shaft motor spur gear matches TKH320-0280-01S reducer. Made of 20CrMo steel, it features 20° pressure angle, module 2, 27 teeth and 35° helix angle. Its gear outer diameter is 28 mm and unit weight is 0.3685 kg. Processed by hobbing, heat treatment and precision gear grinding, this gear has high precision, stable transmission and superior wear resistance for reducer power transmission.
Description
Model TLY-005-C is a straight shaft motor spur gear marked TKH320-0280-01S, specially used as transmission spur gear for reducers.
Technical parameters: 20° pressure angle, module 2, 27 teeth, 35° helix angle; inner diameter 44 mm, shaft diameter 54 mm, gear outer diameter 28 mm, single piece weight 0.3685 kg.
Made of 20CrMo alloy steel, the gear owns excellent comprehensive mechanical properties, high strength and good hardenability. The full manufacturing process includes sawing, turning, gear hobbing, heat treatment, chamfering, hanging shot blasting, boring & facing, outer diameter grinding, double surface covering, wire EDM, deburring, precision gear grinding and marking.
Heat treatment increases tooth surface hardness, and precision grinding guarantees high tooth profile accuracy. The gear runs smoothly with great wear resistance and long service life. It fits TKH320 series reducers and acts as the core internal transmission gear for straight shaft motors.
Additional information
| TLY-005-C weight |
0.3685 |
|---|---|
| TLY-005-C Core Components |
gear |
| TLY-005-C Craftsmanship |
Hobbing |
