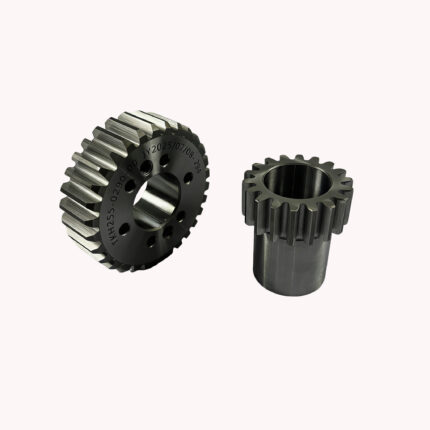

TKH255-0280-S Motor Gear and TKH255-0290-00 Worm Gear
TLY-001-C
TKH255-0280-S Motor Spur Gear, module 2, 18 teeth, 20° pressure angle, 20CrMo steel. Manufactured by turning, hobbing, heat treatment, shot blasting, precision gear grinding and wire-cut deburring, marked after processing. High precision and wear-resistant, for reducer motor transmission.
TLY-002-C
TKH255-0290-00 Worm Spur Gear, module 2, 30 teeth, 20° pressure angle, transmission ratio 1:100, 20CrMo alloy steel. Finished via machining center, gear hobbing, heat treatment and precision gear grinding, full inspection before marking. Applied to worm drive of speed reducers.
TKH320-0280-01S Straight Shaft Motor Spur Gear
TLY-005-C straight shaft motor spur gear matches TKH320-0280-01S reducer. Made of 20CrMo steel, it features 20° pressure angle, module 2, 27 teeth and 35° helix angle. Its gear outer diameter is 28 mm and unit weight is 0.3685 kg. Processed by hobbing, heat treatment and precision gear grinding, this gear has high precision, stable transmission and superior wear resistance for reducer power transmission.

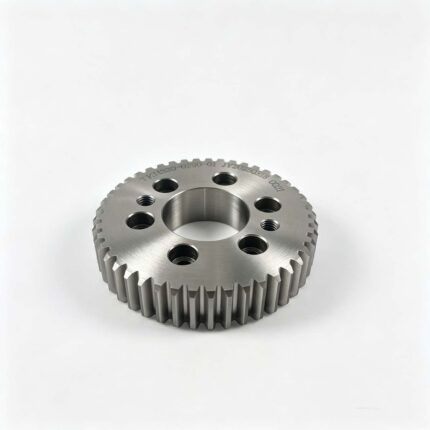

TKH320-0290-01 Worm Gear
TLY-006-C worm matching spur gear fits TKH320-0290-01 reducer. Made of 20CrMo steel, it has a 20° pressure angle, module 2, 45 teeth and a transmission ratio of 1/100. Its gear outer diameter is 94 mm, total length 20 mm and single weight 0.7538 kg. Processed via hobbing, heat treatment and precision gear grinding, it achieves high precision and stable wear-resistant transmission for reducers.
WRM165-SRCL-55-A1 (30900500053) Input Gear
WRM165-SRCL-57-A1 (30900500054) Input Gear
WRM165-SRCL-60-A1 (30900500055) Input Gear
Z-91-145220-05 Pinion
Z-91-145220-05 pinion (helical gear) is made of 20CrMo, with a pressure angle of 20°, module of 0.9769, 15 teeth and 45° left-hand helix angle. Produced via precision processes including hobbing, heat treatment and demagnetization, it has a tooth outer diameter of 22.66mm, total length of 17mm and weight of 0.0258kg, and acts as a dedicated transmission component for sewing equipment.
Z-91-384094-15 Spur Gear
The Z-91-384094-15 Spur Gear is made of 20CrMo steel, featuring a pressure angle of 20°, module of 0.8, 40 teeth, and a helix angle of 0°. It has an inner diameter of 10mm, outer tooth diameter of 33.6mm, total length of 19mm, and unit weight of 0.0708kg. Precision-machined through multiple processes, it is a dedicated transmission component for sewing equipment.
