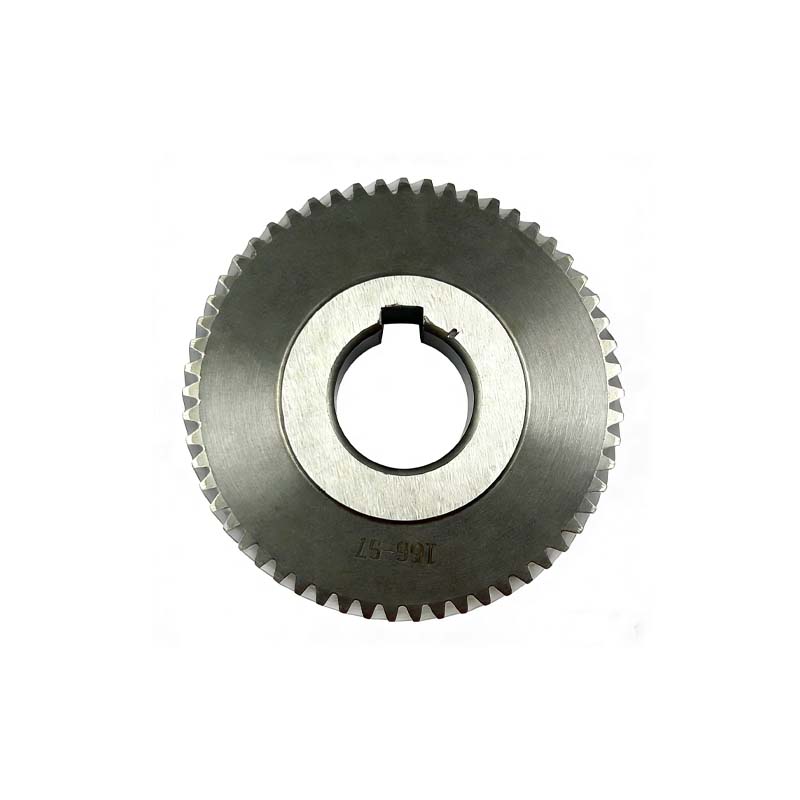

WRM165-SRCL-57-A1 (30900500054) Input Gear
$4.76piece
80501102324 (11-tooth Motor Output Shaft)
$42.02piece
WRM165-SRCL-60-A1 (30900500055) Input Gear
$4.90piece
SPKJ-029-C input helical gear, module 1, 60 teeth, 25° right-hand helix, made of 20CrMnTi for speed reducers.
Description

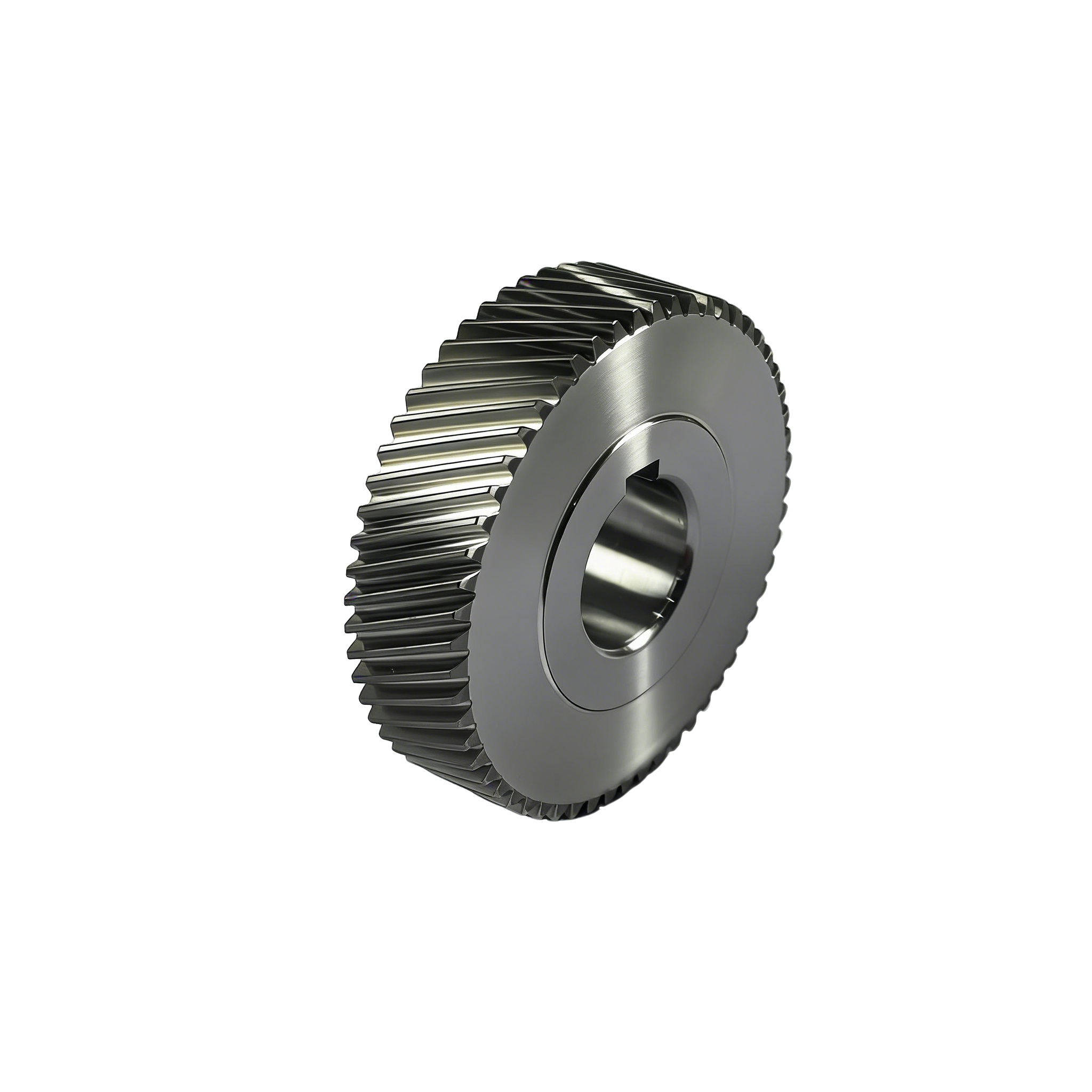

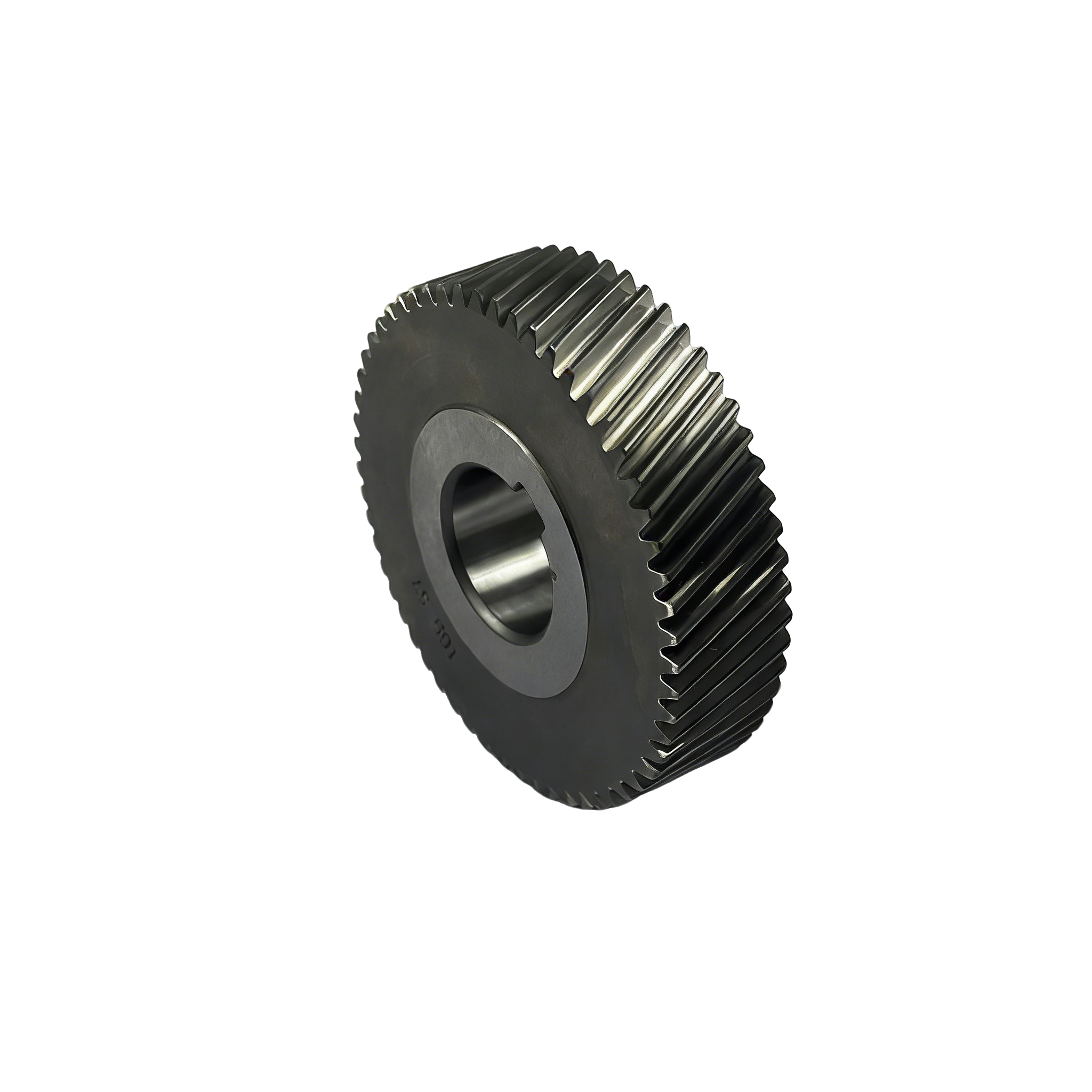

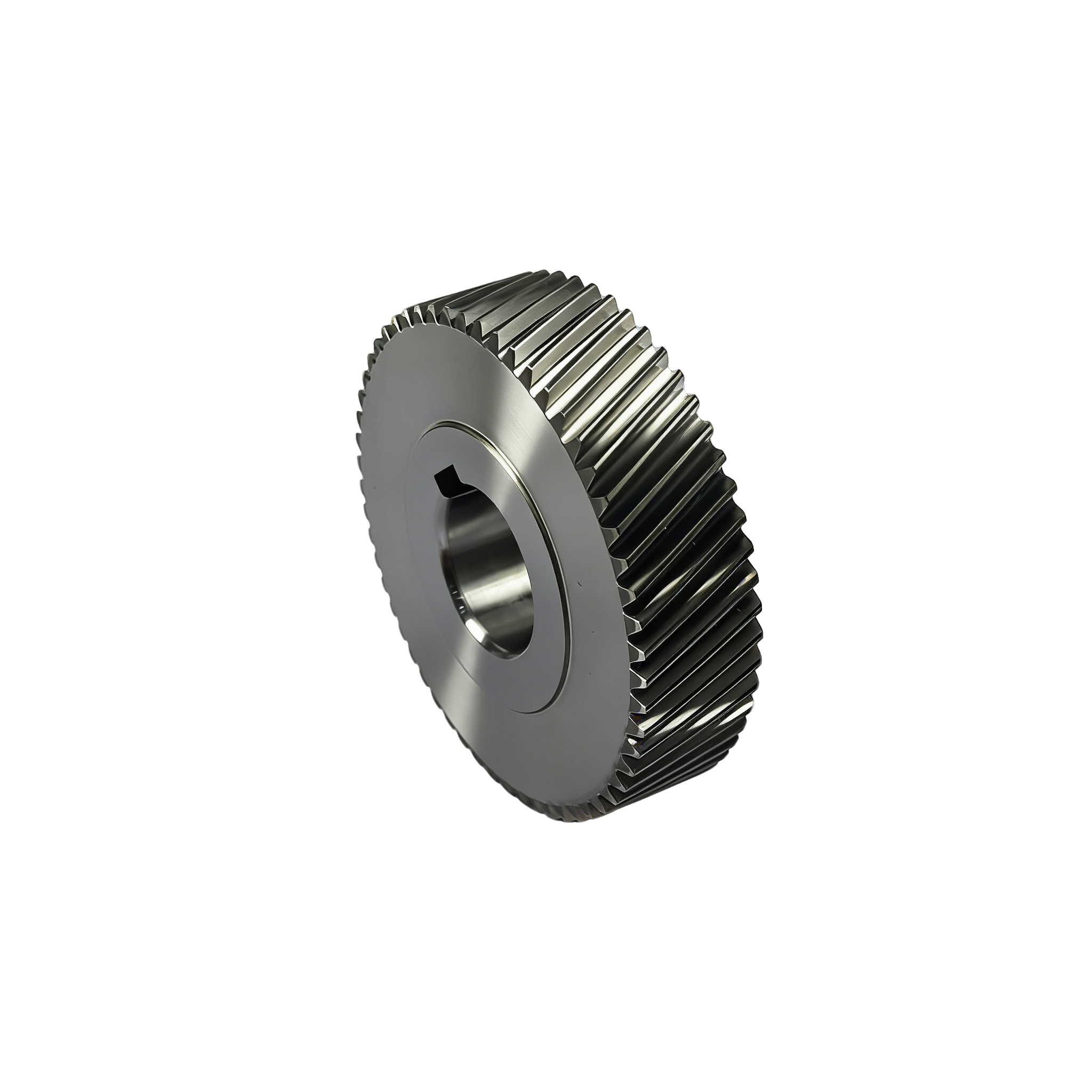

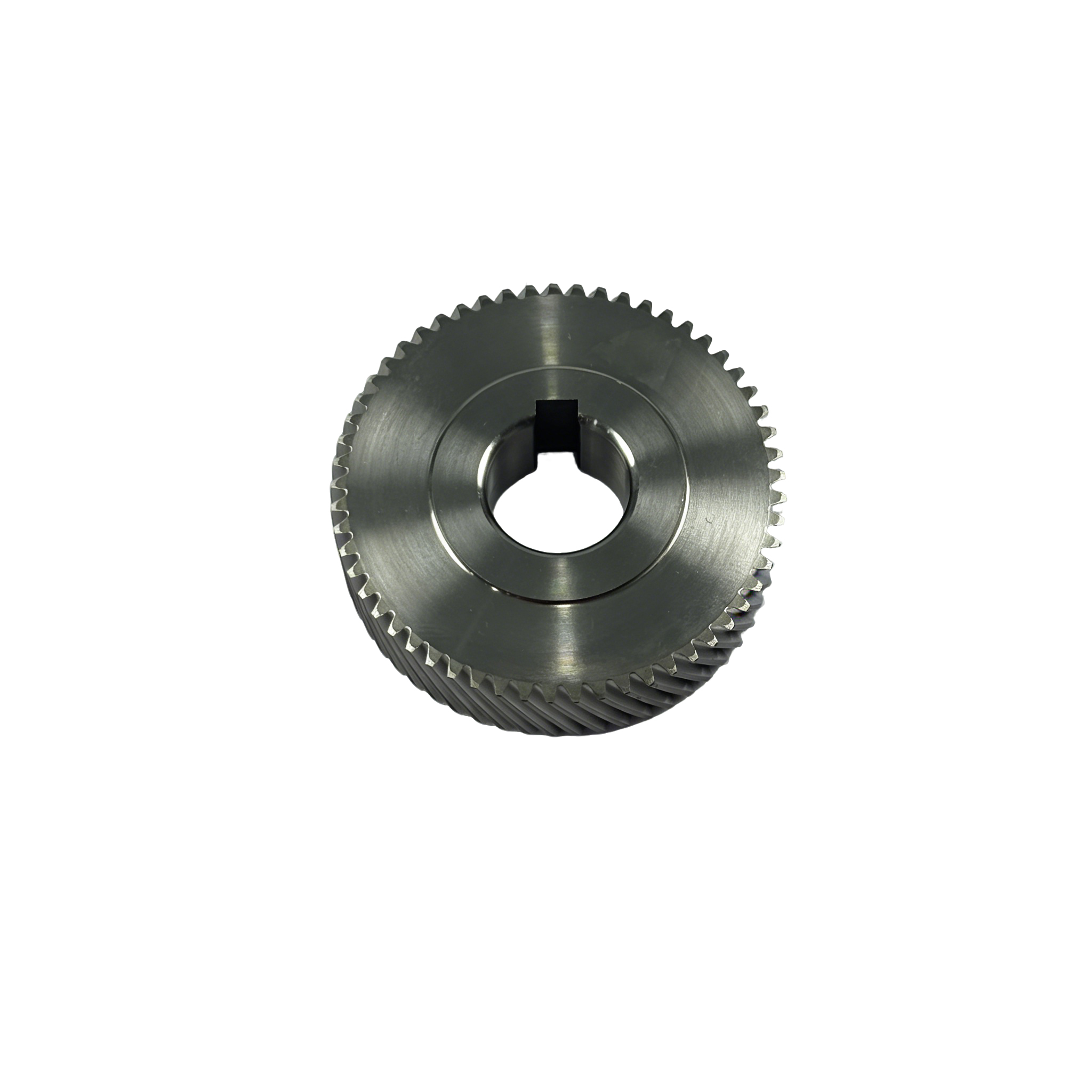

SPKJ-029-C (Model WRM165-SRCL-60-A1, Part No. 30900500055) is an input helical gear for reducers, with pressure angle 20°, module 1, 60 teeth, 25° right-hand helix angle, inner diameter 20 mm, gear outer diameter 66.9 mm, total length 18 mm, weight 0.4006 kg. Made of 20CrMnTi through precision processes including sawing, turning, rough hobbing, heat treatment, chamfering, shot blasting, boring & facing, total length grinding, gear grinding and marking. It is mainly used as a transmission part in reducers.
Additional information
| weight |
0.4006 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
2020692 Shaft
2020692 gear shaft (helical gear) is made of 20CrMo, with a pressure angle of 20°, module of 0.8, 8 teeth and 15° right-hand helix angle. It has a tooth outer diameter of 10.8mm, total length of 142.3mm and weight of 0.0870kg. Produced via precision processes including hobbing, heat treatment correction and multiple grinding, it is a dedicated transmission component for power tools.
2020909 PINION GEAR
Model 2020909 helical gear is made of 20CrMo, refined through multiple processes including normalizing, hobbing and heat treatment. It has a pressure angle of 20°, module of 0.75, 7 teeth, shaft diameter of 8mm, tooth outer diameter of 7.3mm and weight of 0.0227kg, serving as a dedicated transmission component for power tools.
2024409（2024502）
The 2024409 (2024502) helical gear (dedicated for power tools) has a pressure angle of 20°, module of 1.25, 19 teeth and helix angle of 20°/R. With an inner diameter of 17mm, outer diameter of 28.9mm, total length of 12mm and weight of 0.0289kg, it is made of 20CrMnTi material through precision processes including normalizing, hobbing and heat treatment, featuring stable transmission, wear resistance and impact resistance.
Z-91-145220-05 Pinion
Z-91-145220-05 pinion (helical gear) is made of 20CrMo, with a pressure angle of 20°, module of 0.9769, 15 teeth and 45° left-hand helix angle. Produced via precision processes including hobbing, heat treatment and demagnetization, it has a tooth outer diameter of 22.66mm, total length of 17mm and weight of 0.0258kg, and acts as a dedicated transmission component for sewing equipment.
