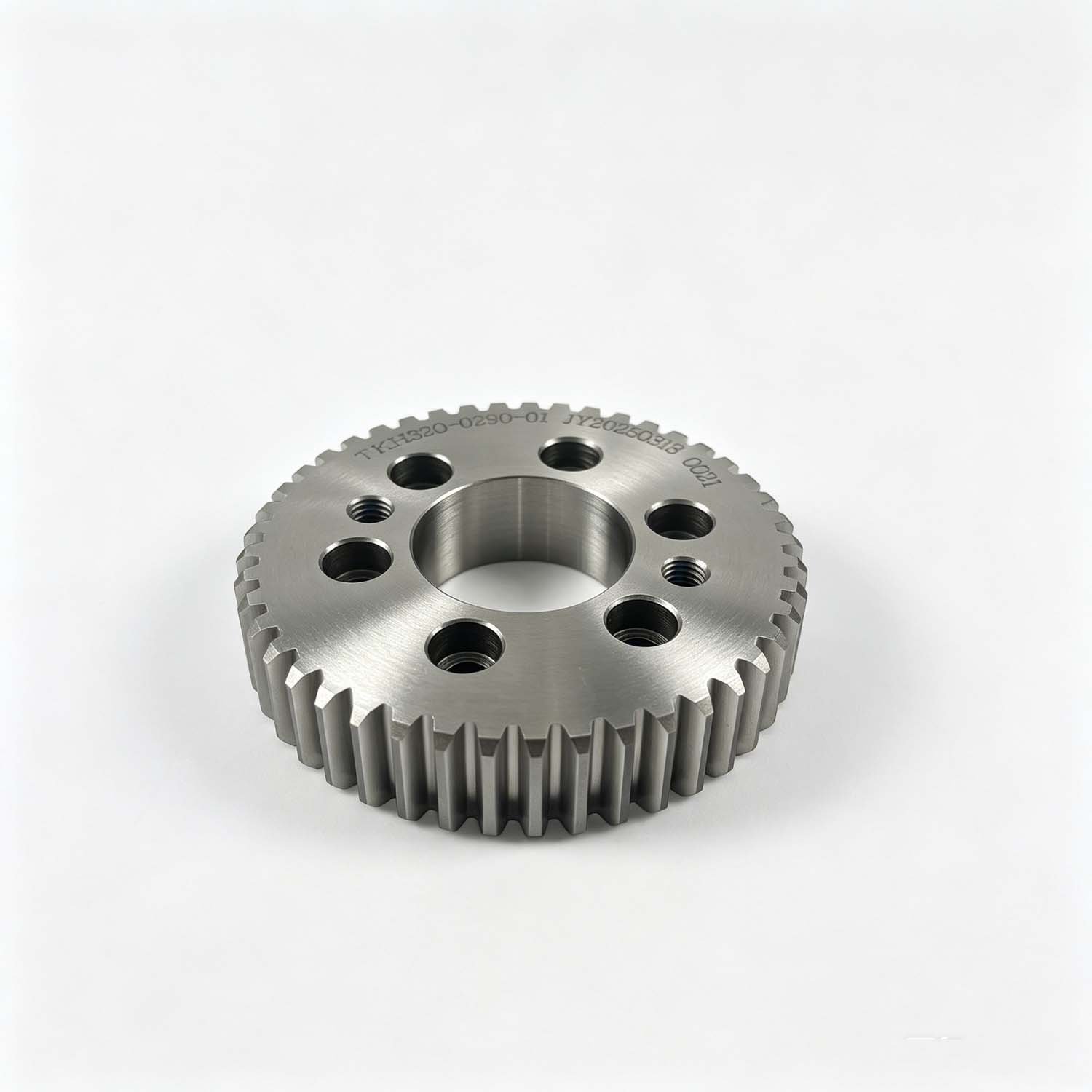

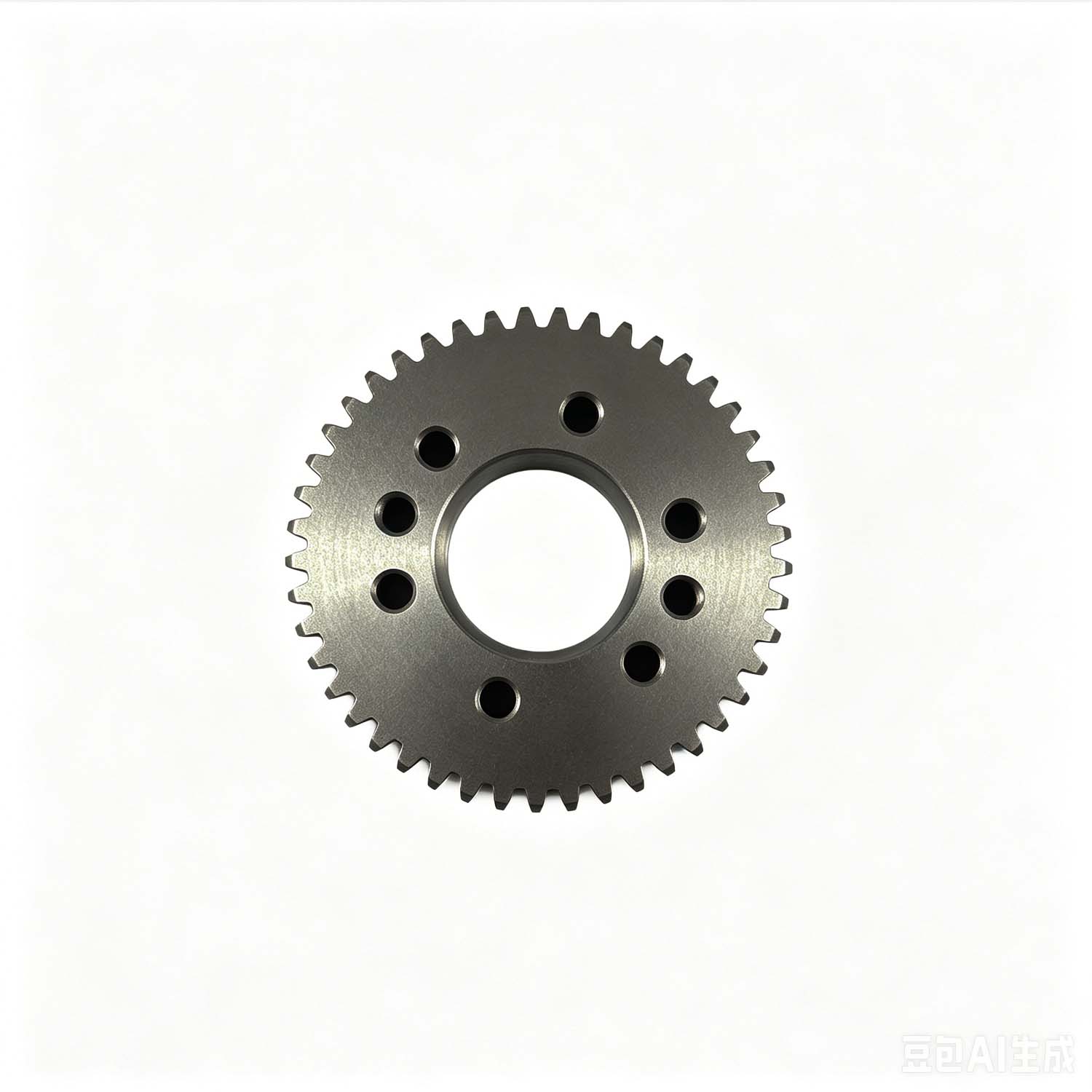

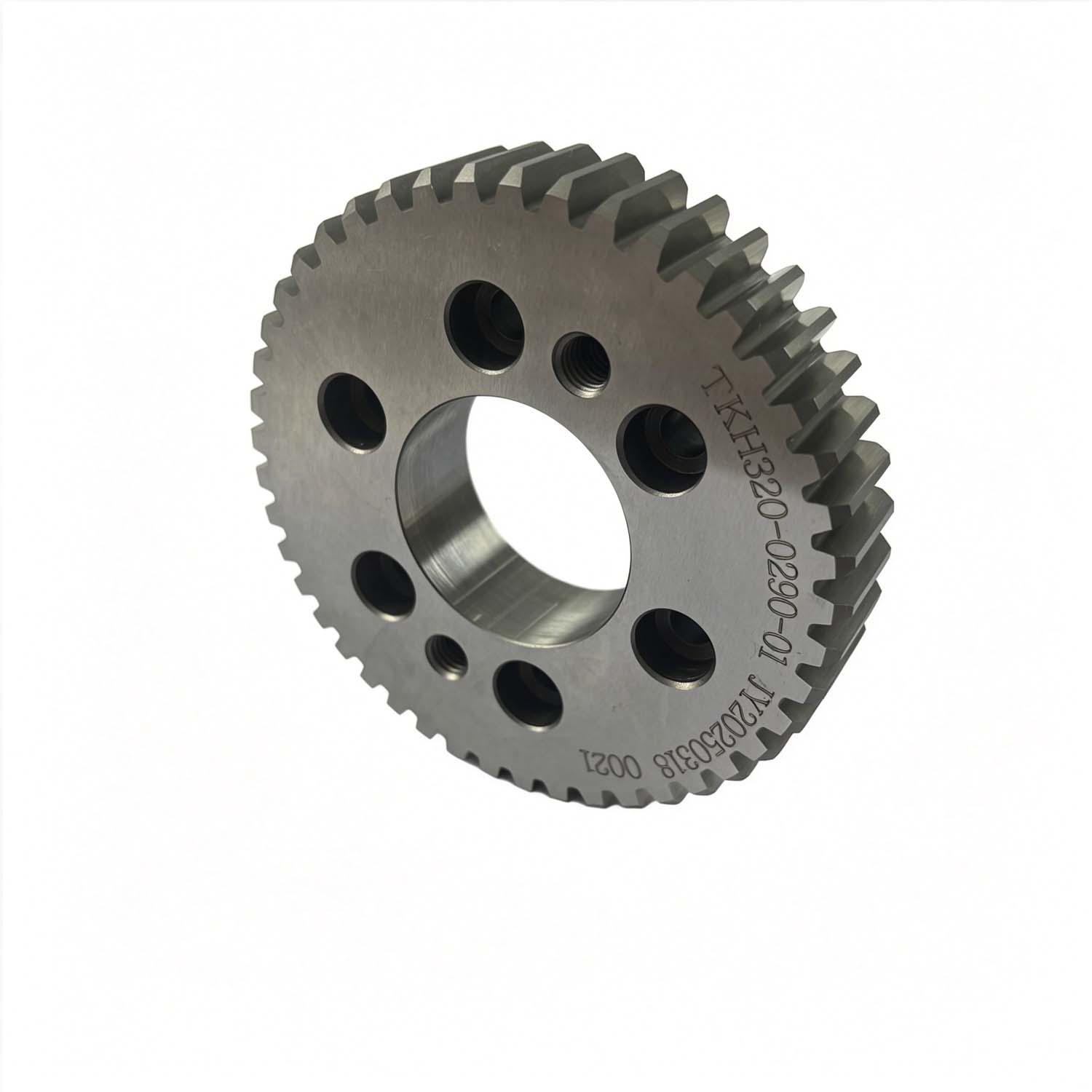

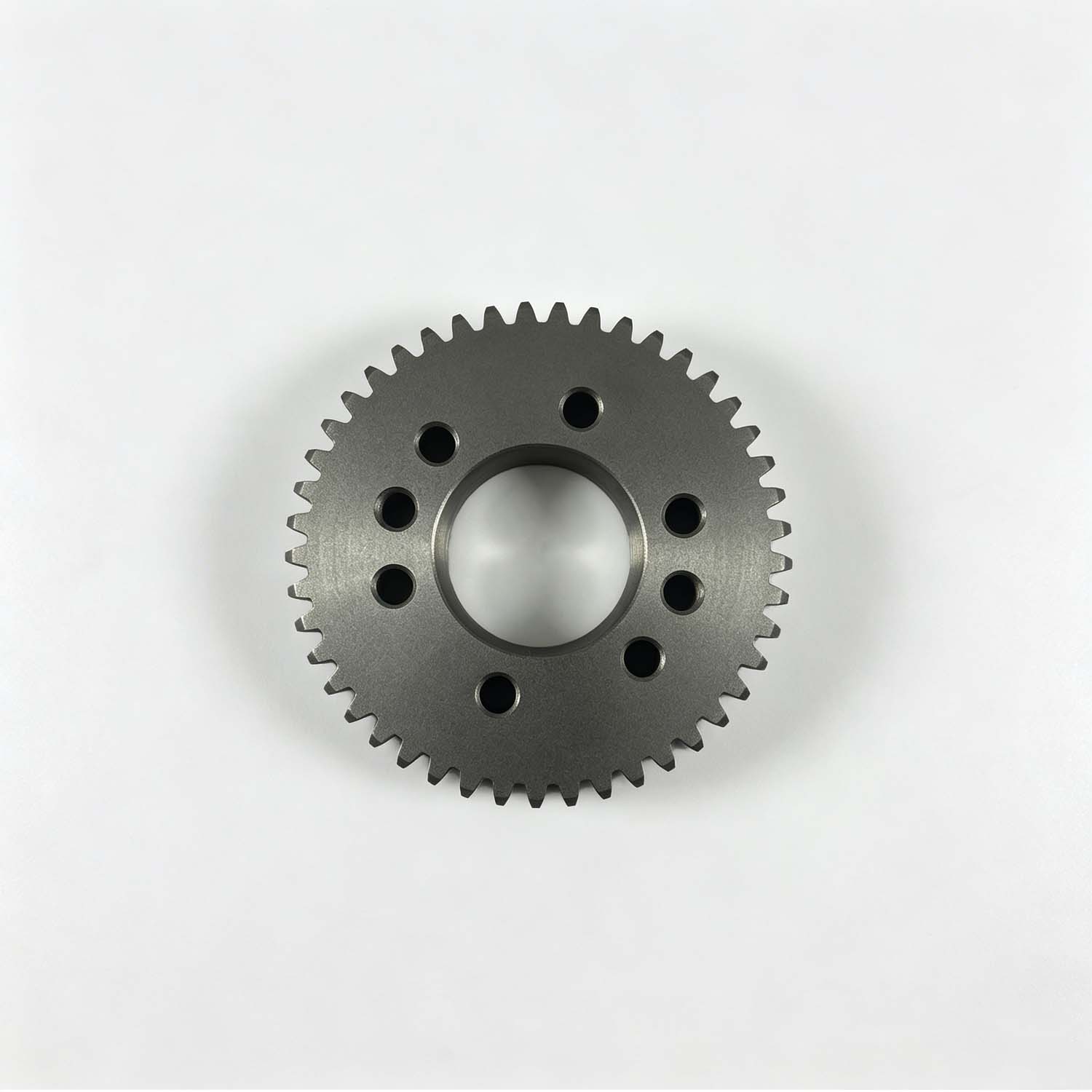

TLY-006-C worm matching spur gear fits TKH320-0290-01 reducer. Made of 20CrMo steel, it has a 20° pressure angle, module 2, 45 teeth and a transmission ratio of 1/100. Its gear outer diameter is 94 mm, total length 20 mm and single weight 0.7538 kg. Processed via hobbing, heat treatment and precision gear grinding, it achieves high precision and stable wear-resistant transmission for reducers.
Description
Model TLY-006-C is a worm-matching spur gear for TKH320-0290-01, a dedicated transmission gear for reducers.
Technical specifications: 20° pressure angle, module 2, 45 teeth, 39T with a transmission ratio of 1/100, gear outer diameter 94 mm, overall length 20 mm, unit weight 0.7538 kg.
Fabricated from 20CrMo alloy steel, the gear features high strength, good hardenability and outstanding basic wear resistance. The full production process includes sawing, turning, rough hobbing, hardening heat treatment, chamfering, hanging shot blasting, boring, facing & outer diameter turning, surface capping, wire EDM, deburring, precision gear grinding and marking.
Heat treatment greatly increases tooth surface hardness, and subsequent precision grinding ensures high tooth profile accuracy. The gear delivers smooth operation and long wear-resistant service life. It is installed inside TKH320 series reducers to work with worms for speed reduction transmission.
Additional information
| TLY-006-C weight |
0.7538 |
|---|---|
| TLY-006-C Core Components |
gear |
| TLY-006-C Craftsmanship |
Hobbing |
