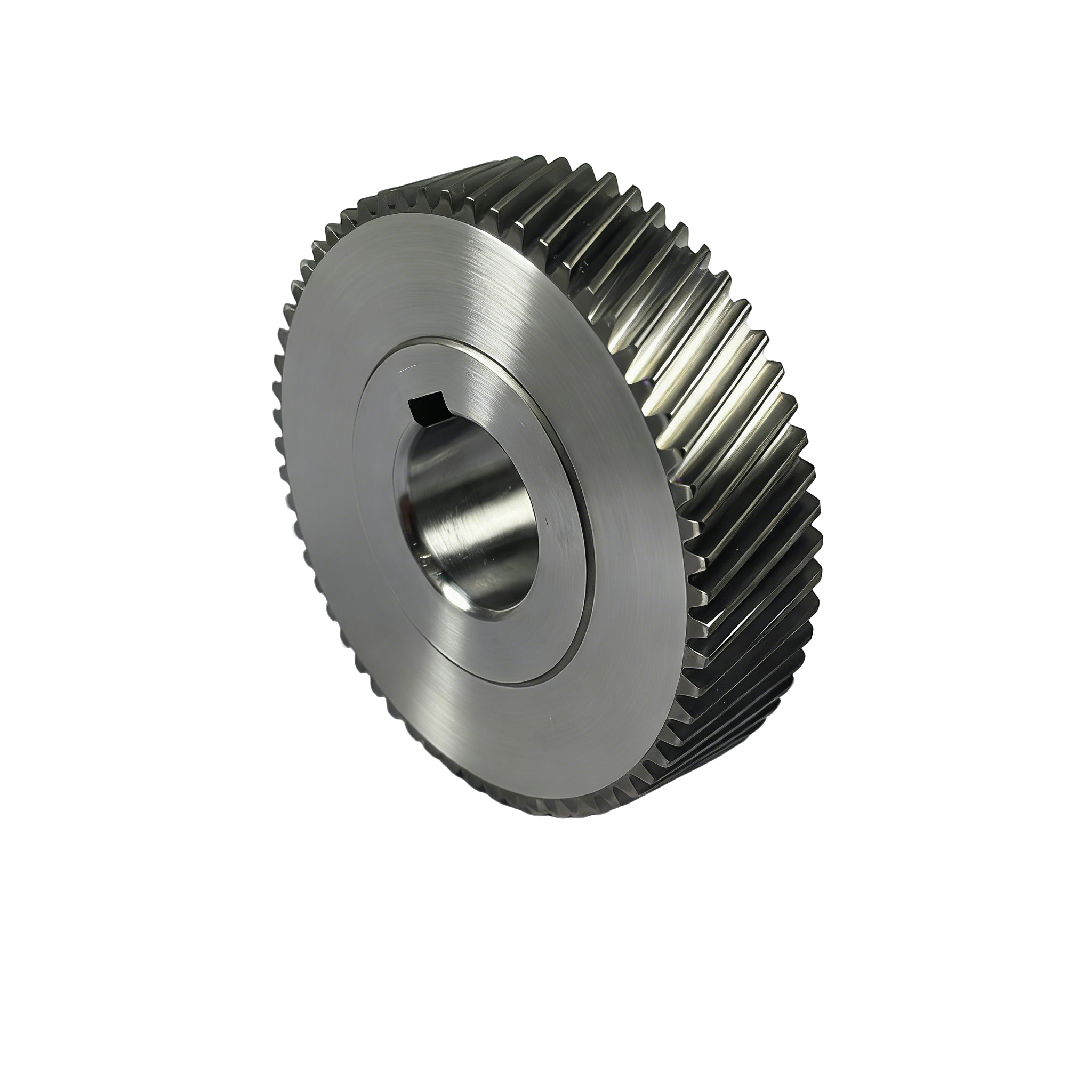

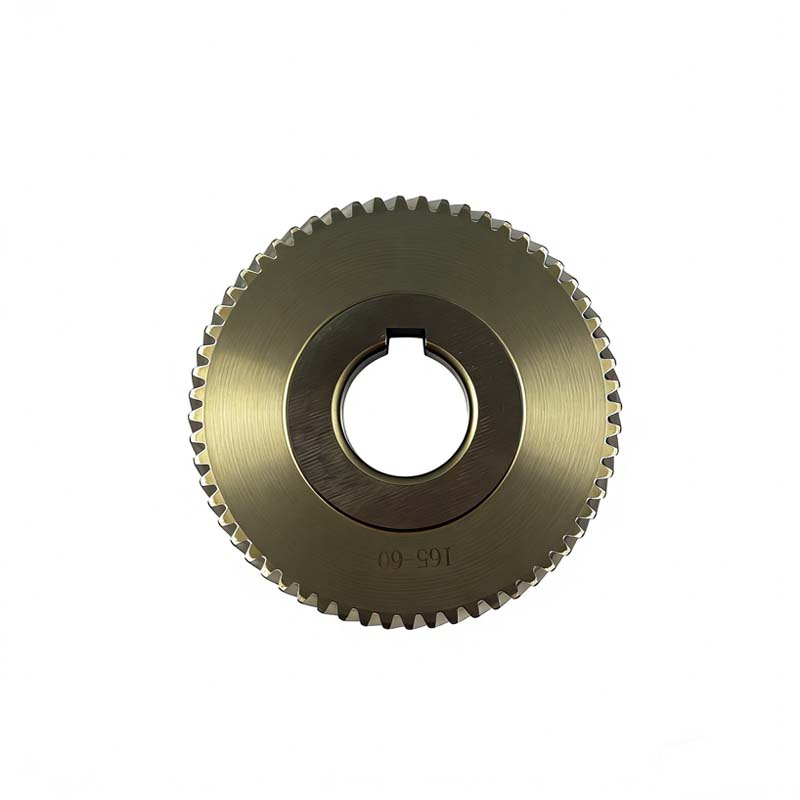

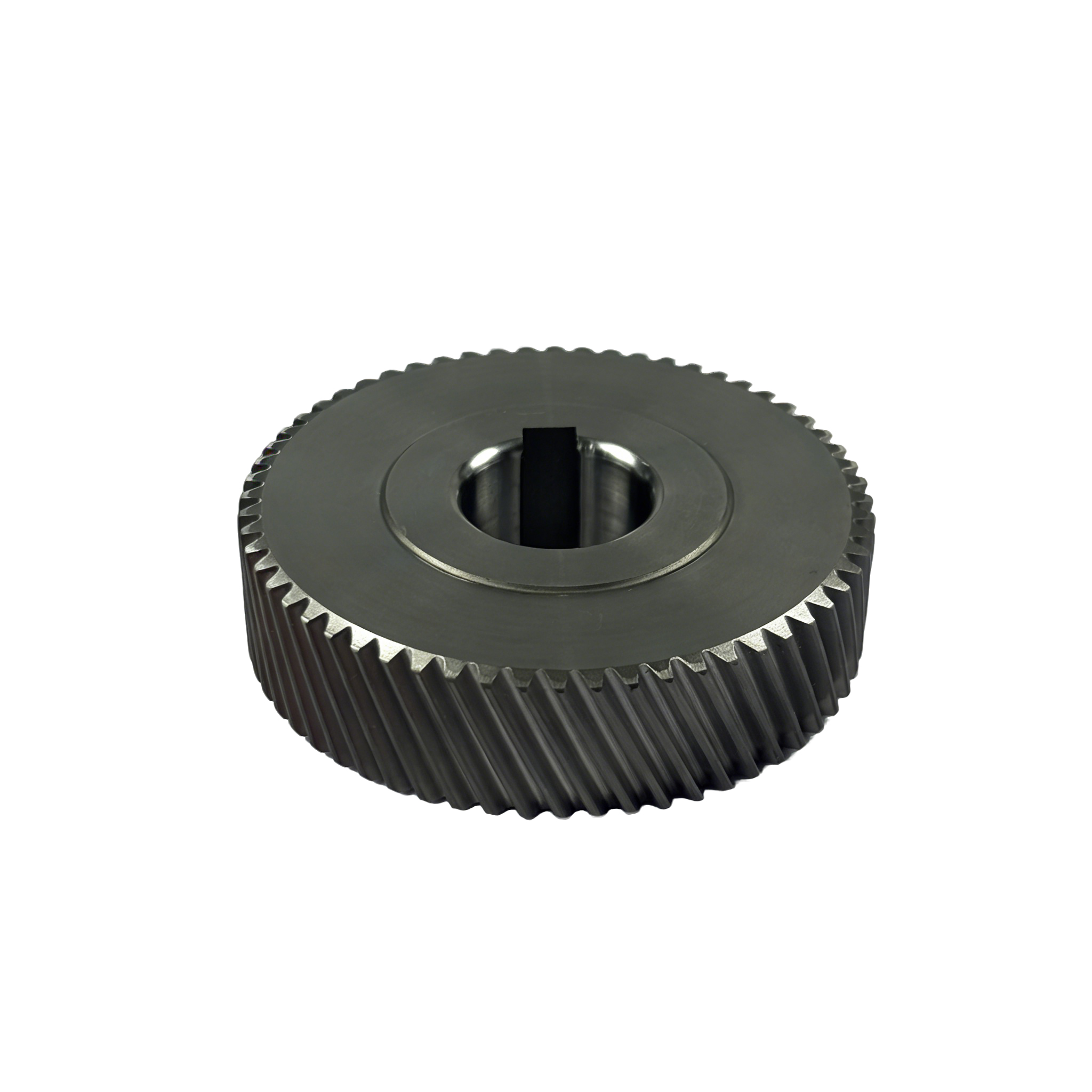

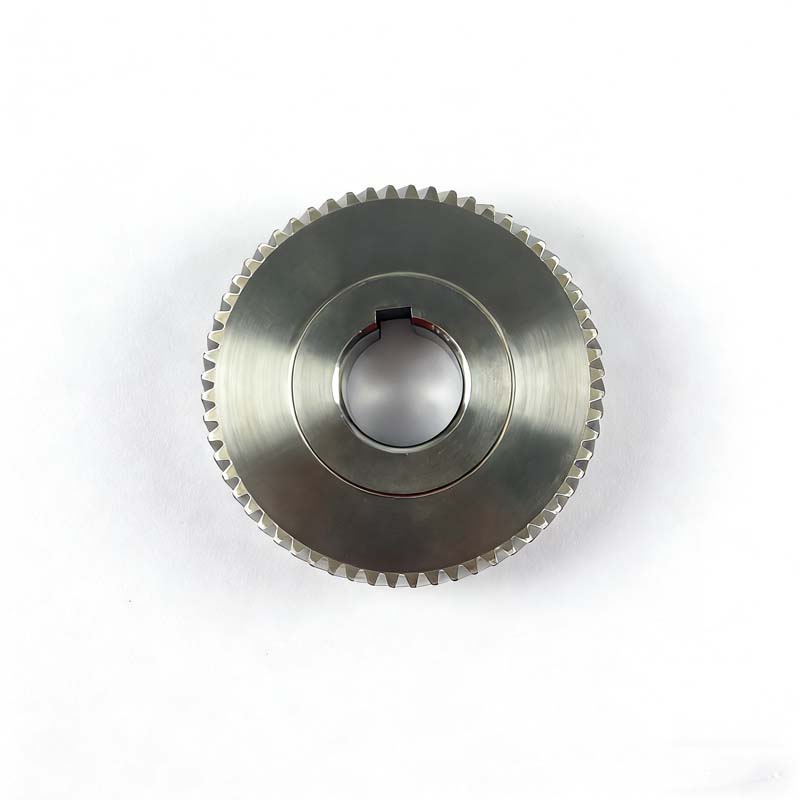

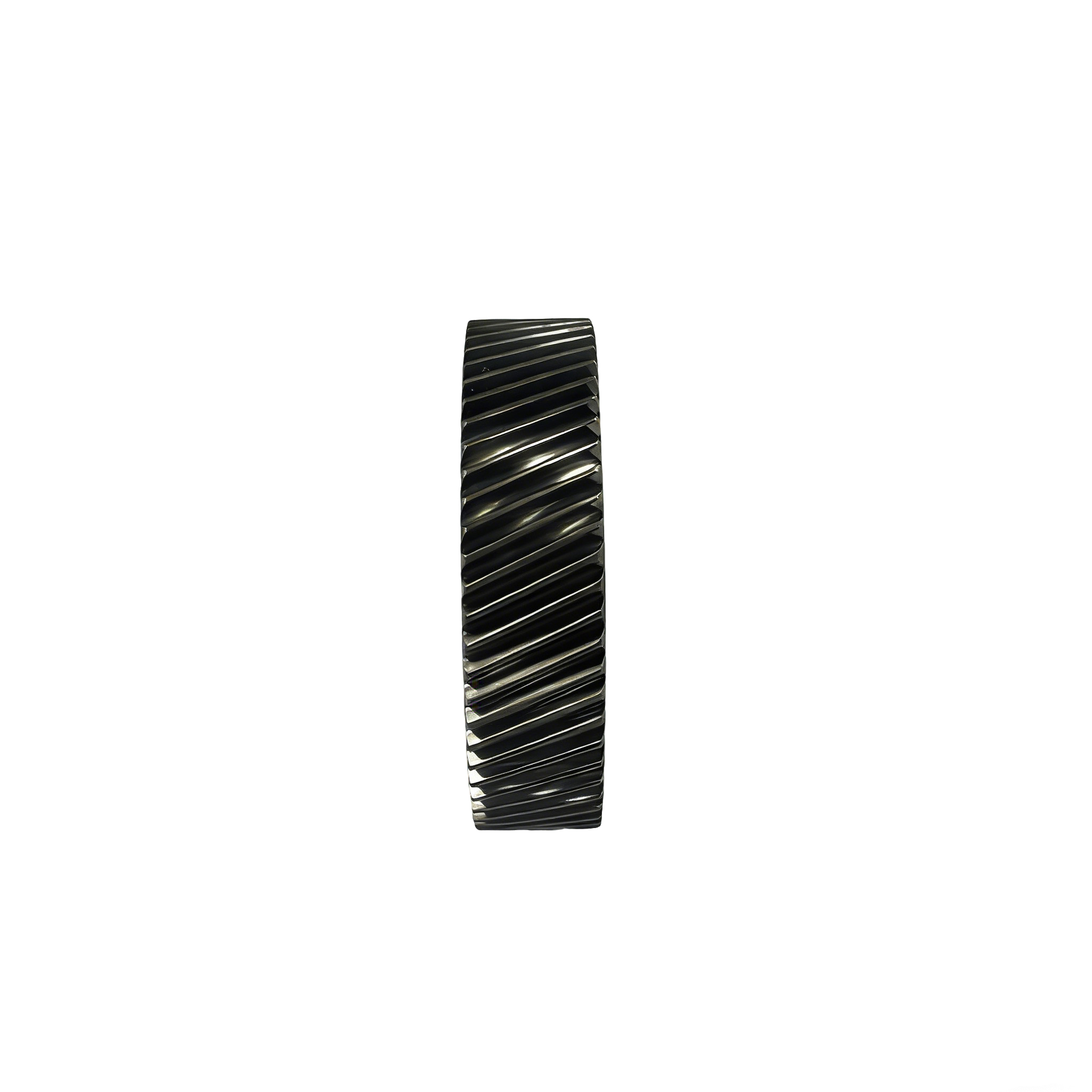

WRM165-SRCL-57-A1 (30900500054) Input Gear
$4.76piece
SPKJ-028-C input helical gear, module 1, 57 teeth, 25° right-hand helix, made of 20CrMnTi for speed reducers.
Description
SPKJ-028-C (Model WRM165-SRCL-57-A1, Part No. 30900500054) is an input helical gear for reducers. It has pressure angle 20°, module 1, 57 teeth, 25° right-hand helix angle, inner diameter 20 mm, gear outer diameter 63.7 mm, total length 18 mm, weight 0.3589 kg. Made of 20CrMnTi through precision processes including sawing, turning, rough hobbing, heat treatment, chamfering, shot blasting, boring & facing, total length grinding, gear grinding and marking. It is mainly used for transmission in reducers.
Additional information
| weight |
0.3589 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
