TKH255-0280-S Motor Gear and TKH255-0290-00 Worm Gear
$25.75piece
TLY-001-C
TKH255-0280-S Motor Spur Gear, module 2, 18 teeth, 20° pressure angle, 20CrMo steel. Manufactured by turning, hobbing, heat treatment, shot blasting, precision gear grinding and wire-cut deburring, marked after processing. High precision and wear-resistant, for reducer motor transmission.
TLY-002-C
TKH255-0290-00 Worm Spur Gear, module 2, 30 teeth, 20° pressure angle, transmission ratio 1:100, 20CrMo alloy steel. Finished via machining center, gear hobbing, heat treatment and precision gear grinding, full inspection before marking. Applied to worm drive of speed reducers.
Description

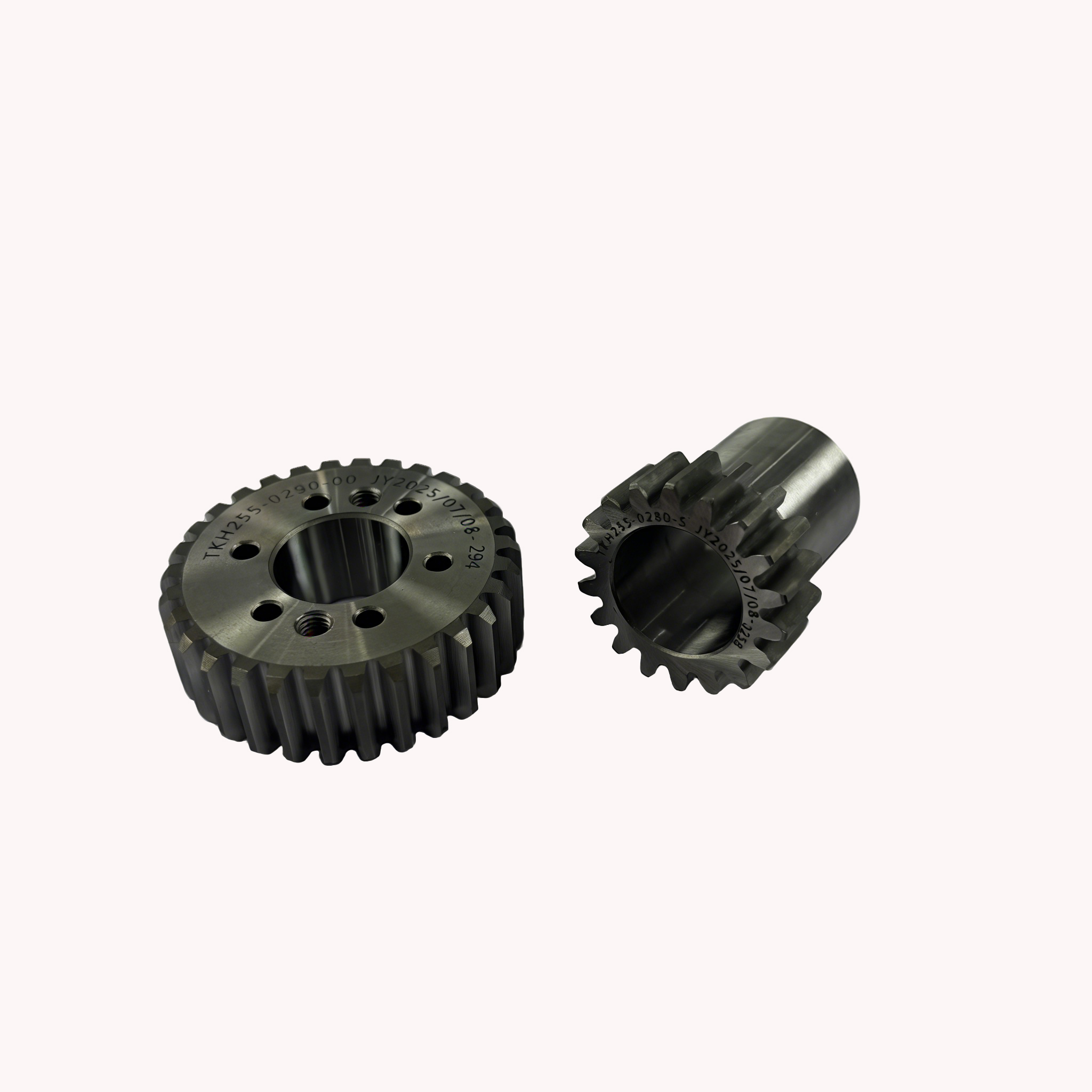

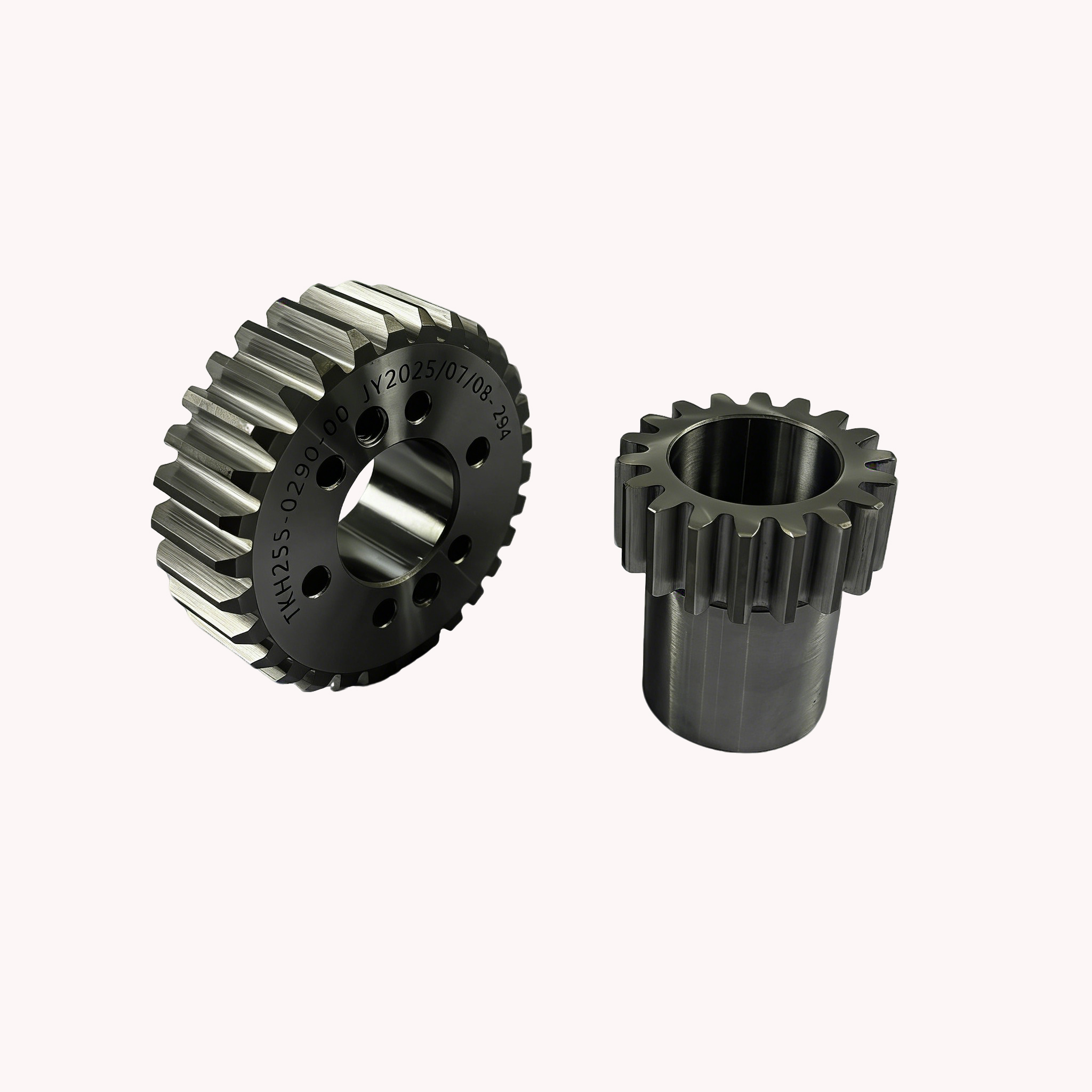

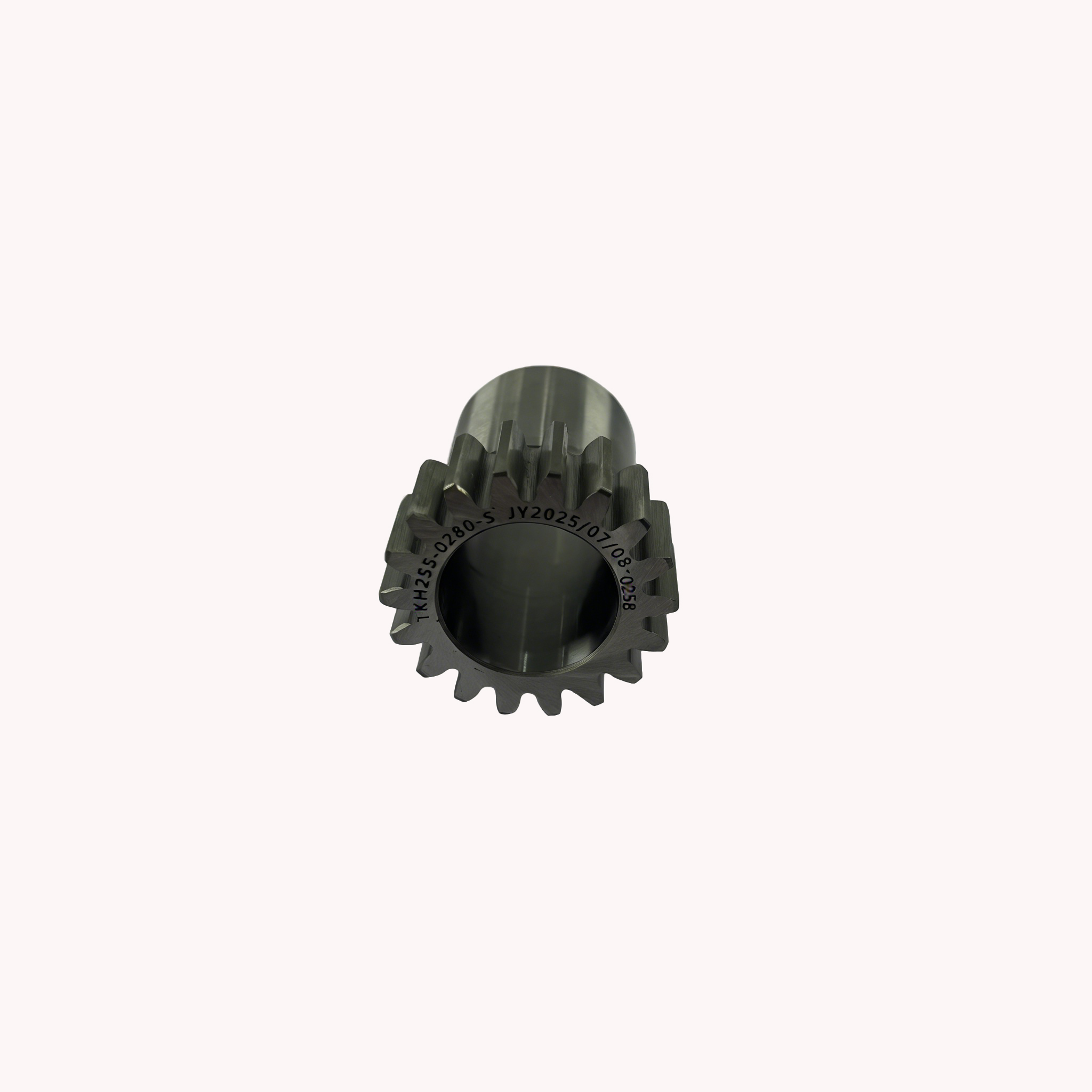

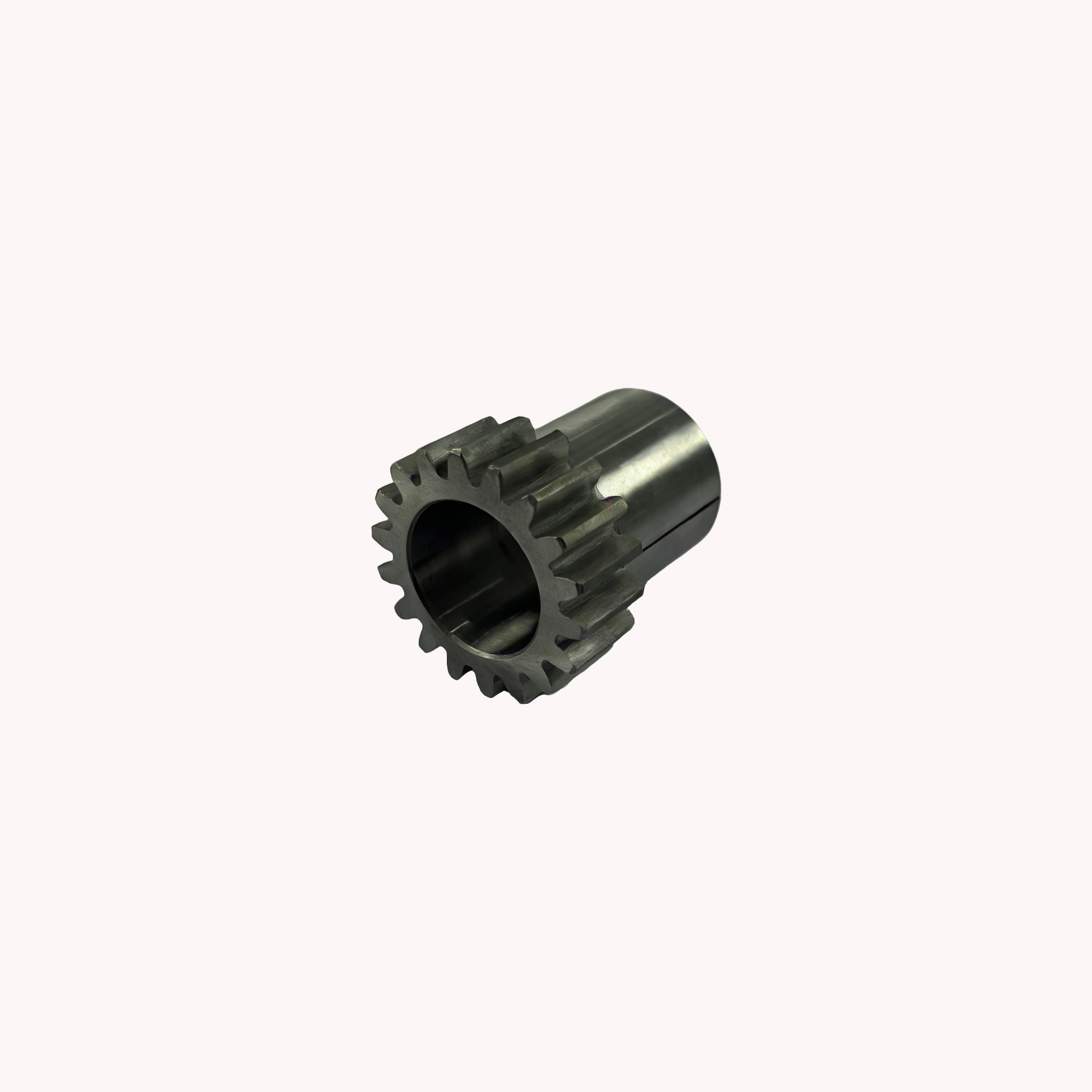

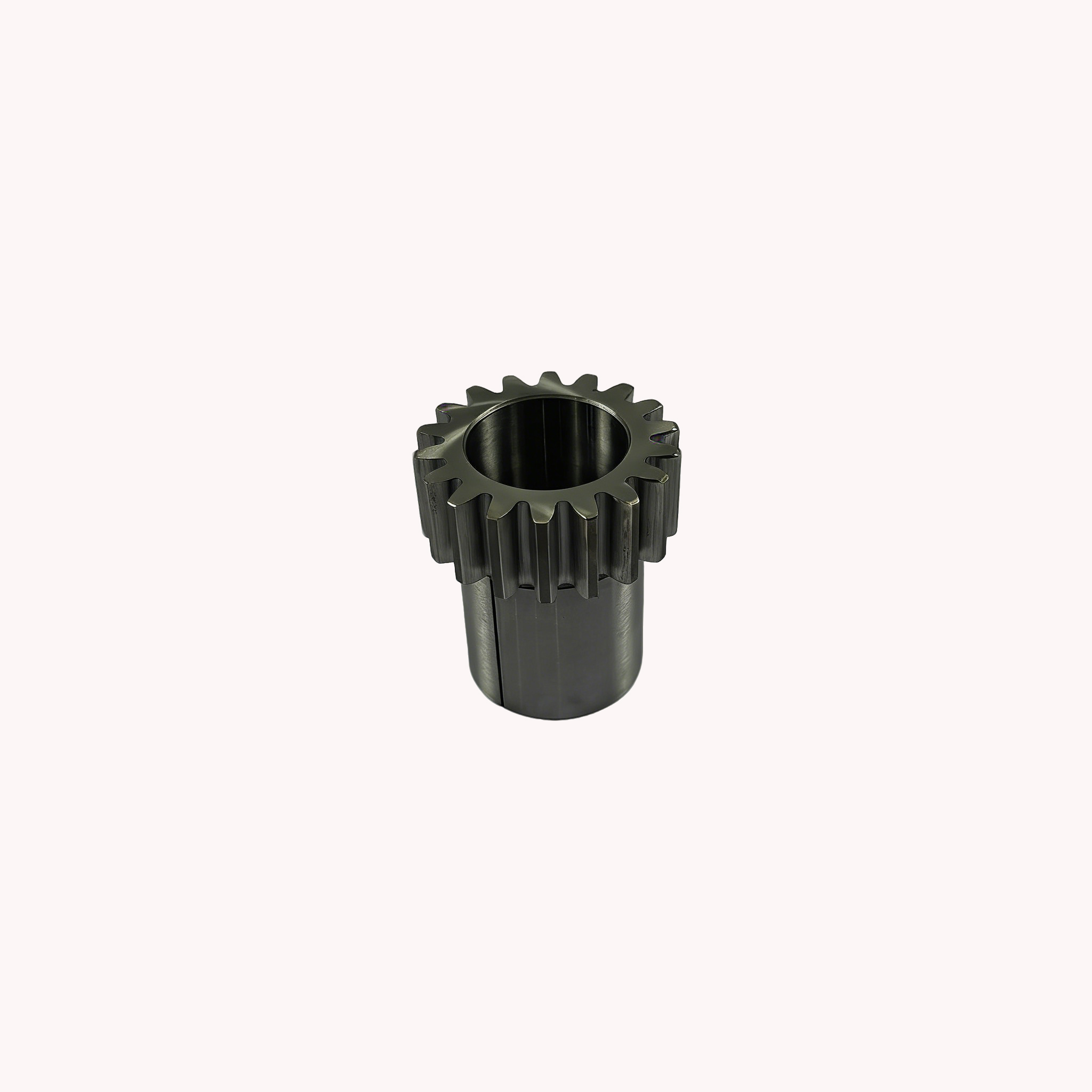

TLY-001-C Part No.TKH255-0280-S Motor Spur Gear
TKH255-0280-S is a standard spur gear with 20° pressure angle, module 2 and 18 teeth, designed for motor end transmission of speed reducers. It has an inner diameter of 24mm, shaft diameter of 30mm, tooth outer diameter of 40mm, overall length of 45mm and unit weight of 0.1283kg.
This gear is made of 20CrMo alloy steel featuring high strength and stable performance after heat treatment. The complete production process includes blank cutting, CNC turning, hobbing, heat treatment, chamfering, hanging shot blasting, boring, outer diameter & facing grinding, multiple surface finishing, precision gear grinding, wire cutting, deburring and product marking.
The finished gear features high tooth precision and smooth surface, delivering smooth transmission and outstanding wear resistance. It serves as the dedicated motor transmission gear for reducers.

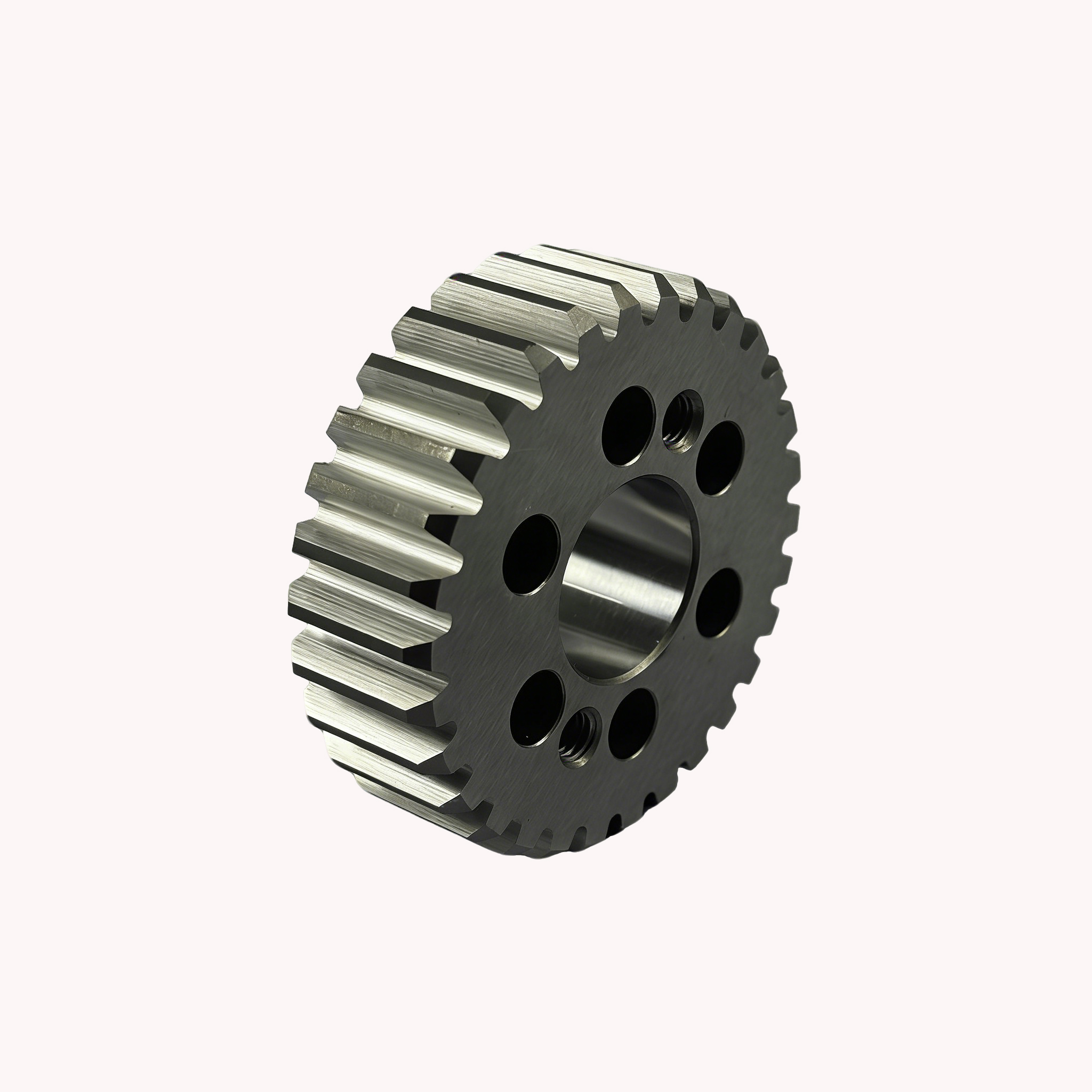

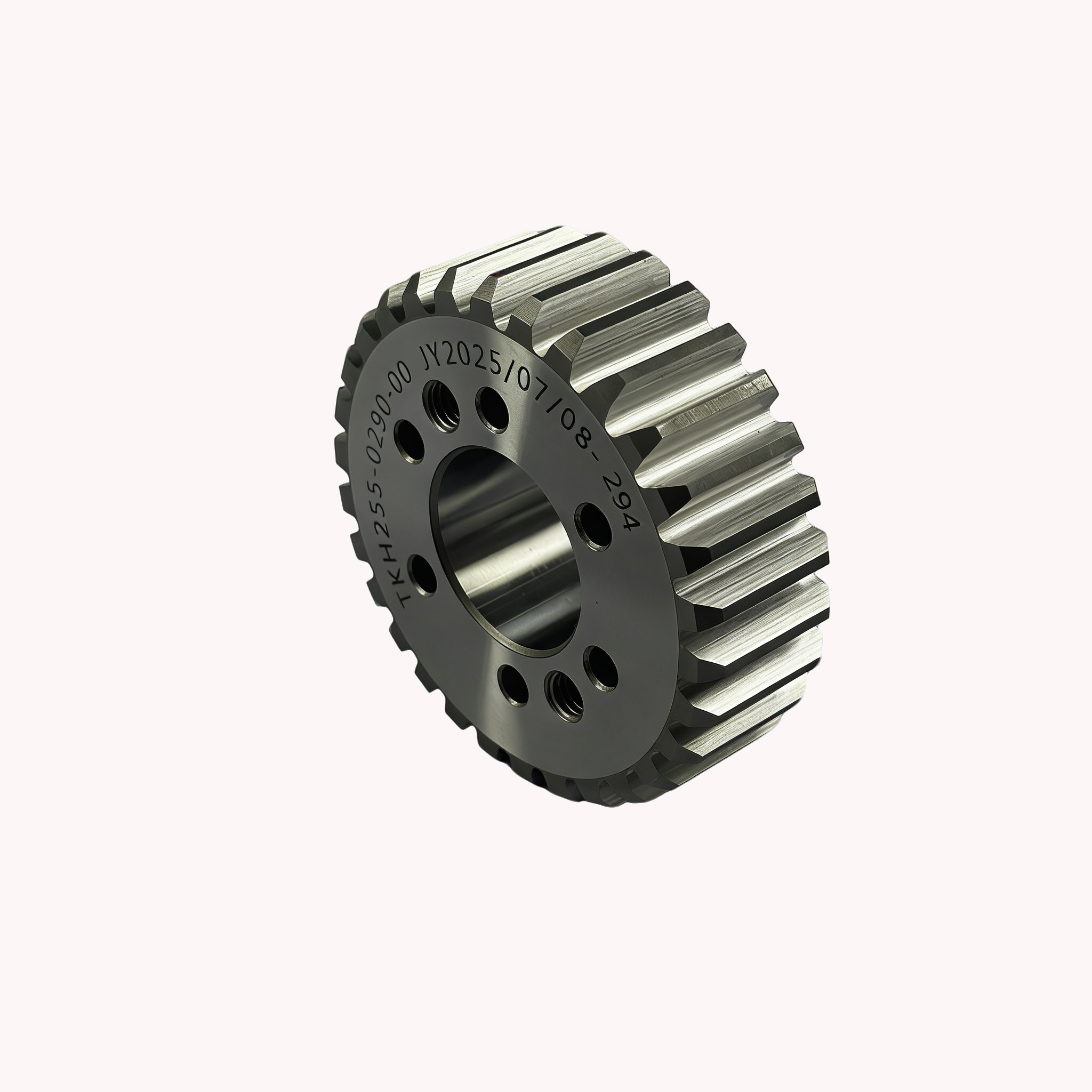

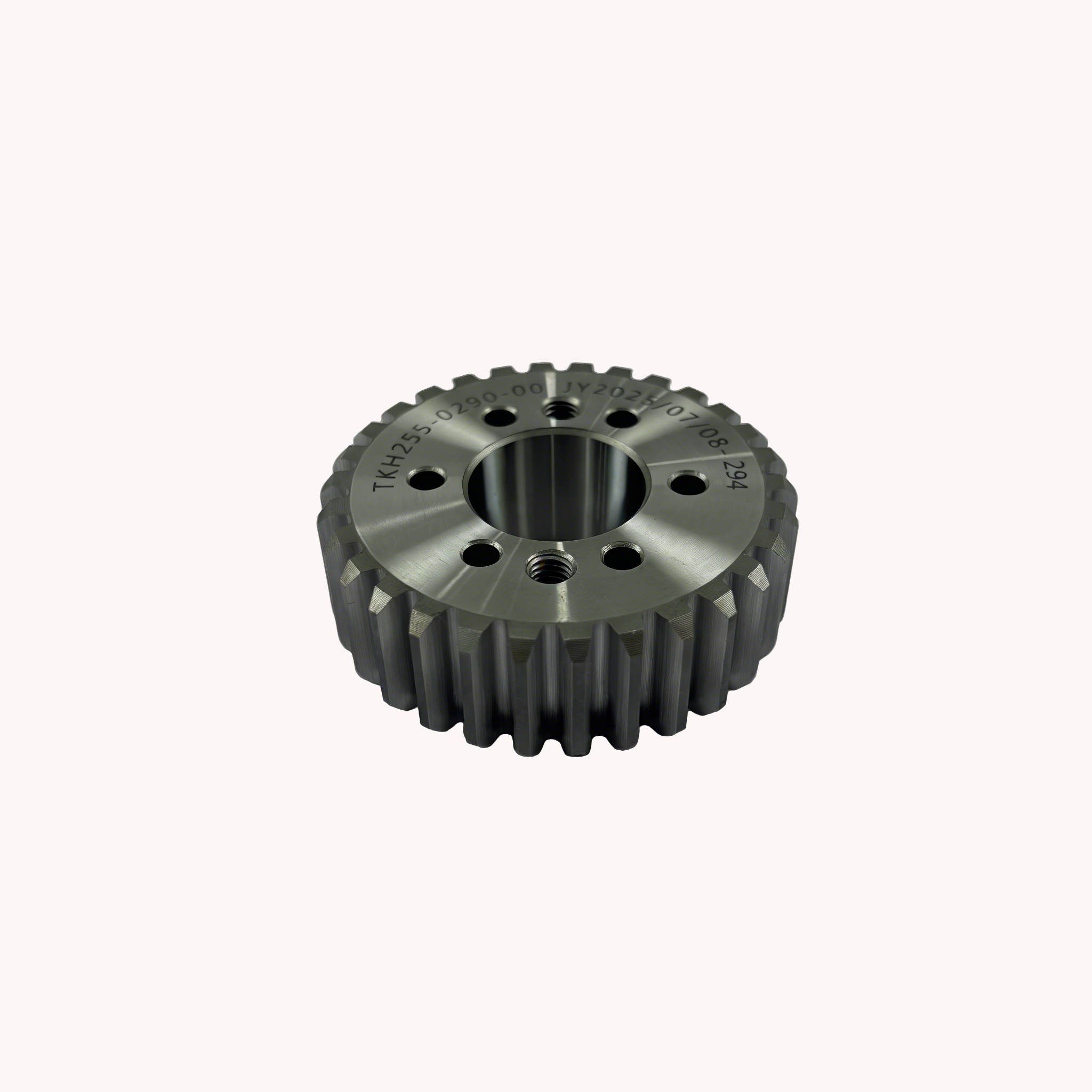

TLY-002-C Part No.TKH255-0290-00 Worm Spur Gear
TKH255-0290-00 is a spur gear matched with worm, with standard 20° pressure angle, module 2, 30 teeth and transmission ratio 1/100 for reducer worm drive systems. Its inner diameter is 24mm, tooth outer diameter 64mm, overall length 20mm and single weight 0.3485kg.
Fabricated from 20CrMo structural alloy steel, the gear boasts strong load capacity and low deformation. Manufacturing procedures: blank cutting, turning, machining center finishing, gear hobbing, hardening heat treatment, hanging shot blasting, boring & facing, surface grinding, precision gear grinding and finished product marking.
With tightly controlled machining tolerances, low operating noise and great fatigue resistance, this gear is a driven gear specially used for worm transmission systems of speed reducers.
