6040-X Feed Gear – Finished Product
$4.30piece

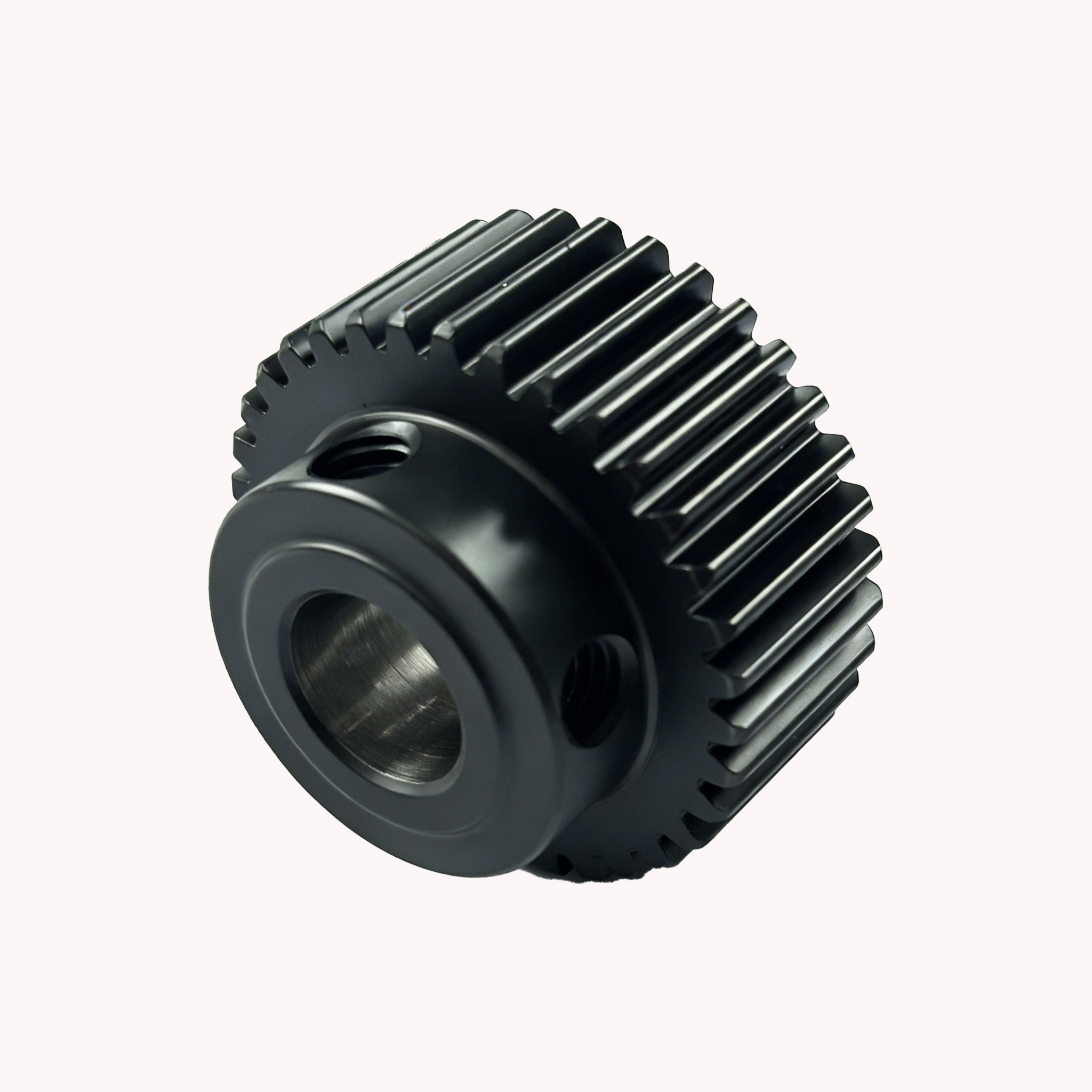

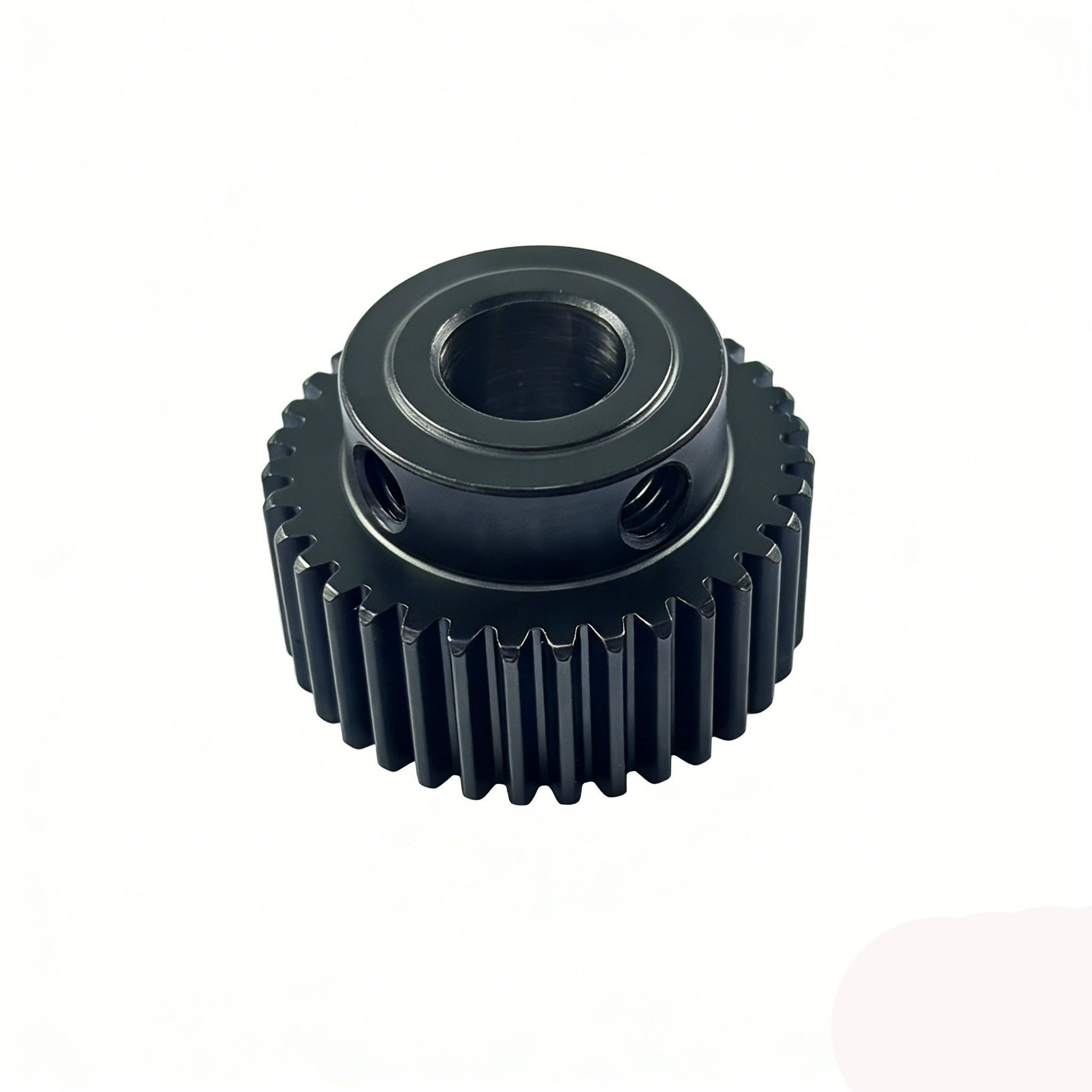

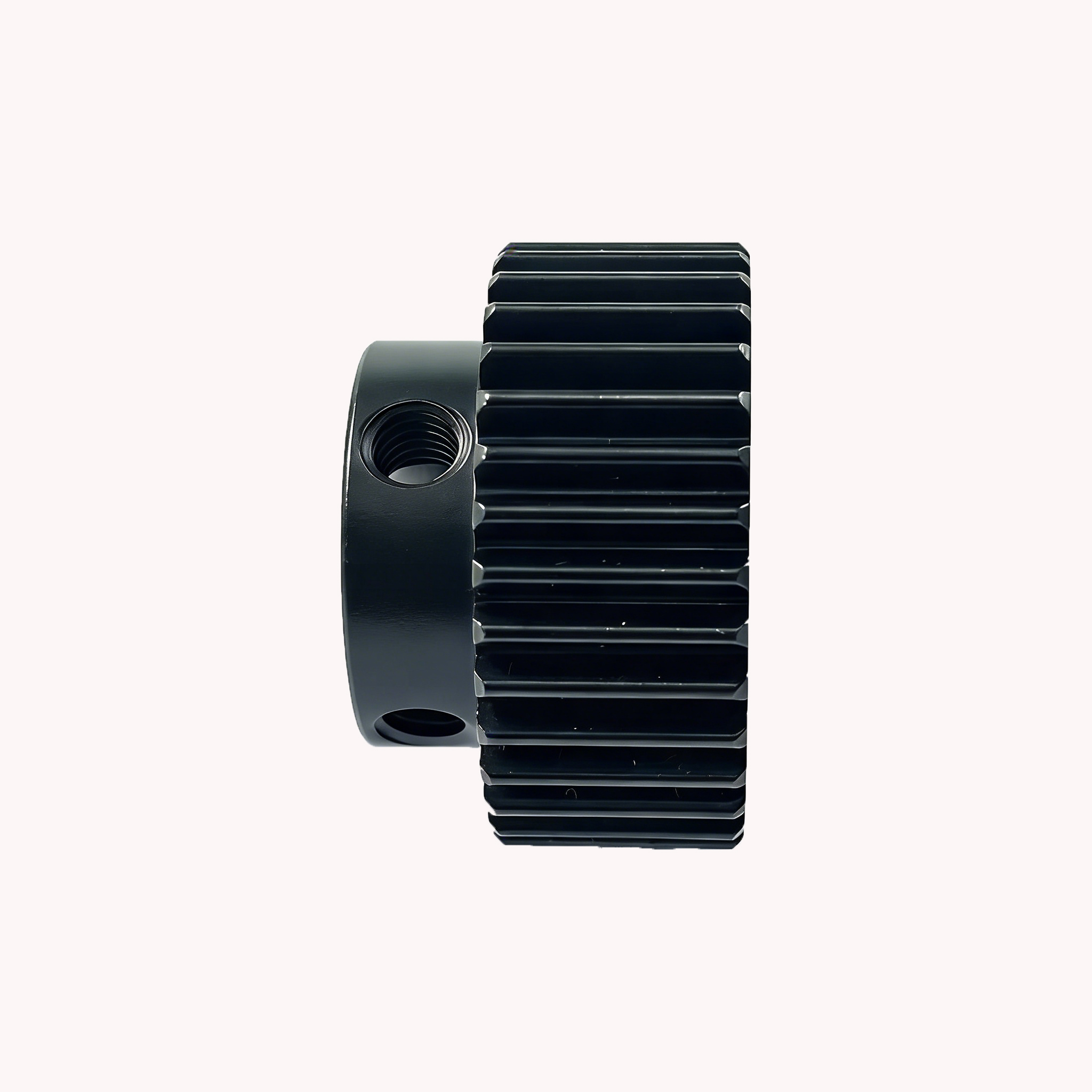

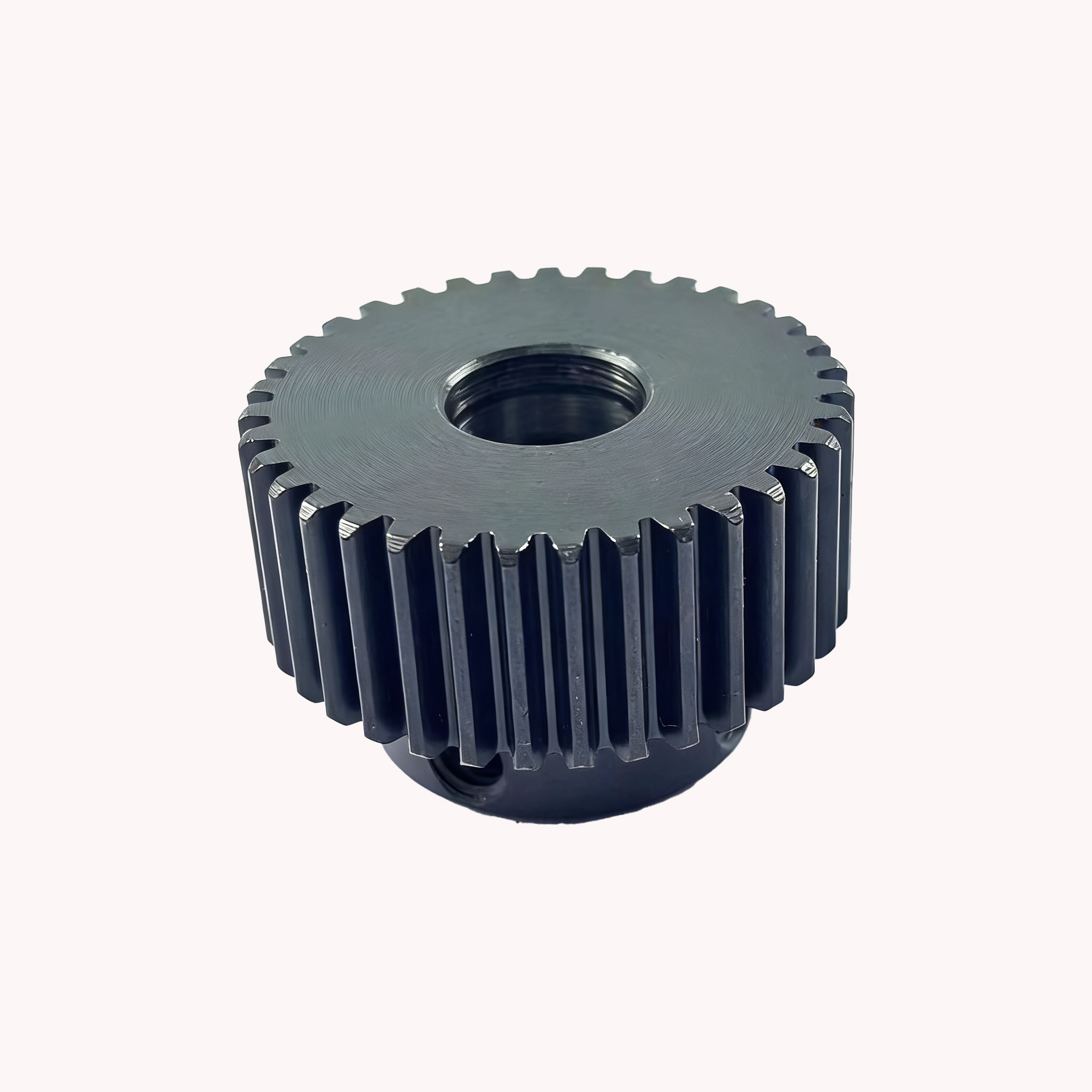

The 6040-X Feed Gear is a finished spur gear made of 20Cr steel. It features a pressure angle of 20°, module of 1, 35 teeth, and a helix angle of 0°, with an inner diameter of 12mm, outer tooth diameter of 37mm, total length of 23.5mm, and unit weight of 0.1202kg. Precision-machined through multiple processes, it serves as a dedicated fabric-feeding component for sewing equipment.
Description
Product Name: 6040-X Feed Gear
Product Category: Finished Spur Gear
This product is manufactured from high-quality 20Cr steel. Its core technical parameters are as follows: pressure angle of 20°, module of 1, number of teeth of 35, helix angle of 0°, inner diameter of 12mm, outer tooth diameter of 37mm, total length of 23.5mm, and unit weight of 0.1202kg.
The product is produced following a rigorous process route: normalizing → turning → screw hole machining → reaming → hobbing → heat treatment → shot blasting → secondary reaming → screw assembly. Each process is strictly controlled for precision to ensure stable product performance.
As a professional sewing machine gear, it is suitable for various sewing equipment, which can accurately realize the fabric feeding function and provide reliable guarantee for the continuity and stability of sewing operations.
Additional information
| weight |
0.1202 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
