SCK200-1-2-02 Bevel Gear
$4.30piece

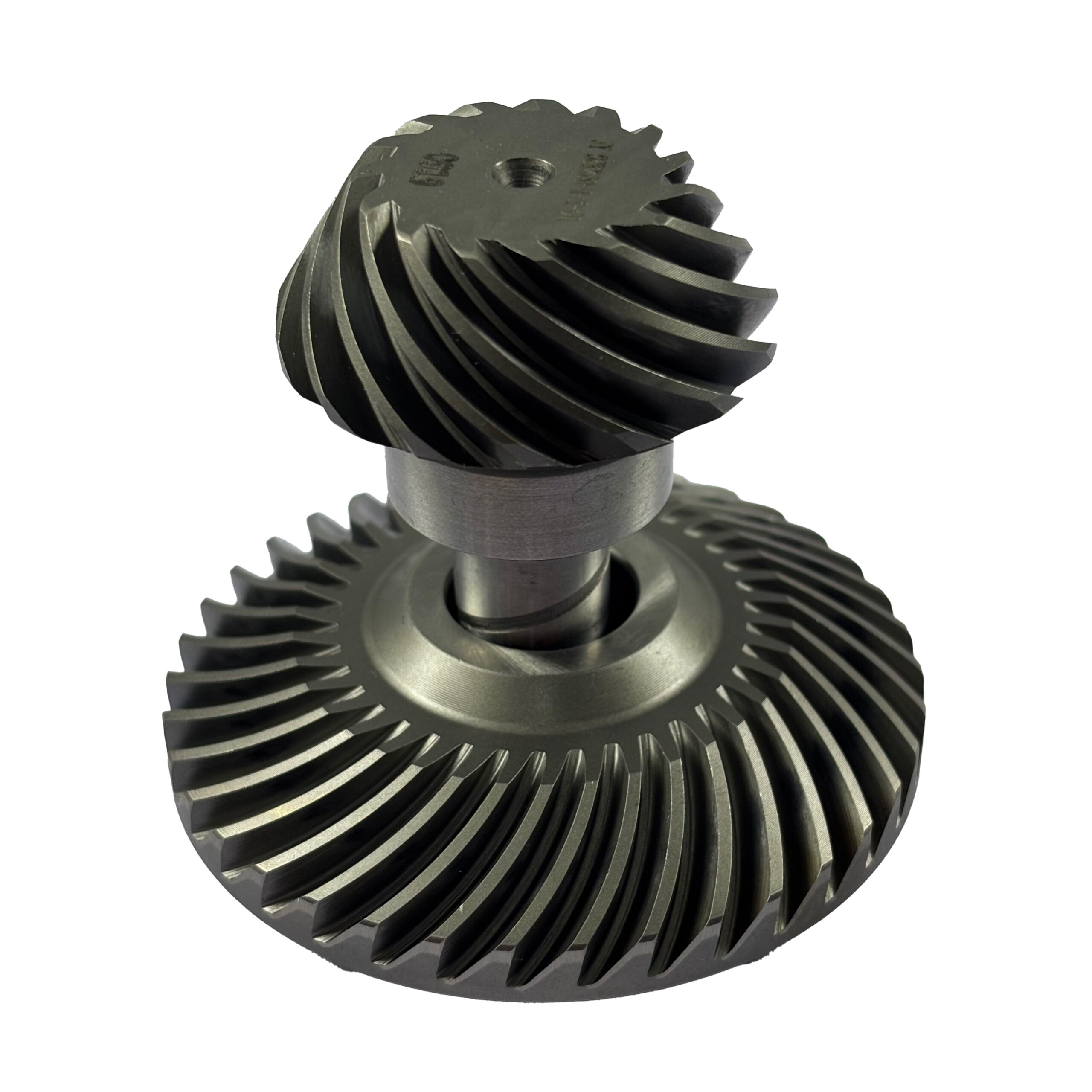

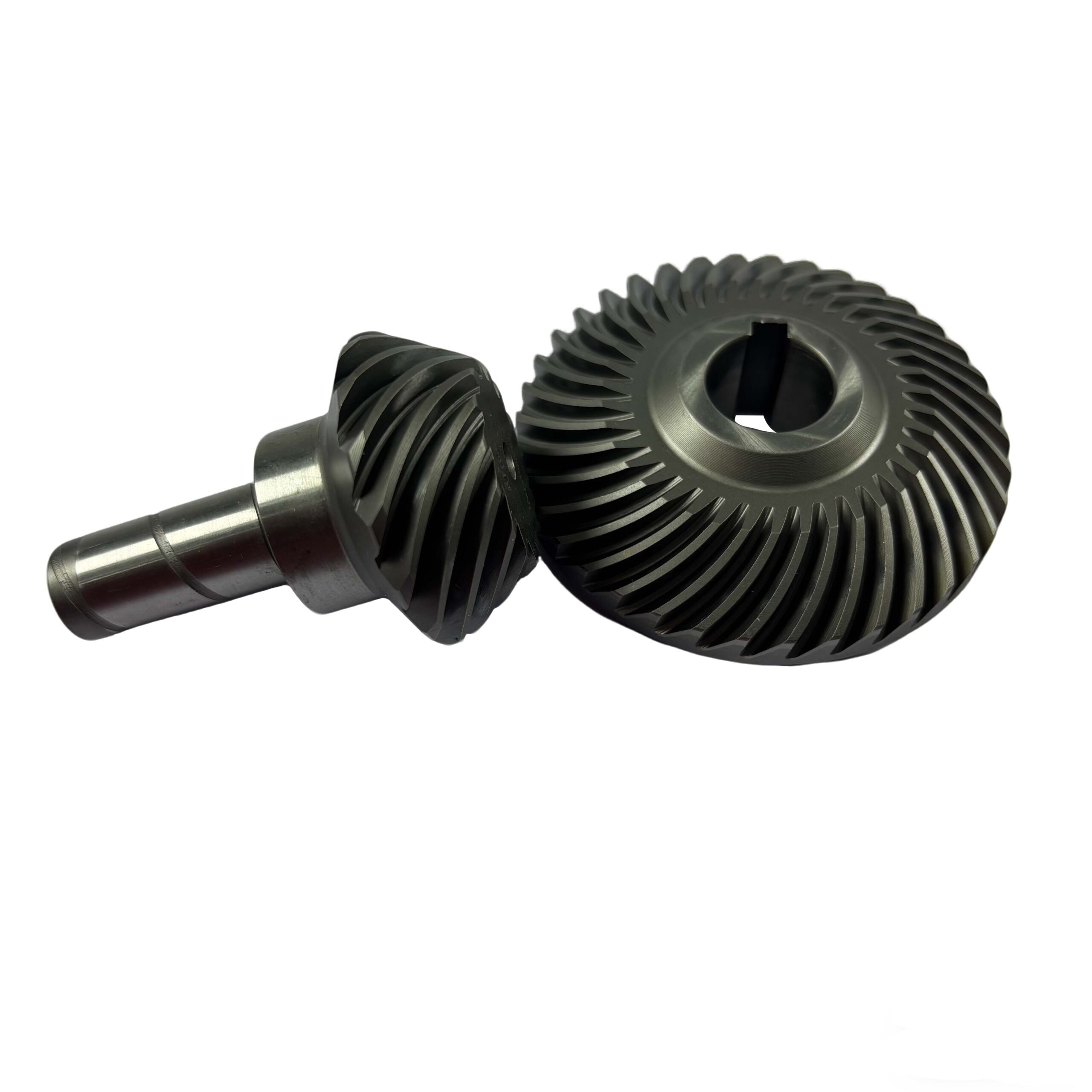

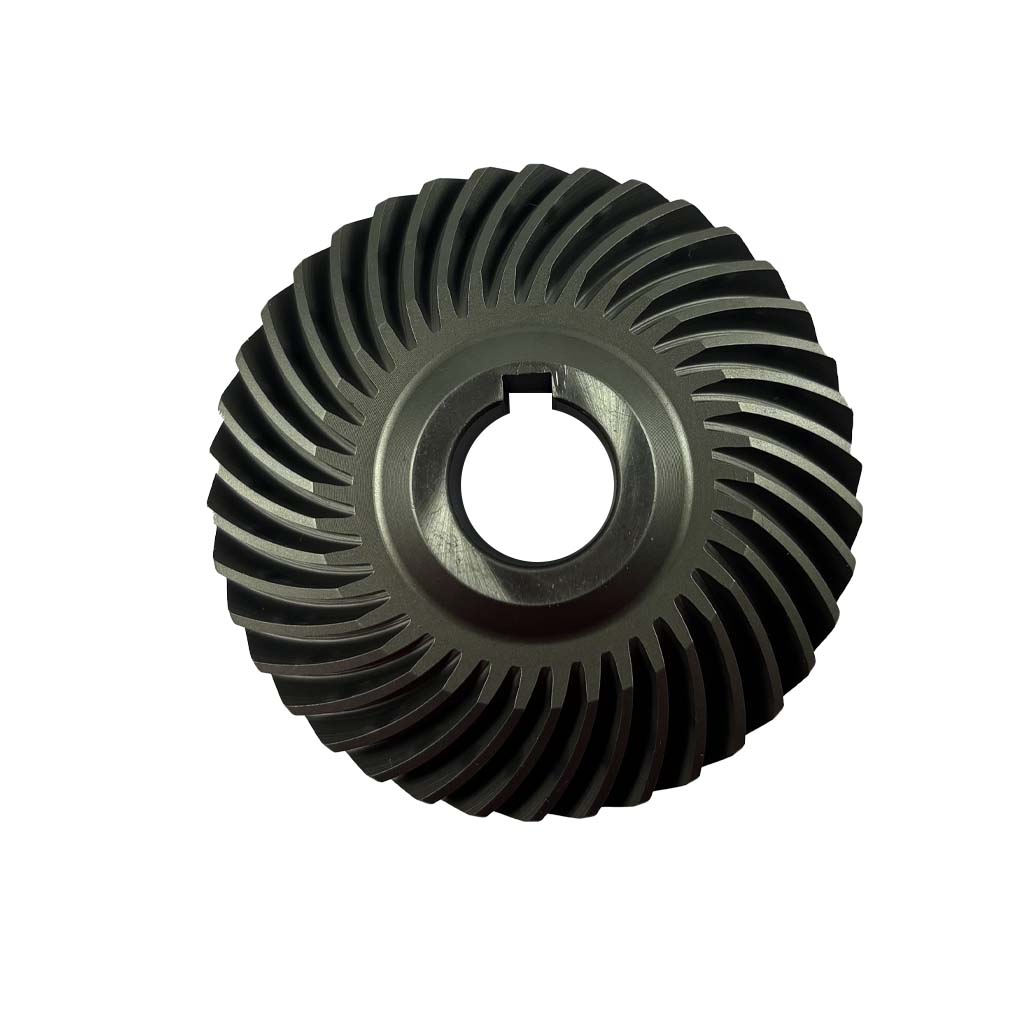

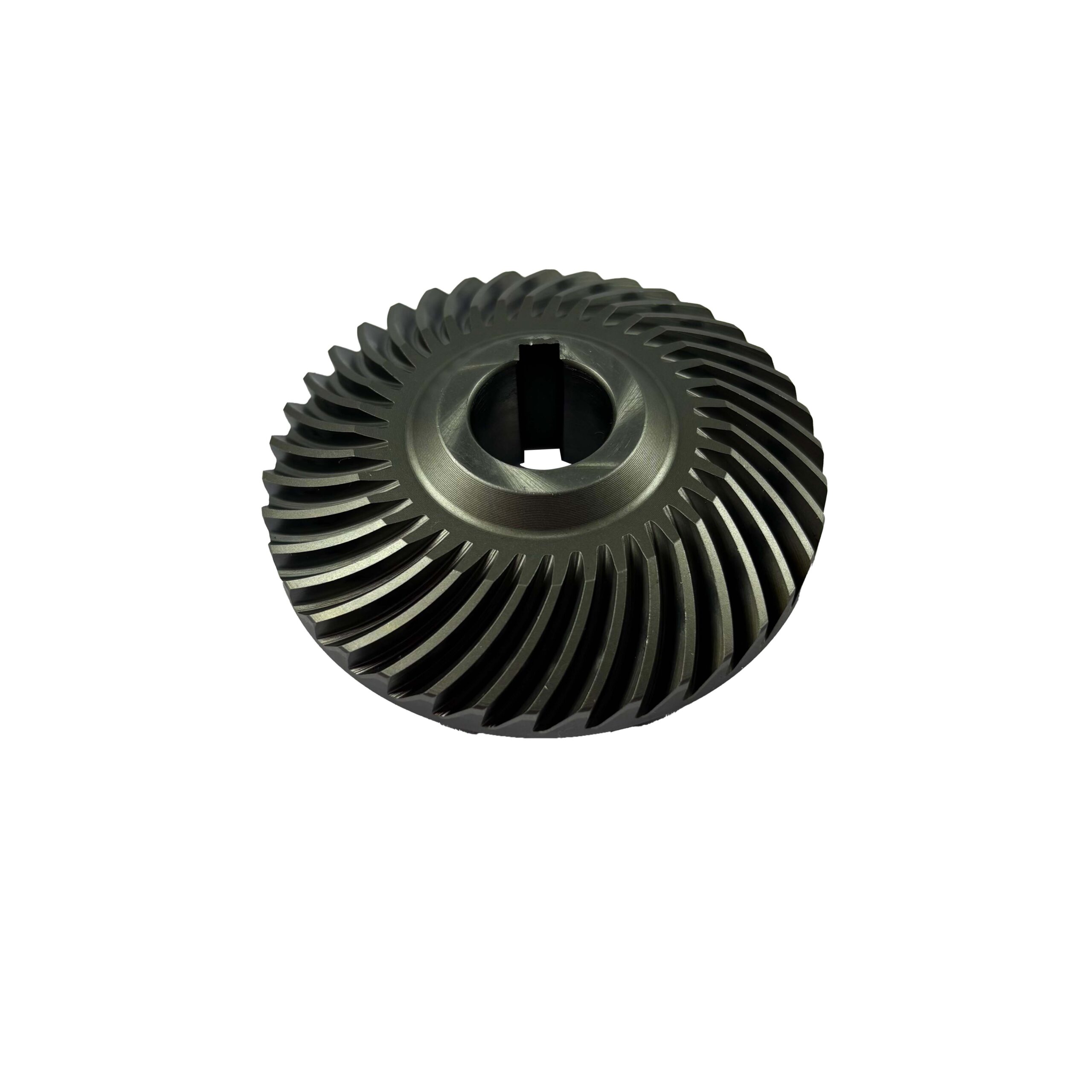

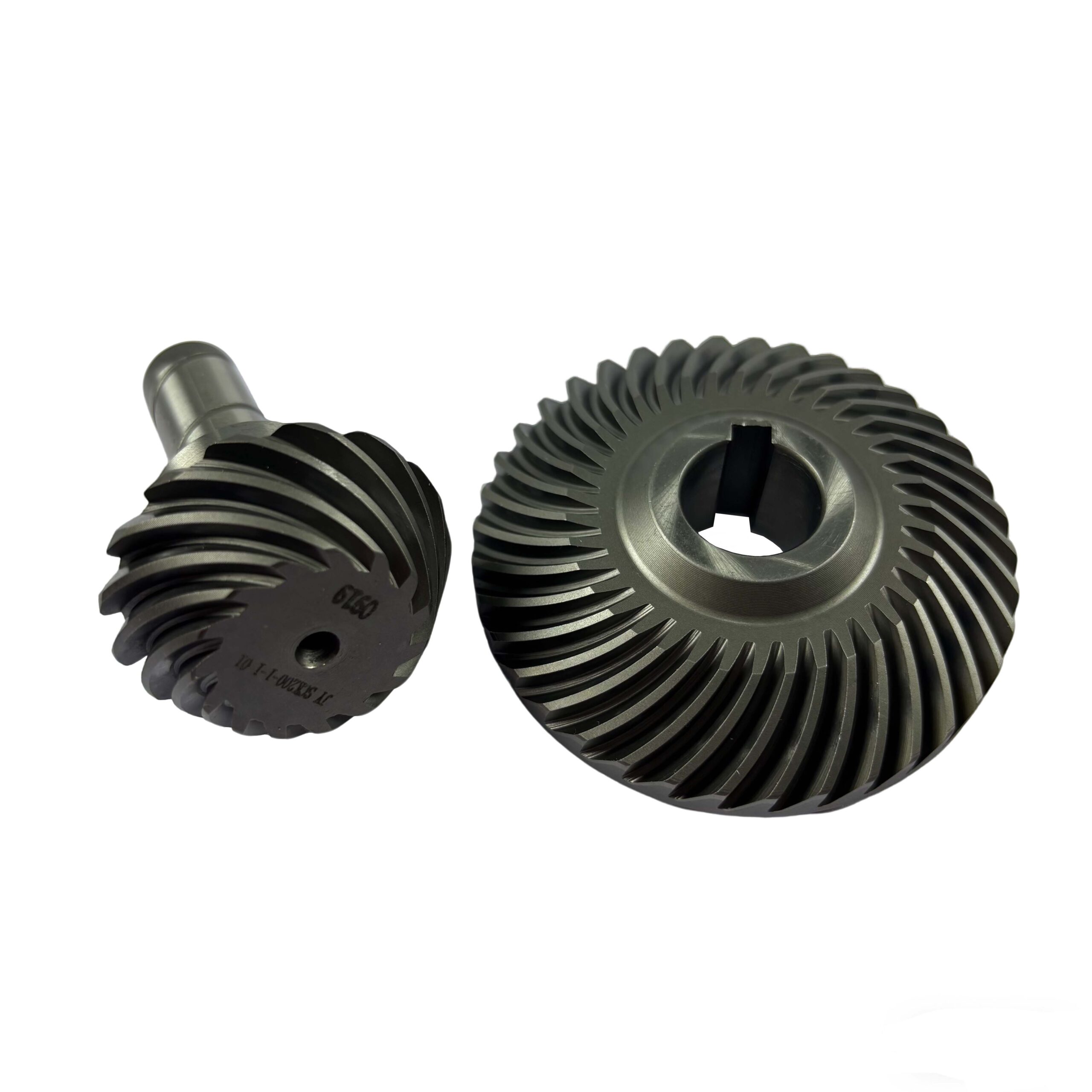

XG-013-C (SCK200-1-2-02) 38T Hypoid Bevel Gear
Made of 20CrMnTi, module 1.84, helix angle 28°47′R, inner bore 17mm, OD 70.5mm, length 20mm, weight 0.2768kg. Processed with precision matched lapping, suitable for reducer transmission.
Description
Model: XG-013-C

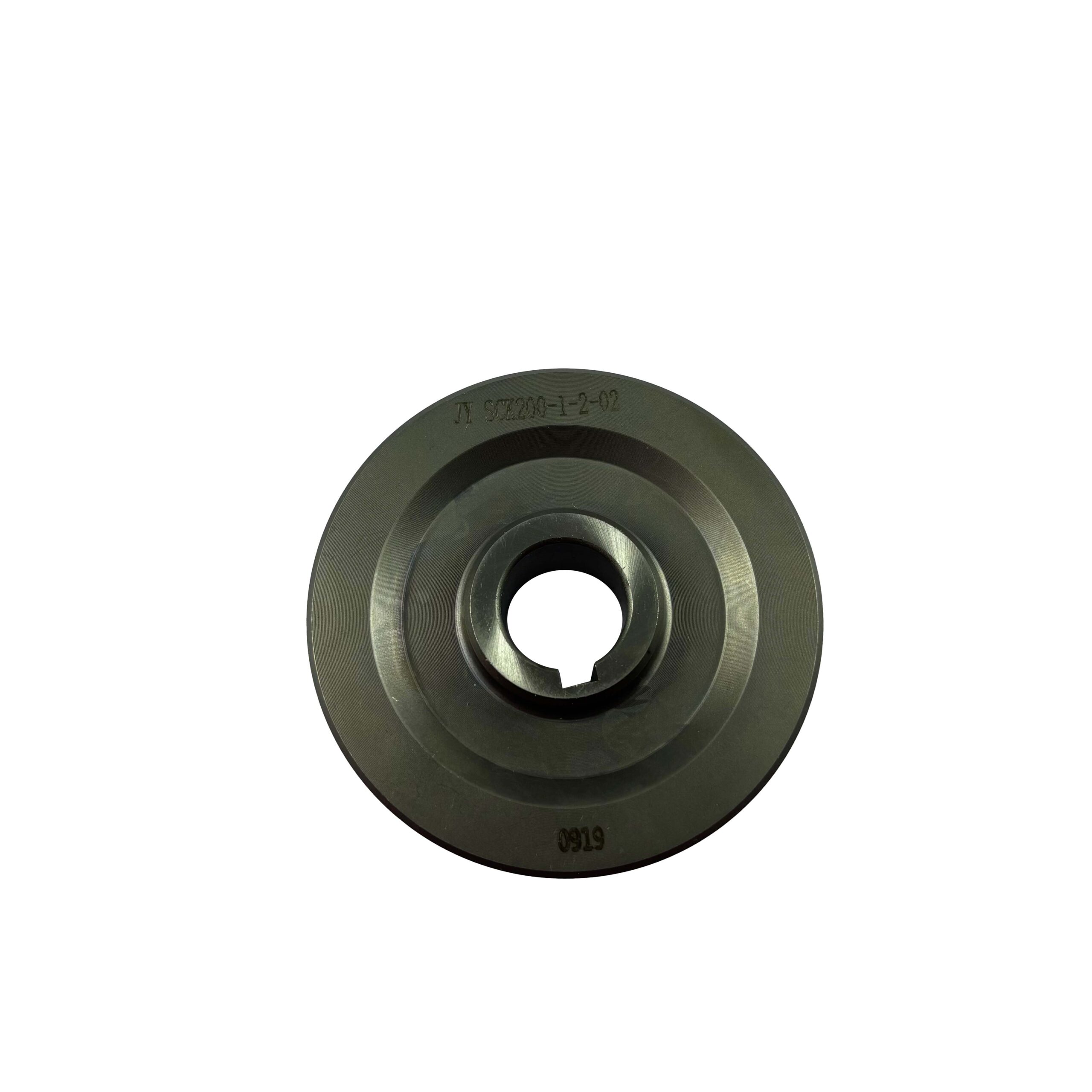

Code: SCK200-1-2-02
Product Name: 38-Tooth Hypoid Bevel Gear
This is a hypoid bevel gear specially designed for reducers, manufactured from 20CrMnTi alloy structural steel. Key parameters: pressure angle 20°, module 1.84, 38 teeth, helix angle 28°47′ Right Hand, inner bore 17mm, outside diameter 70.5mm, total length 20mm, weight 0.2768kg.
The production process includes: normalizing, turning, gear milling, heat treatment, chamfering, shot blasting, reaming, facing, lapping in pairs, marking and full visual inspection. With precision matched lapping and multiple processes, the gear features high meshing accuracy and stable operation, mainly used for power transmission and direction change in reducers.
Additional information
| weight |
0.2768 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Milling |
