D-91-171401-15\Gear
$1.00piece

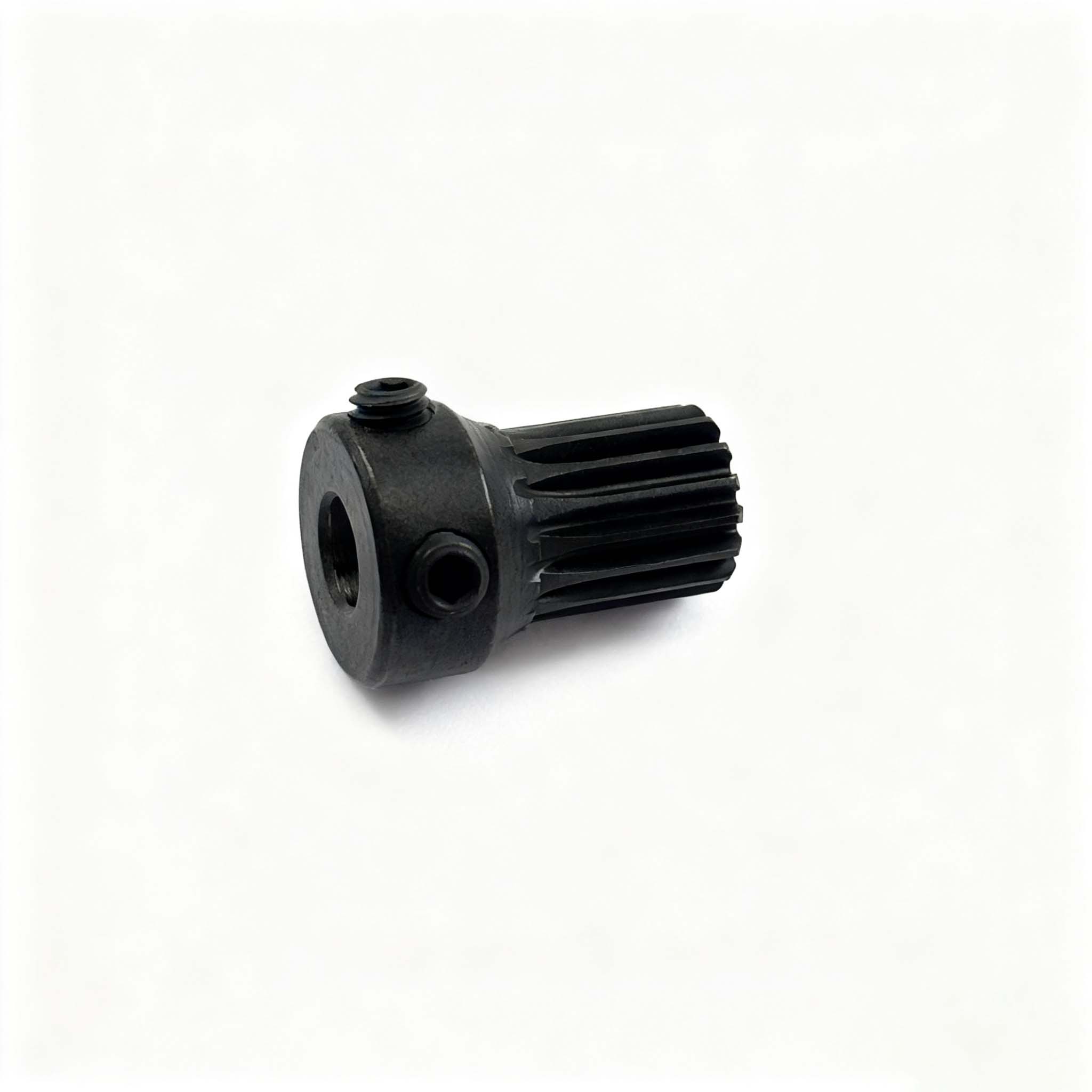

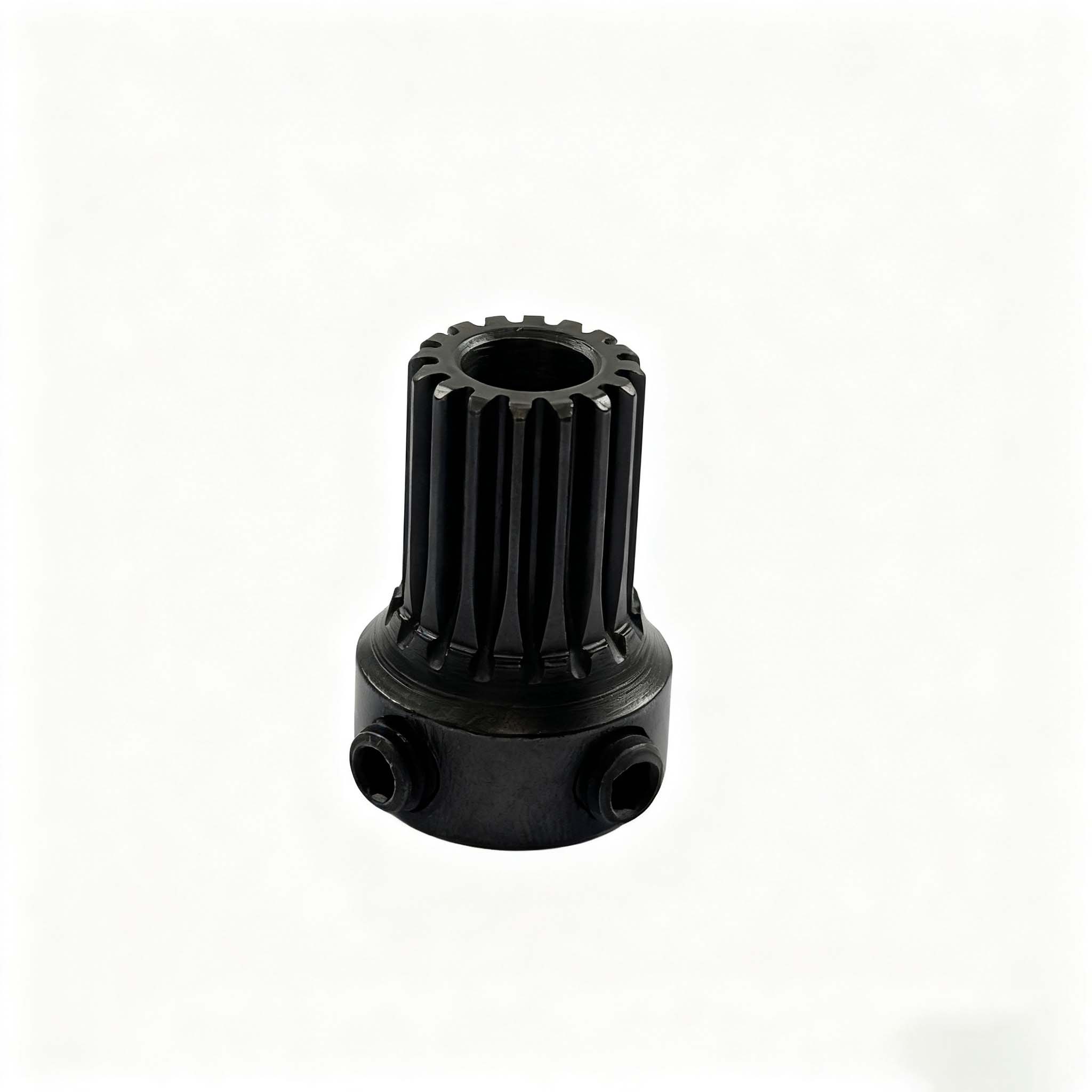

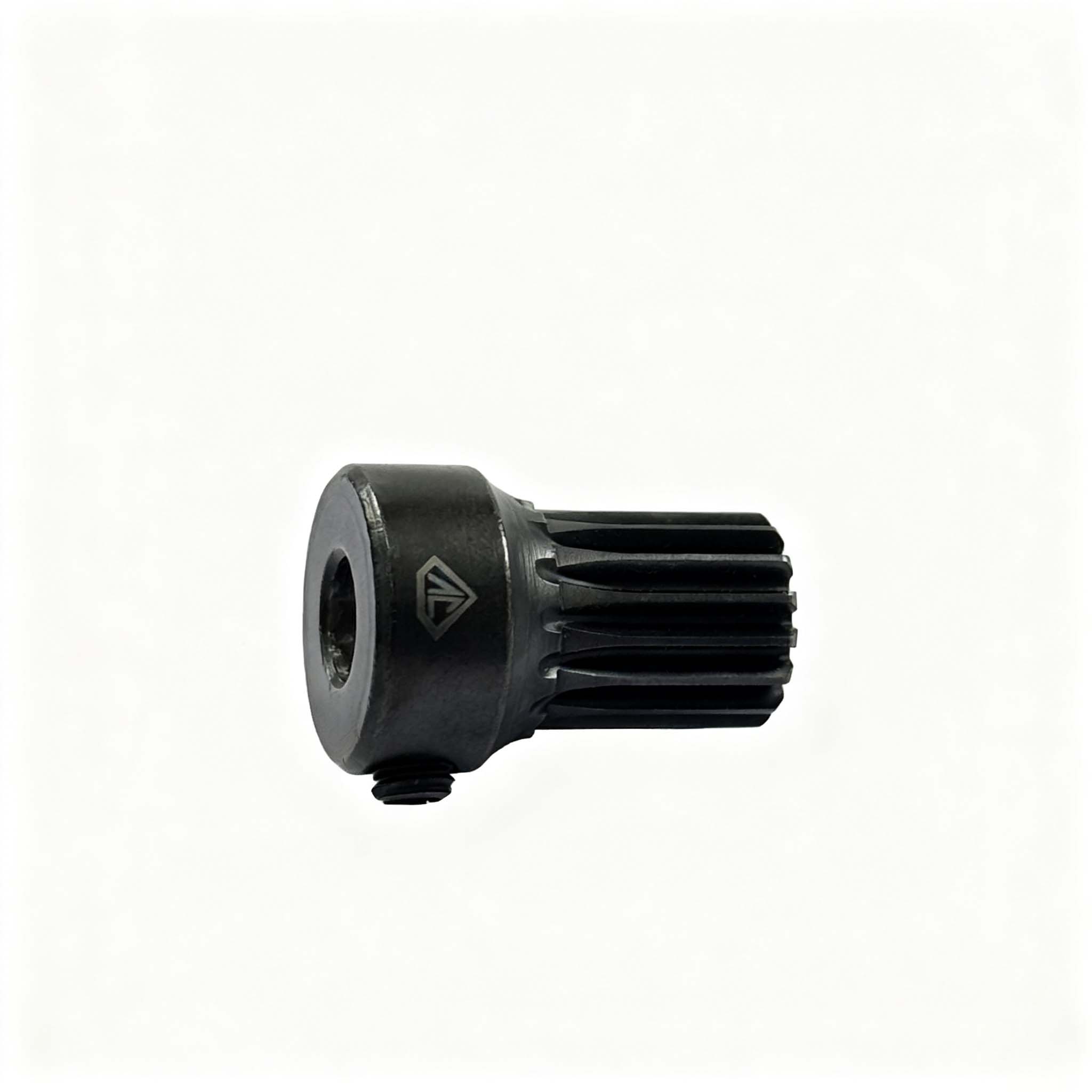

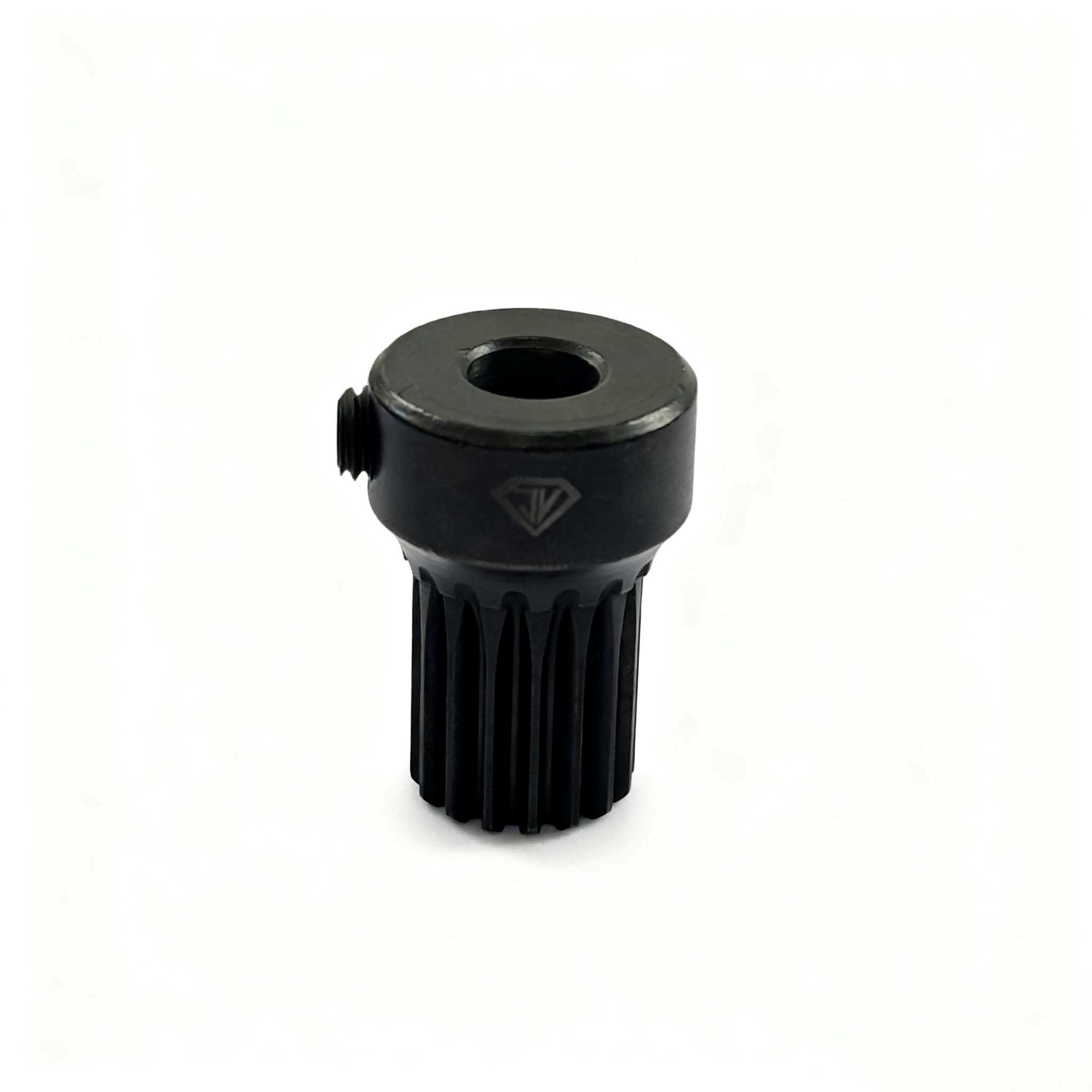

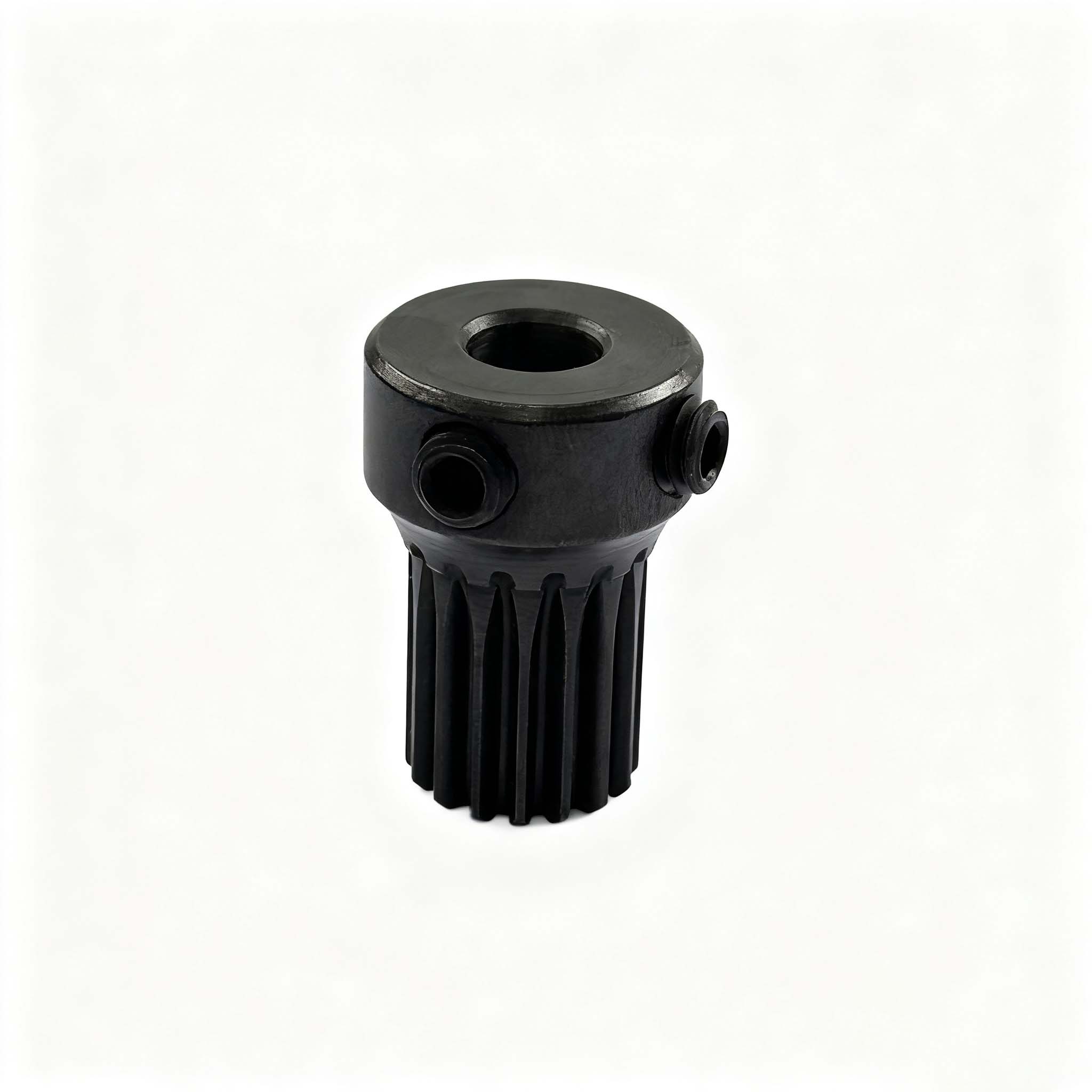

D-91-171401-15\Spur Gear, with pressure angle 20°, module 0.8, number of teeth 16, inner diameter 8mm, tooth outer diameter 14.4mm, total length 29mm and weight 0.031kg. Made of 20CrMo material through multiple precision processes, it is a special transmission component for sewing equipment.
Description
Product Name: D-91-171401-15\Gear
Product Category: Spur Gear

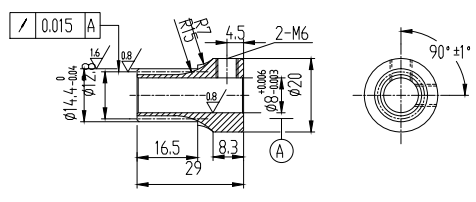

Core Technical Parameters: Pressure angle 20°, module 0.8, number of teeth 16, helix angle 0°, inner diameter 8mm, tooth outer diameter 14.4mm, total length 29mm, weight 0.031kg; Parameters including speed ratio and offset distance are to be supplemented.
Production Process: Adopting a full-process precision manufacturing process, the specific flow is normalizing → turning → threaded hole processing → reaming → hobbing → heat treatment → shot blasting → blackening → reaming → screw assembly → marking. Multiple processes are closely connected and strictly controlled, effectively ensuring the dimensional accuracy, structural stability and assembly adaptability of the gear.
Product Material: 20CrMo material is selected. This material has excellent strength, toughness and wear resistance, which can meet the mechanical performance requirements of the gear during transmission and extend the service life of the product.
Application Field: It is a transmission gear specially designed for sewing equipment. It can accurately adapt to the transmission system of sewing machinery, realize stable and efficient power transmission, and ensure the stable operation of sewing equipment.
Additional information
| weight |
0.031 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
