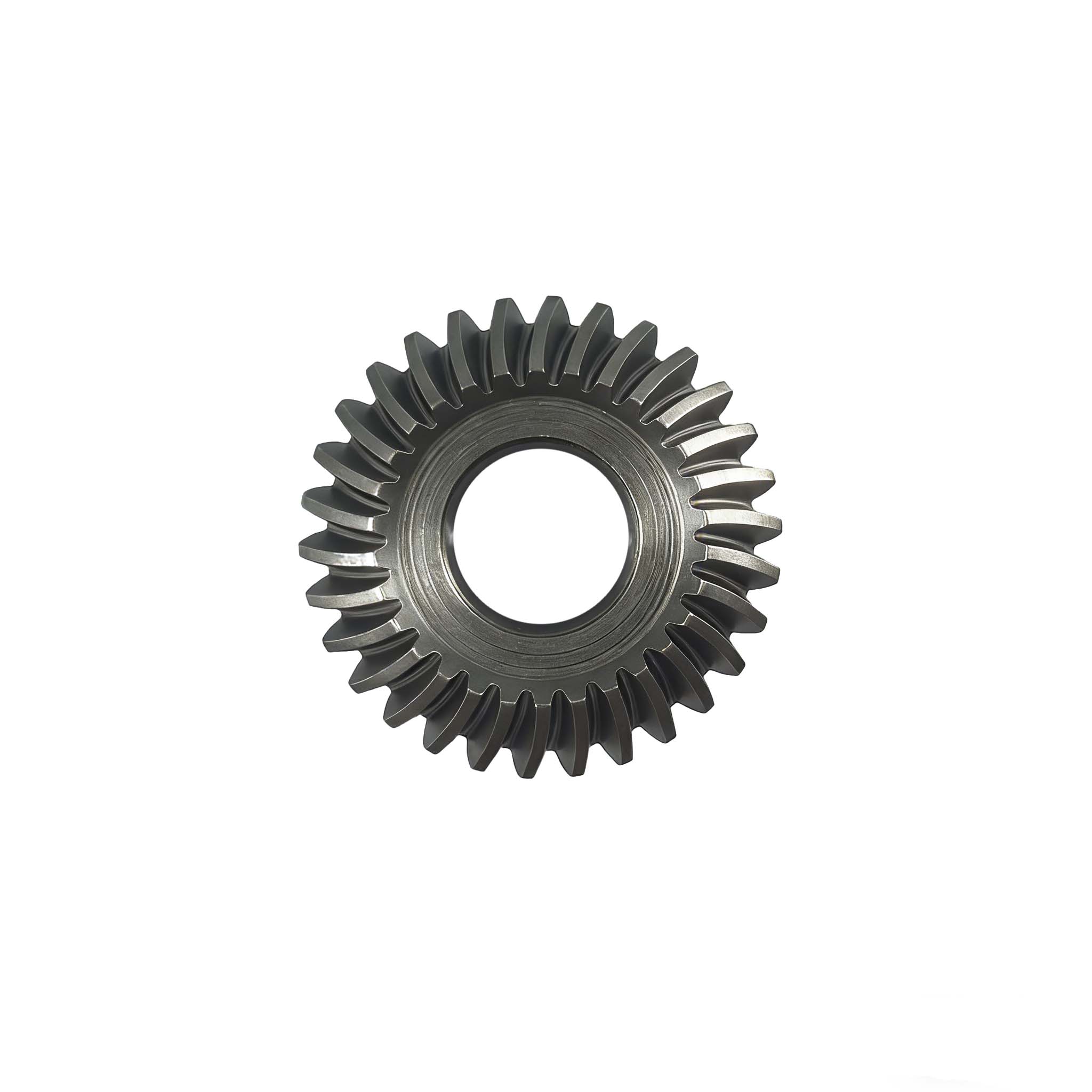

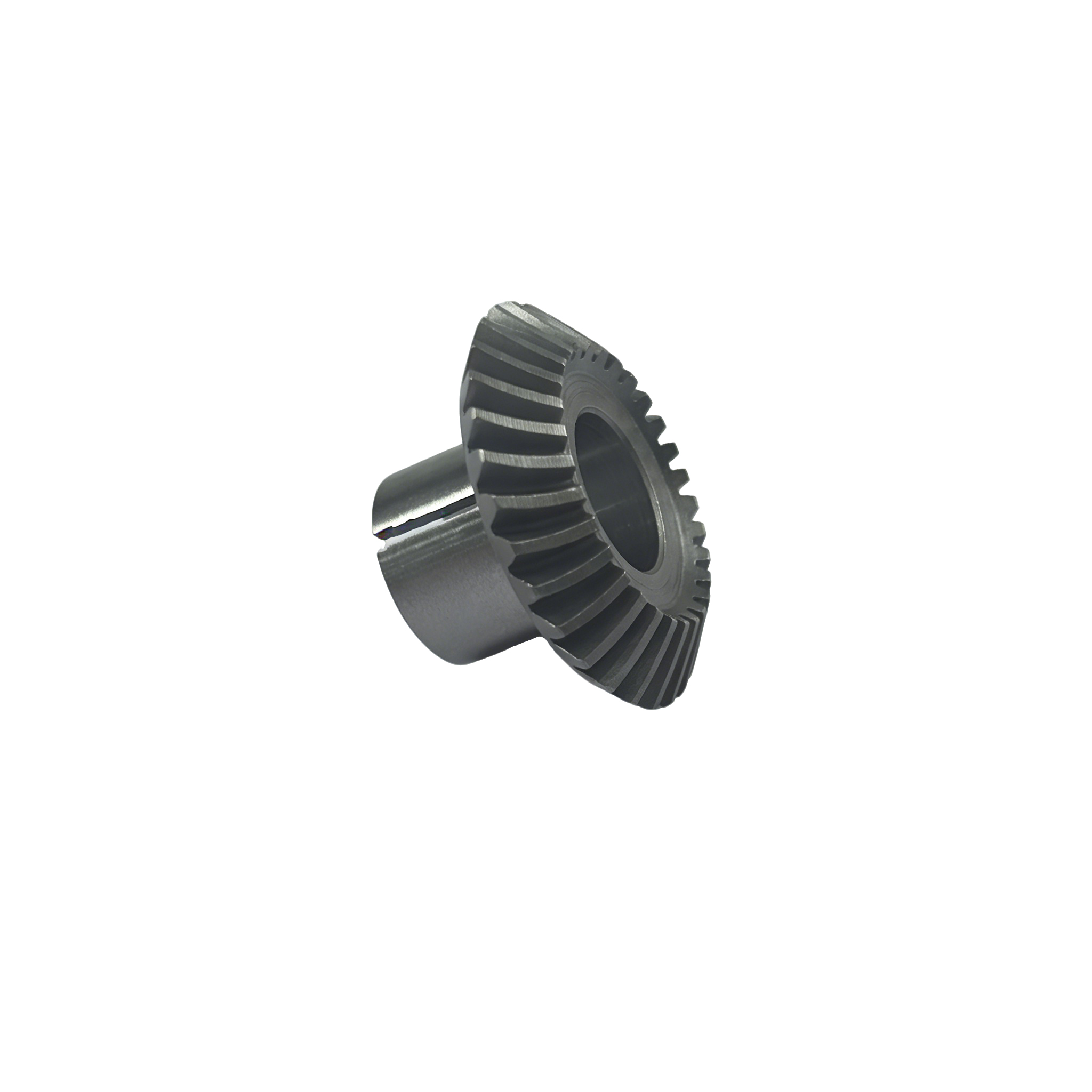

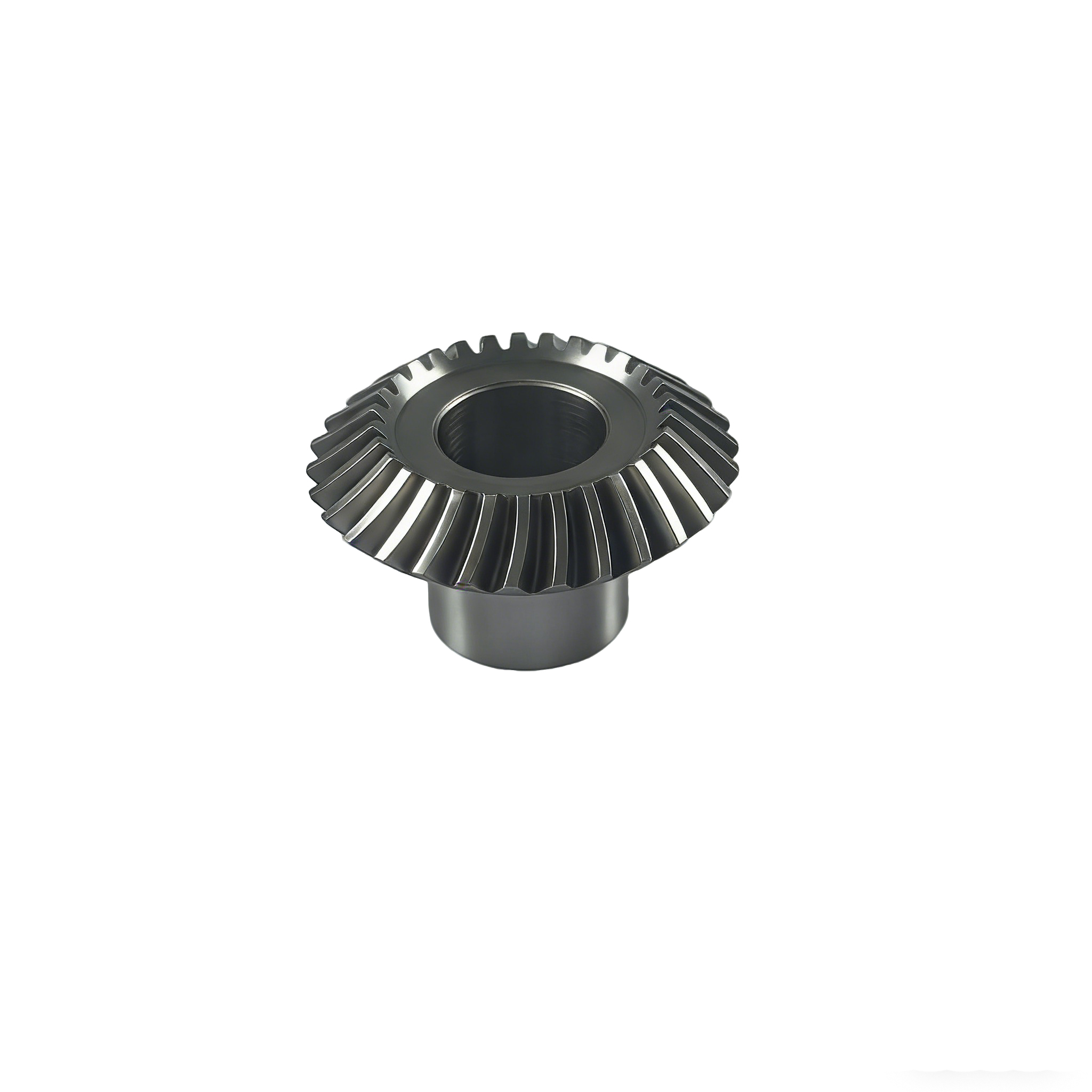

PMK-003-C 0° Spiral Bevel Gear, 20CrMo, module 1, 30 teeth left hand, precision ground, for high-speed drive in embroidery machines.
Description
Model: PMK-003-C (TE03A13401 Chuan-Type D-Shaft No.5 Transmission Gear, High Speed)
This is a 0° spiral bevel gear for embroidery machines and pattern sewing machines, made of 20CrMo alloy steel.
Parameters: pressure angle 20°, module 1, 30 teeth, helix angle 0° left hand, inner bore 12mm, shaft diameter 15mm, gear OD 31mm, total length 17.75mm, weight 0.0204kg.
Process: normalizing, turning, threaded hole machining, reaming, gear milling, heat treatment, shot blasting, reaming, outer diameter grinding.
With high precision and stable running, suitable for high-speed transmission in embroidery and pattern sewing machines.
Additional information
| weight |
0.0204 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Milling |
