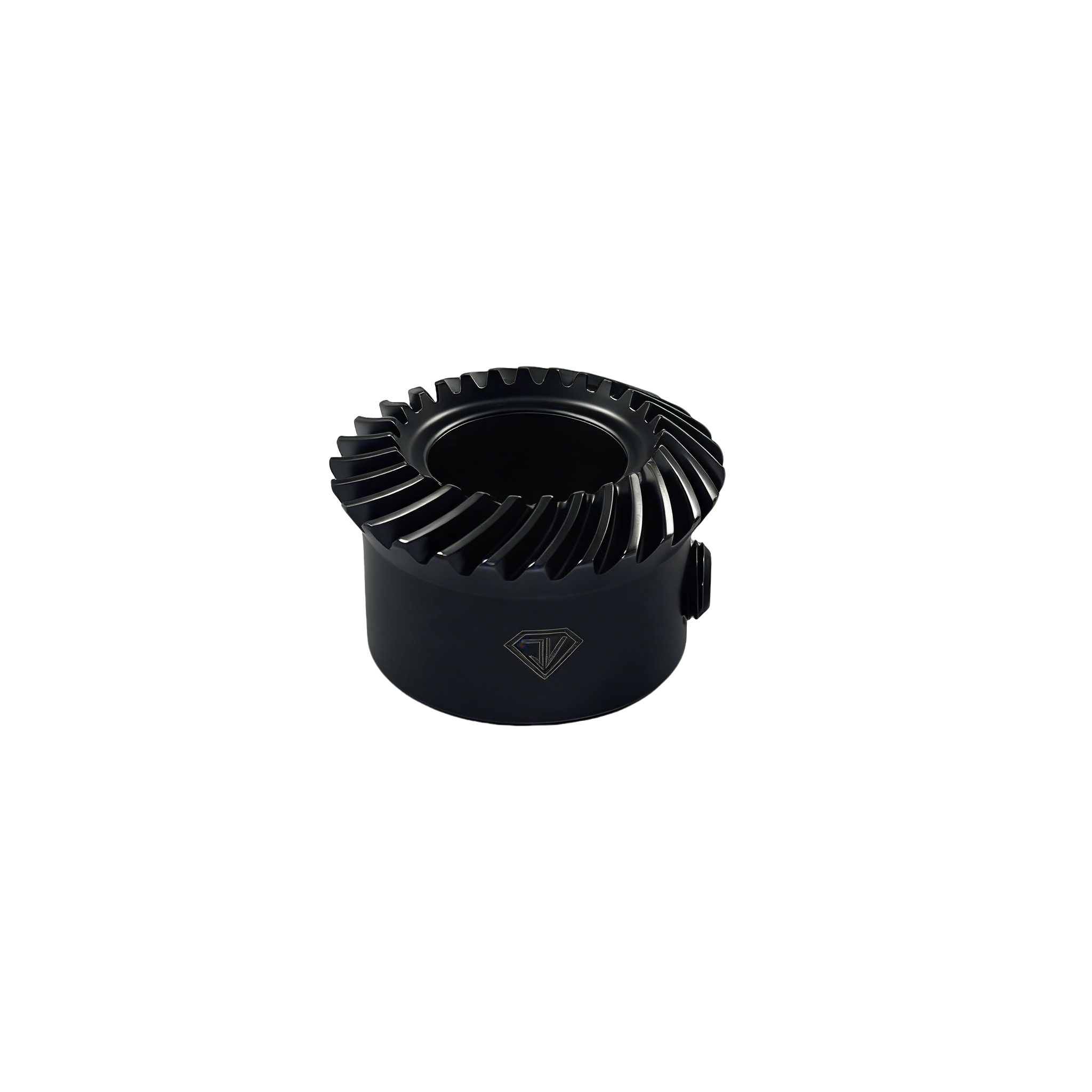

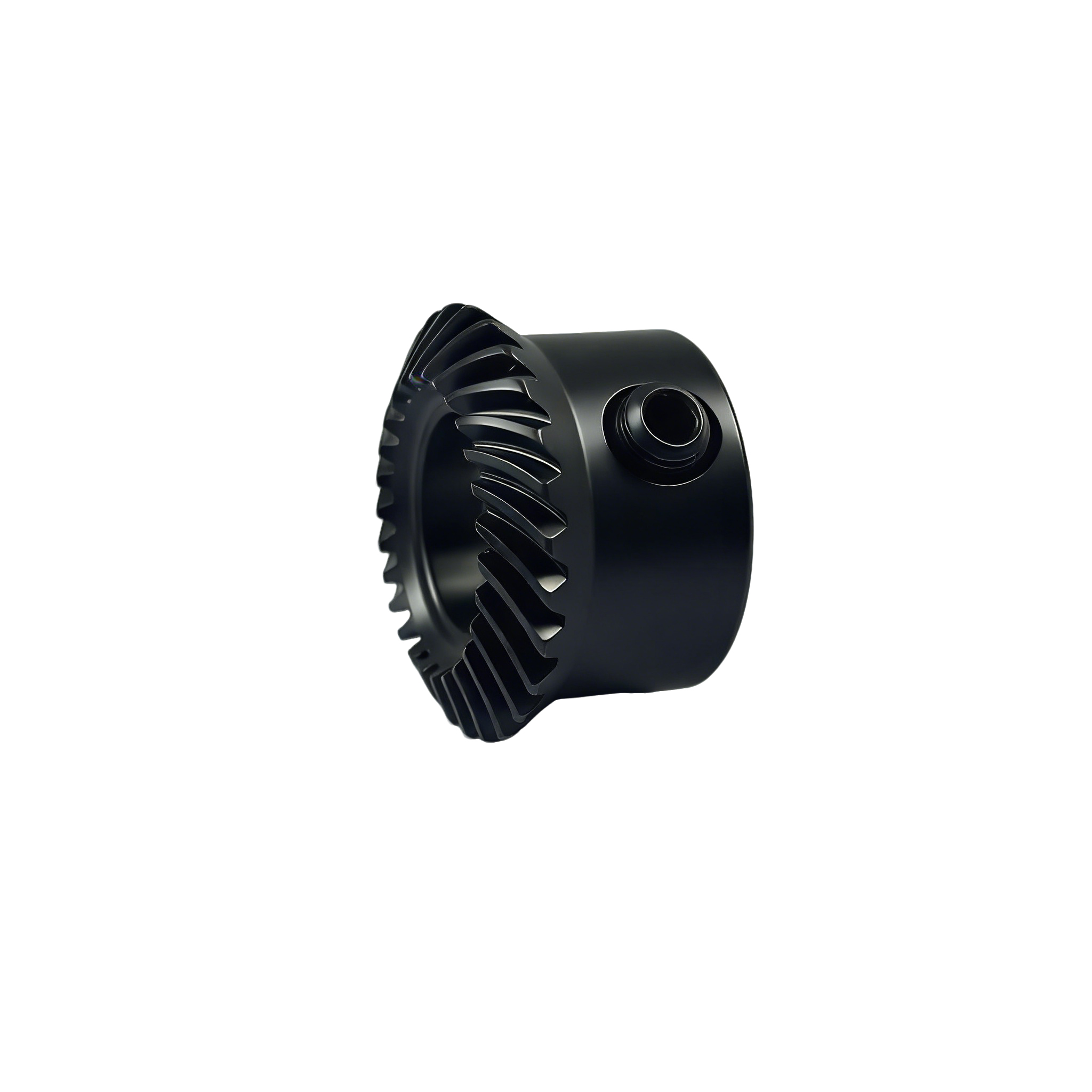

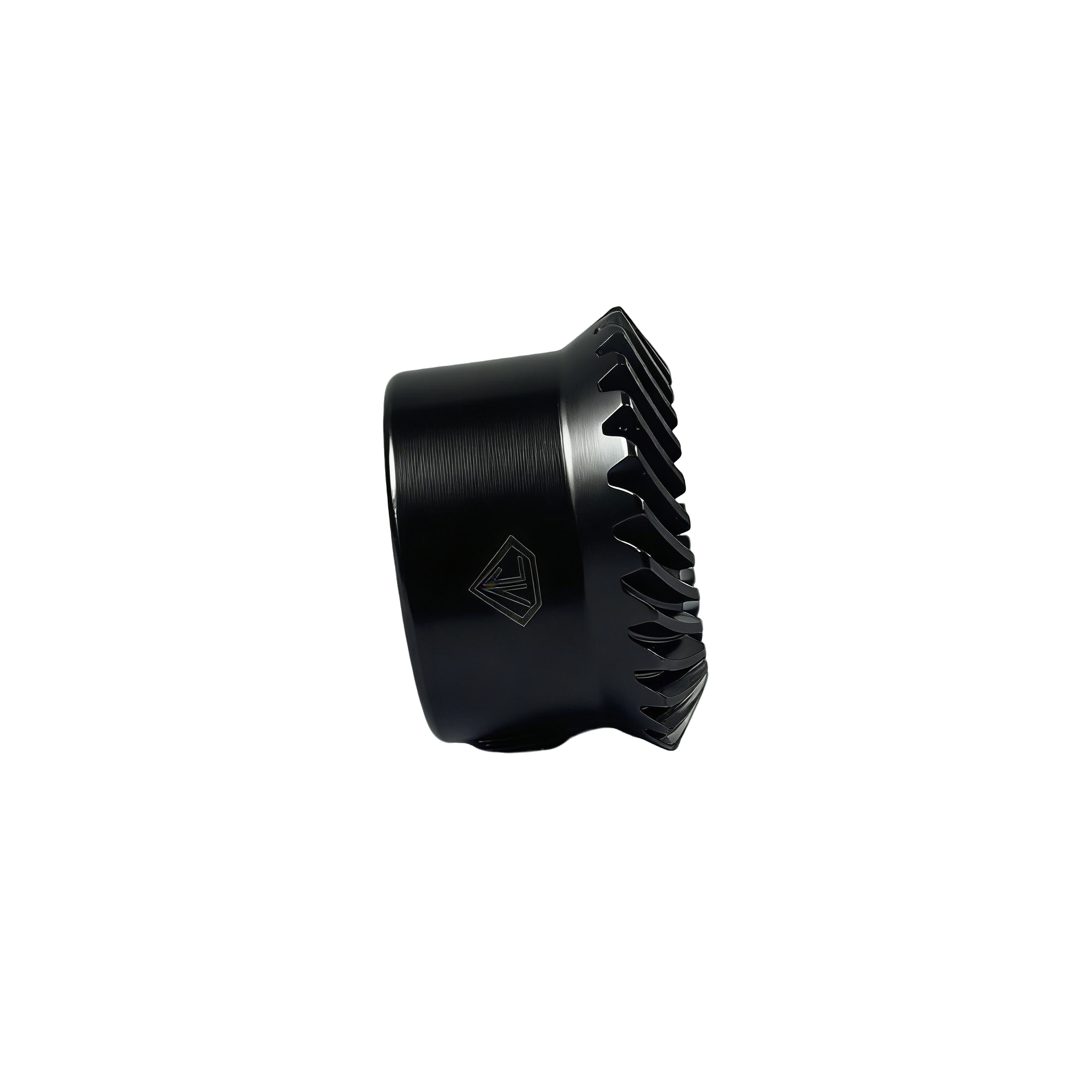

SL-001-C1 Spiral Bevel Gear (T27 Handwheel), 20CrMo, module 1.1, 27 teeth, 35° right hand, blackened & assembled, for sewing equipment.
Description
Model: SL-001-C1 (T27 Handwheel, Spiral Bevel Gear)
This is a spiral bevel gear for sewing equipment, made of 20CrMo alloy steel.
Parameters: pressure angle 20°, module 1.1, 27 teeth, helix angle 35° right hand, inner bore 14.73mm, gear OD 29.47mm, total length 18.5mm, weight 0.0426kg.
Process: sawing, turning, threaded hole machining, reaming, gear milling, heat treatment, shot blasting, blackening, marking, reaming, screw assembly.
With blackened surface and marking, high precision and stable transmission, used for handwheel drive in sewing equipment.
Additional information
| weight |
0.0426 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Milling |
