TE03A122011 Type D-Shaft No.4 Transmission Gear
$0.98piece

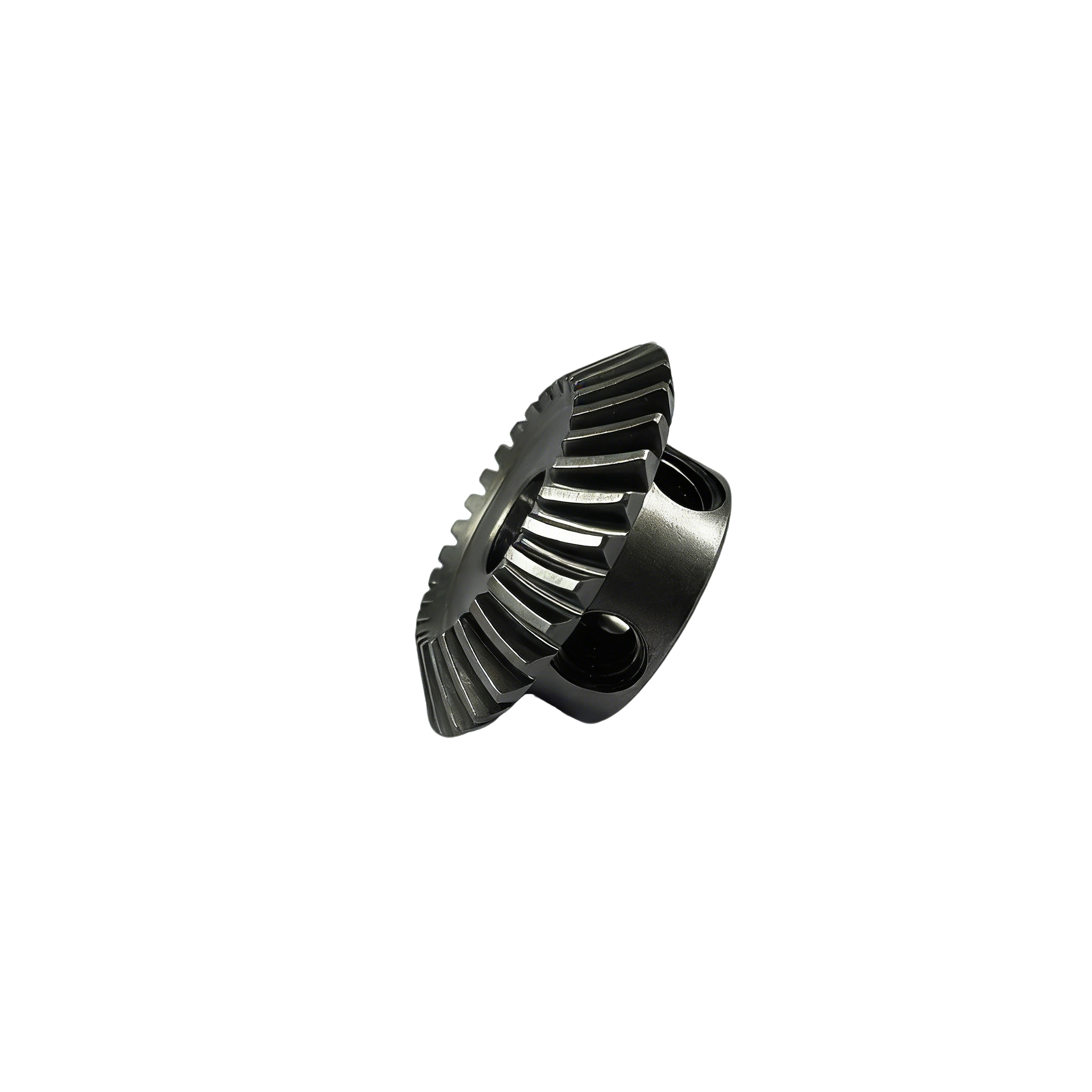

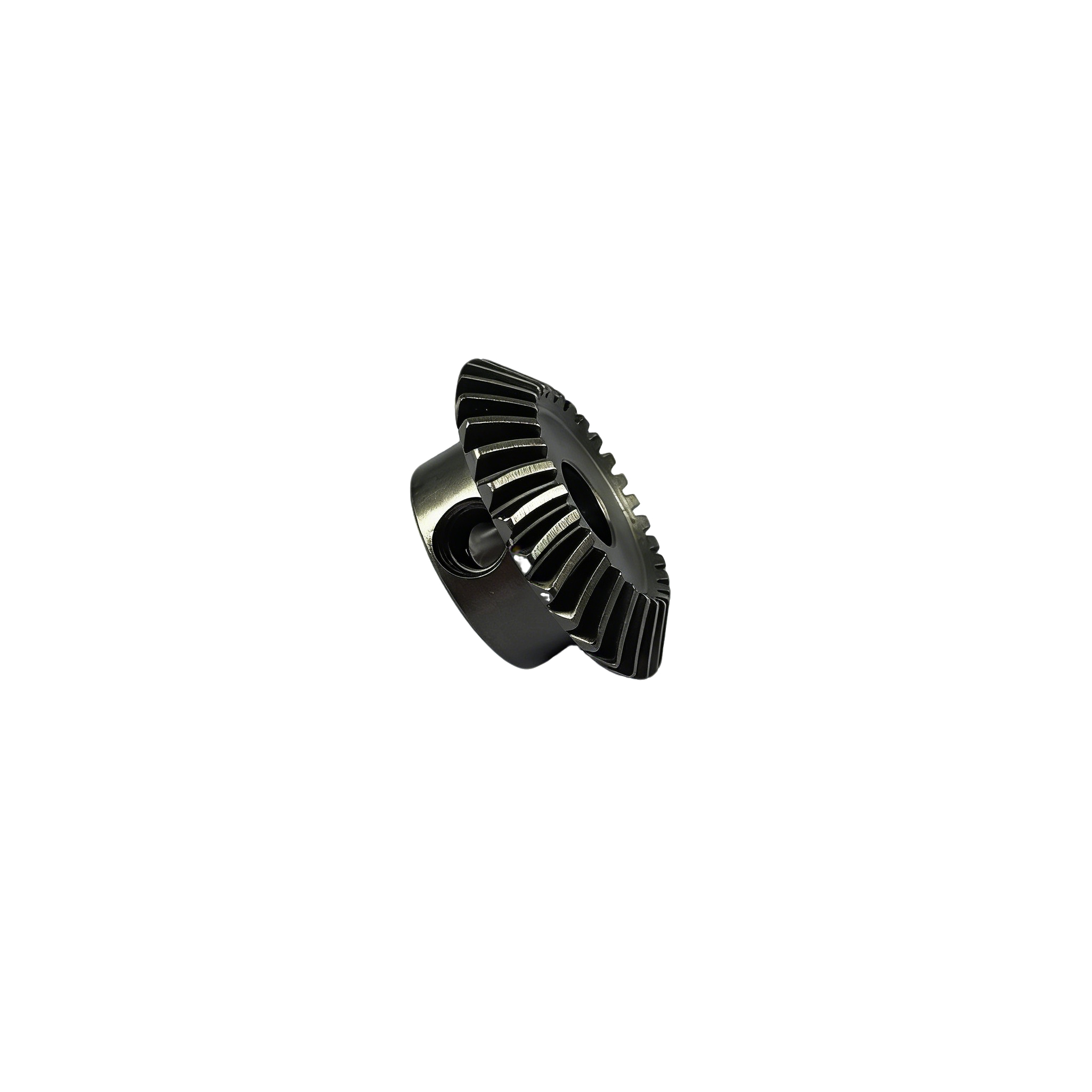

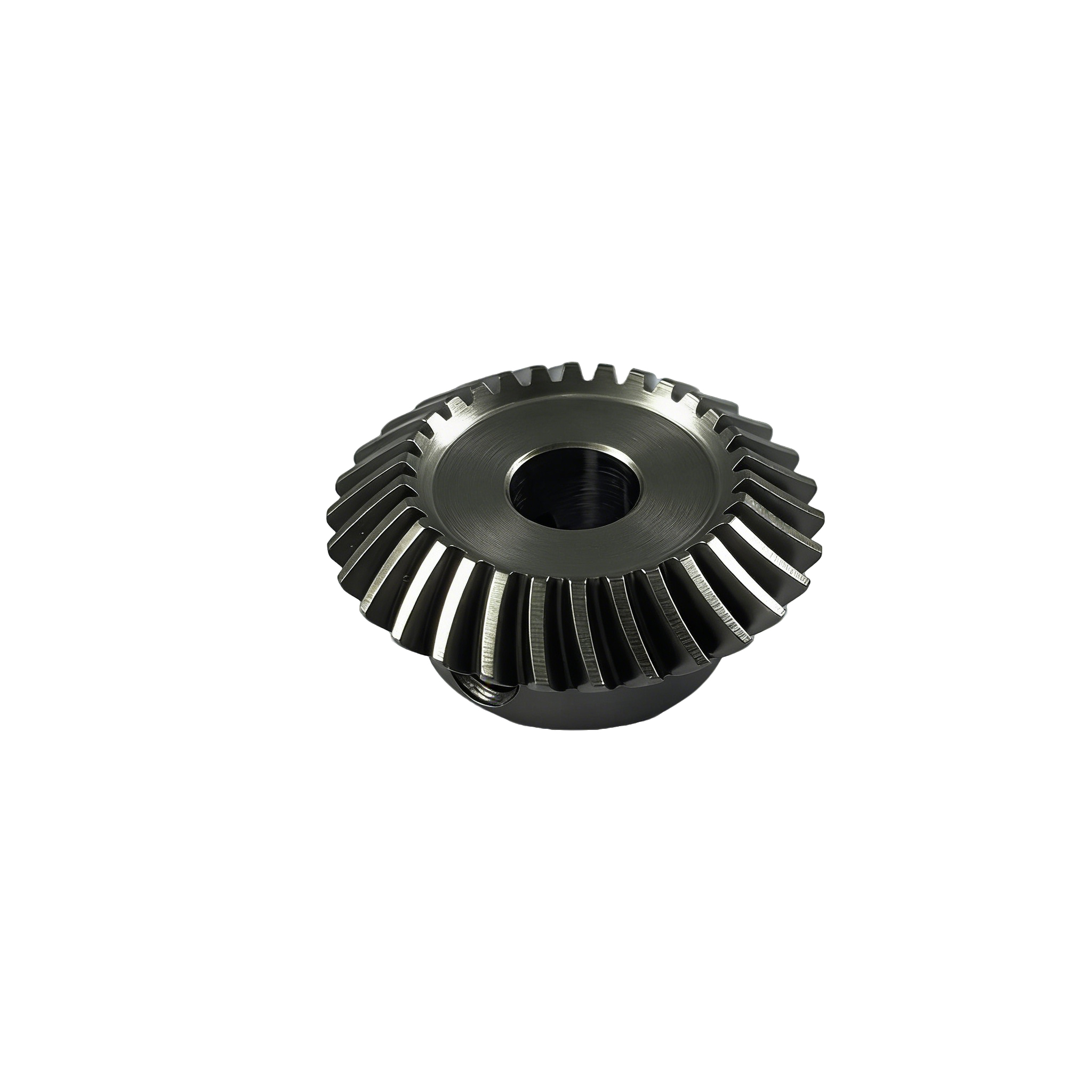

PMK-005-C 0° Spiral Bevel Gear, 20CrMo, module 1, 30 teeth right hand, capped finish, for embroidery machine drive.
Description
Model: PMK-005-C (TE03A122011 Type D-Shaft No.4 Transmission Gear)
This is a 0° spiral bevel gear for embroidery machines and pattern sewing machines, made of 20CrMo alloy steel.
Parameters: pressure angle 20°, module 1, 30 teeth, helix angle 0° right hand, inner bore 8mm, shaft diameter 20mm, gear OD 31mm, total length 14.25mm, weight 0.0318kg.
Process: sawing, turning, threaded hole machining, reaming, gear milling, heat treatment, shot blasting, reaming, capping.
With precise dimension and stable transmission, suitable for embroidery and pattern sewing machines.
Additional information
| weight |
0.0318 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Milling |
