SA6108001 Hand Wheel Gear for Template Sewing Machine, Middle 15, Left
$1.12piece

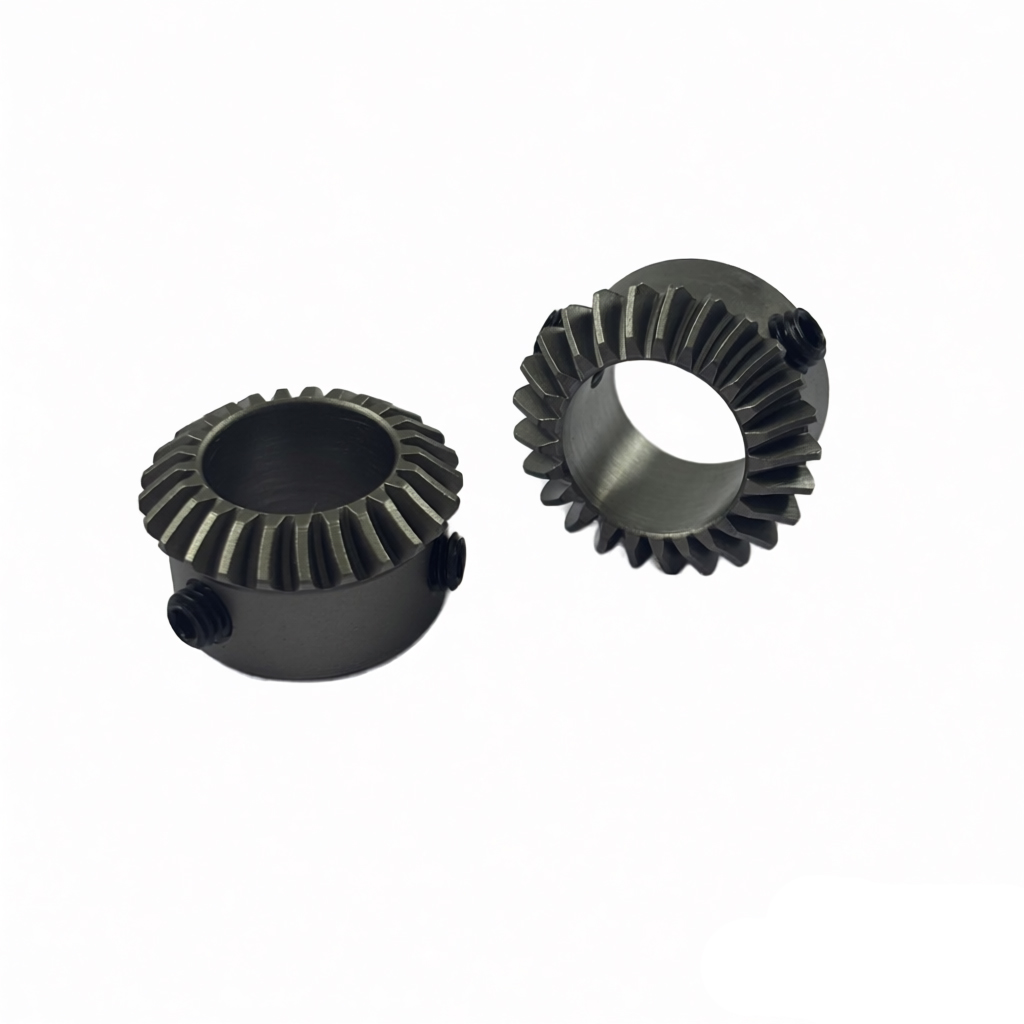

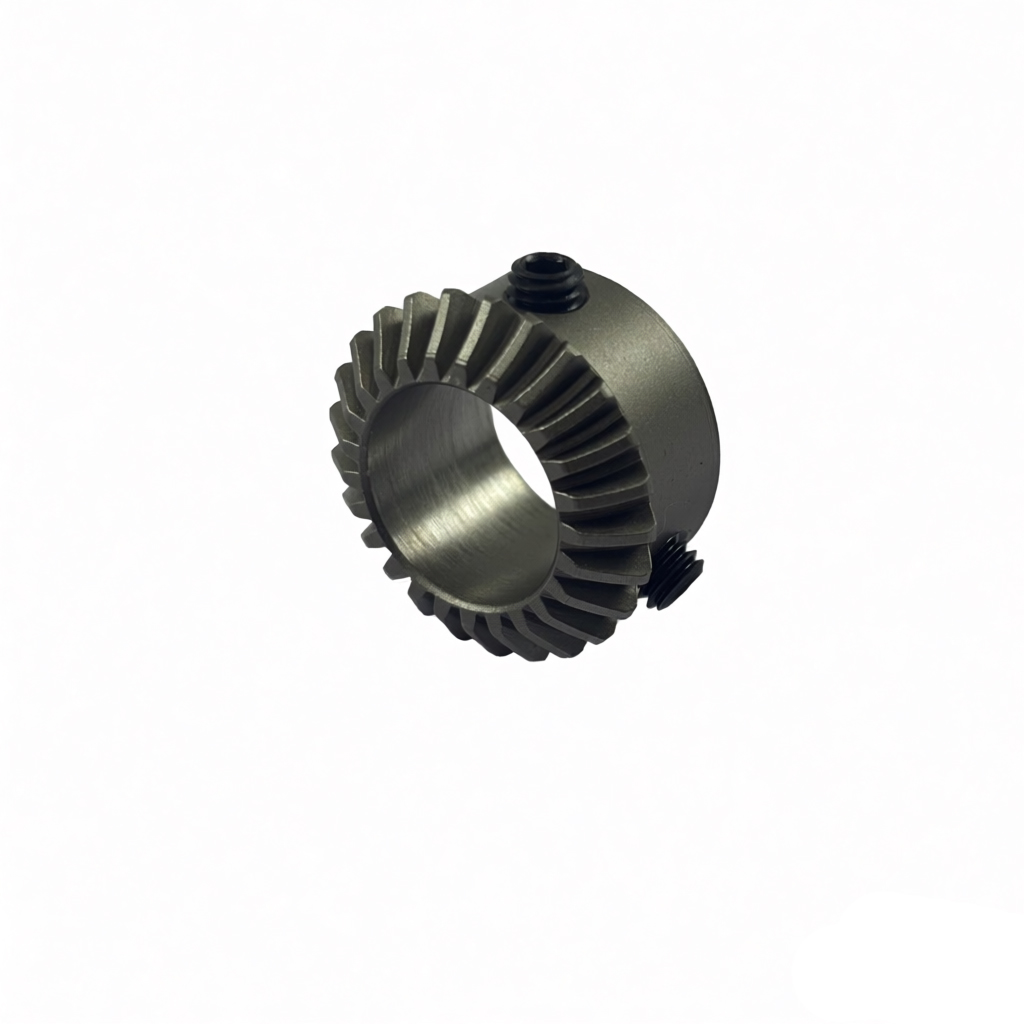

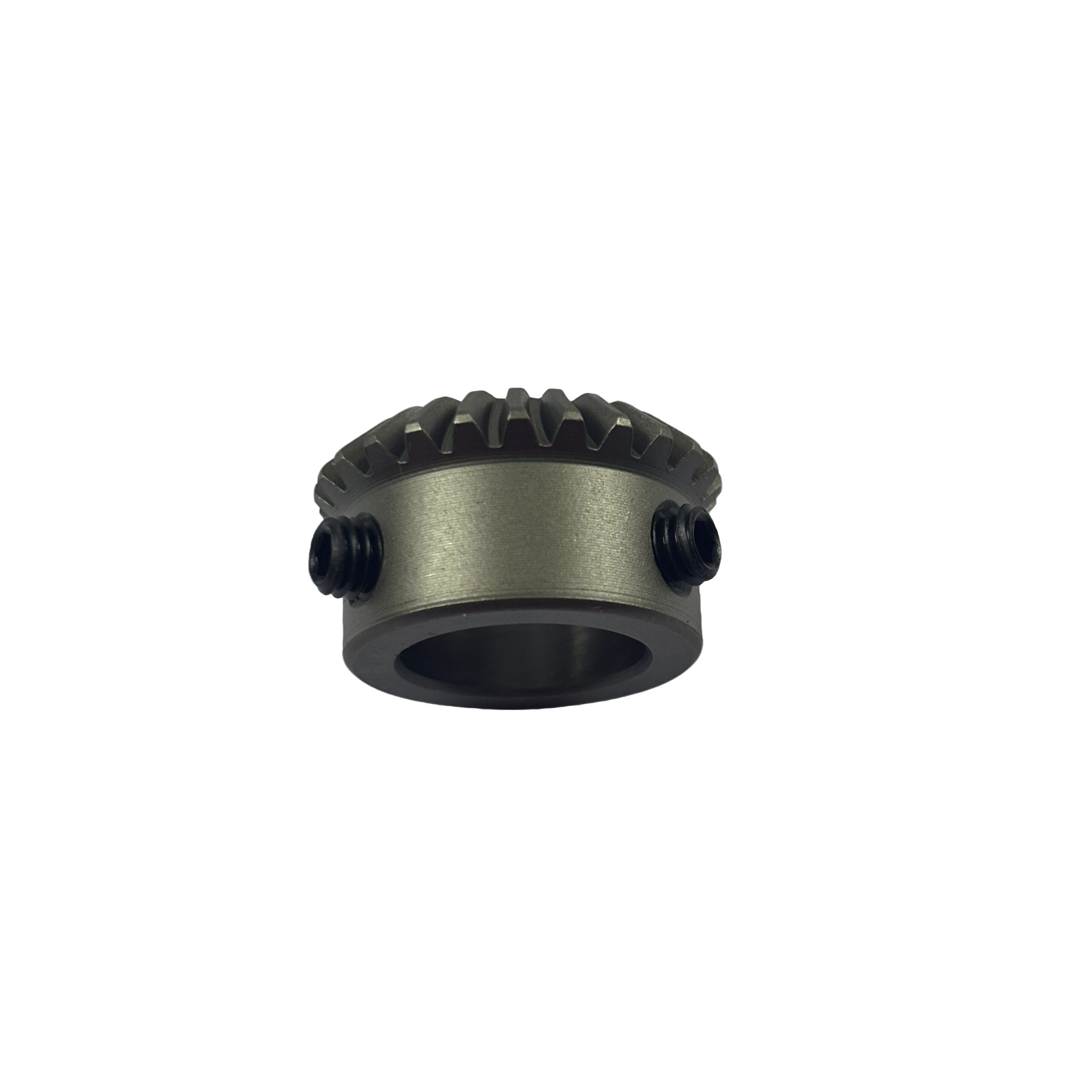

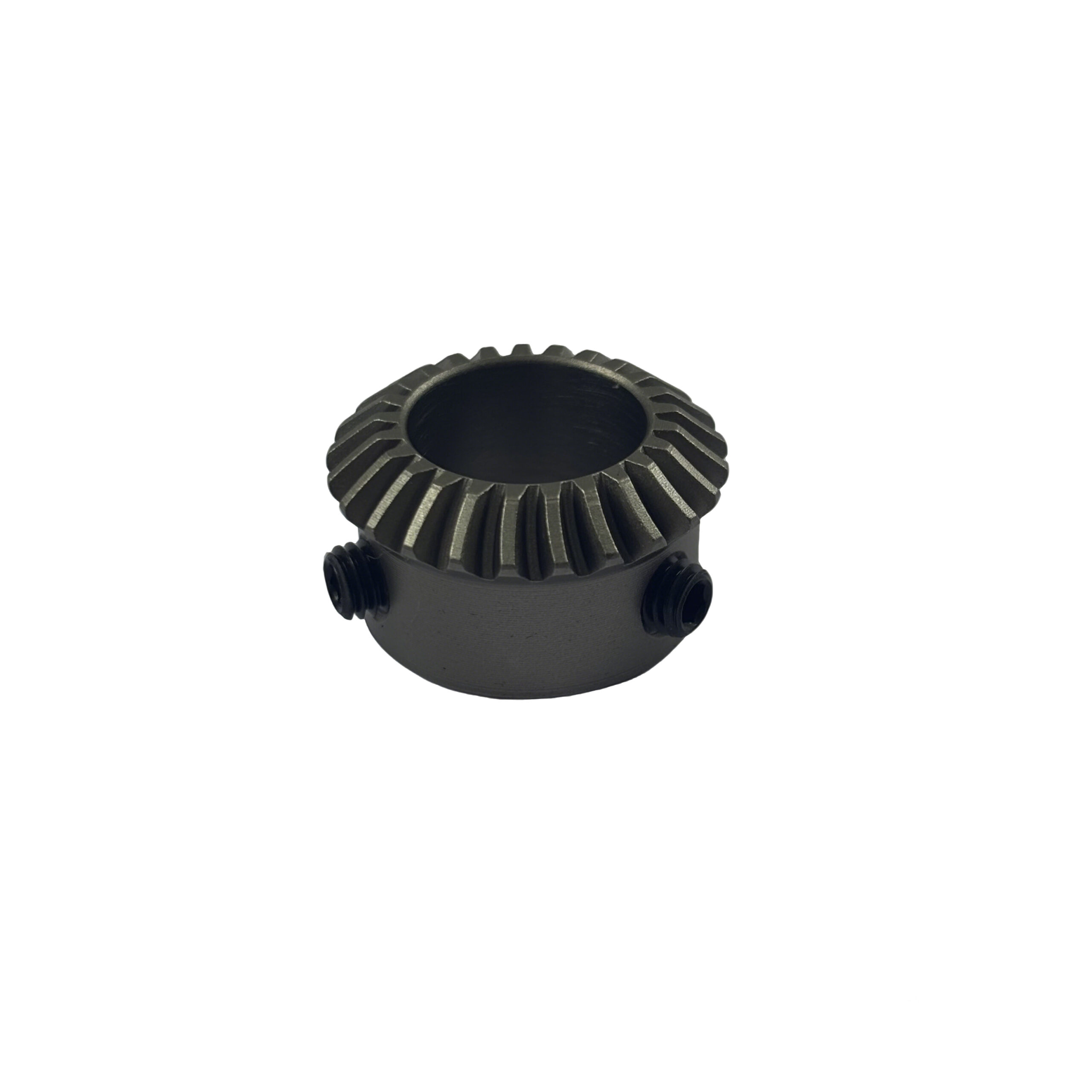

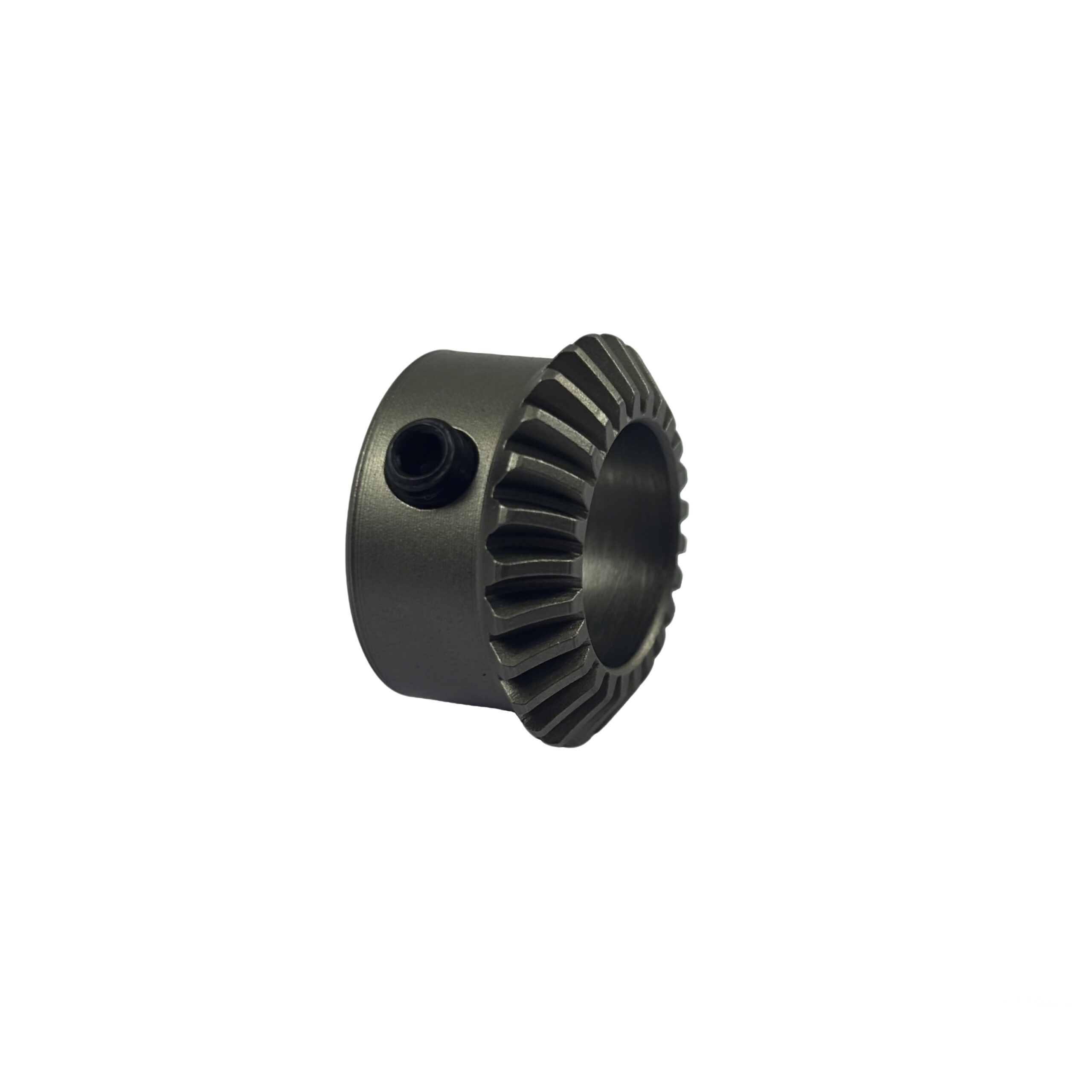

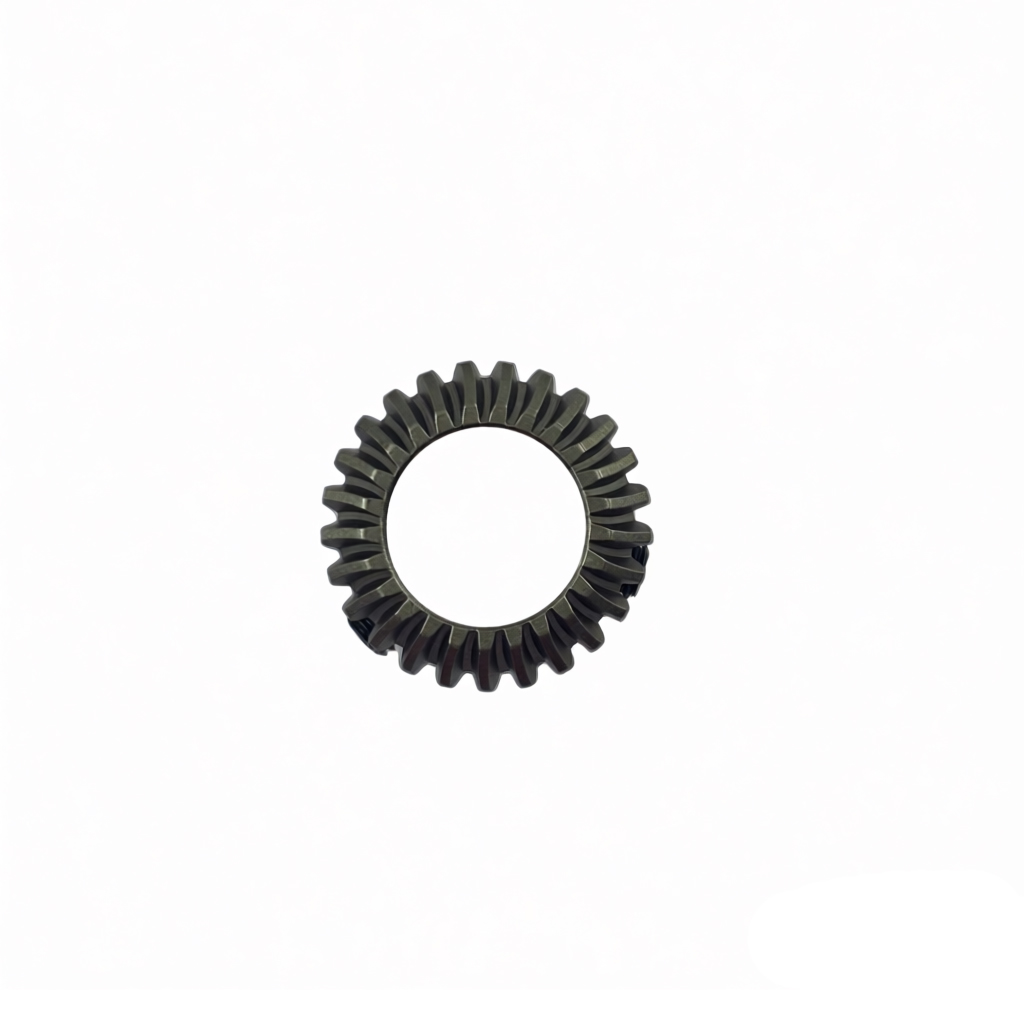

HYJ-001-C1 Spiral Bevel Gear, 20CrMo, module 1, 25 teeth, bore 15mm, assembled, for embroidery / pattern sewing machines.
Description
This is a 0° spiral bevel gear for embroidery machines / pattern sewing machines, made of 20CrMo alloy steel.
Parameters: pressure angle 20°, module 1, 25 teeth, helix angle 0°, inner bore 15mm, gear OD 25.5mm, total length 14.3mm, weight 0.0175kg.
Process: normalizing, turning, threaded hole machining, reaming, gear milling, heat treatment, shot blasting, reaming, screw assembly.
With high precision and stable transmission, it is specially used for handwheel drive of template machines, embroidery machines and pattern machines.
Additional information
| weight |
0.0175 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Milling |
