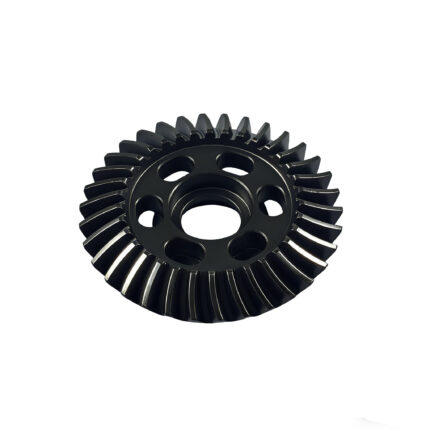

KA09107 Large Bevel Gear 34T
$9.24piece
T18 Handwheel (0° Straight Tooth)
$0.98piece
0° straight tooth handwheel, middle 7.94, right-hand
$1.12piece

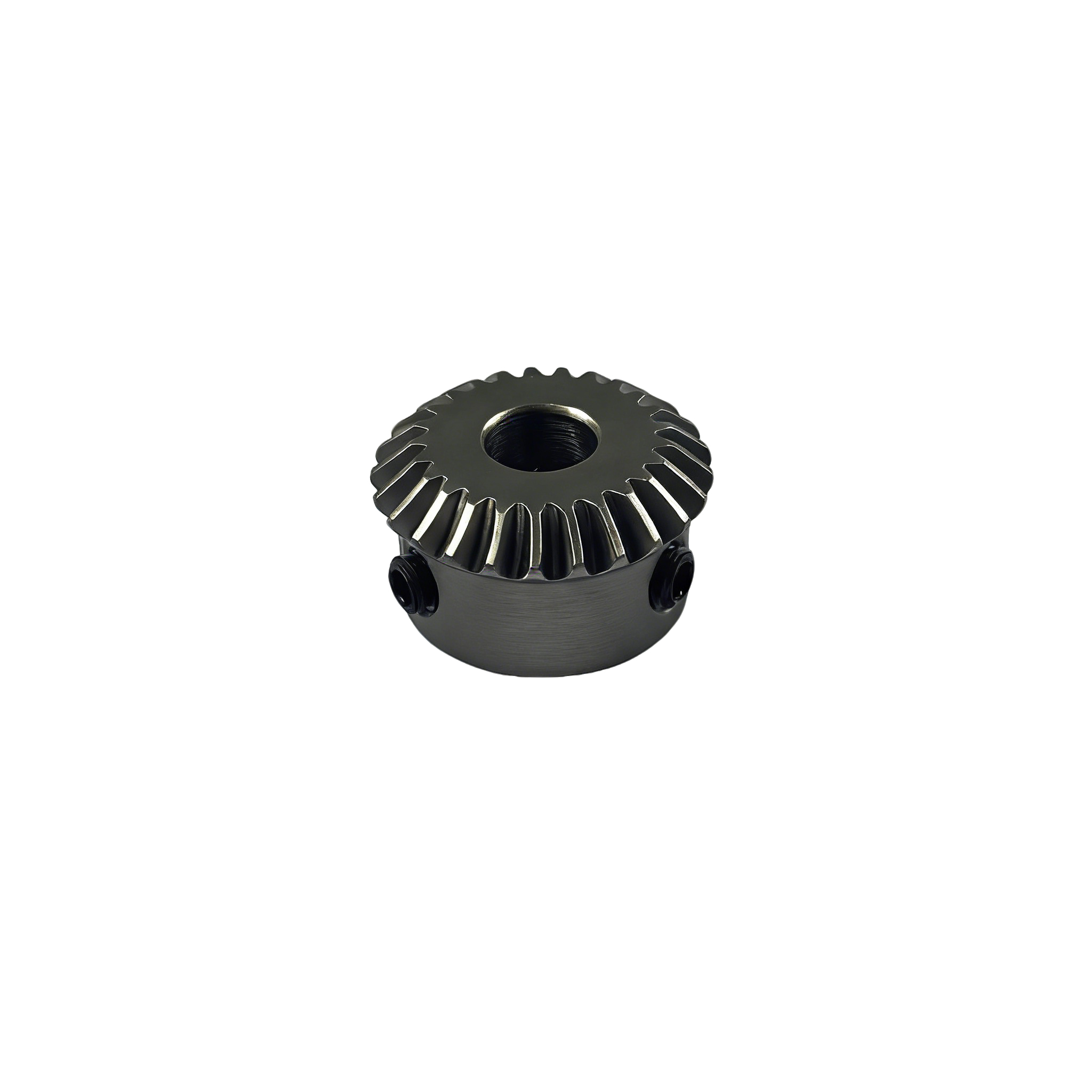

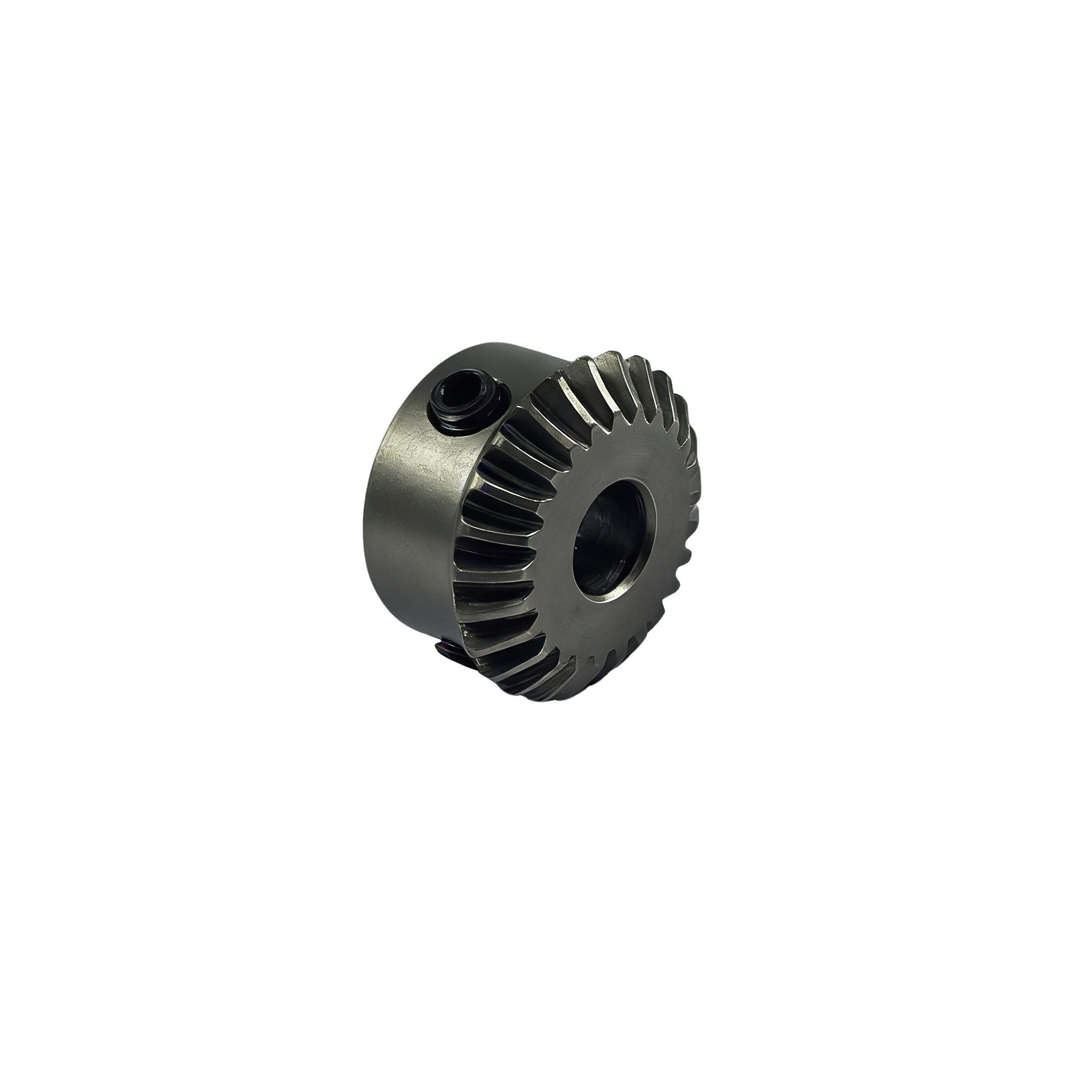

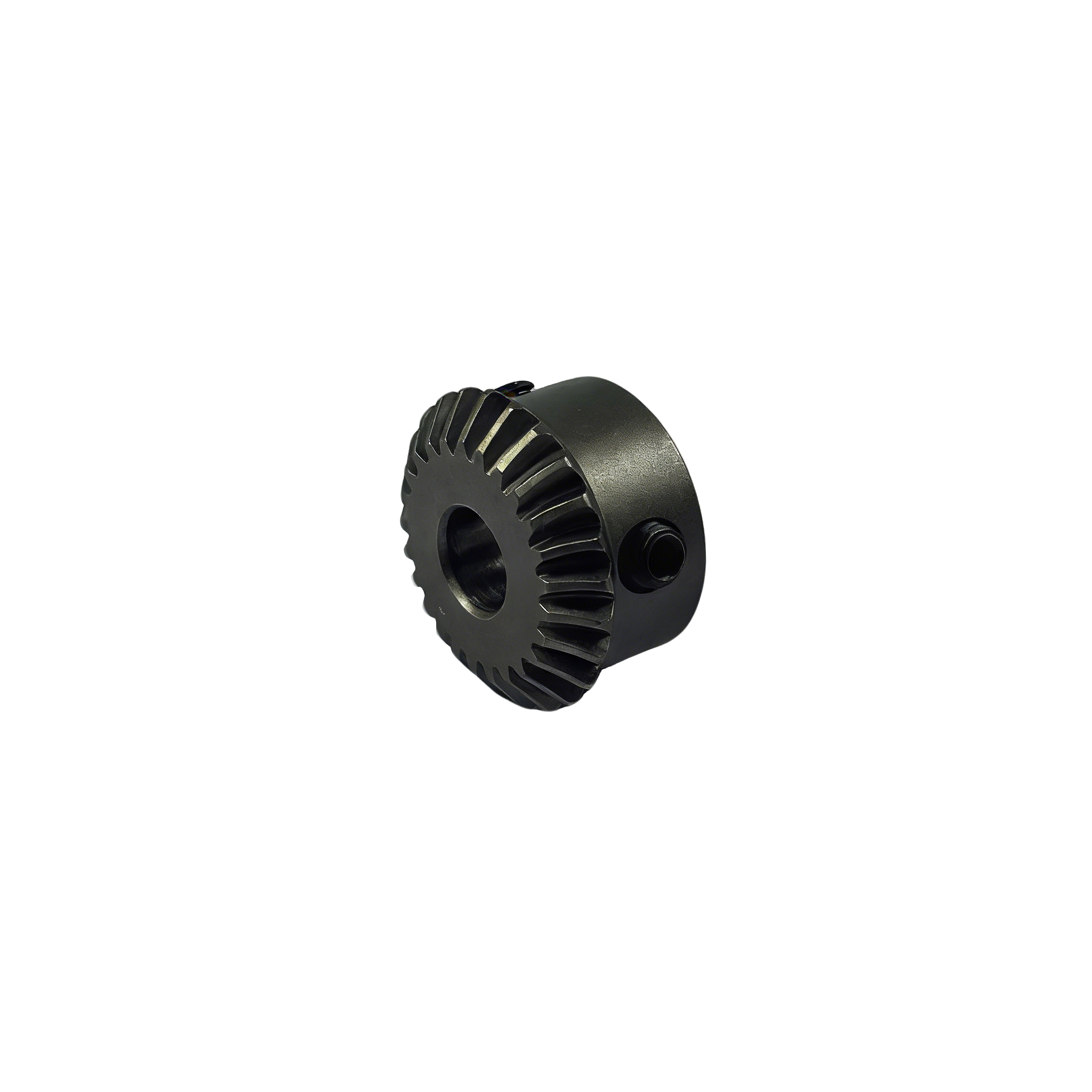

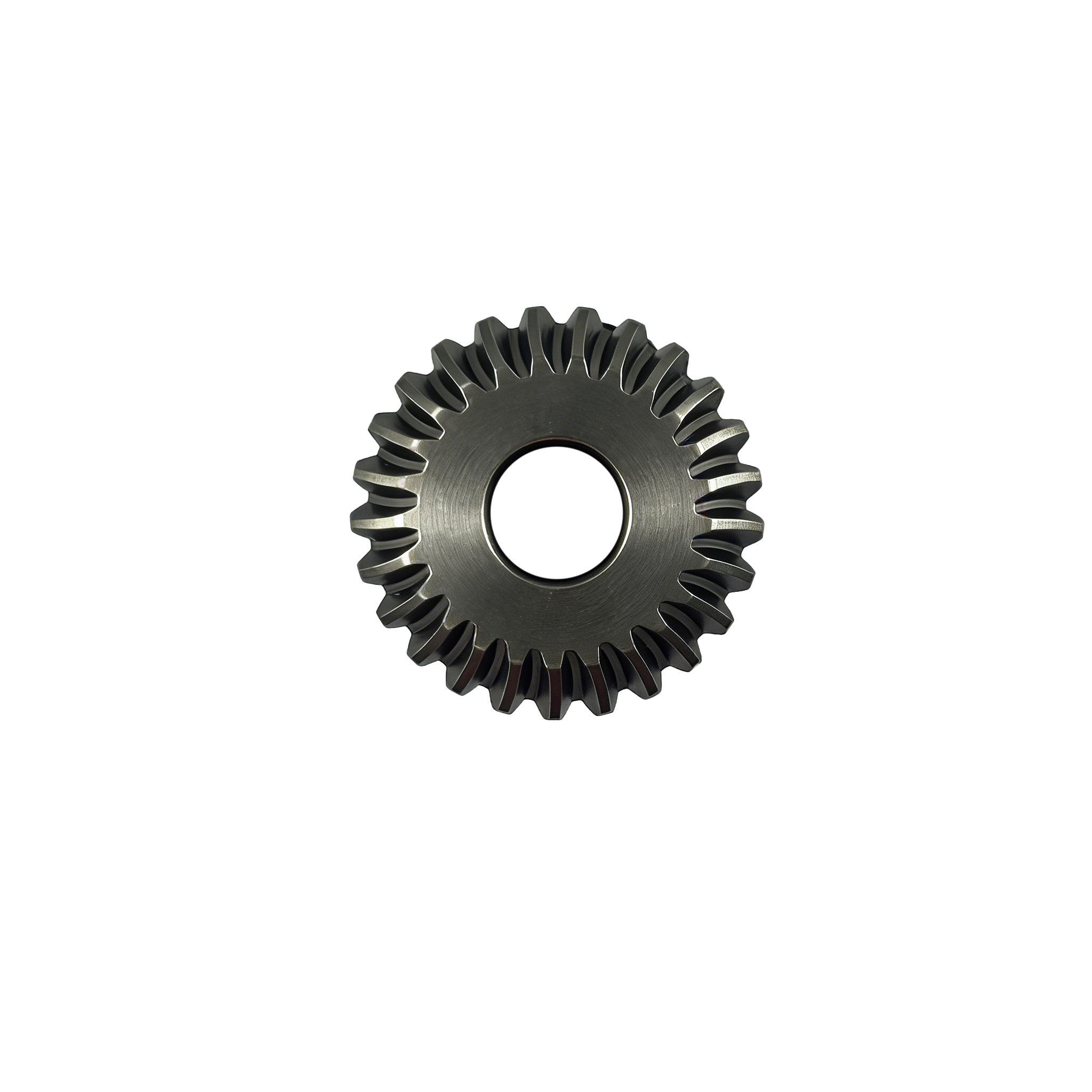

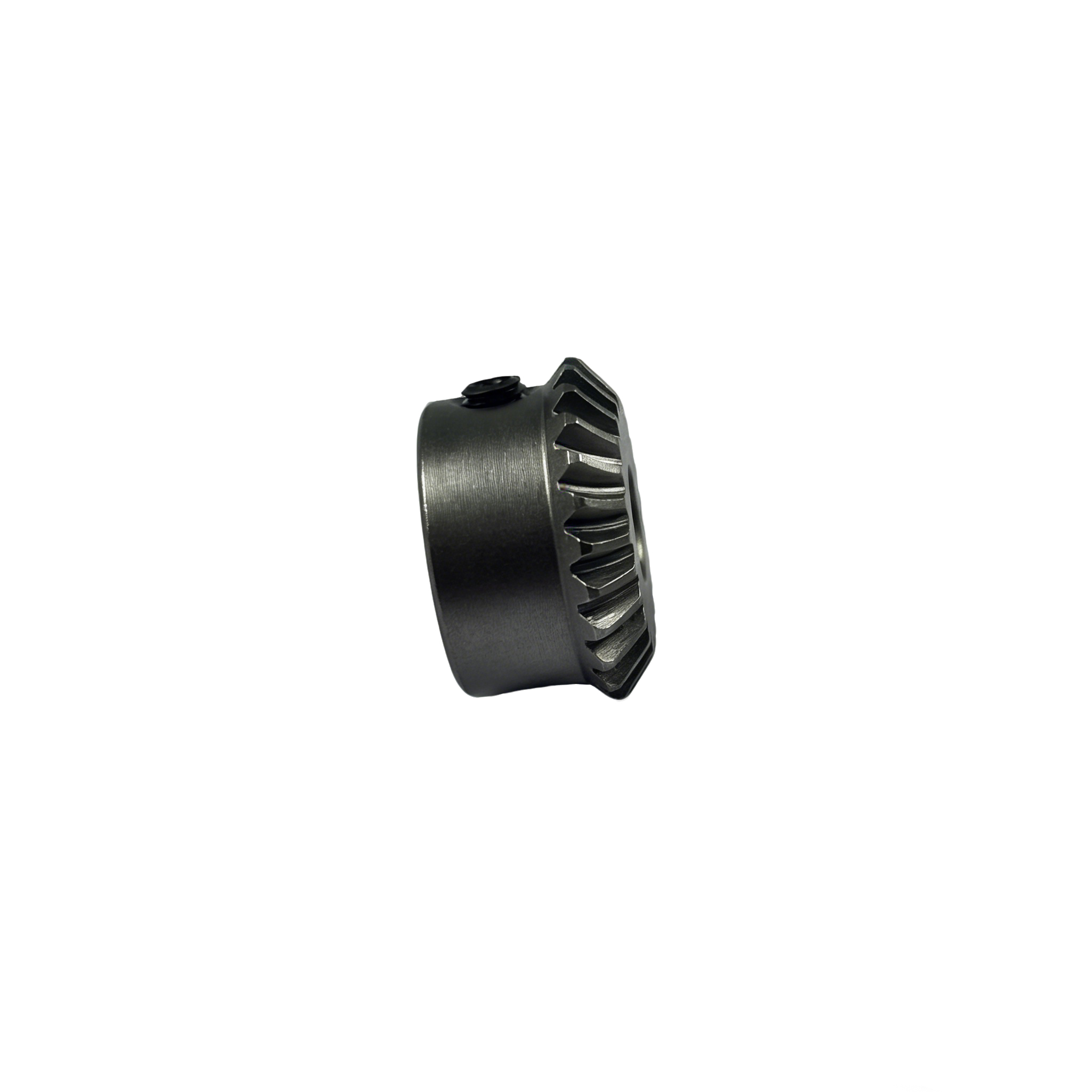

MBJ-001-C2 0° Spiral Bevel Gear, 20CrMo, module 1, 25 teeth, 15mm bore right-hand, assembled, for sewing equipment.
Description
Model: MBJ-001-C2 (0° Straight Tooth Handwheel, Middle 7.94, Right-hand)
This is a 0° spiral bevel gear for sewing equipment, made of 20CrMo alloy steel.
Parameters: pressure angle 20°, module 1, 25 teeth, helix angle 0° right-hand, inner bore 15mm, gear OD 25.5mm, total length 14.3mm, weight 0.0353kg.
Process: normalizing, turning, threaded hole machining, reaming, gear milling, heat treatment, shot blasting, reaming, screw assembly.
With high assembly precision and stable transmission, it is suitable for handwheel drive of sewing equipment.
Additional information
| weight |
0.0353 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Milling |
